RF / Micro Wave Connectors
BNC-JR

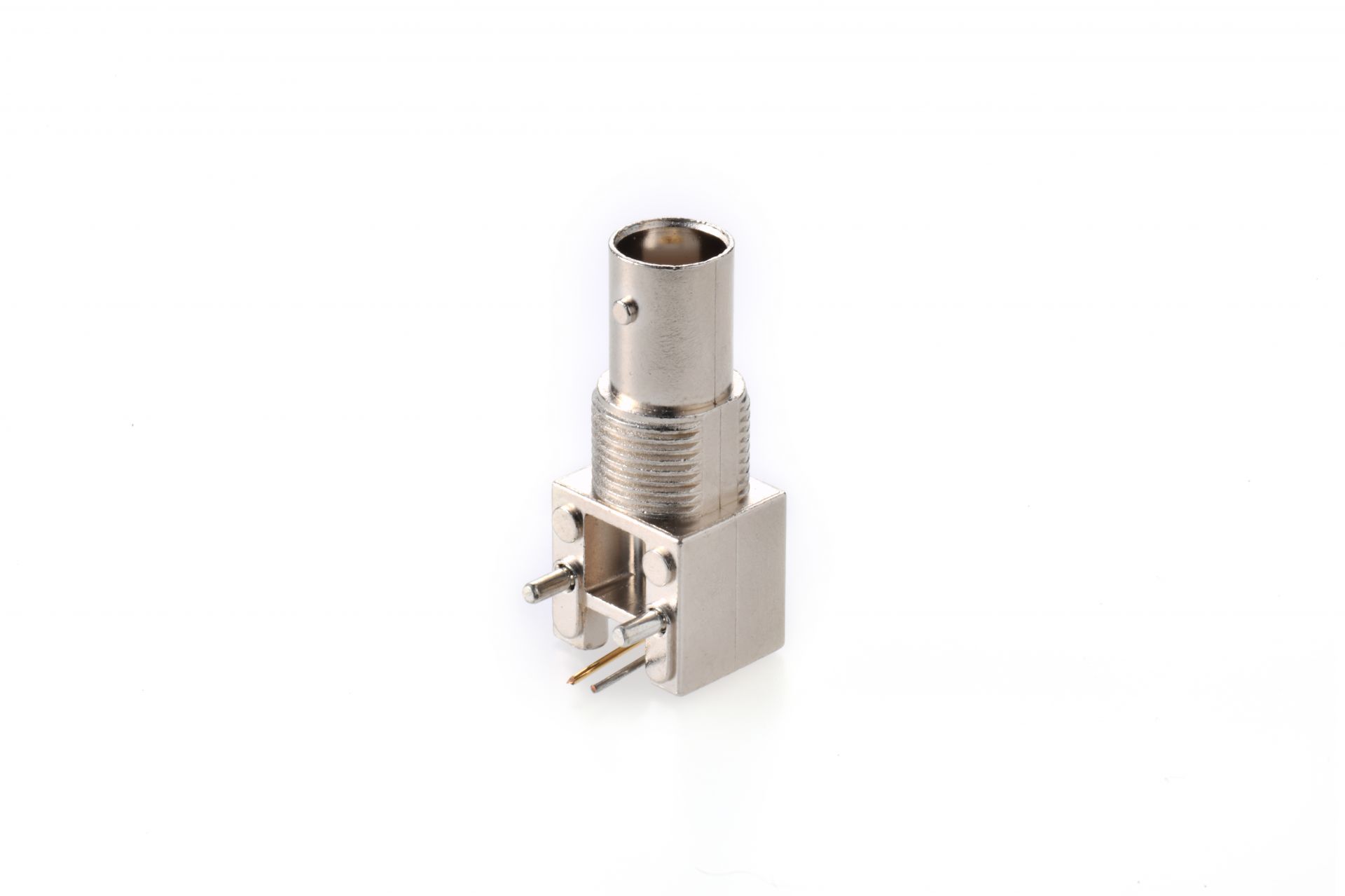

BNC JACK DIP 90°
-
BNC
-
JR
-
M(1)
-
15(2)
-
75(3)
-
W(4)
-
BK(5)
-
H(6)
Description
-
(1) M:FULL METAL BODY
-
(2) 11:HEIGHT 11.9mm
12:HEIGHT 12.6mm
13:HEIGHT 13.16mm
15:HEIGHT 15.8mm
2X01,2X02:NO. OF PORT -
(3) 50:50 OHM
75:75 OHM -

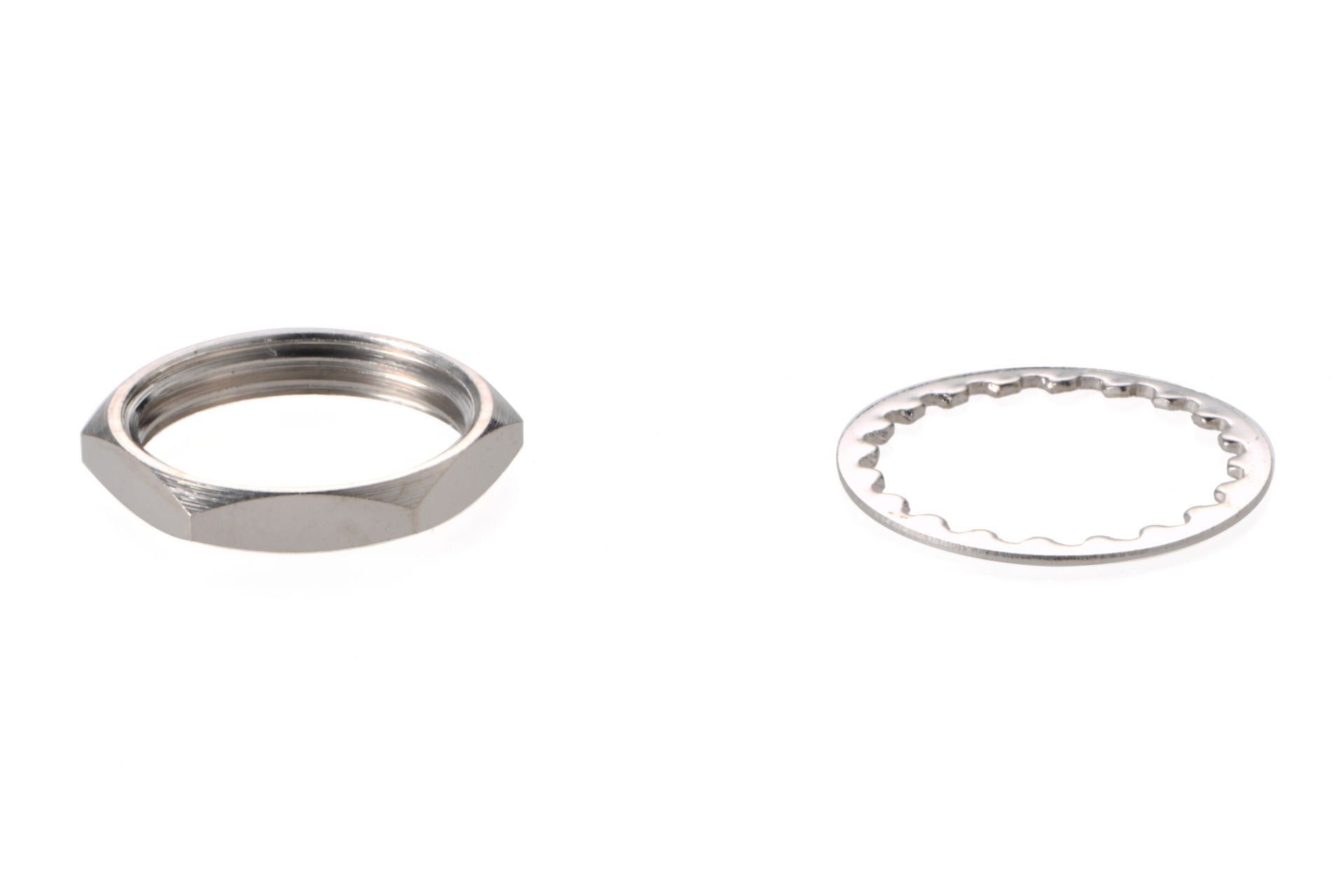

(4) W:WITH WASHER AND NUT
X:WITHOUT WASHER AND NUT -

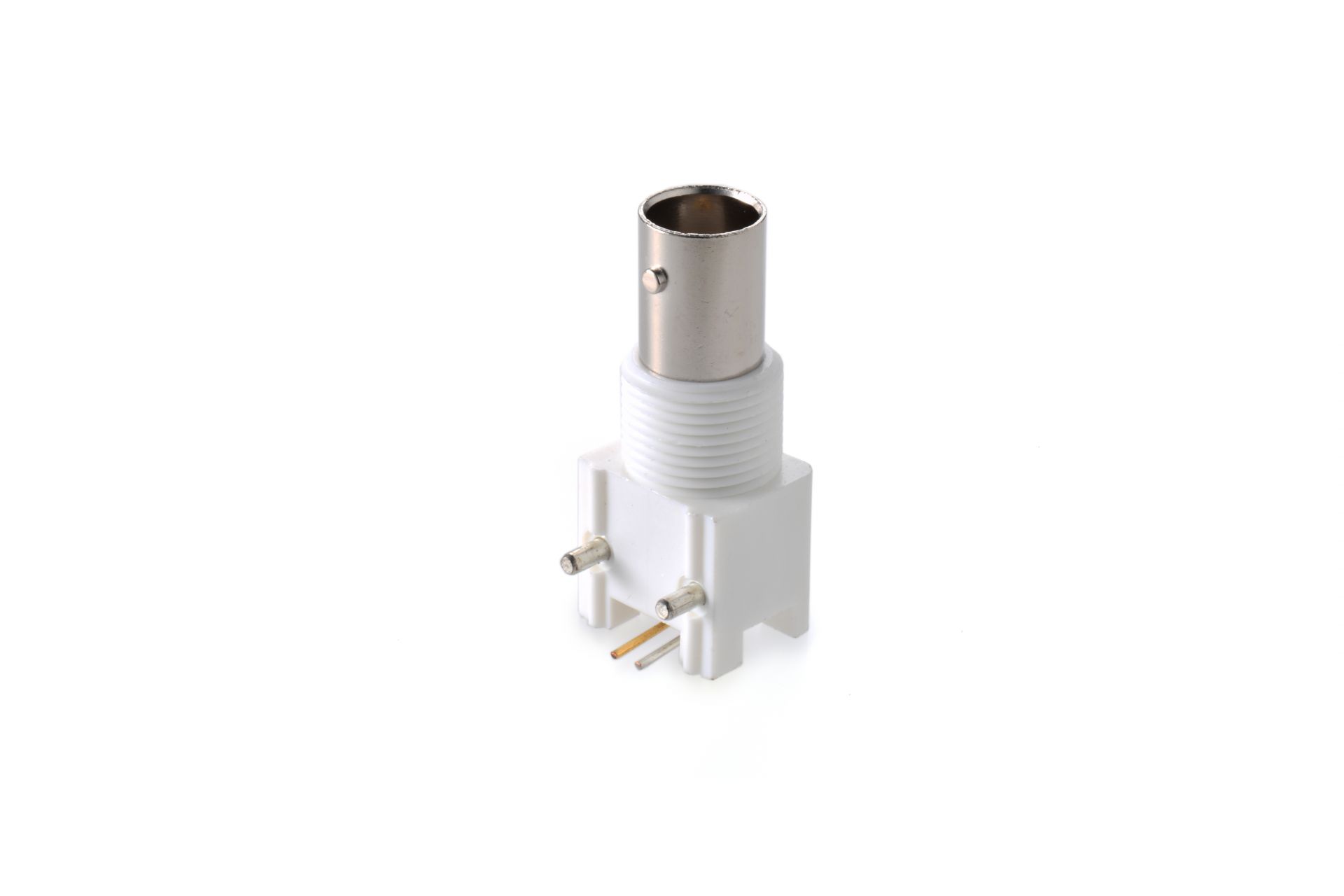

(5) BLANK:INSULATOR COLOR WHITE
BK:INSULATOR COLOR BLACK -
(6) RoHS
INQUIRY
DOWNLOADDOWNLOAD
| PART NUMBER | SIZE | FILE TYPE | DRAWINGS | |
|---|---|---|---|---|
| BNC-JRM1275X-H | 74KB |
|
||
| BNC-JRM1275W-H | 79KB |
|
||
| BNC-JRM1250X-H | 75KB |
|
||
| BNC-JRM1250W-H | 82KB |
|
||
| BNC-JR1150W-H | 80KB |
|
||
| BNC-JR-2X01-75W-XX-H | 298KB |
|
||
| BNC-JR-2X01-50W-H | 119KB |
|
||
| BNC-JD1550W-XX-H | 271KB |
|
||
| BNC-JD1575W-XX-H | 272KB |
|
||
| BNC-JR1575X-H | 140KB |
|
||
| BNC-JR1250W-H | 80KB |
|
||
| BNC-JD1575X-XX-H | 89KB |
|
||
| BNC-JD1375W-XX-H | 92KB |
|
||
| BNC-JD1350X-XX-H | 97KB |
|
||
| BNC-JRM-2X01-75X-H | 283KB |
|
||
| BNC-JR-2X01-50X-H | 113KB |
|
||
| BNC-JR-2X01-75X-XX-H | 295KB |
|
||
| BNC-JR-2X02-75W-H | 302KB |
|
||
| BNC-JR-2X02-75X-H | 298KB |
|
