HDMI Connectors

CDM19S

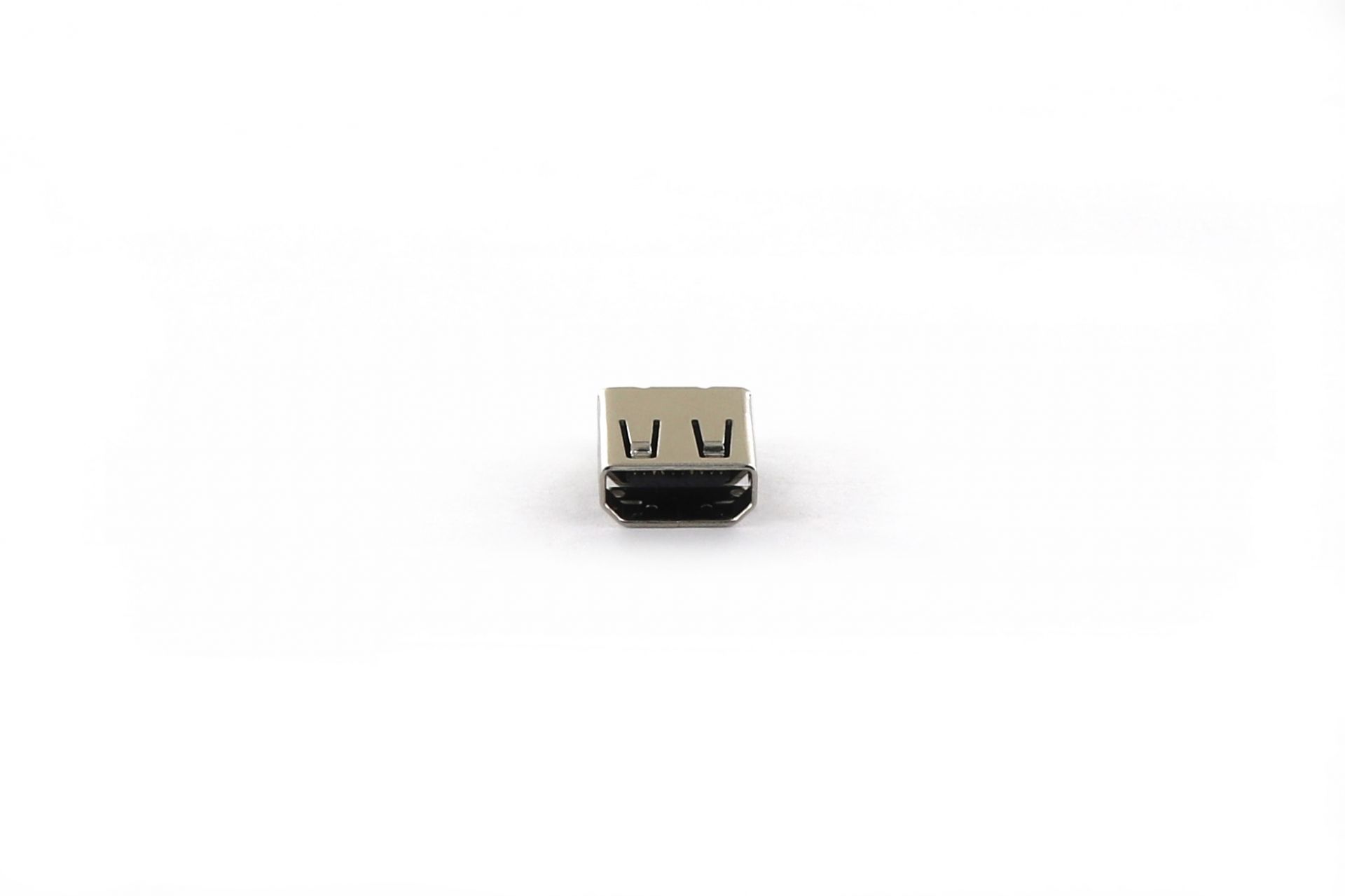

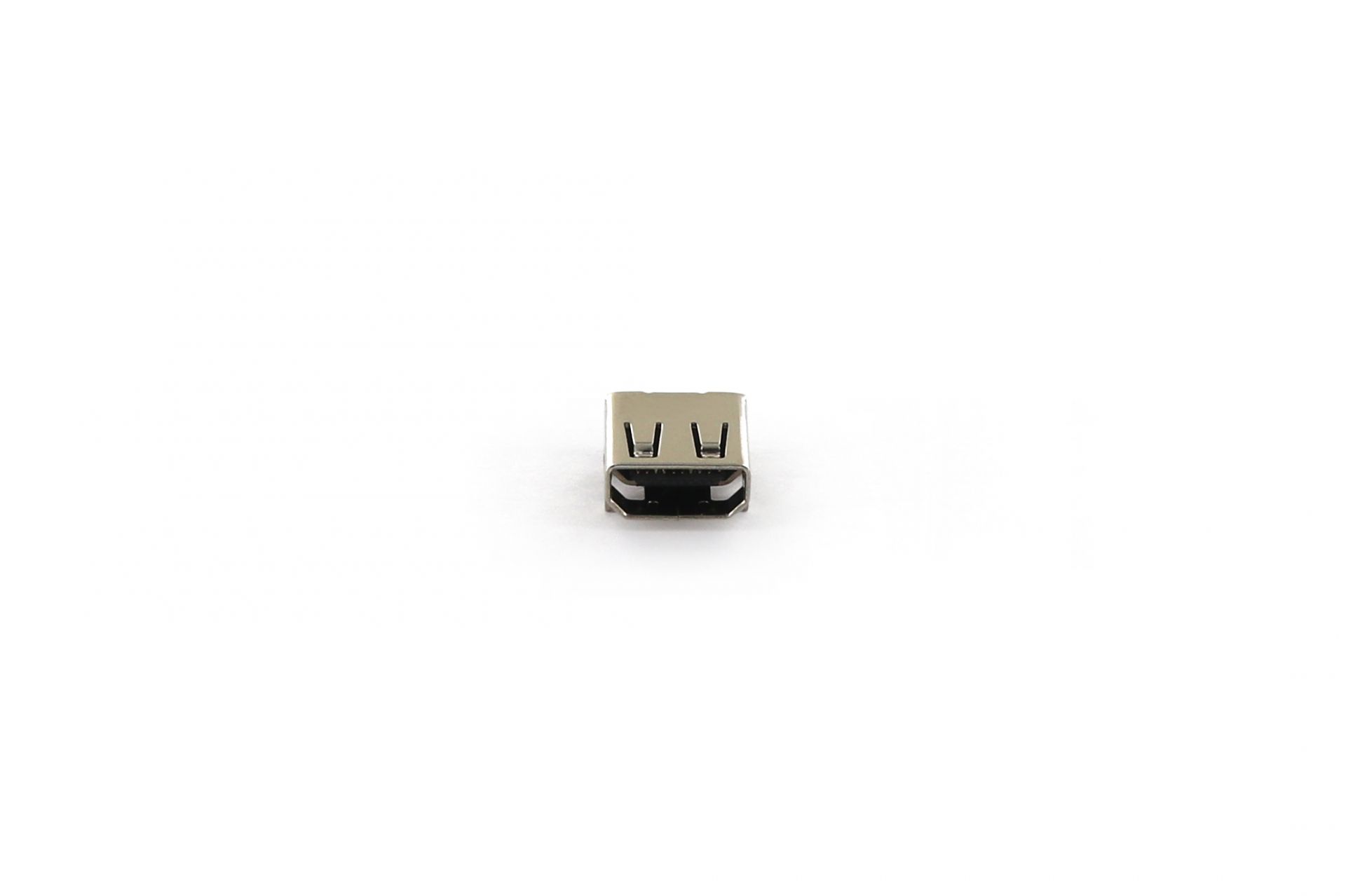

HDMI D TYPE FEMALE
  • CDM19SW

  •
    4
    (1)
  •
    L
    (2)
  •
    X
    (3)
  •
    H
    (4)
  •

Description

  • (1) Blank:Without SHELL TABS
         2:2 SHELL TABS:DIP/SMT
         4:4 SHELL TABS:DIP/SMT
  • (2) L: WITH LATCHES
    (3) X
    :CONTACT FINISH
  •      1:SELECTIVE GOLD FLASH
         3:GOLD PLATED 15u" ON CONTACT AREA AND
  •         TIN PLATED ON SOLDER TAILS, OVER NICKEL
  • (4) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
CDM19SW-4-L-X-C-R1K-H 336KB PDF
download
DOWNLOAD
