DVI Connectors

DVIXX+XSD/RN

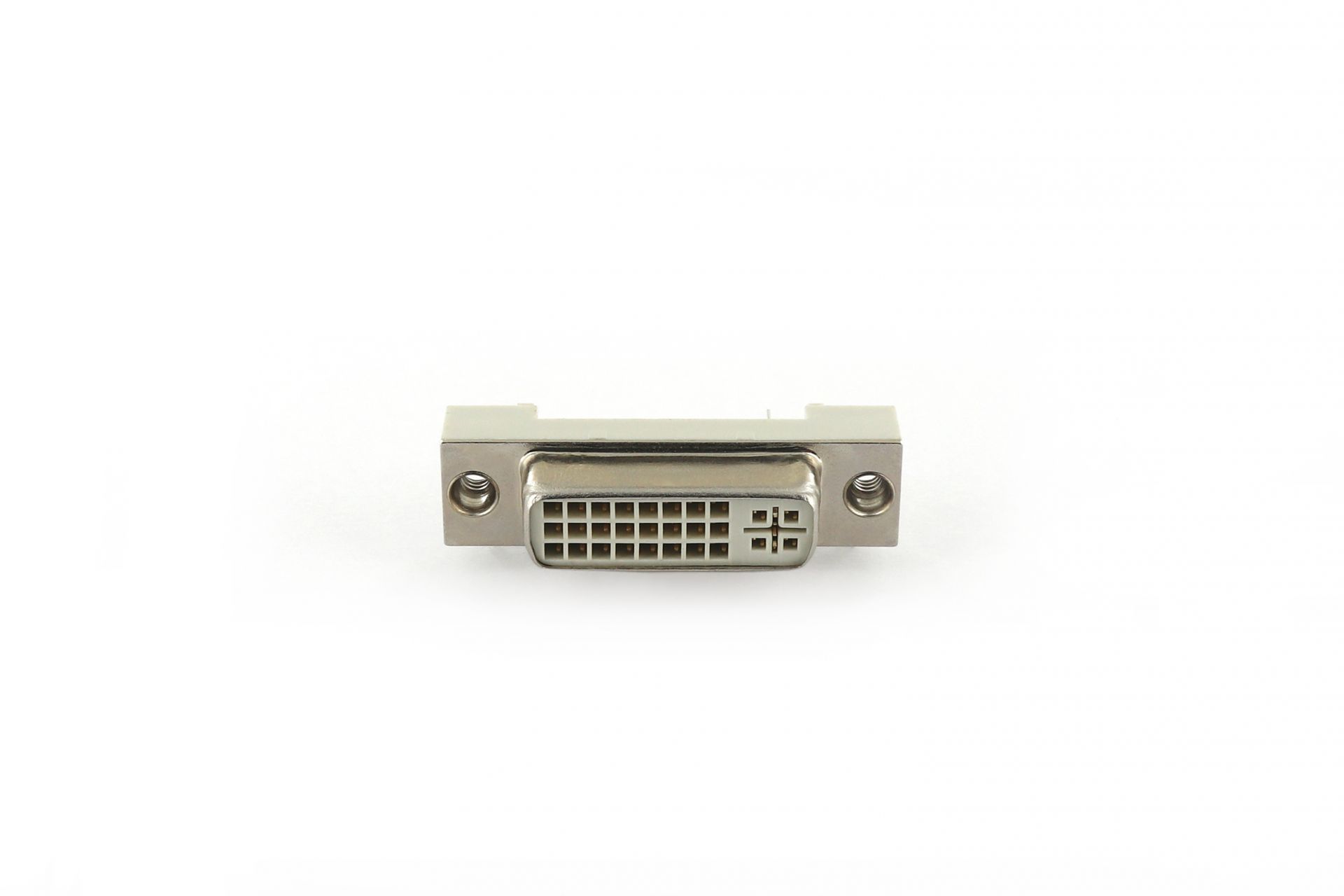

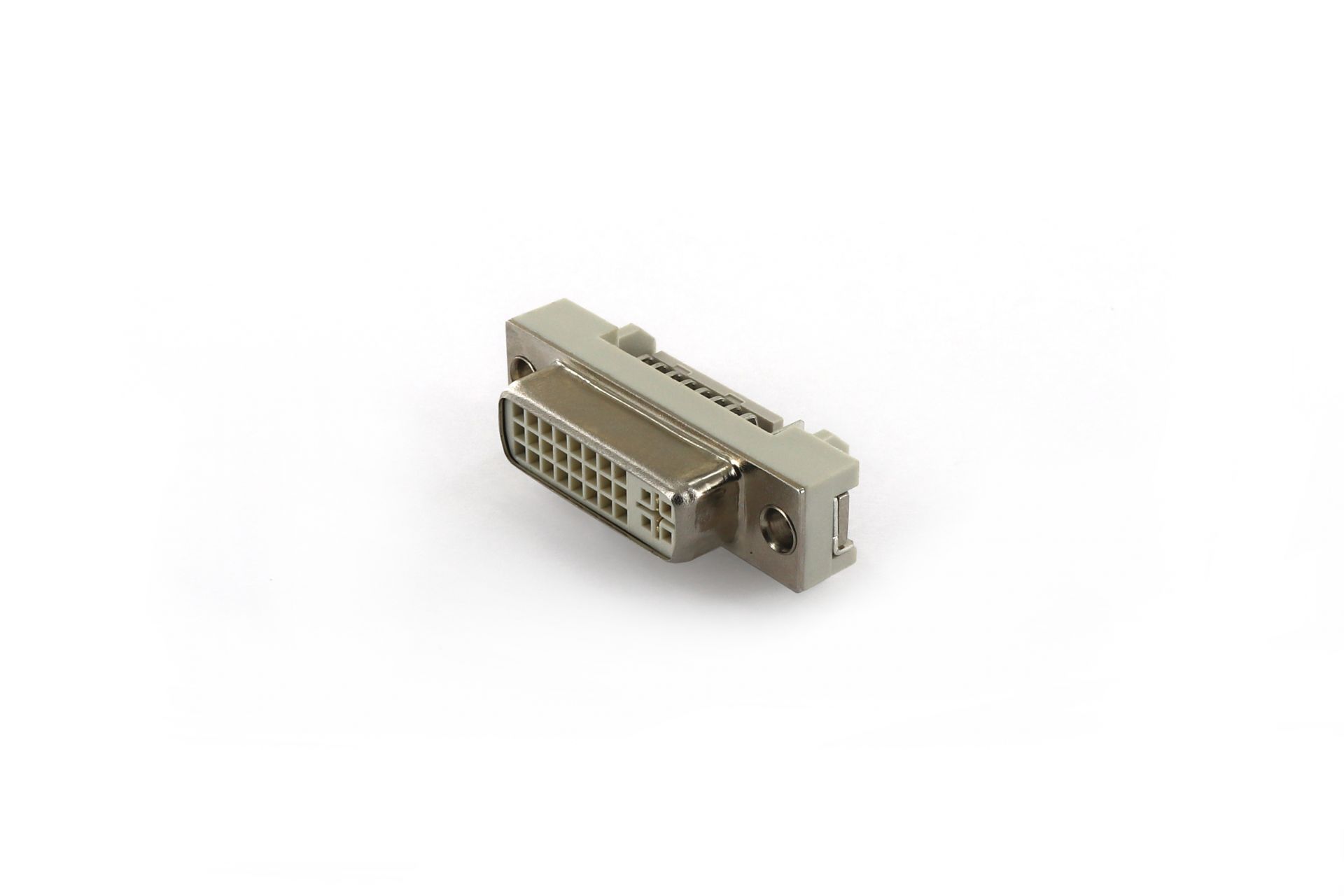

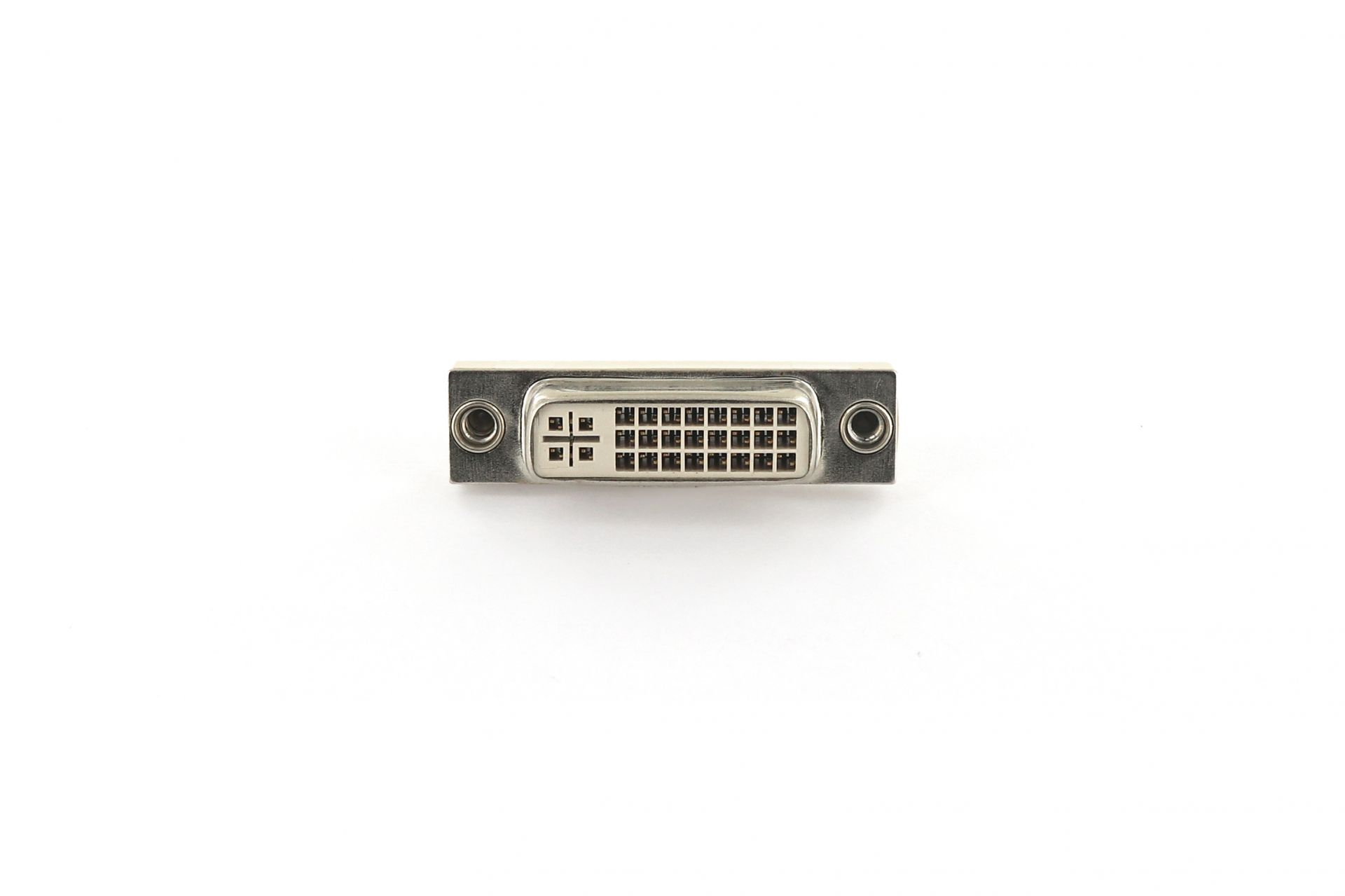

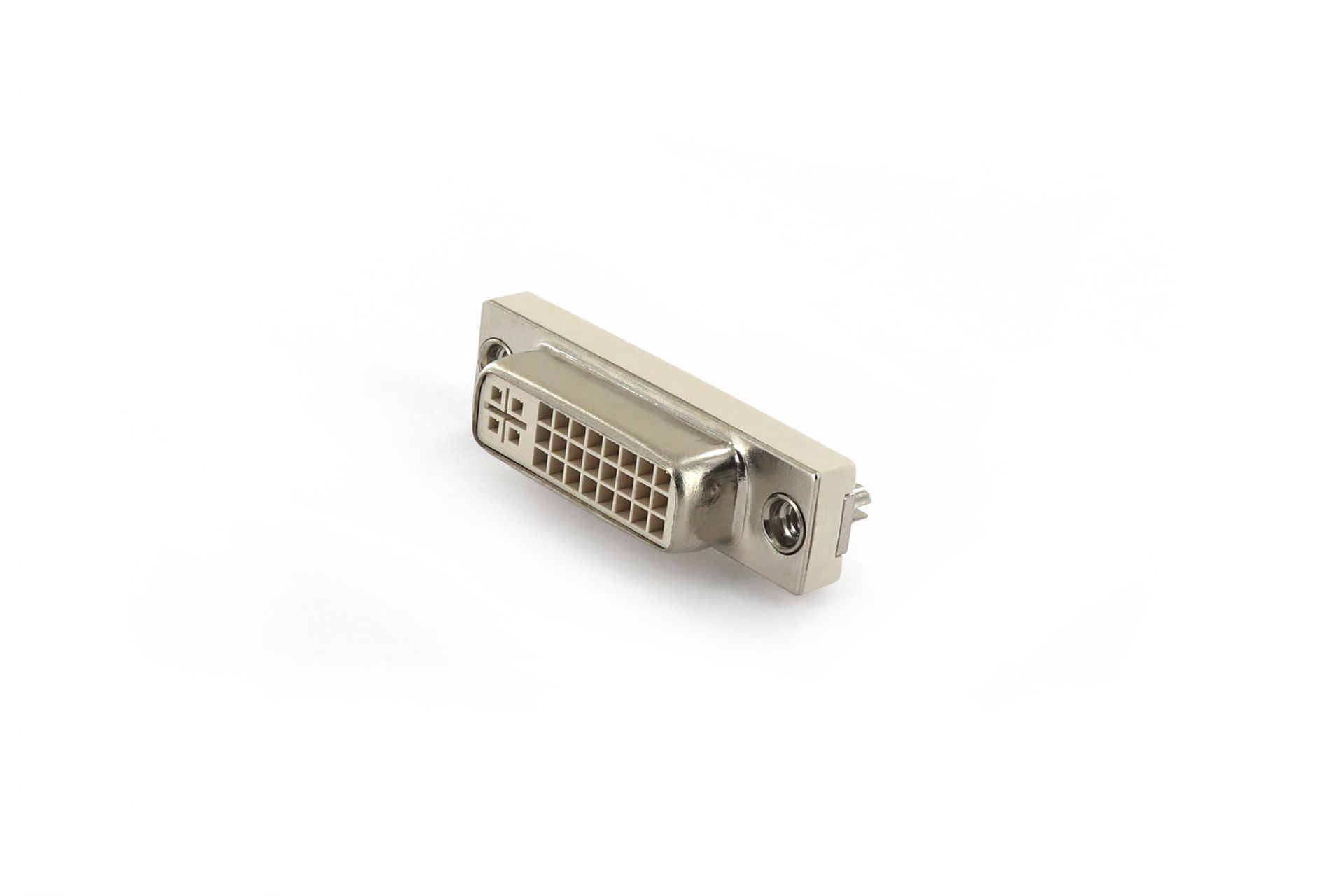

DVI FEMALE PCB RIVET TYPE
  • DVI

  • 24+5
    (1)
  • S

  • R
    (2)
  • N

  • P
    (3)
  • J
    (4)
  •
    H
    (5)

Description

  • (1)24+1、24+5、30+1、30+5:NO. OF POSITION
  • (2)D:DIP STRAIGHT
        R:DIP RIGHT ANGLE
  • (3)BLANK:WITHOUT POST
        P:WITH POST
  • (4)BLANK:WITHOUT SCREW
        H:WITH ATTACH SEPARATED JACKSCREW
        J:WITH FRONT JACKSCREW
  • (5)RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
DVI24+5SRNP-H 277KB PDF
download
DOWNLOAD
DVI24+5SRNPH-H 282KB PDF
download
DOWNLOAD
DVI24+5SRNPJ-H 284KB PDF
download
DOWNLOAD
