Hard Metric

HM

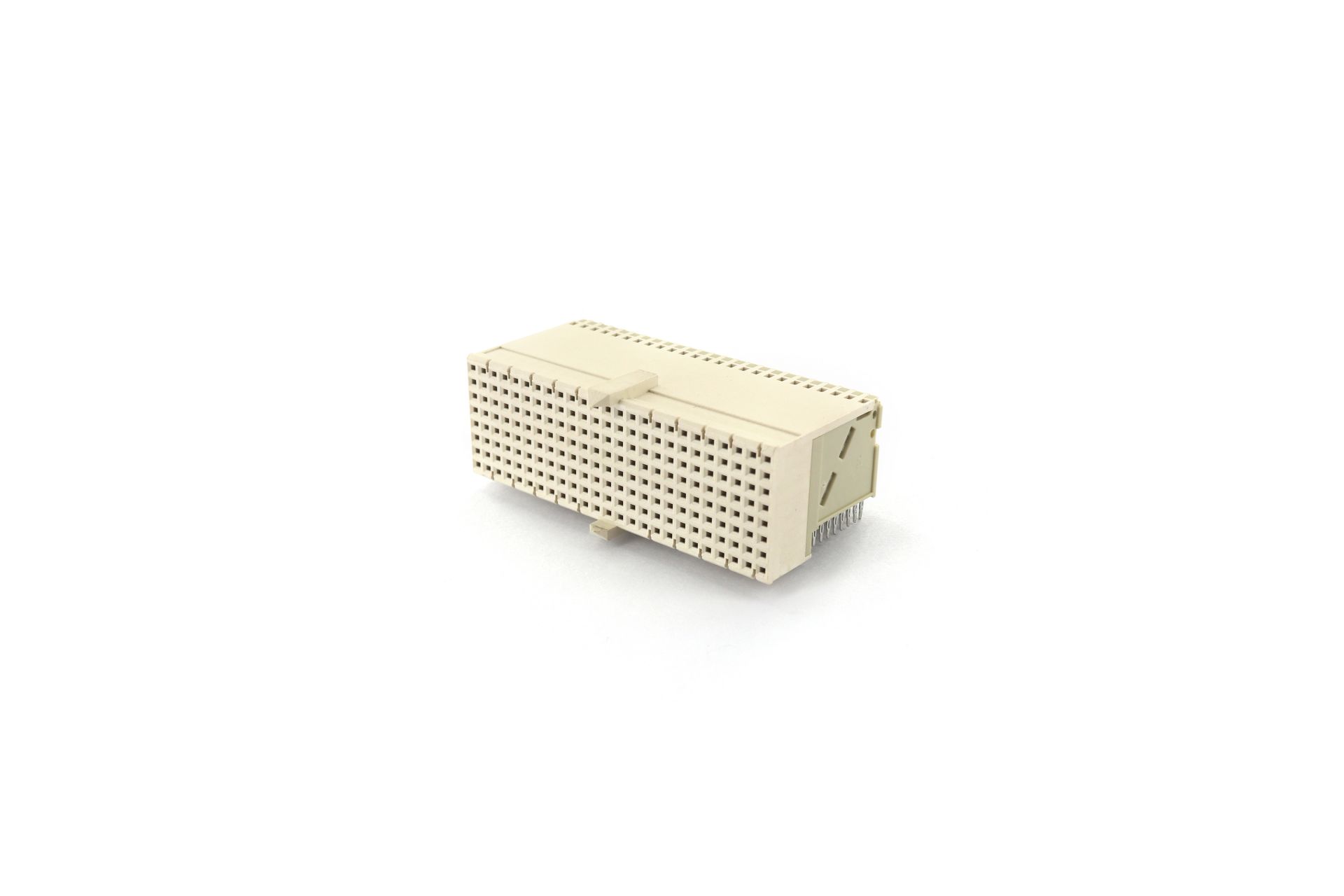

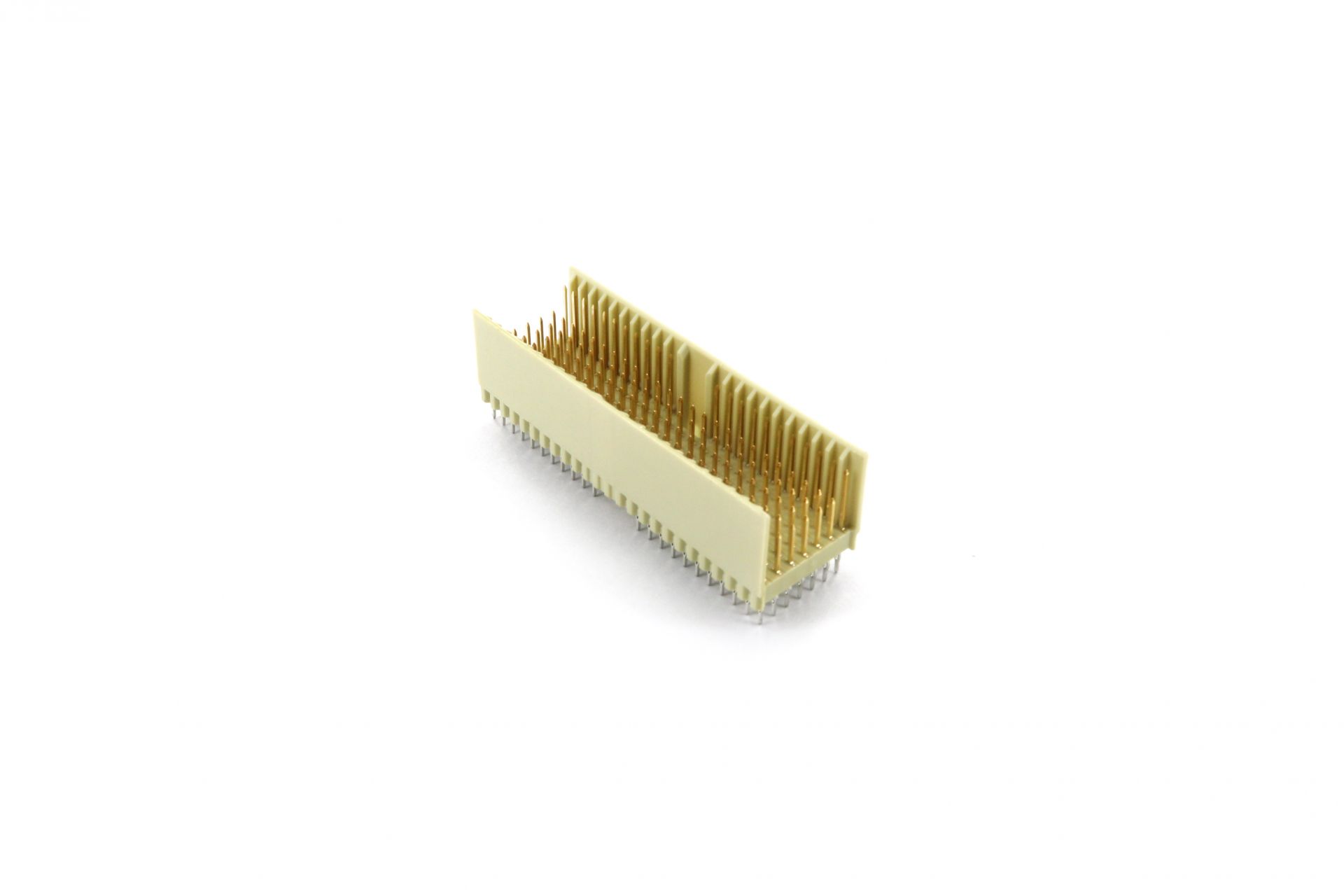

2.0mm HARD METRIC
  • HM

  • 7
    (1)
  • A
    (2)
  • 110
    (3)
  • P
    (4)
  • P
    (5)
  •
    H
    (6)

Description

  • (1) 5:5 ROW
          6:6 ROW
          7:7 ROW
  • (2) A、B、AB、C:TYPE OPTIONS
  • (3) 95、110、125、127、133、146、154、169、175:NO. OF POSITION
  • (4) P:MALE
          S:FEMALE
  • (5) P:PRESS FIT STRAIGHT
          Q:PRESS FIT RIGHT ANGLE
          PP:PRESS FIT STRIAGHT WITH POST
  • (6) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
HMXC055SP-XX-XX-S30-HH 301KB PDF
download
DOWNLOAD
HMXA110SP-XX-XX-S30-HH 332KB PDF
download
DOWNLOAD
HMXAB125SQ-SXX-H 324KB PDF
download
DOWNLOAD
HM5B125PP-SXX-H 300KB PDF
download
DOWNLOAD
HMXA110SQX-SXX-HH 305KB PDF
download
DOWNLOAD
HMXC055SQ-SXX-HH 300KB PDF
download
DOWNLOAD
HM5C055PP-SXX-H 273KB PDF
download
DOWNLOAD
HMXA110SQ-SXX-HH 319KB PDF
download
DOWNLOAD
