Hybrid Card Connector

HMC

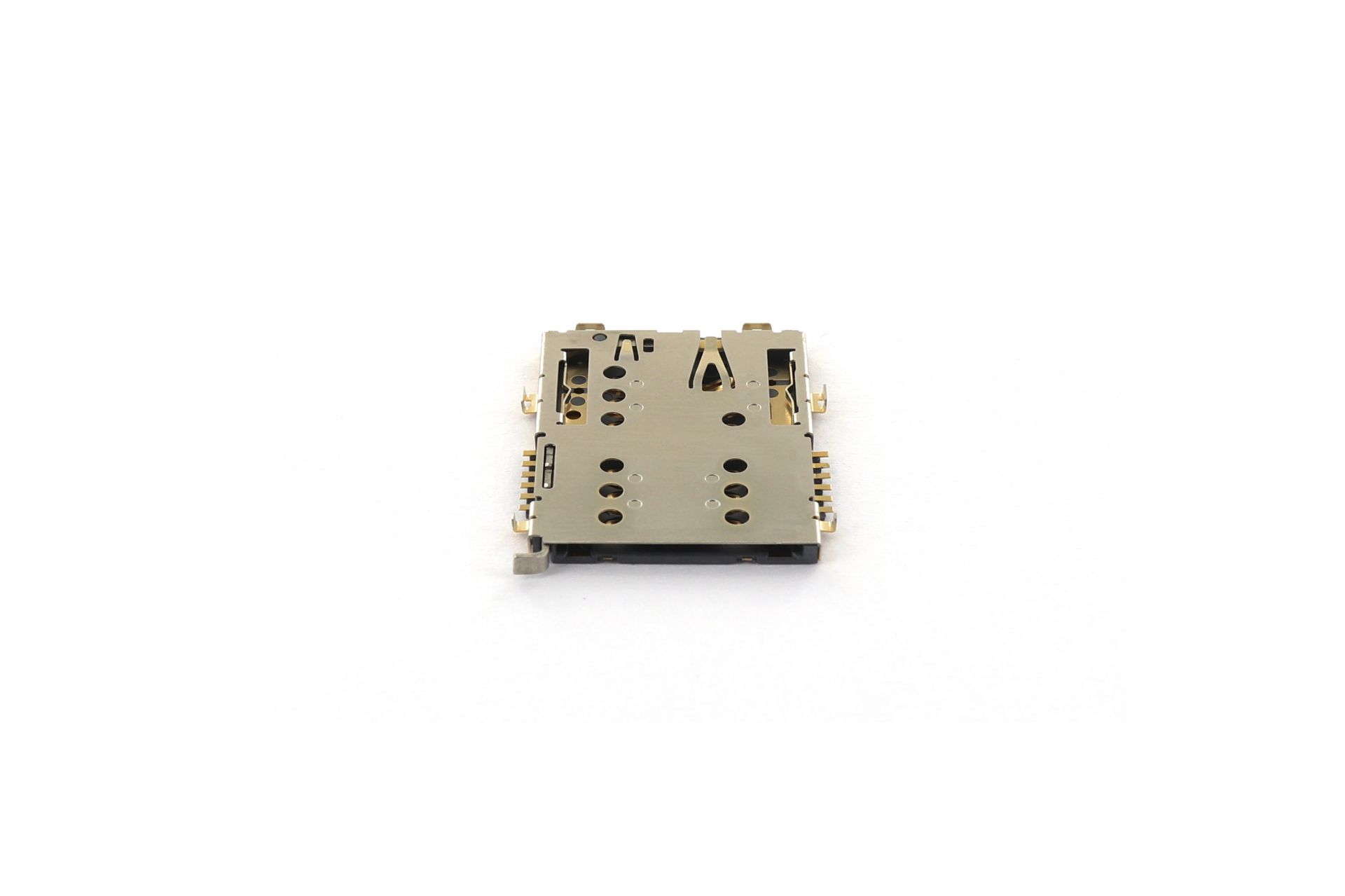

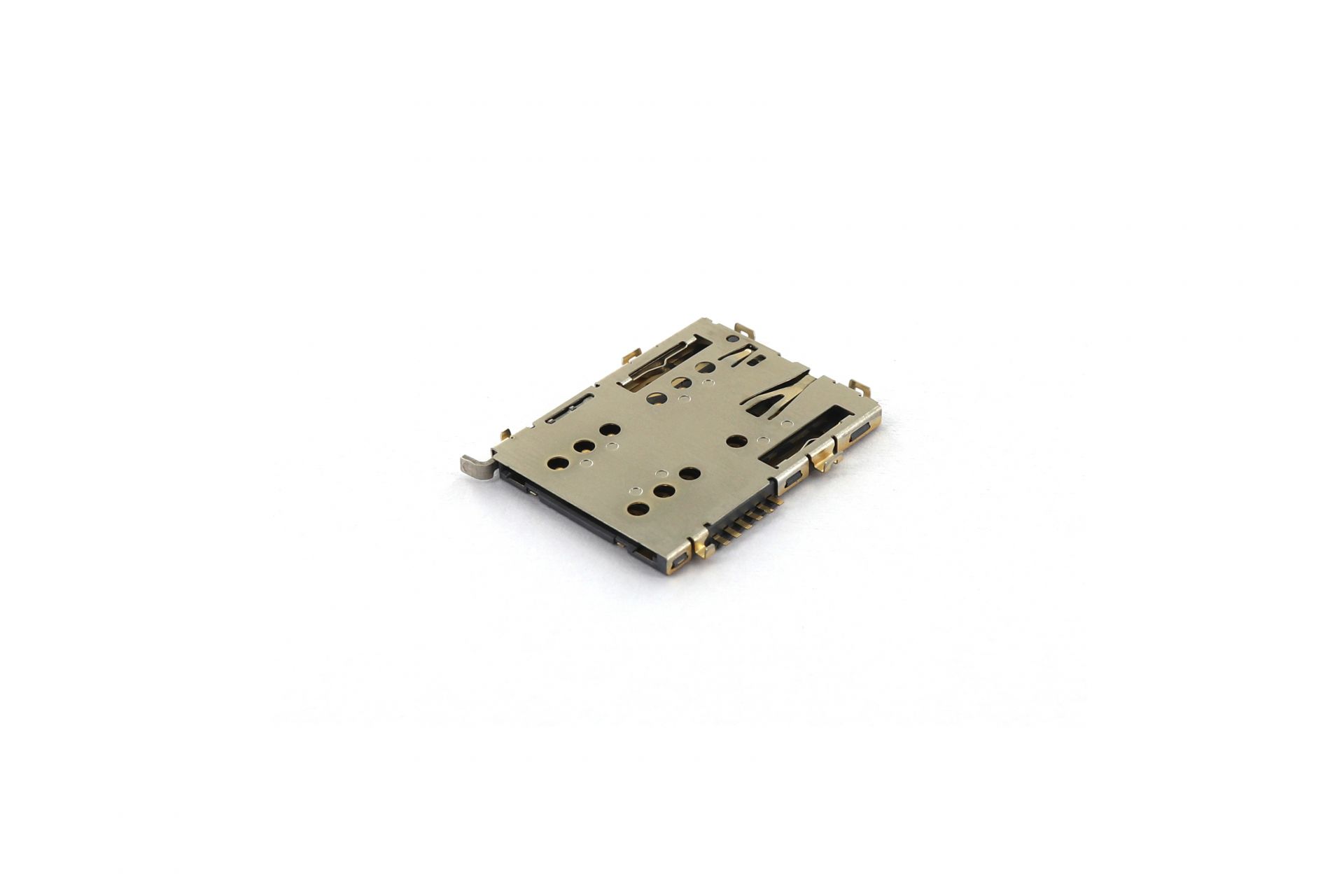

HYBRID CARD CONNECTOR MID-MOUNT TYPE
  • HMC

  •
    D
    (1)
  •
    2
    (2)
  •
    0606
    (3)
  •
    W
    (4)
  •
    0
    (5)
  •
    2
    (6)
  •
    T
    (7)
  •
    R6H


  •
    H
    (8)

Description

  • (1) D:MID-Mount Type
  • (2) 2:Two Card Slot Type
  • (3) 0606: No. Of Postion,Nano SIM 6P & Nano SIM 6P
  • (4) W: SMT Right Angle
  • (5) 0: Standoff 0mm
  • (6) 2:Reverse Type

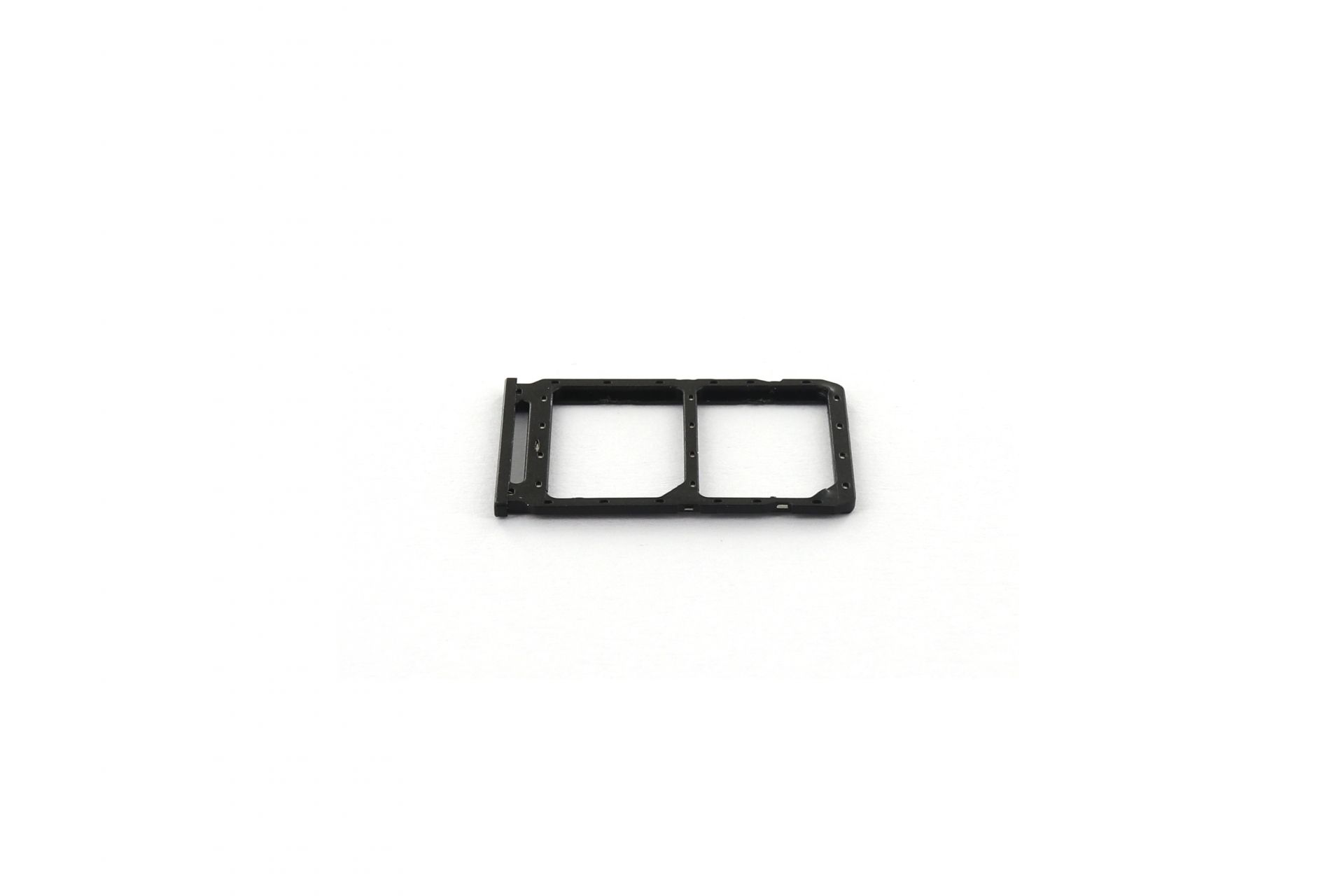

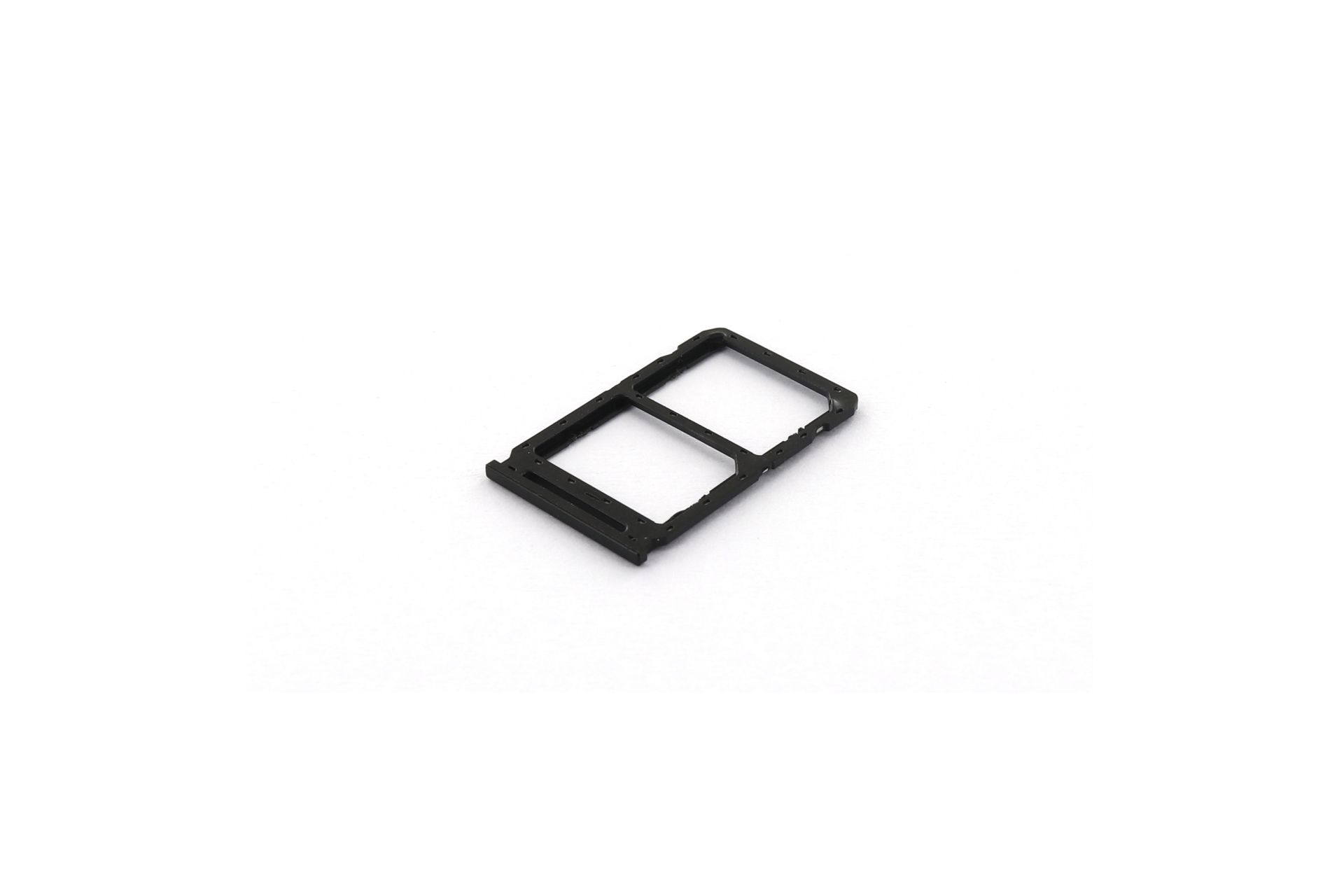

  • (7) T: Tray Type
  • (8) H: RoHS Compliant

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
HMCD2-0606W02-T-R6H-H 424KB PDF
download
DOWNLOAD
HMCD2-0608W16-T-R7H5-H 425KB PDF
download
DOWNLOAD
