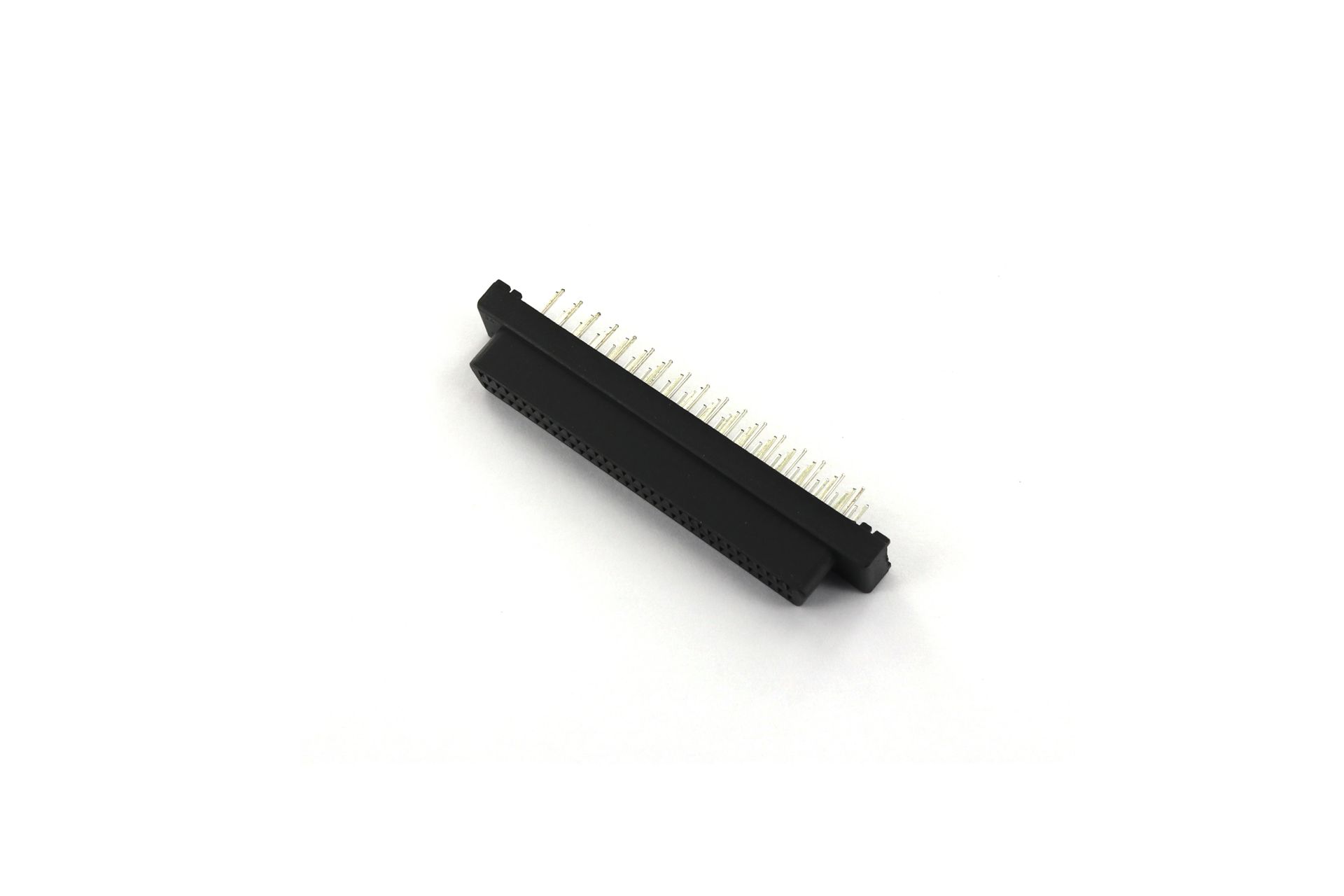

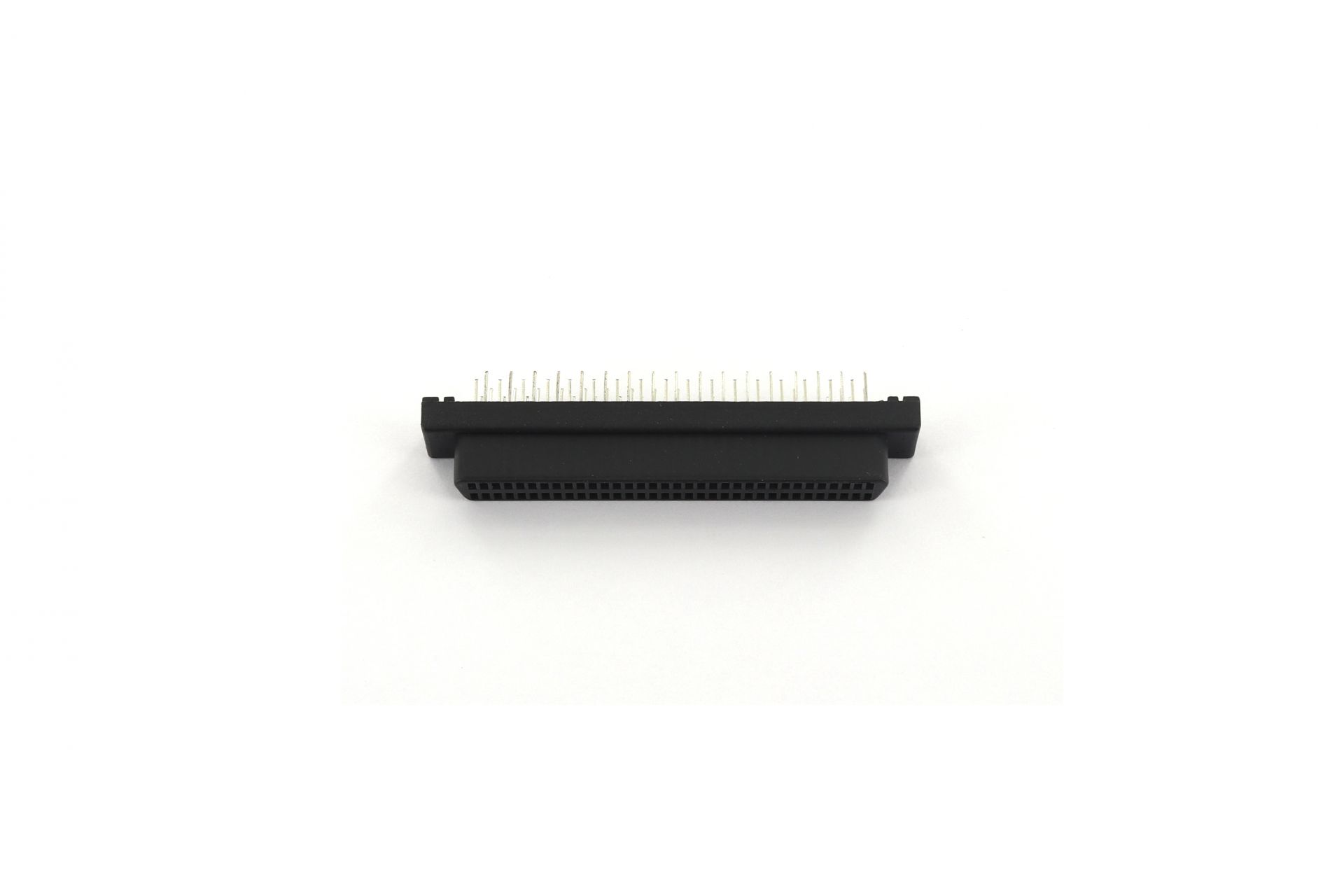

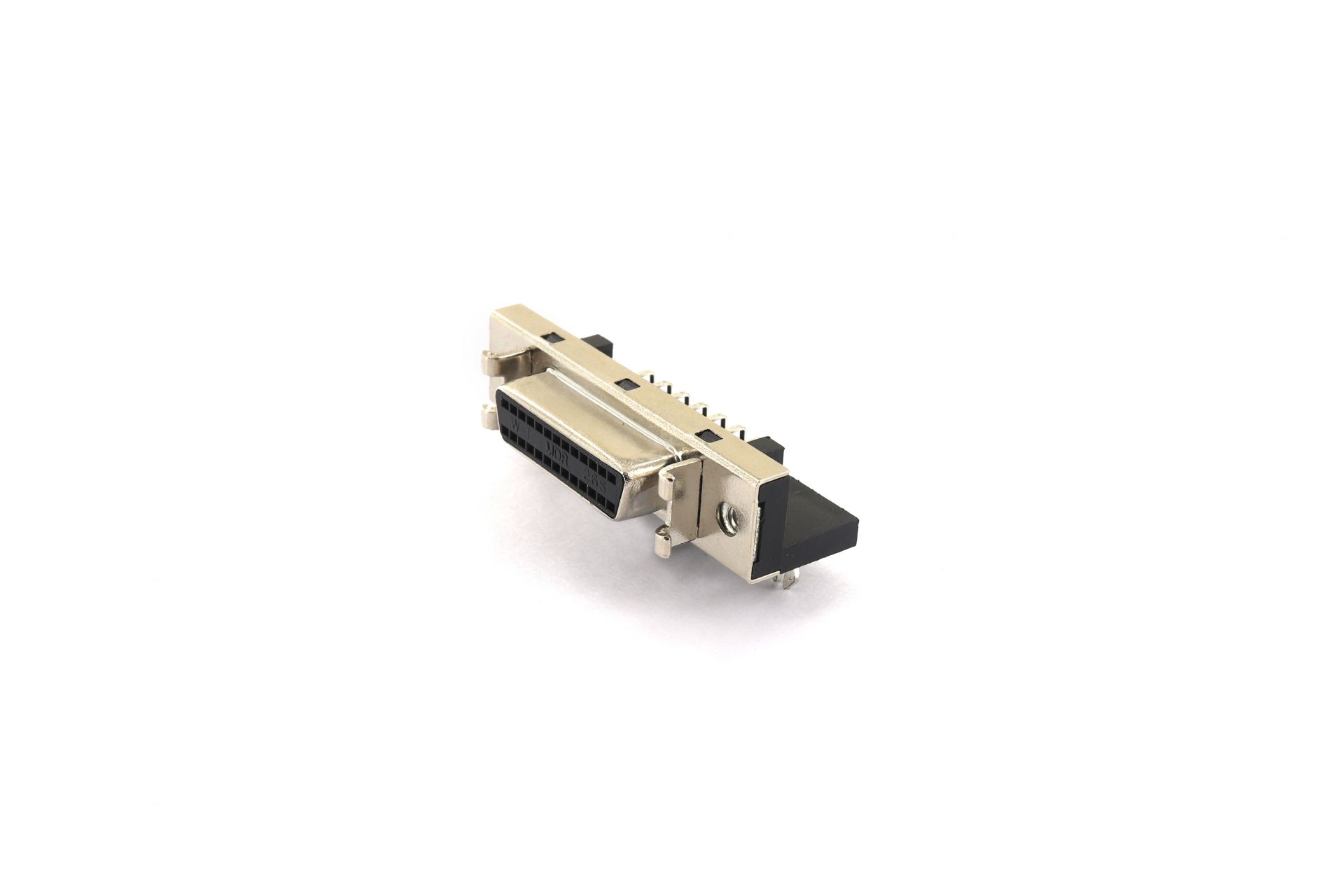

SCSI/VHDCI Connector
HPDXXXSX
1.27mm SCSI PIN TYPE FEMALE
-
HPD
-
P(1)
-
026(2)
-
S
-
R(3)
-
X(4)
-
H(5)
Description
-
(1) BLANK:METAL SHELL TYPE
P:ALL PLASTIC SHELL TYPE -
(2) 026、050、068、100:NO. OF POSITION
-
(3) D:DIP STRAIGHT
R:DIP RIGHT ANGLE
E:STRADDLE TYPE -
(4) BLANK:WITH LATCH
X:WITHOUT LATCH
H:WITH THUMBSCREW
J:WITH FRONT JACKSCREW
TH:WITH MALE SCREW ROUND CROSS
XH:WITHOUT LATCH WITH THUMBSCREW
XJ:WITHOUT LATCH WITH FRONT JACKSCREW -
(5) RoHS
