Edge Card Connector

PCI

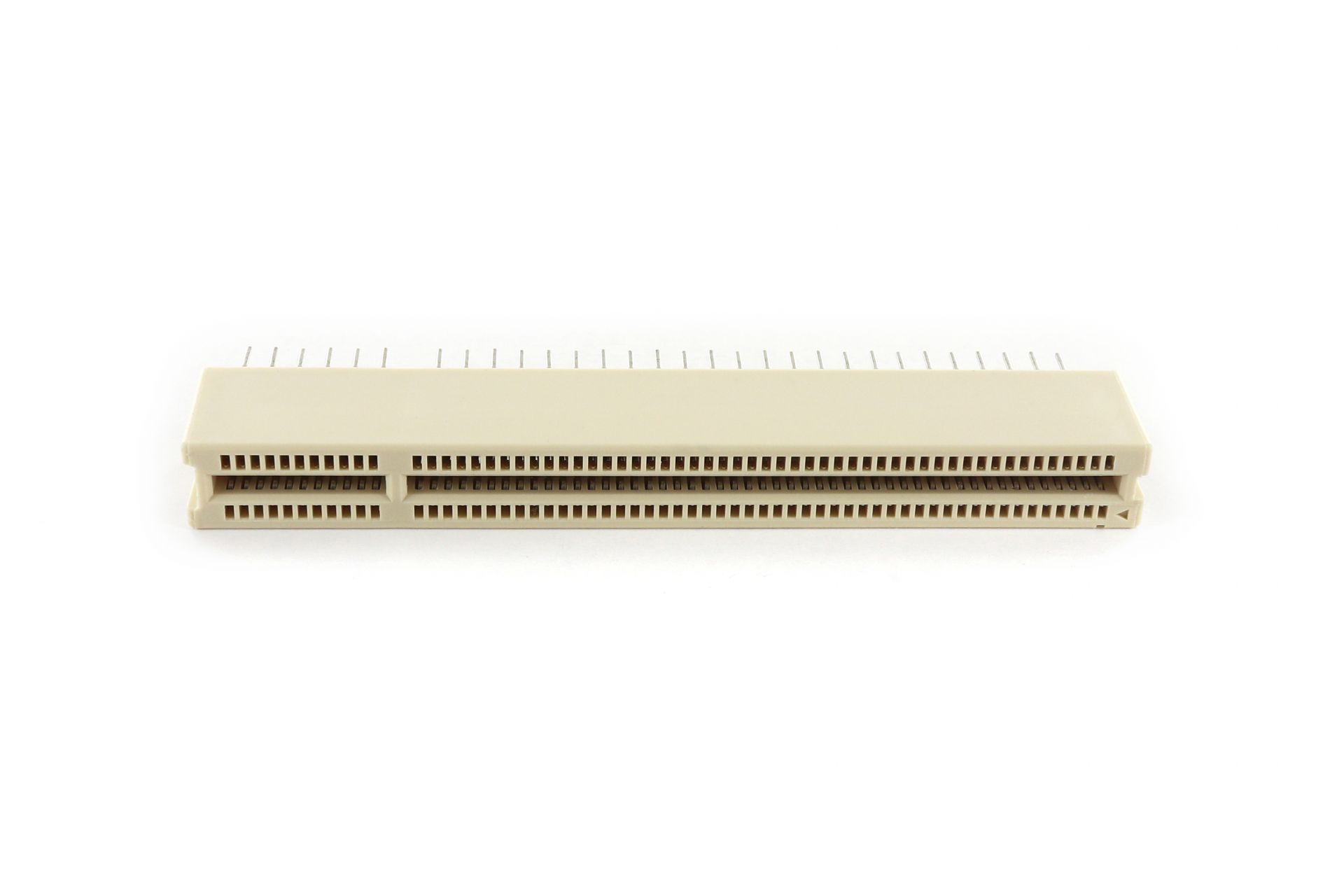

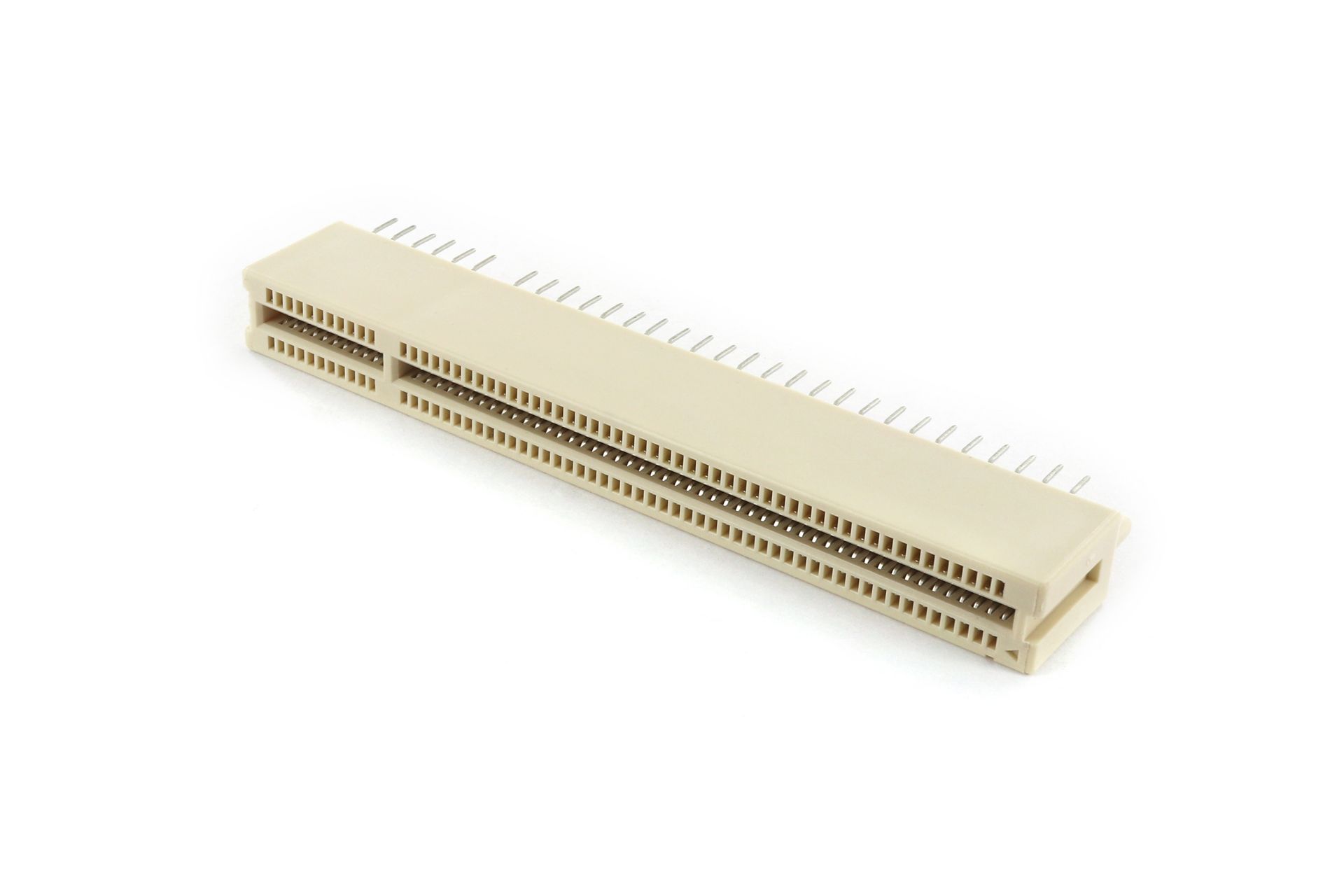

1.27mm PCI SLOT
  • PCI

  • 120
    (1)
  • D
    (2)
  •
    H
    (3)

Description

  • (1) 120、184:NO. OF POSITION
  • (2) D:DIP STRAIGHT
         R:DIP RIGHT ANGLE
         V:SMT STRAIGHT
         E:STRADDLE TYPE
  • (3) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
PCI120D-SXX-H 288KB PDF
download
