Card Connector Smart Card Connector SCN-W
Smart card

SCN-W

SMART CARD LANDING TYPE 08P SMT 90° WITH SEALED SWITCH NORMAL OPEN TYPE 3
  • SCN

  •
    W
    (1)
  •
    08
    (2)
  •
    S
    (3)
  •
    03
    (4)
  •
    020P
    (5)
  •
    N
    (6)
  •
    H
    (7)

Description

  • (1) W:SMT RIGHT ANGLE
  • (2) 08:NO. OF POSITION
  • (3) S: SEALED SWITCH
  • (4) 03:TYPE 03
  • (5) 020P:Gold Plated Over Palladium Plated 30u" On Contact Area, Tin Plated On Solder Tails,Over Nickel
  • (6) N: WITH ESD-METALSHEET
          NA: WITHOUT ESD-METALSHEET
  • (7) RoHS Compliant

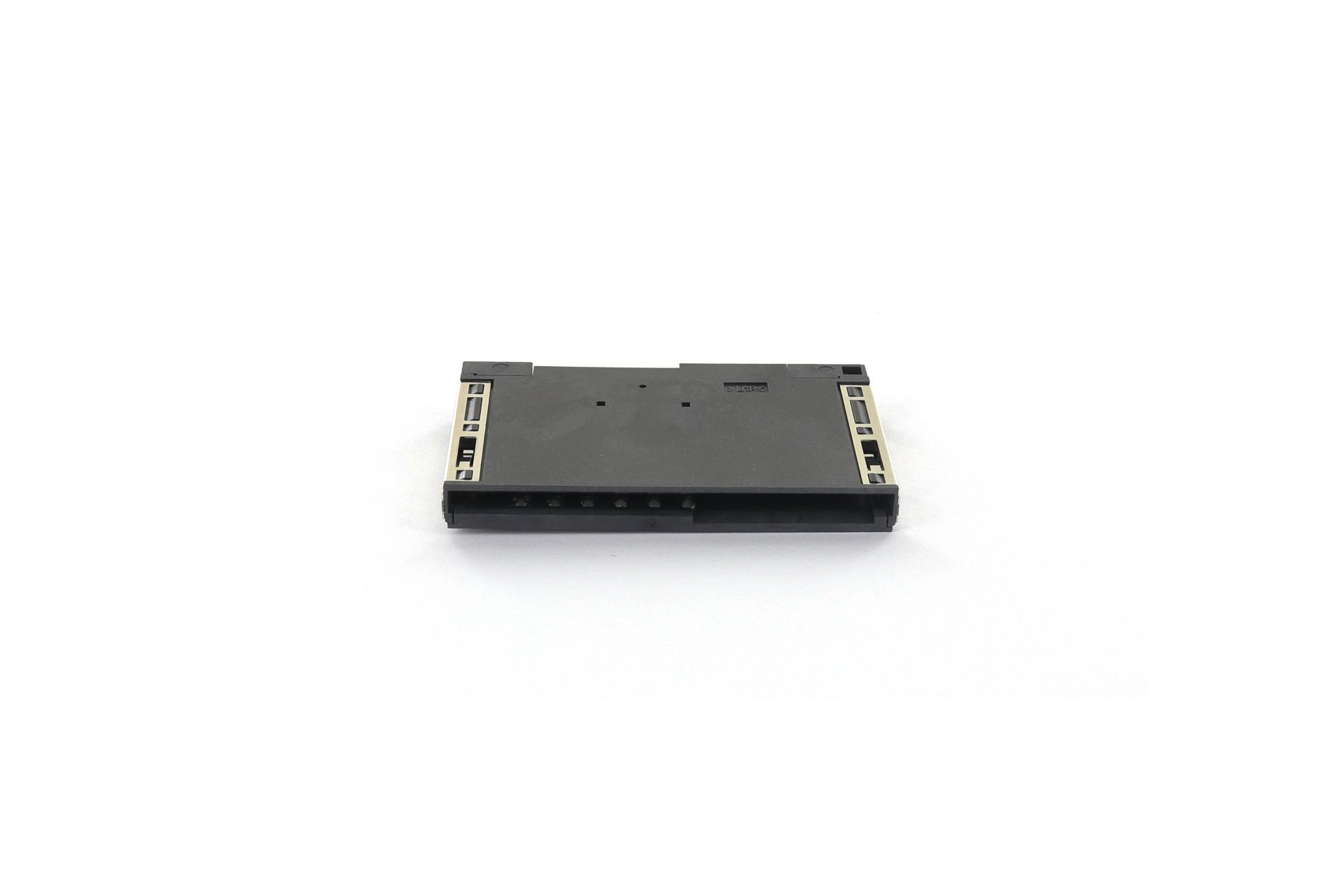

  • IMG_2676-2

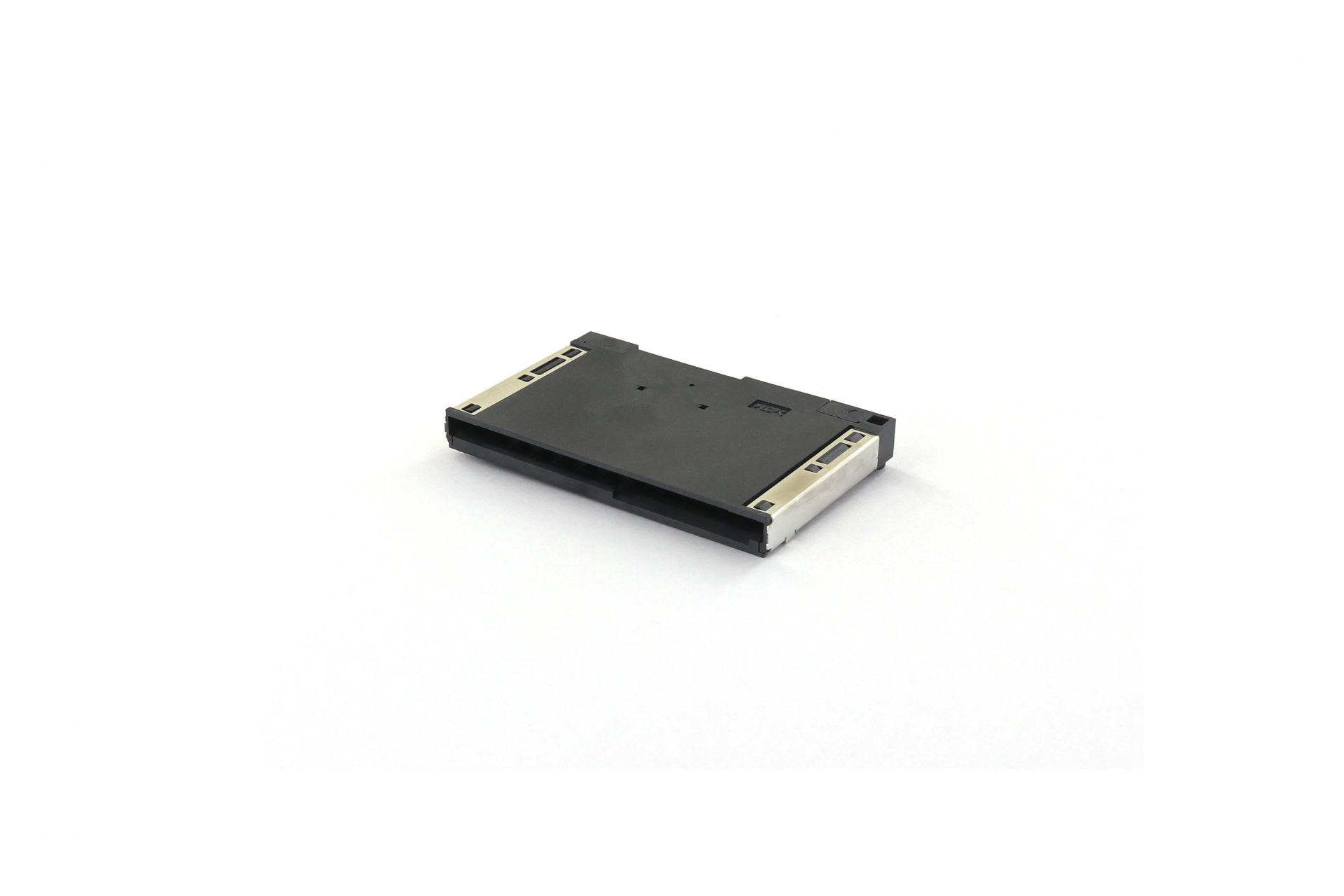

  • IMG_2675-2

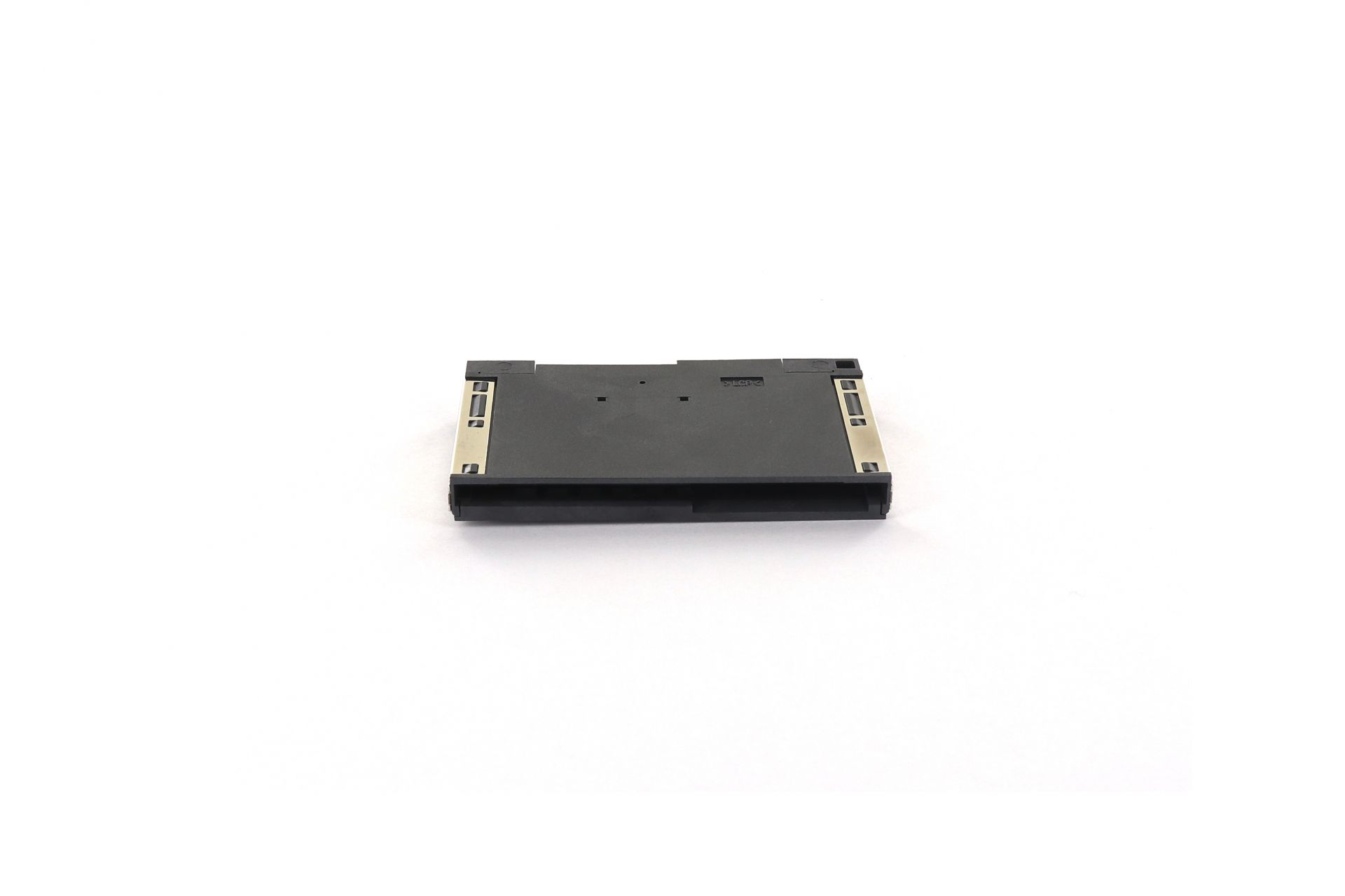

  • IMG_2680-2

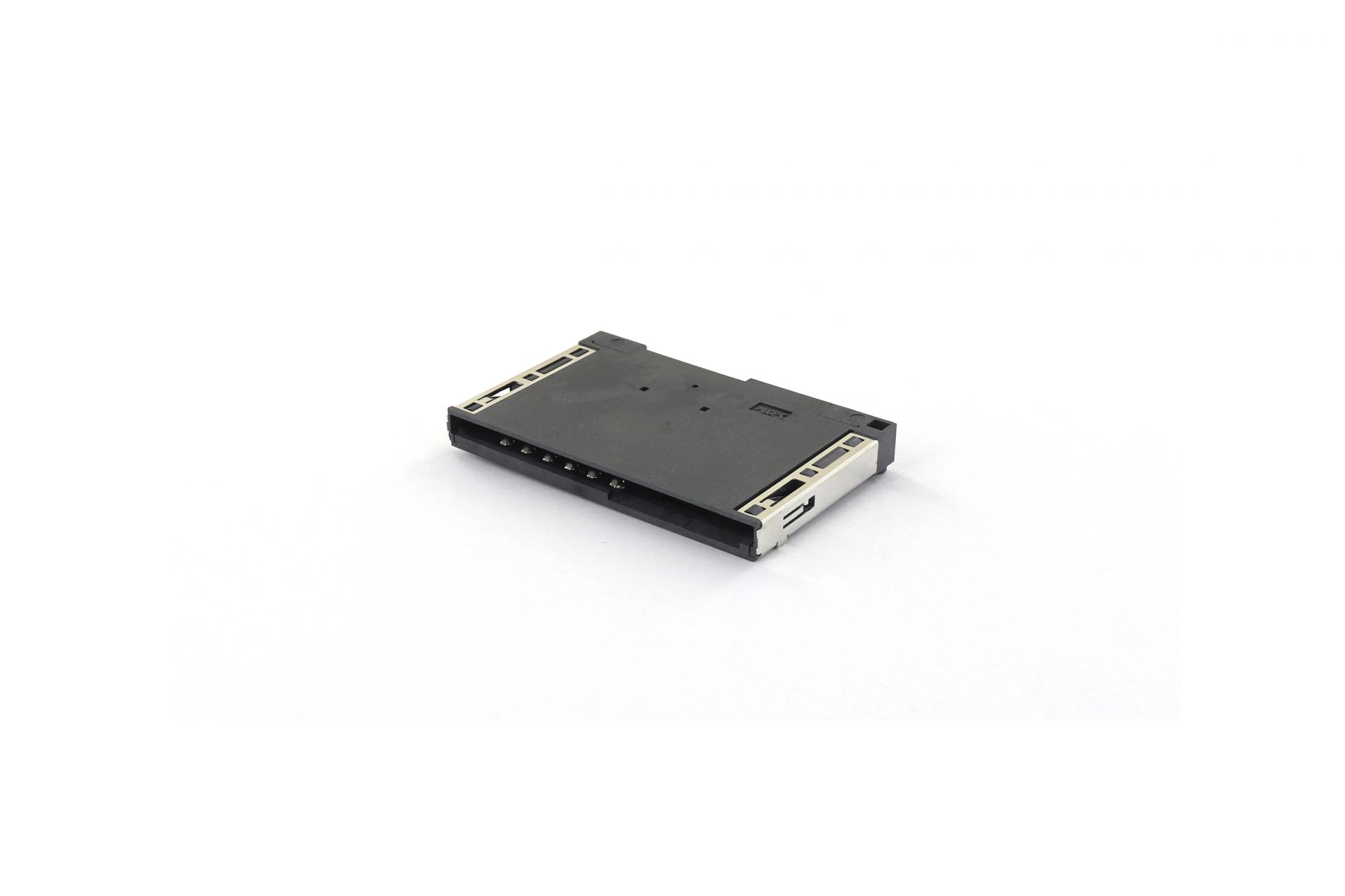

  • IMG_2679-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
SCN-W08S03-020P-N-H 173KB PDF
download
DOWNLOAD
SCN-W08S03-020P-NA-H 161KB PDF
download
DOWNLOAD
