Board & Wire Connector FPC / FFC Connector FPAXXD/RZAL/R
FPC / FFC Connector

FPAXXD/RZAL/R

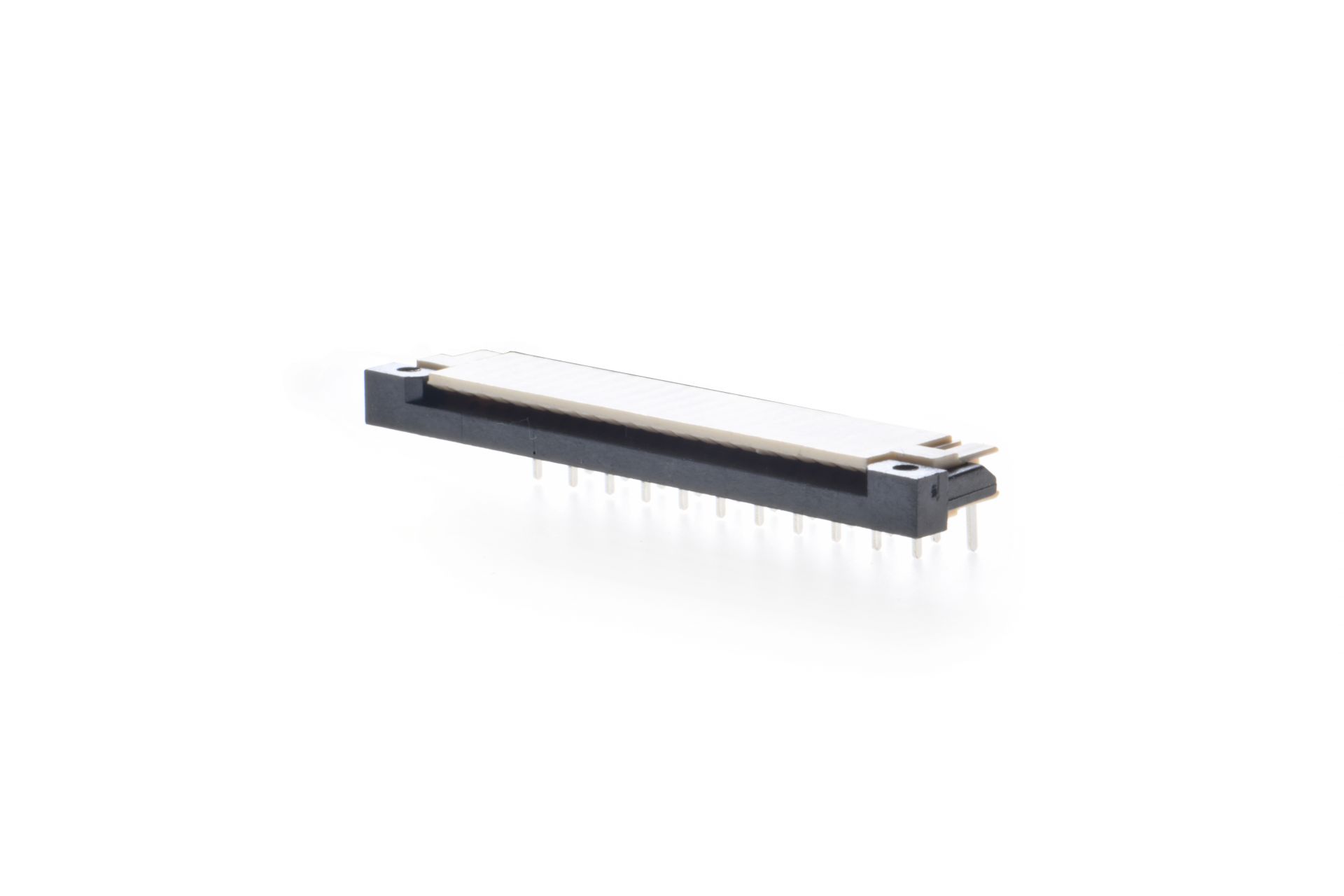

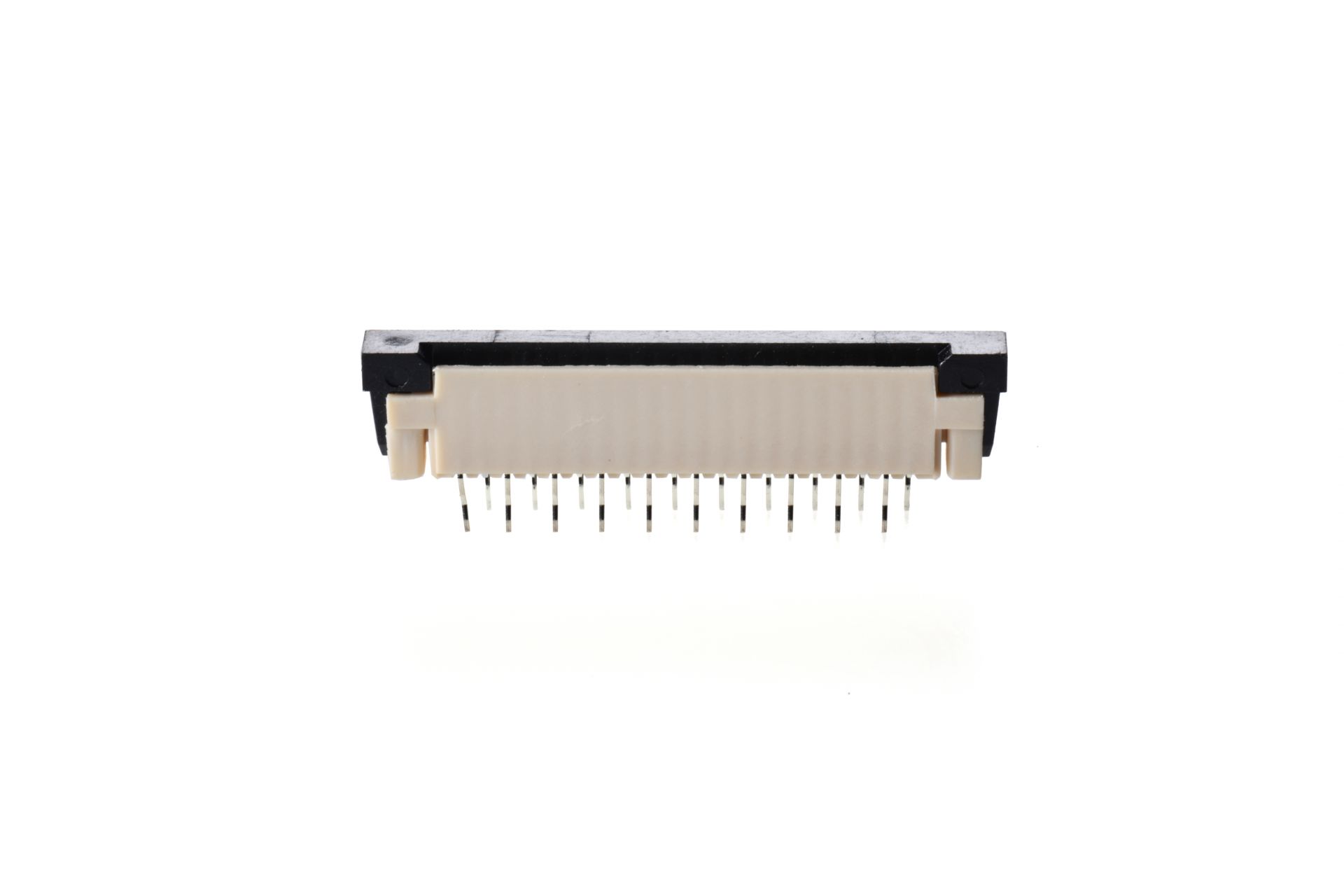

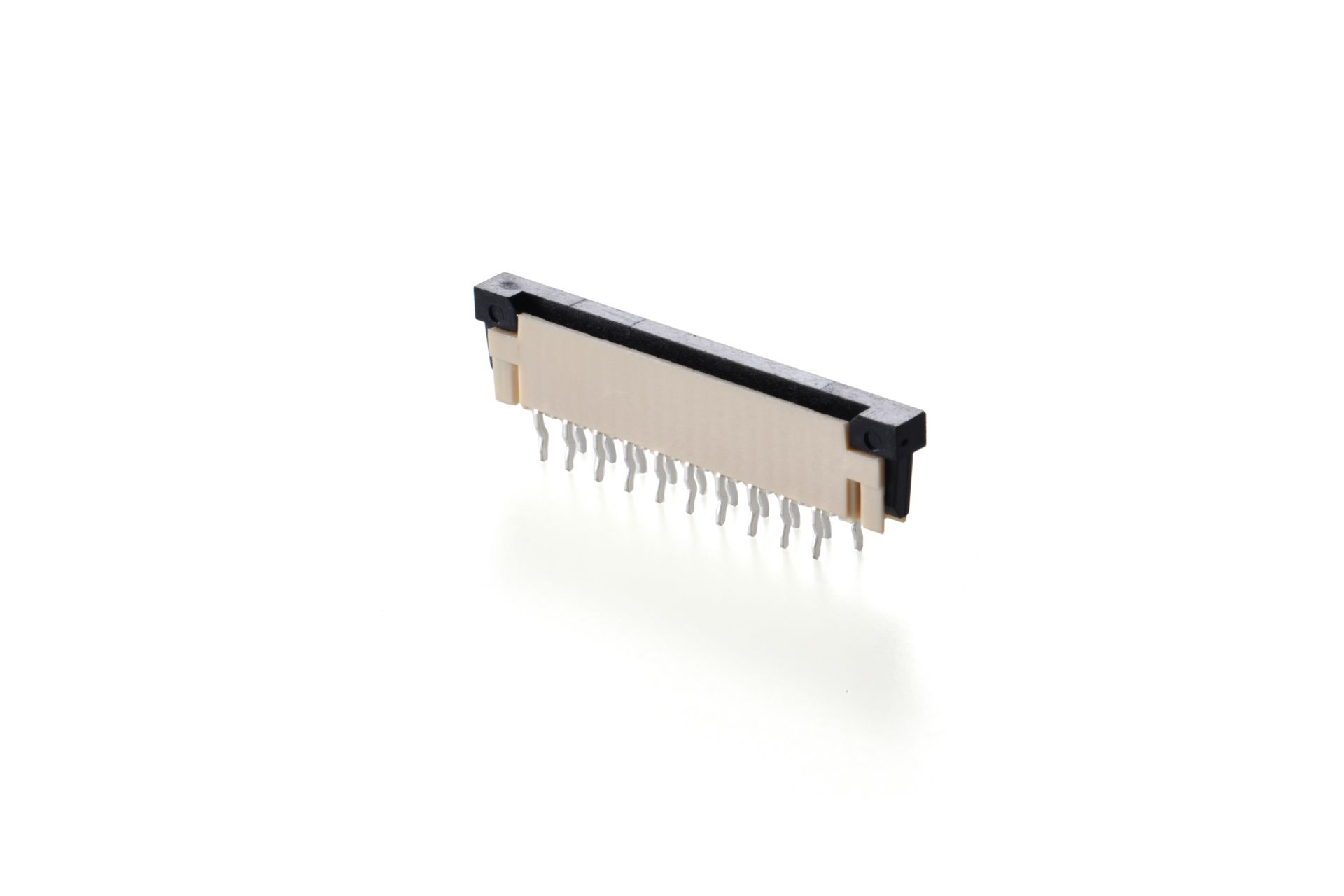

1.0mm FPC/FFC DIP 180°/ 90° ZIF TYPE SINGLE CONTACT
  • FPA

  • 30
    (1)
  • D
    (2)
  • ZA

  • L
    (3)
  •
    H
    (4)
  • H
    (5)

Description

  • (1)04~34:NO. OF POSITION
  • (2)D:DIP STRAIGHT
        R:DIP RIGHT ANGLE
  • (3)L: STANDARD PCB LAYOUT
        R: REVERSE PCB LAYOUT
  • (4)WITHSTAND HIGH TEMPERATURE
  • (5)RoHS
  • 2006 (2)-2
  • 2006 (1)-2
  • FPA22RZAL(594)-1-2
  • FPA22RZAL(594)-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
FPAXXDZAL-HH 325KB PDF
download
DOWNLOAD
FPAXXDZAR-HH 325KB PDF
download
DOWNLOAD
