Board & Wire Connector FPC / FFC Connector FPAXXVZAL/R

Housing,Header and Terminal

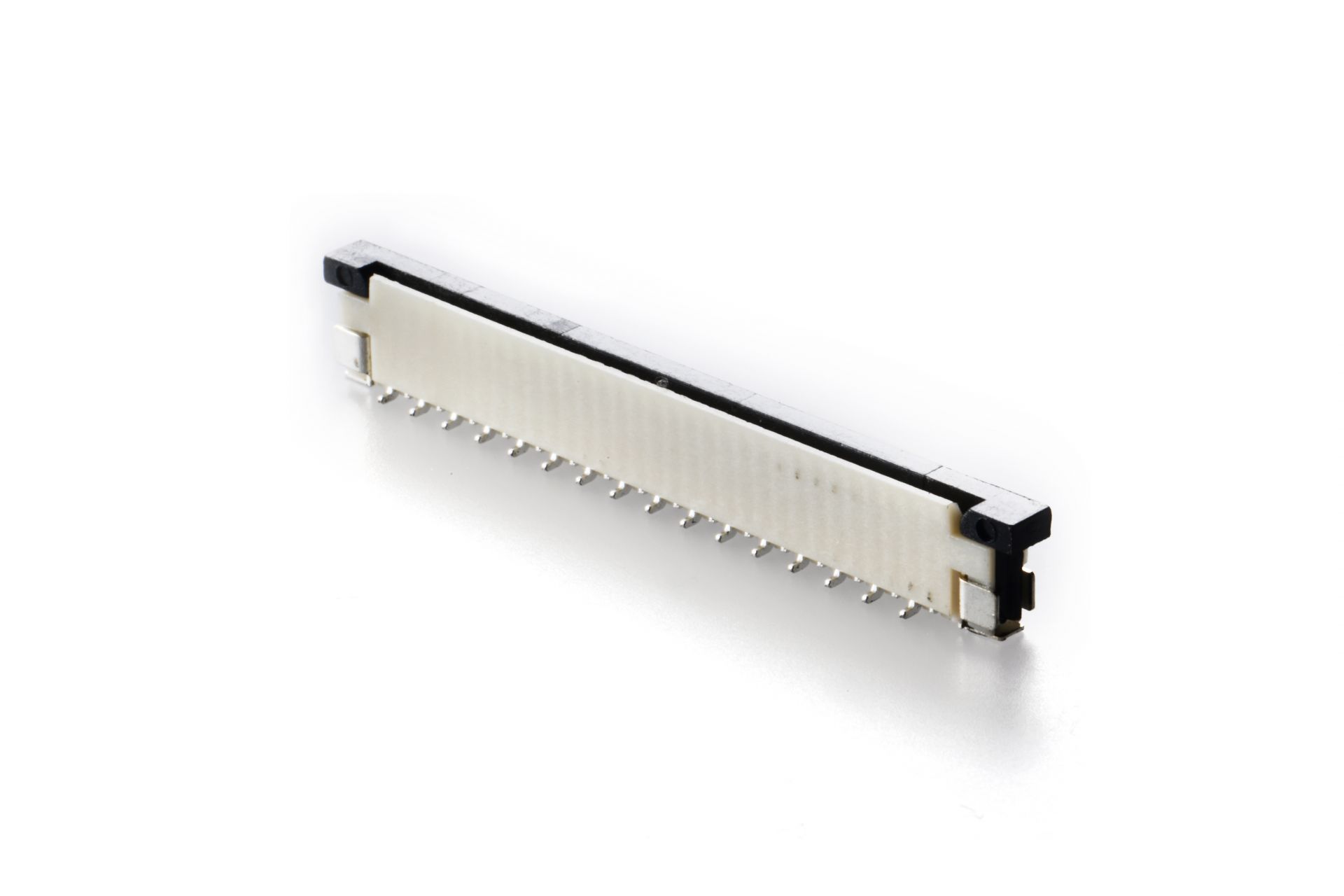

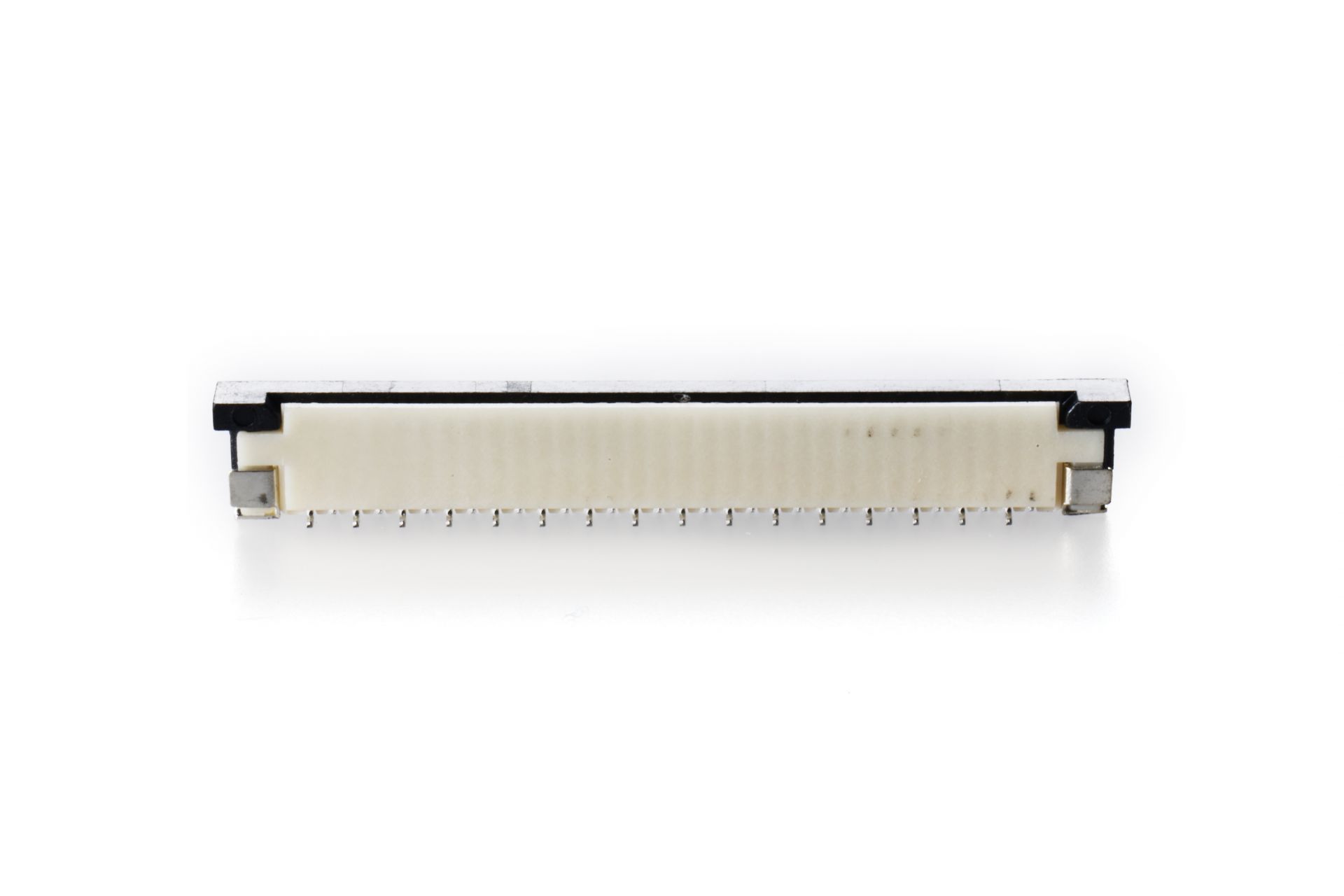

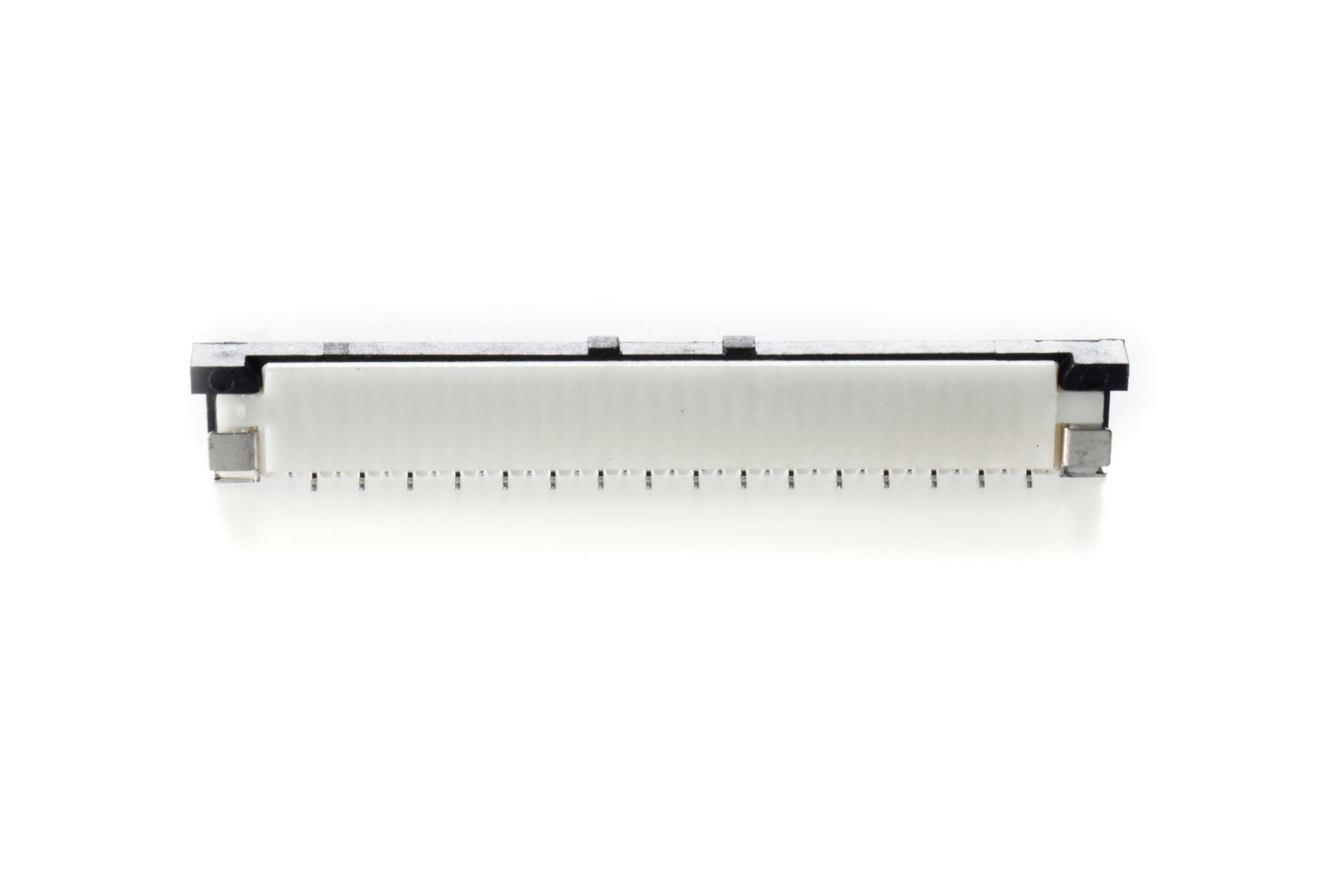

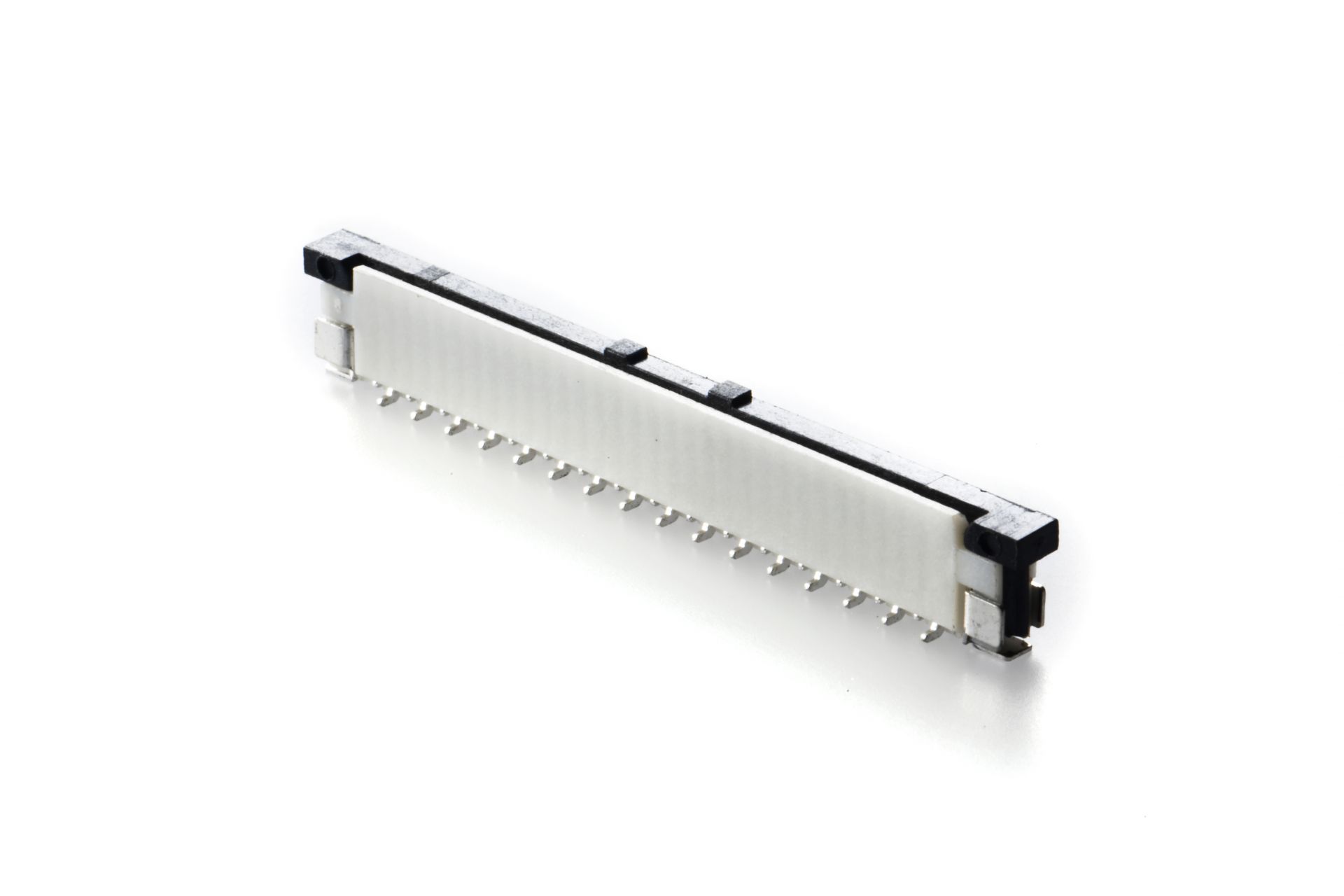

FPAXXVZAL/R

1.0mm FPC/FFC SMT 180° ZIF TYPE SINGLE CONTACT

FPA
30
(1)
VZA
L
(2)
H
(3)

Description

(1)04~34:NO. OF POSITION
(2)L:STANDARD PCB LAYOUT
R:REVERSE PCB LAYOUT
(3)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	FPAXXVZAL-H	322KB	PDF	DOWNLOAD
	FPAXXVZAR-H	318KB	PDF	DOWNLOAD
