Board & Wire Connector FPC / FFC Connector FPBXXD/RL2L/R
Housing,Header and Terminal

FPBXXD/RL2L/R

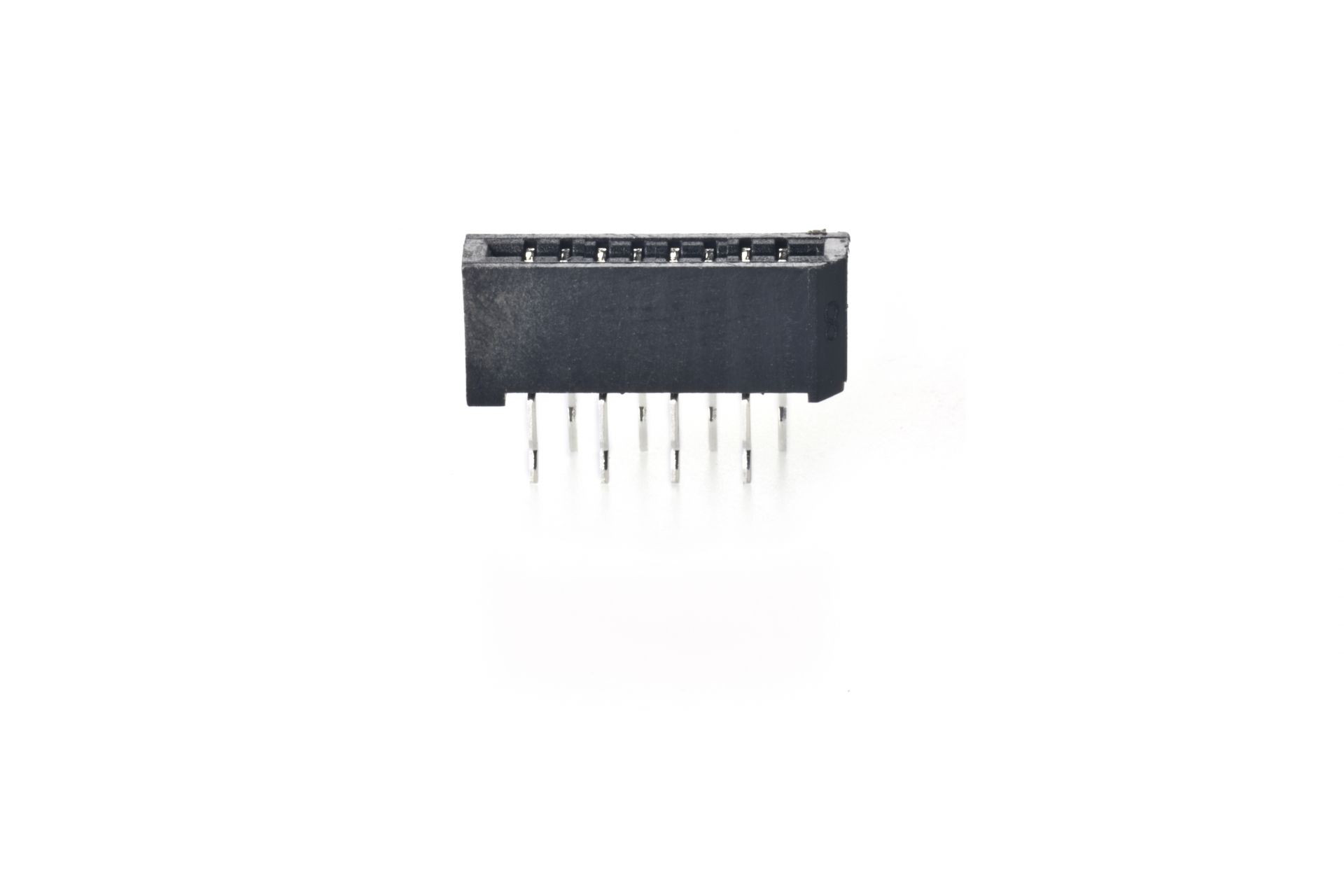

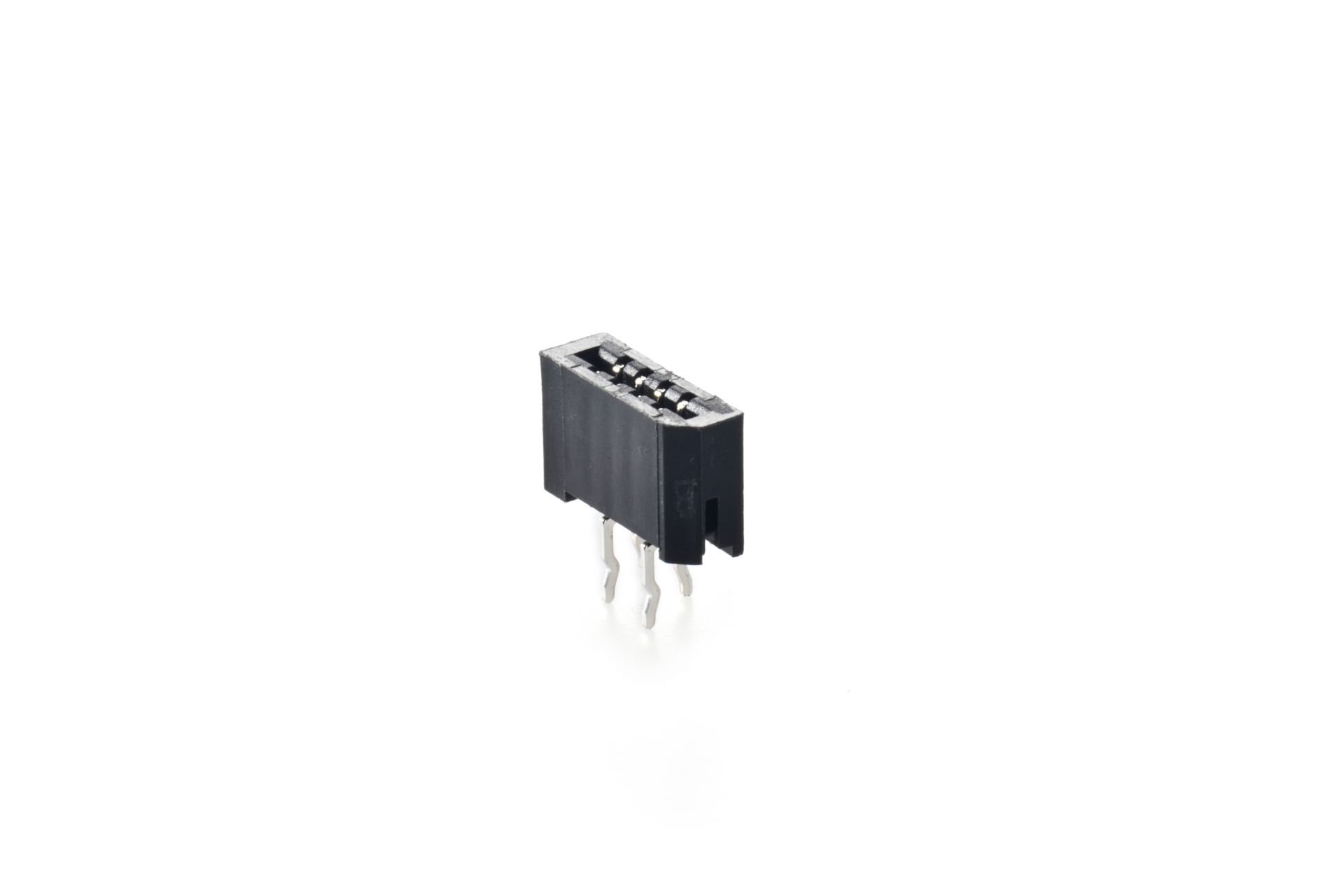

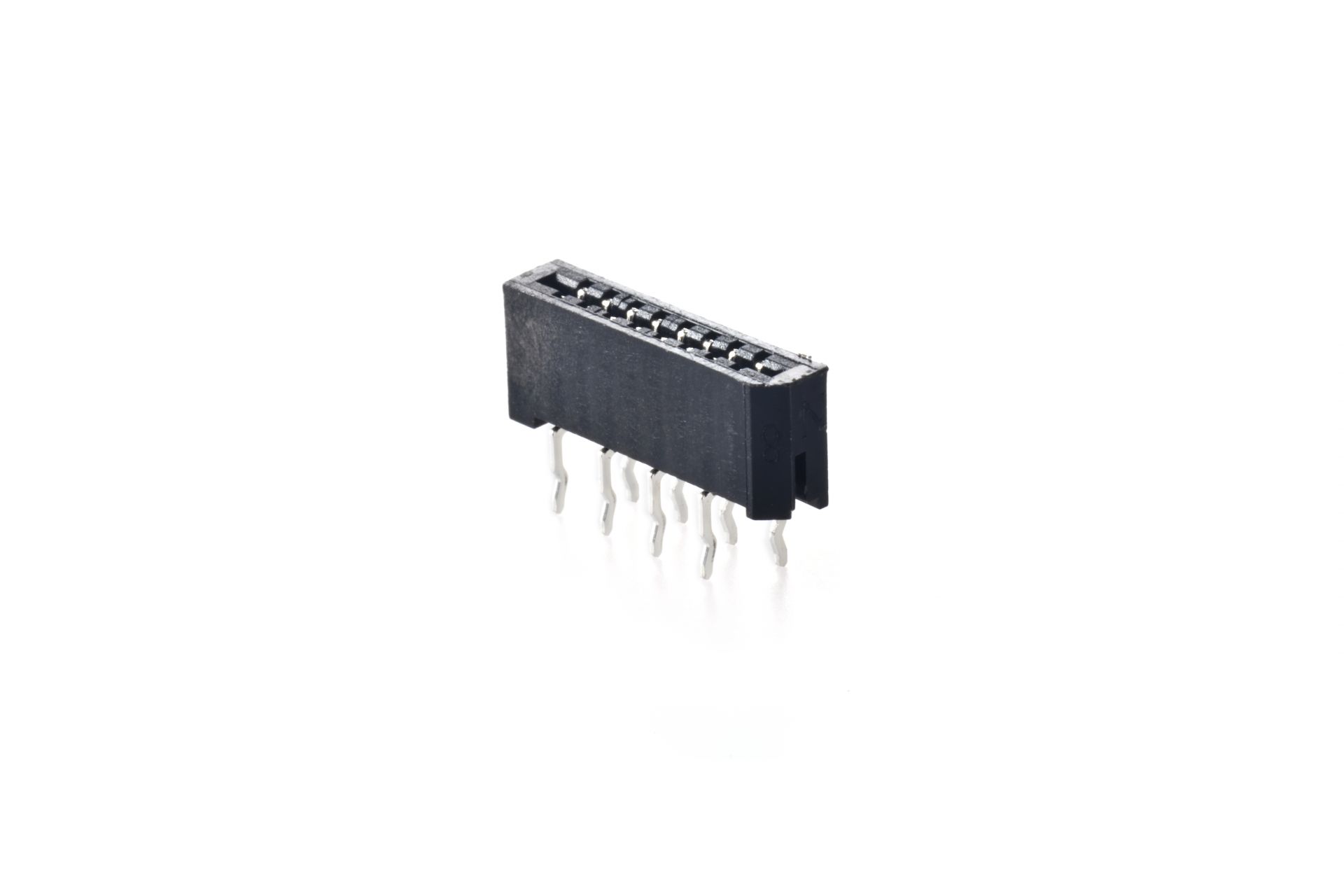

1.25mm FPC/FFC DIP 180°/ 90° NON-ZIF TYPE DUAL CONTACT
  • FPB

  • 30
    (1)
  • D
    (2)
  • L2

  • L
    (3)
  •
    H
    (4)
  • H
    (5)

Description

  • (1)03~30:NO. OF POSITION
  • (2)D:DIP STRAIGHT
        R:DIP RIGHT ANGLE
  • (3)L:STANDARD PCB LAYOUT
        R:REVERSE PCB LAYOUT
  • (4)WITHSTAND HIGH TEMPERATURE
  • (5)RoHS
  • 2013 (5)-2
  • 2013 (4)-2
  • 2013 (3)-2
  • 2013 (2)-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
FPBXXDL2L-HH 297KB PDF
download
DOWNLOAD
FPBXXDL2R-HH 298KB PDF
download
DOWNLOAD
FPBXXRL2L-HH 307KB PDF
download
DOWNLOAD
