Din 41612

HUB

2.54mm DIN 41612 HALF A+B
  • HUB

  • 2
    (1)
  • X

  • 16
    (2)
  • PD

    (3)
  •
    H
    (4)

Description

  • (1) 1:SINGLE ROW(A)
          2:DUAL ROW(A+B)
  • (2) 08:POSITION,REMOVED ODD PIN,PER ROW
          16:POSITION,FULL PIN,PER ROW

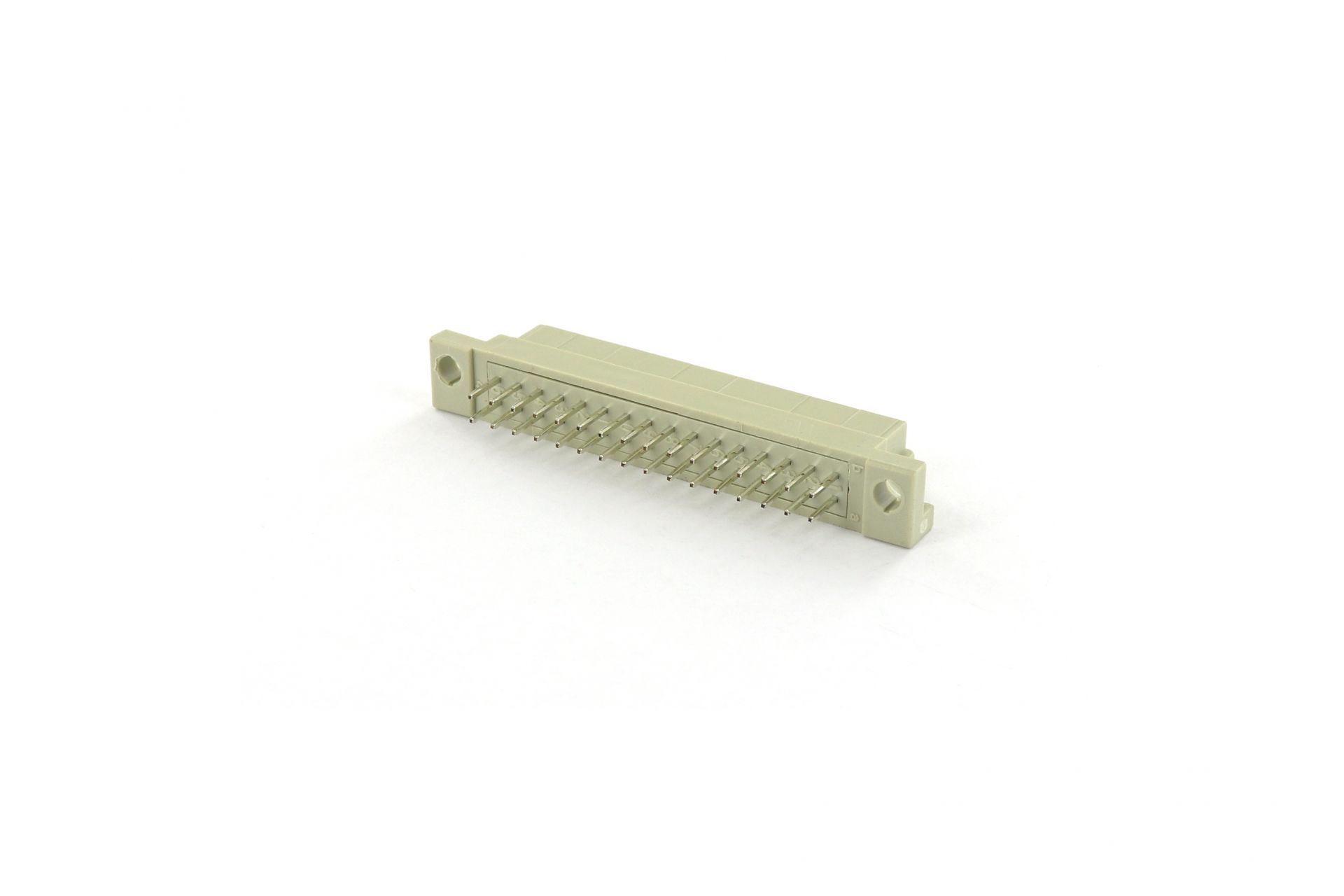

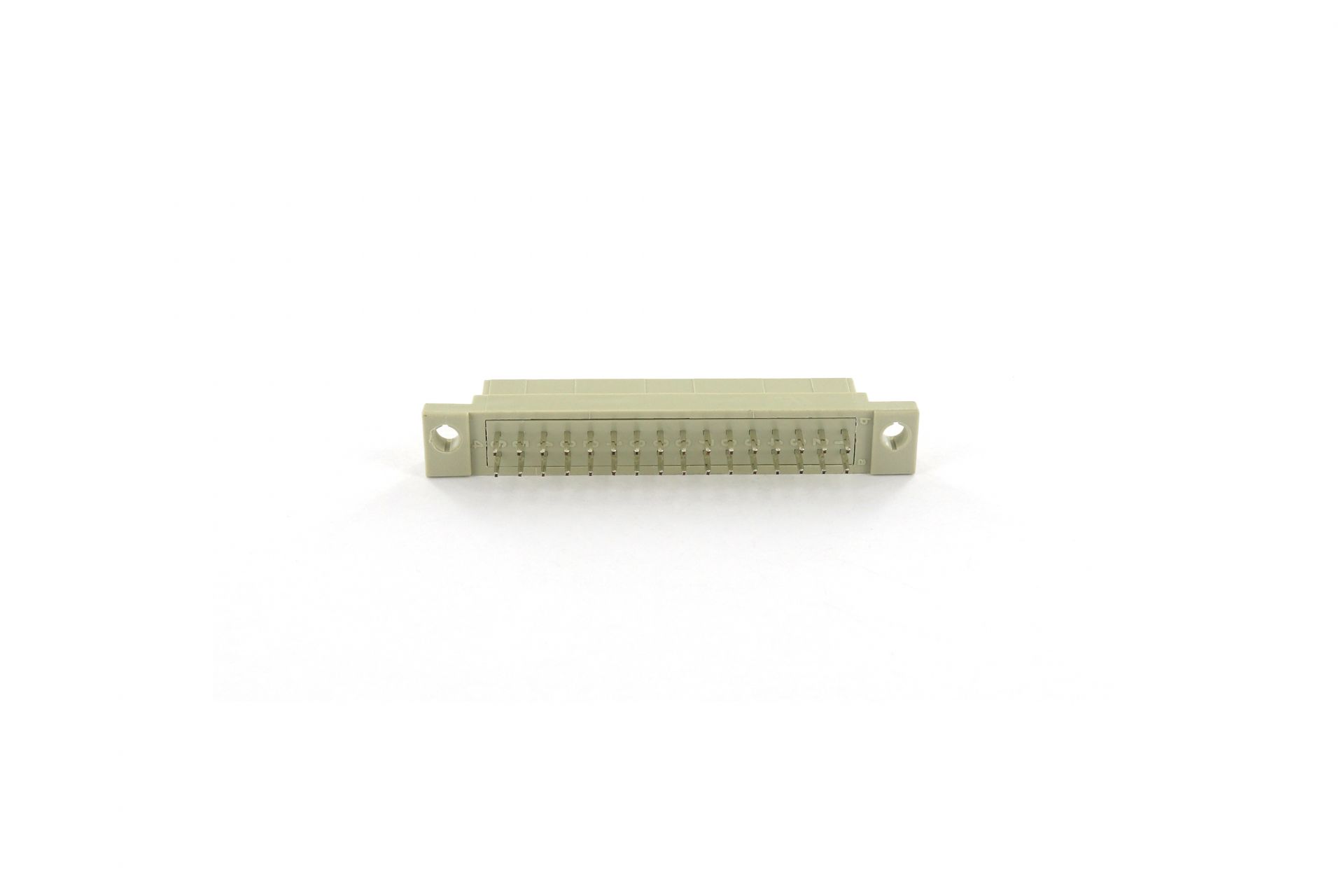

  • (3) PD: MALE DIP STRAIGHT

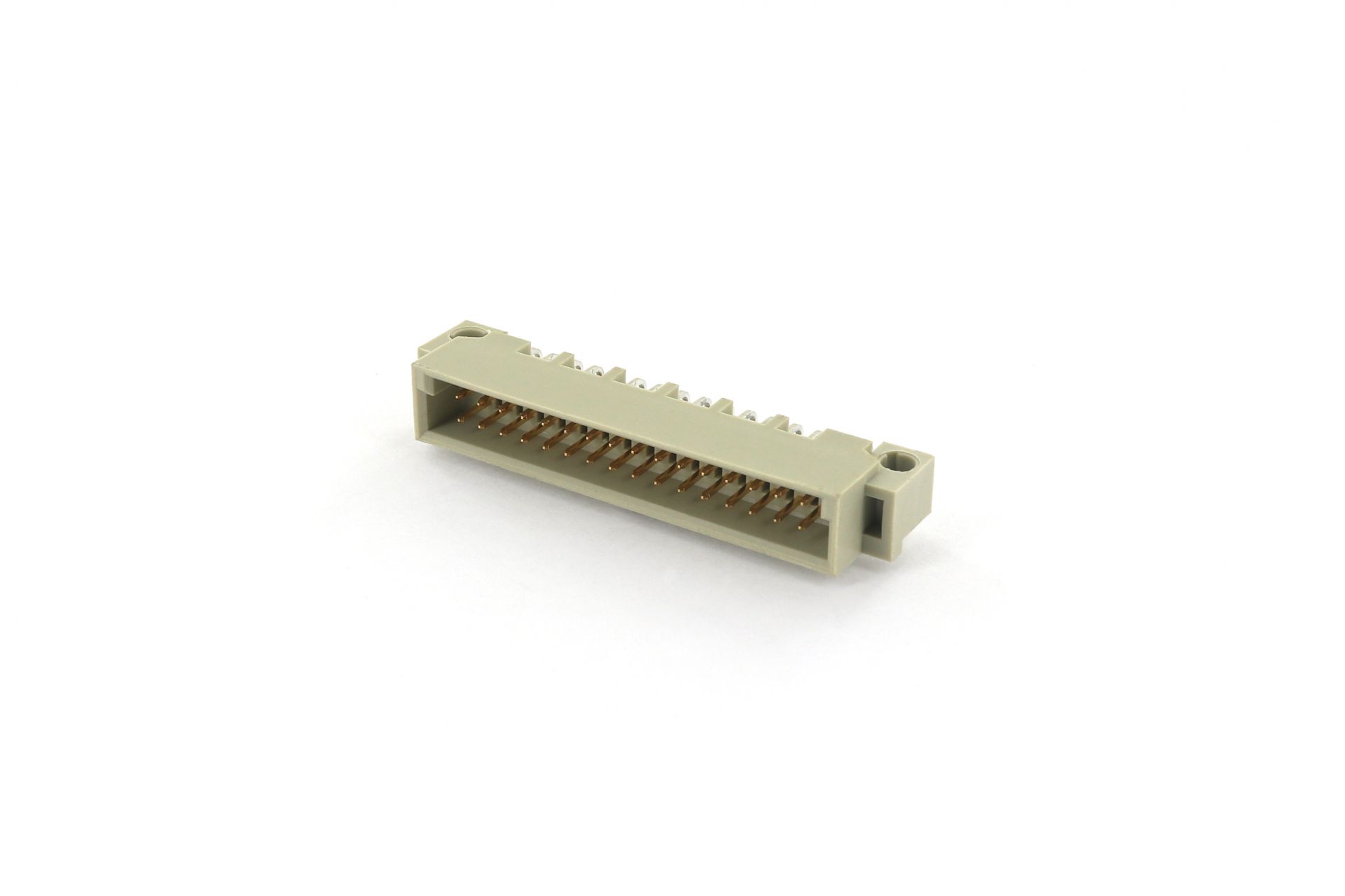

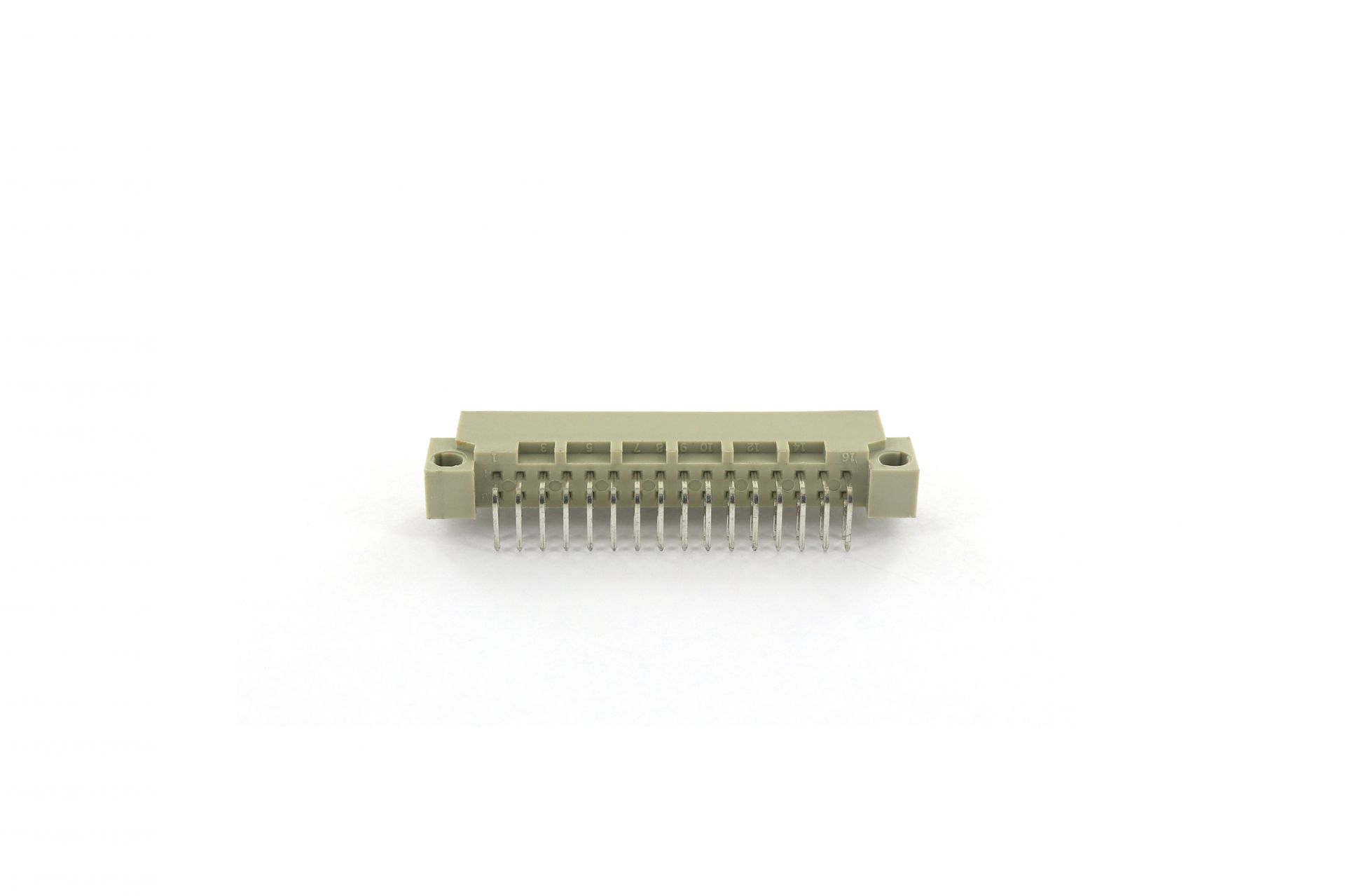

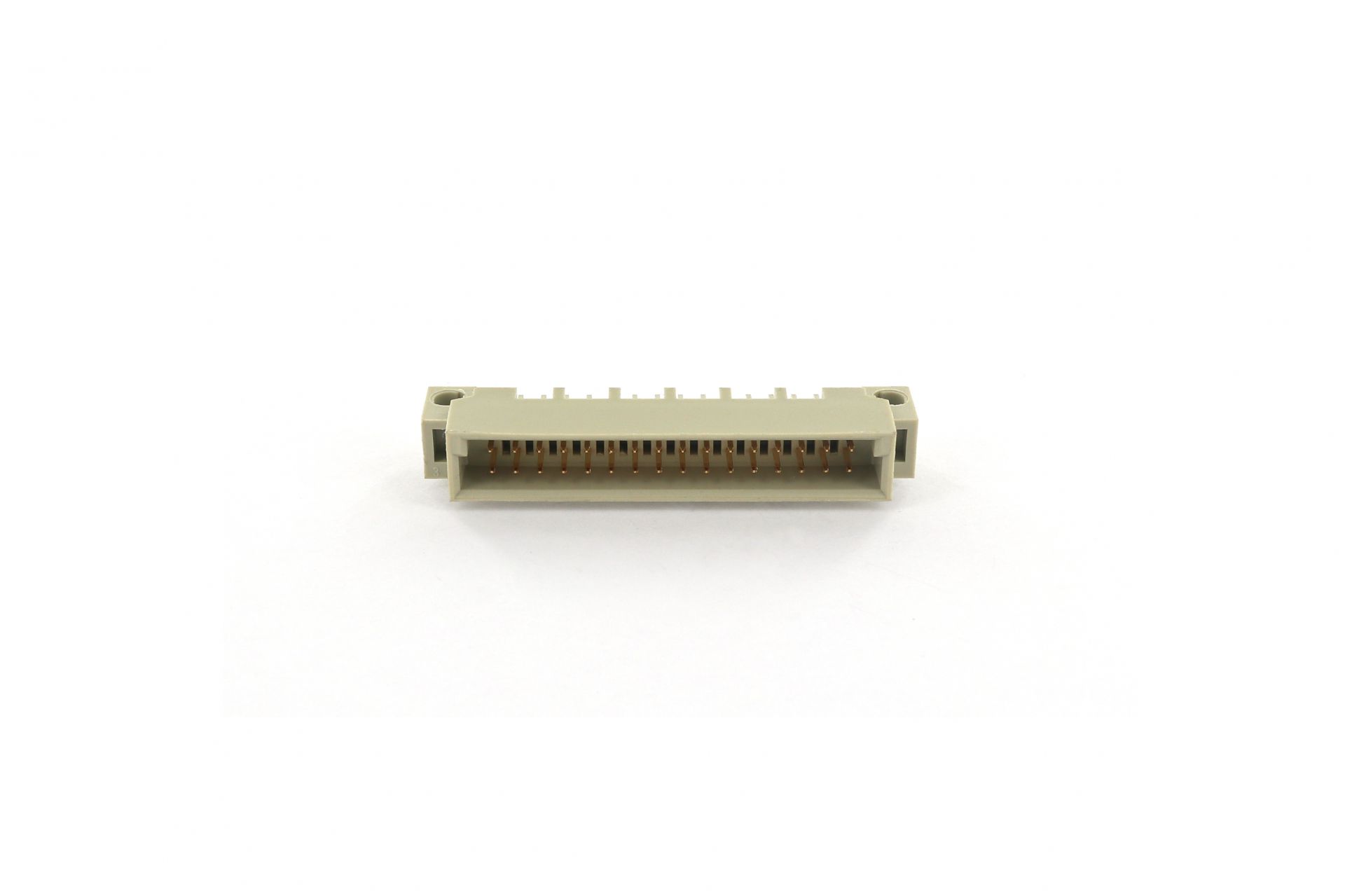

          PR: MALE DIP RIGHT ANGLE

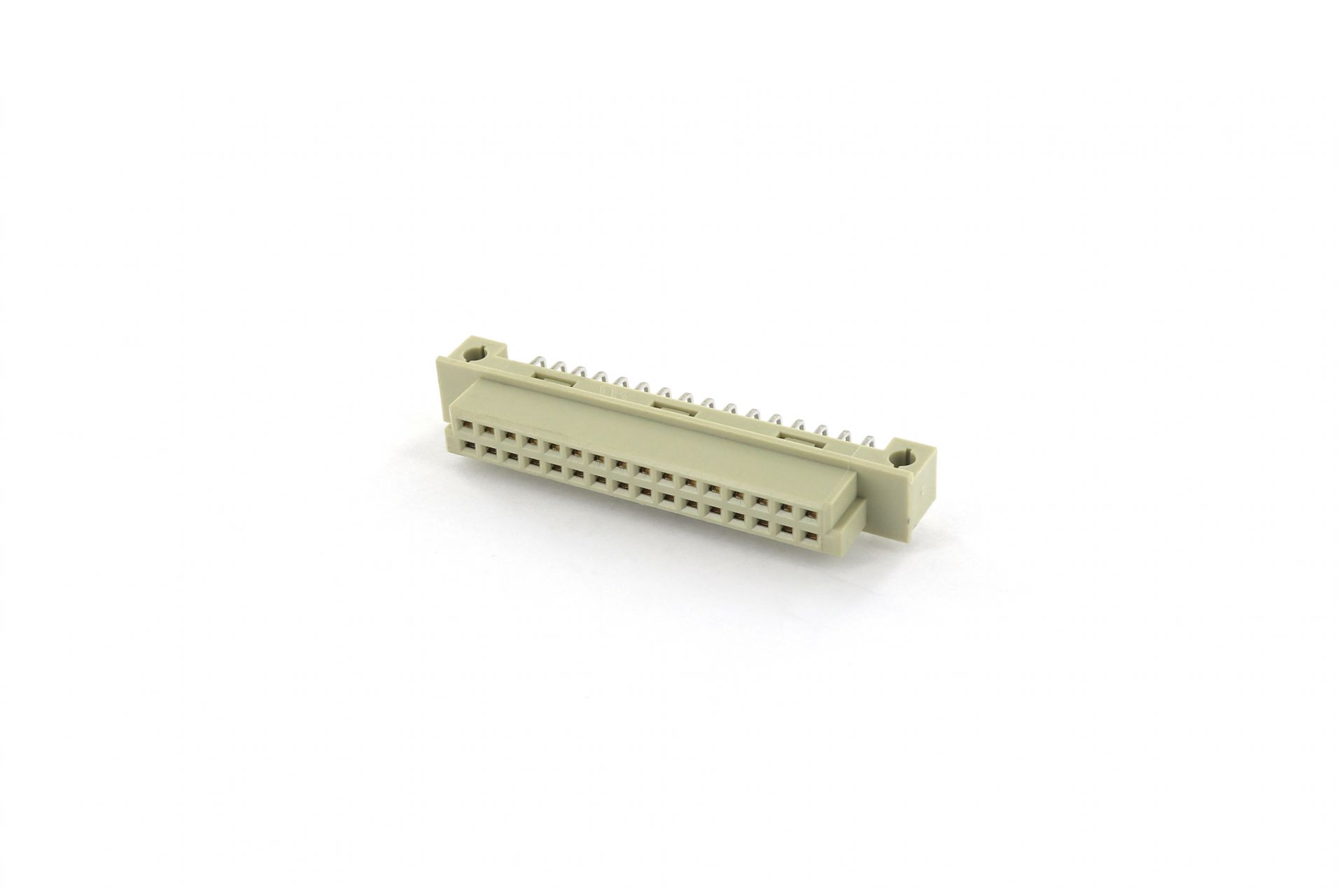

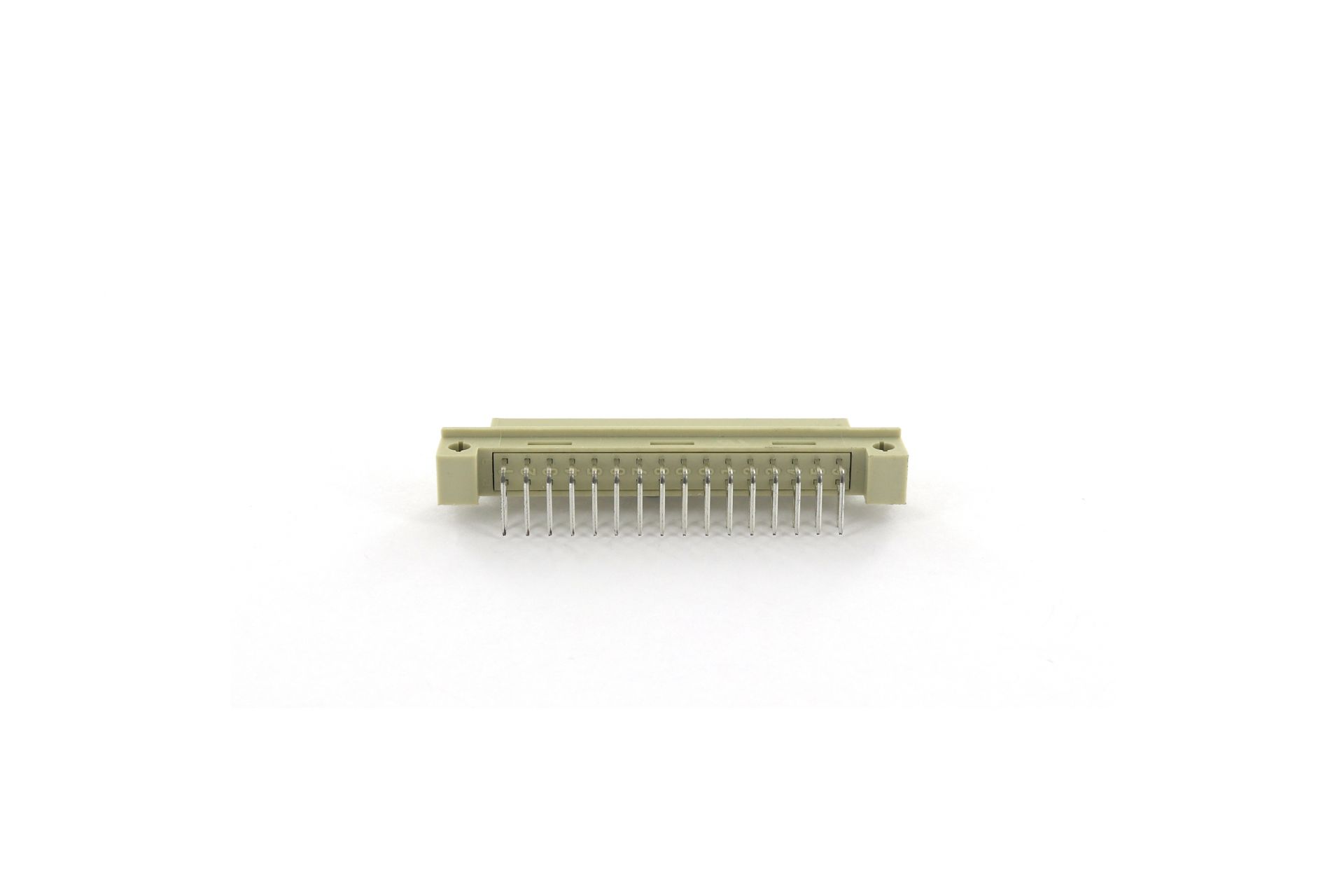

          SD: FEMALE DIP STRAIGHT
          SR: FEMALE DIP RIGHT ANGLE
  • (4) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
HUB2X16PR-H 257KB PDF
download
DOWNLOAD
HUB2X16SD-DXX-H 273KB PDF
download
DOWNLOAD
HUB2X16SR-H 263KB PDF
download
DOWNLOAD
