Din 41612

HUC

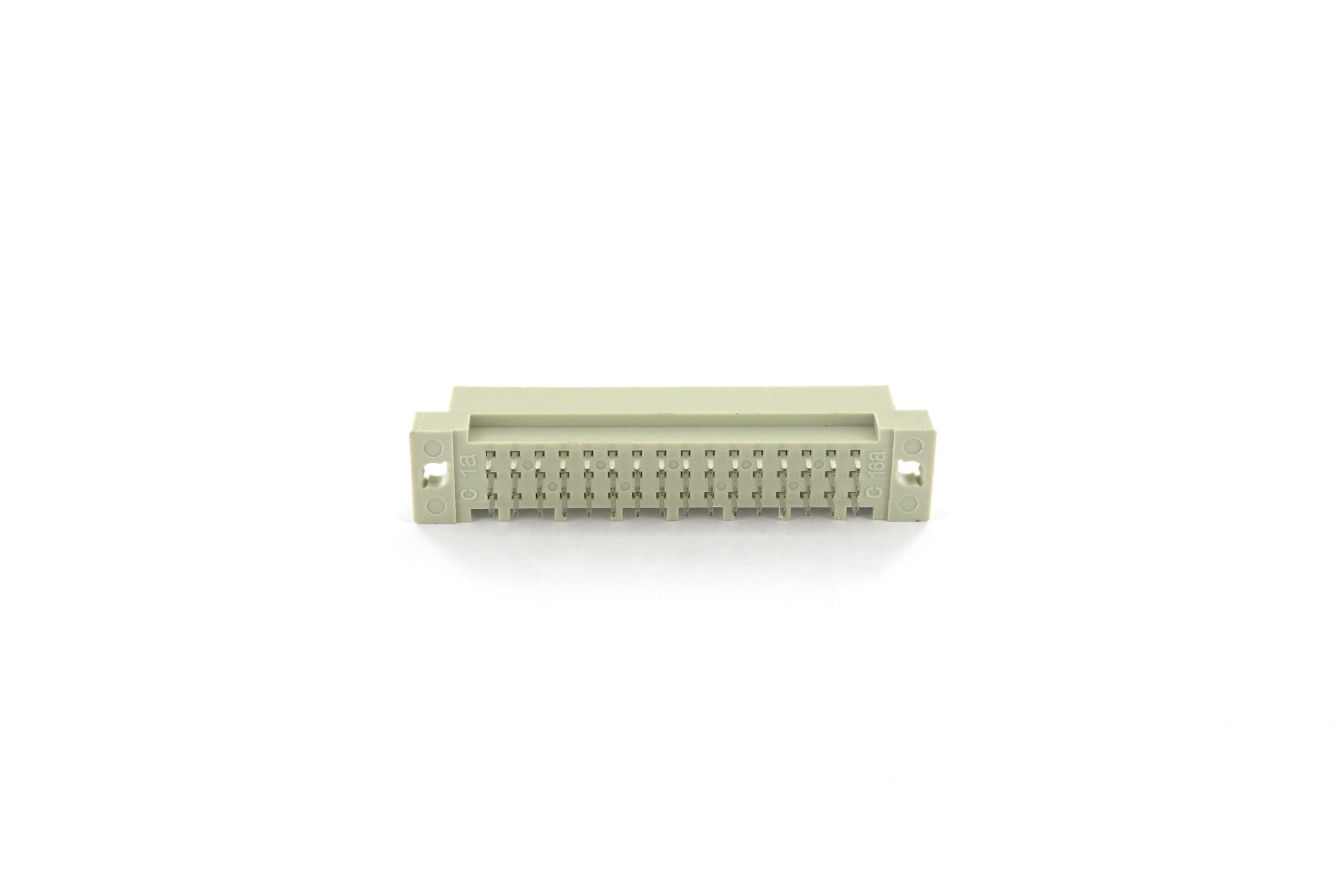

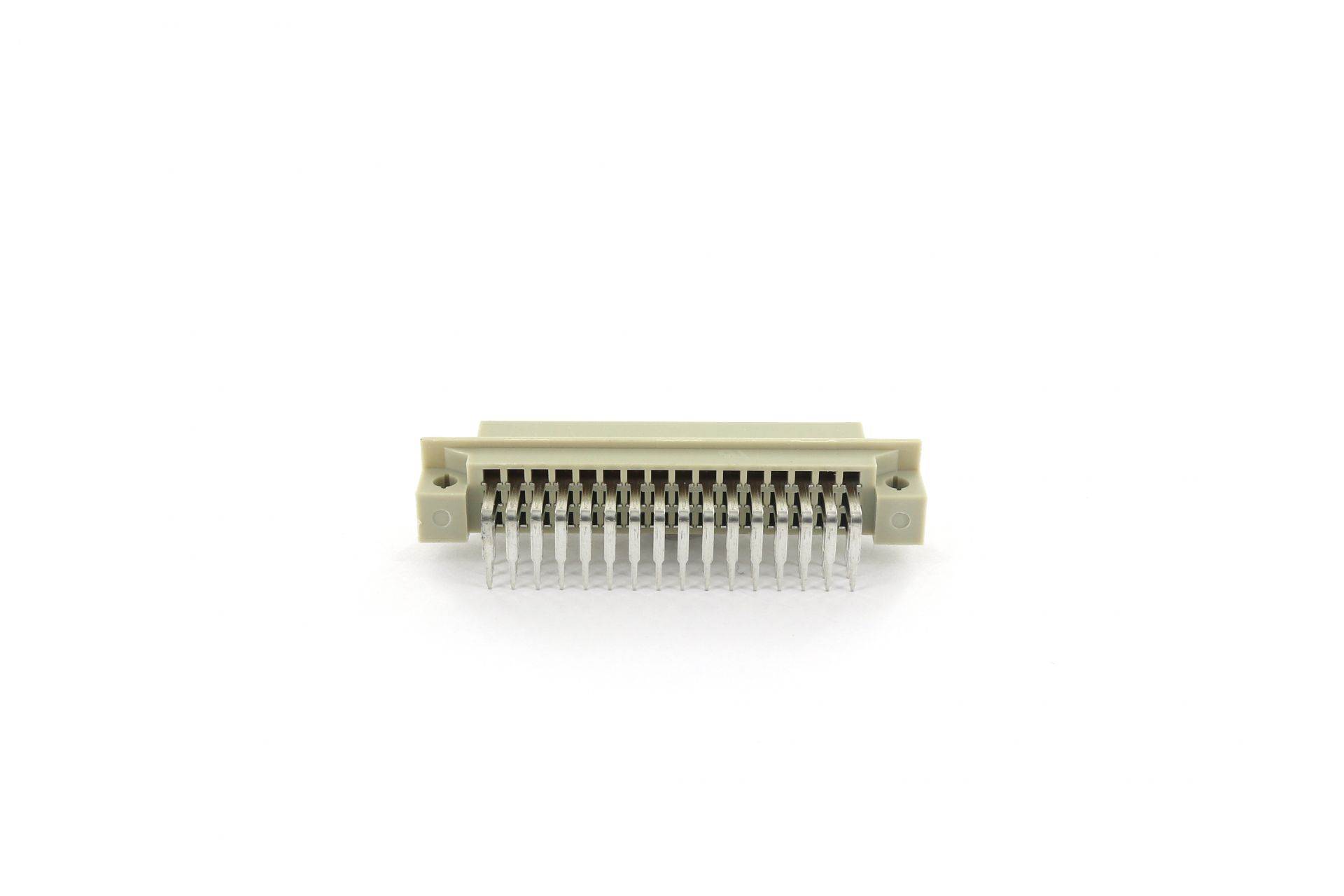

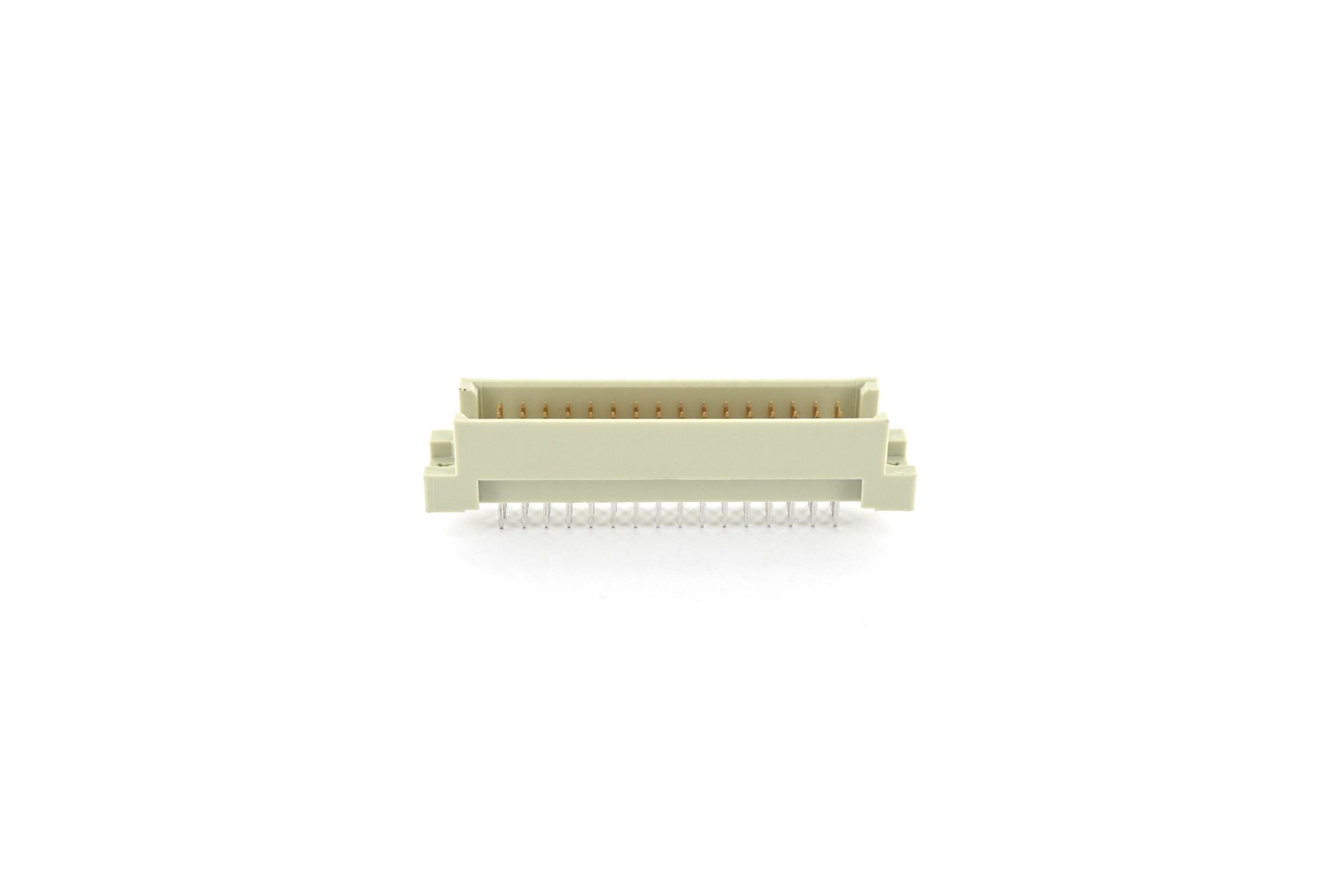

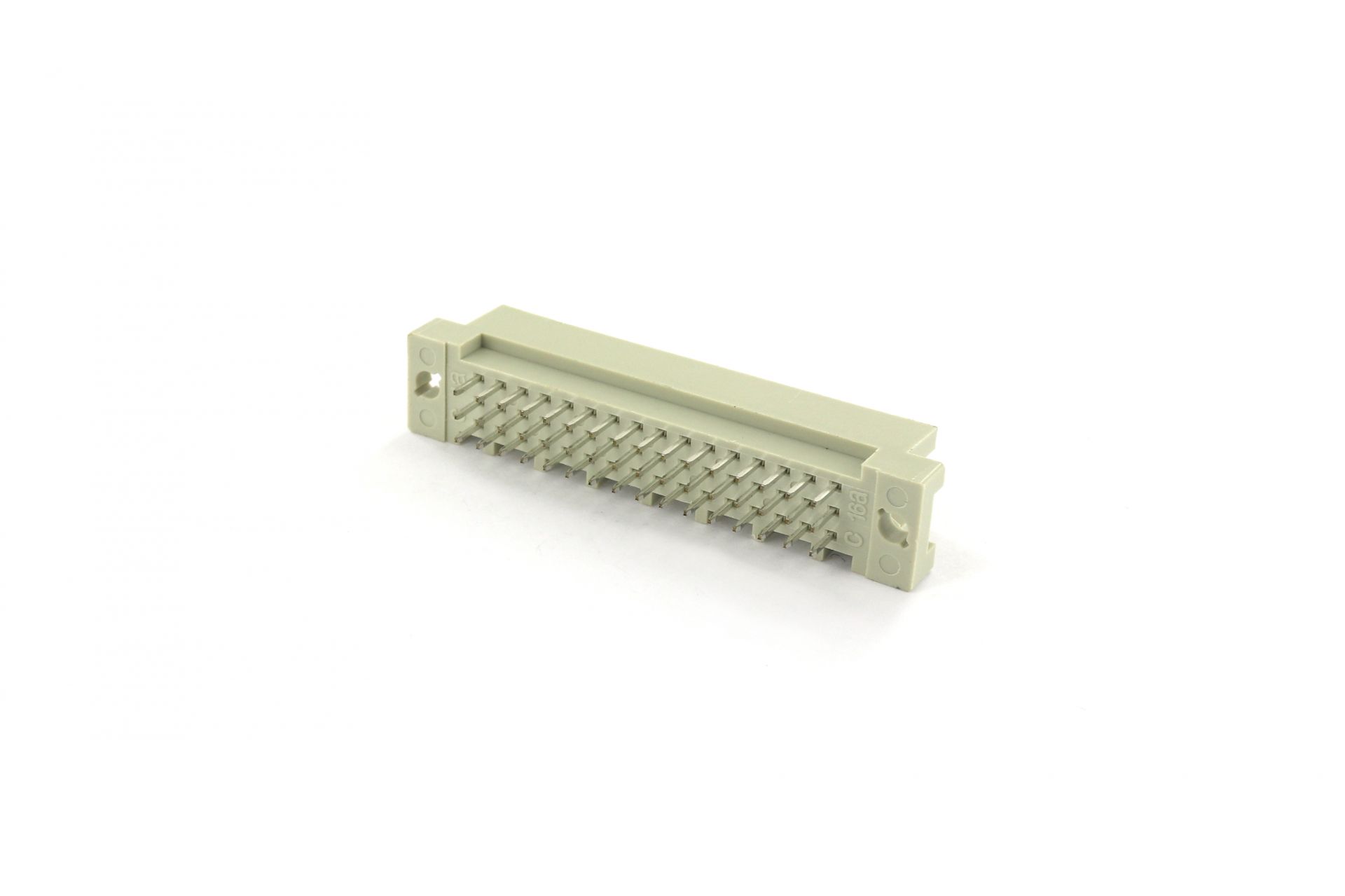

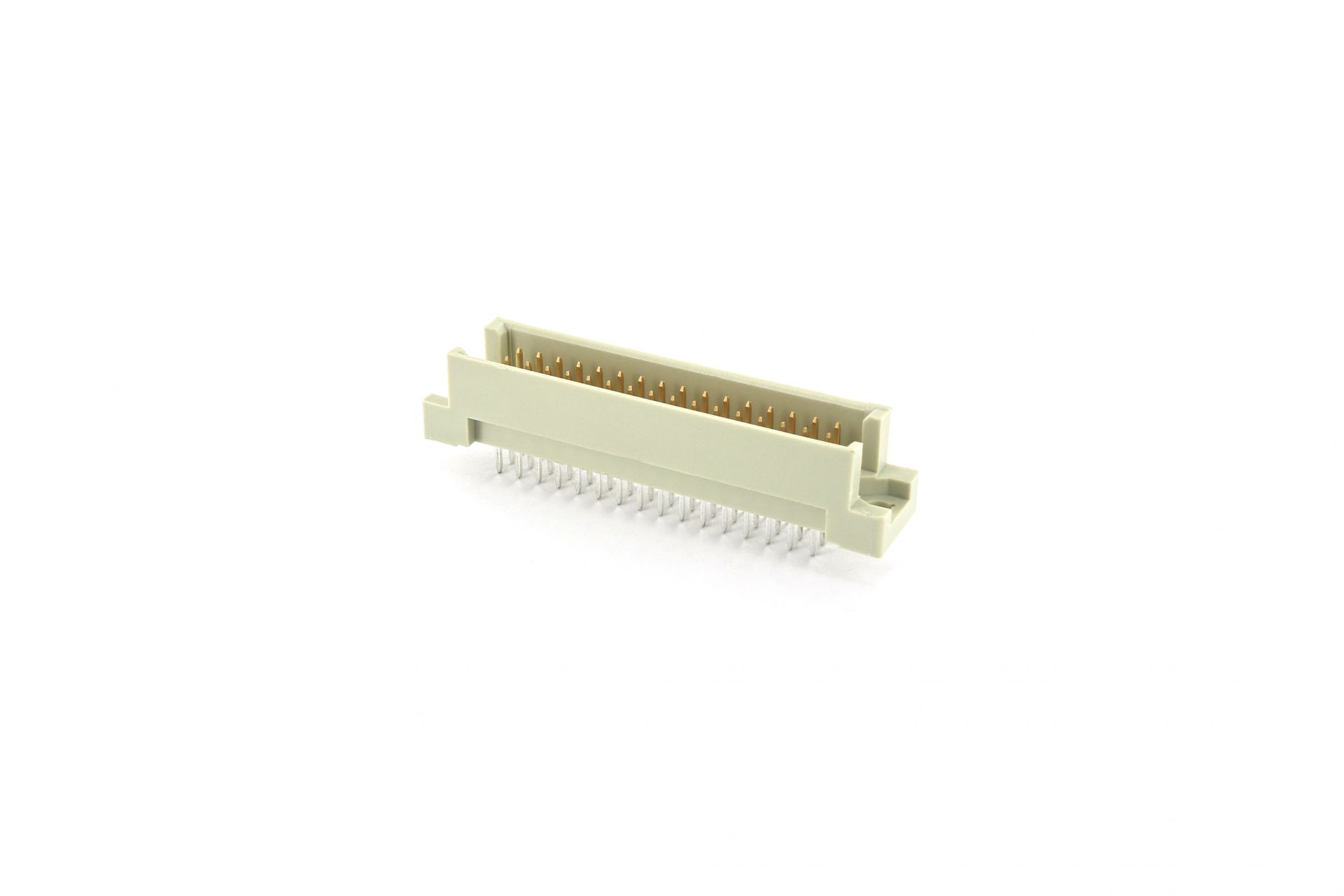

2.54mm DIN 41612 HALF A+B+C MALE DIP 180°
  • HUC

  • 3
    (1)
  • X

  • 16
    (2)
  • PD
    (3)
  •
    H
    (4)

Description

  • (1) 1:SINGLE ROW(A)
          2:DUAL ROW(A+C)
          3:TRIPLE ROW(A+B+C)
  • (2) 08:POSITION,REMOVED ODD PIN,PER ROW
          16:POSITION,FULL PIN,PER ROW
  • (3) PD: MALE DIP STRAIGHT
          PR: MALE DIP RIGHT ANGLE
          SD: FEMALE DIP STRAIGHT
          SR: FEMALE DIP RIGHT ANGLE
  • (4) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
HUC3X16SD-H 264KB PDF
download
DOWNLOAD
HUC3X16PR-H 267KB PDF
download
DOWNLOAD
HUC3X16SR-H 270KB PDF
download
DOWNLOAD
HUCXXXXPP-DXX-X-H 289KB PDF
download
DOWNLOAD
HUC3X16PD-H 146KB PDF
download
DOWNLOAD
