Din/Mini Din Connectors

MDJ8

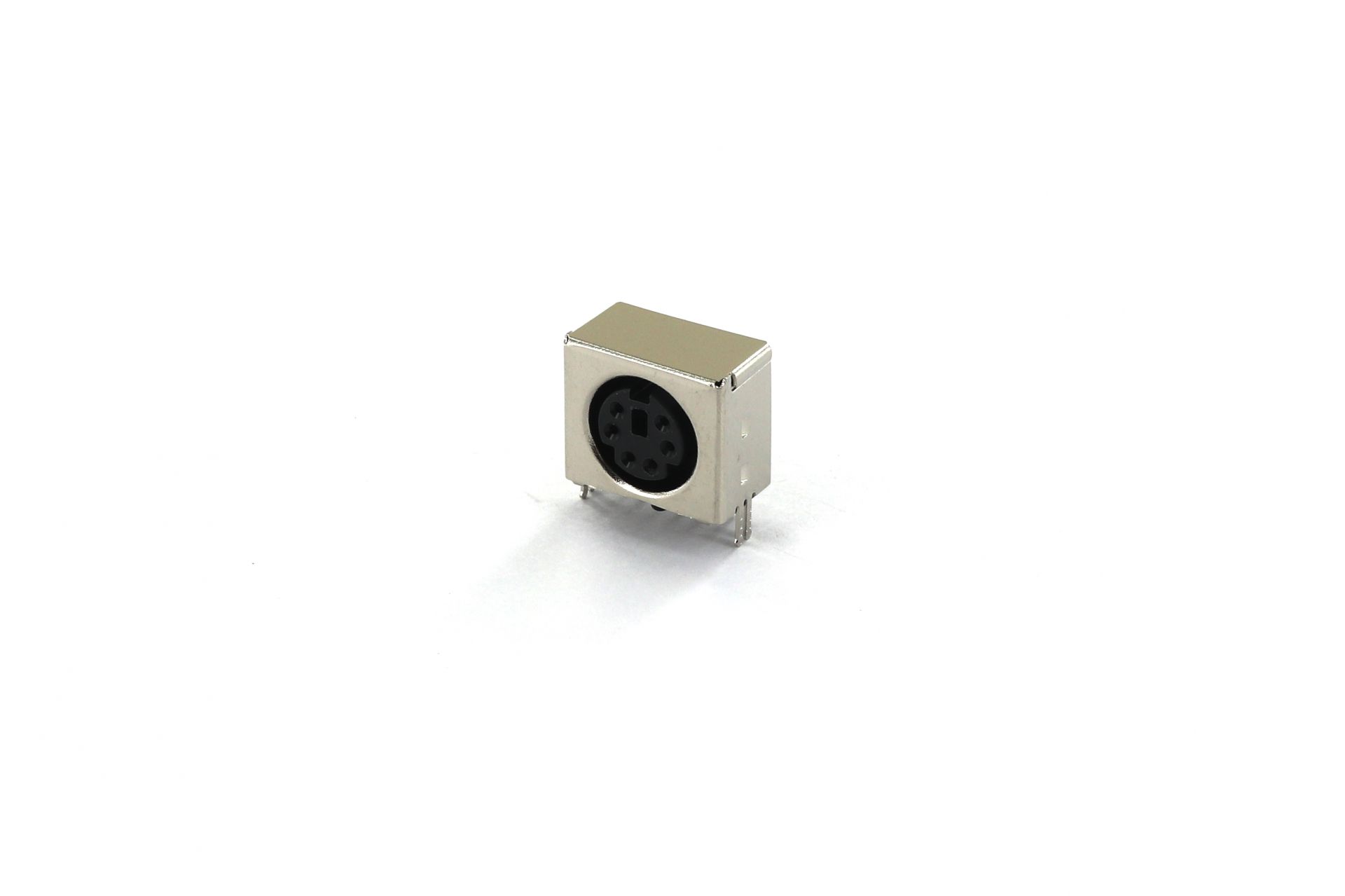

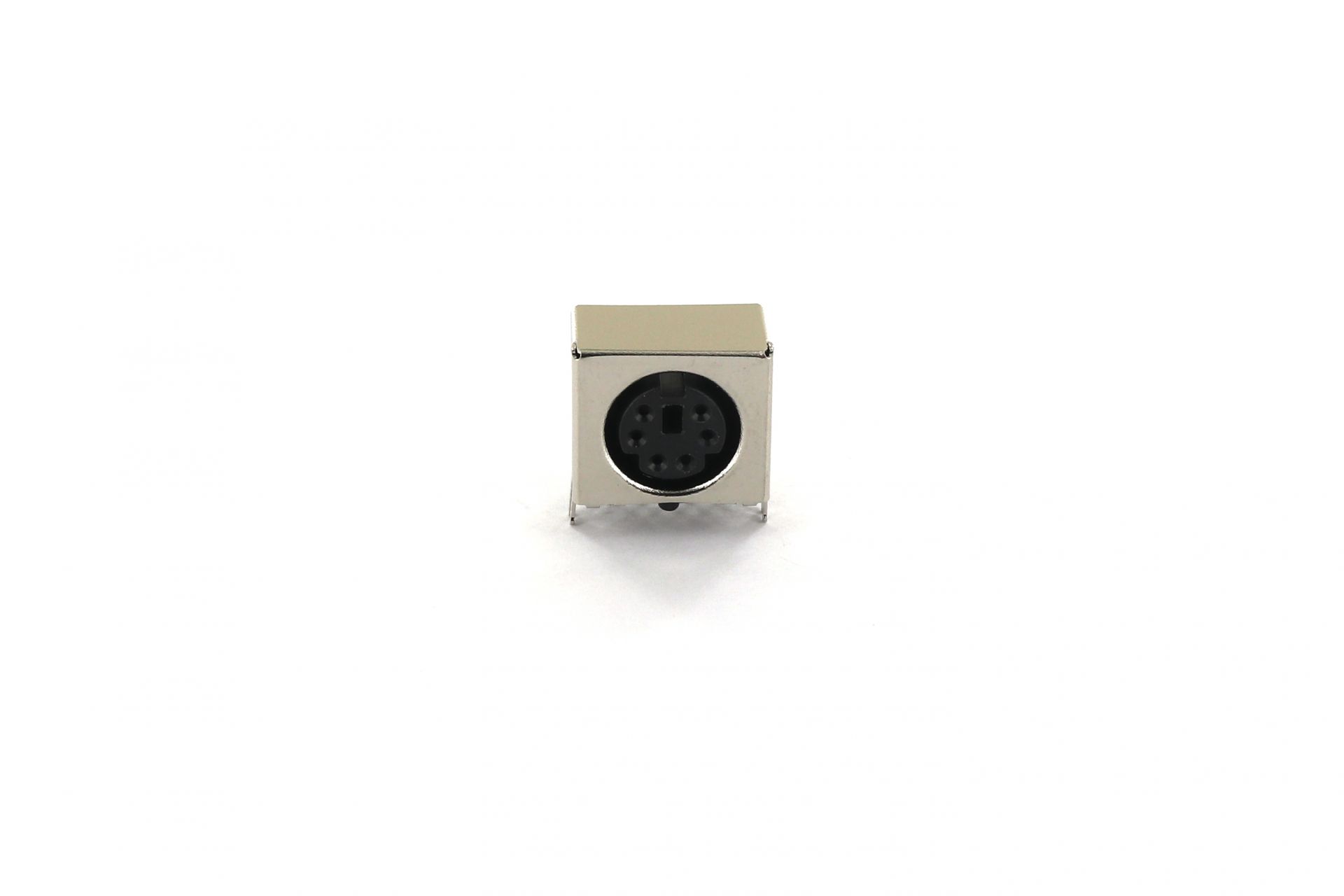

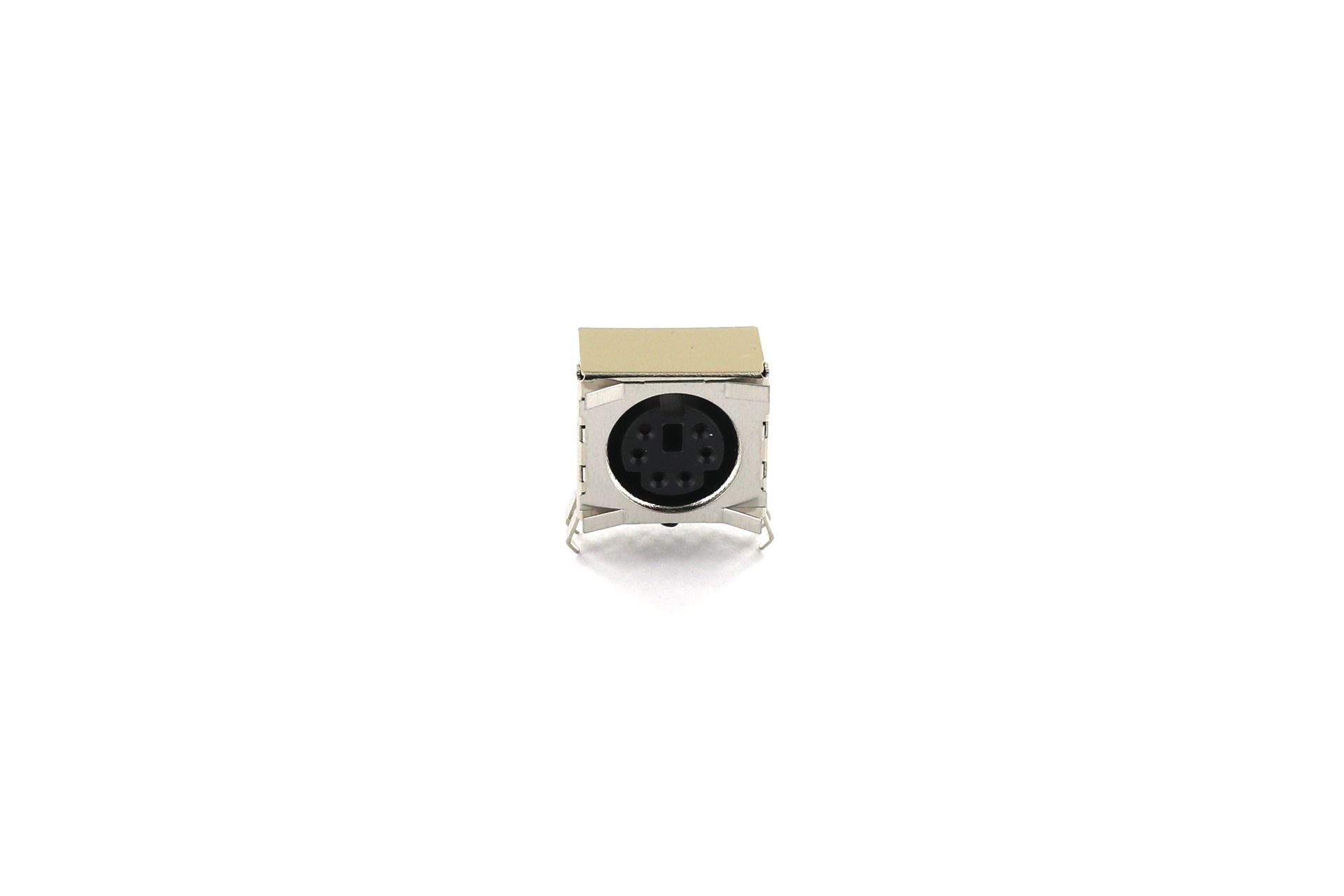

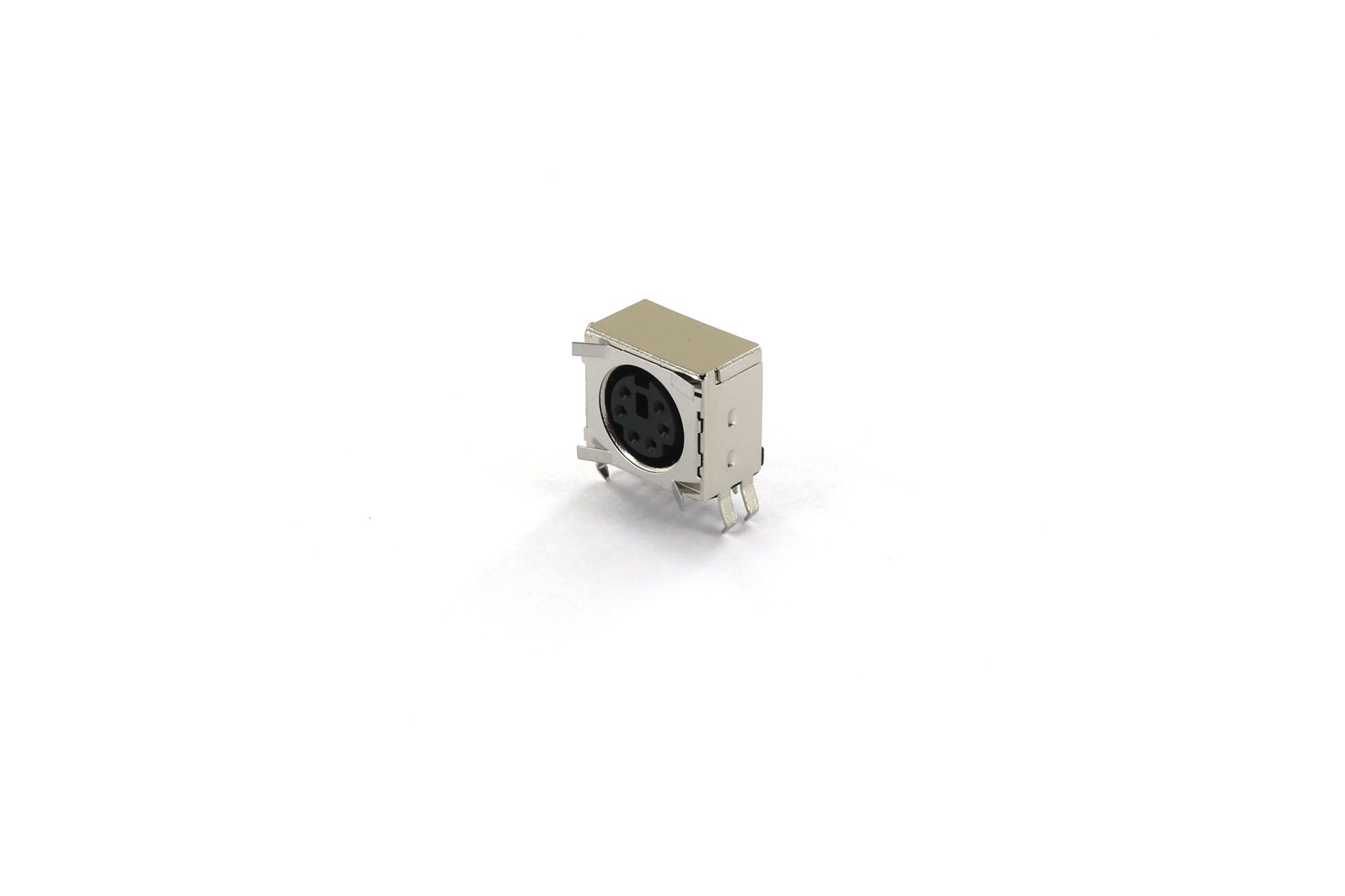

MINI DIN JACK SLIM TYPE
  • MDJ
  • 8
    (1)
  •
    04
    (2)
  • F
    (3)
  • S
    (4)
  •
    GR
    (5)
  •
    H
    (6)

Description

  • (1) 8:SLIM TYPE 8.7mm
  • (2) 04、06:NO. OF POSITION
  • (3) F:FULL SHIELDED
  • (4) S:WITH PANEL FLANGE
          S4:WITH 4 PCS PANEL FLANGE
          BLANK:WITHOUT PANEL FLANGE
  • (5) GR:INSULATOR COLOR GREEN
          PP:INSULATOR COLOR PURPLE
  • (6) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
MDJ8-06FS4-H 163KB PDF
download
DOWNLOAD
MDJ8-06F-HH 280KB PDF
download
DOWNLOAD
