Din/Mini Din Connectors

MDP

MIN DIN POWER
  • MDP

  • 03
    (1)
  • J
    (2)
  •
    H
    (3)

Description

  • (1) 03,04:POSITION

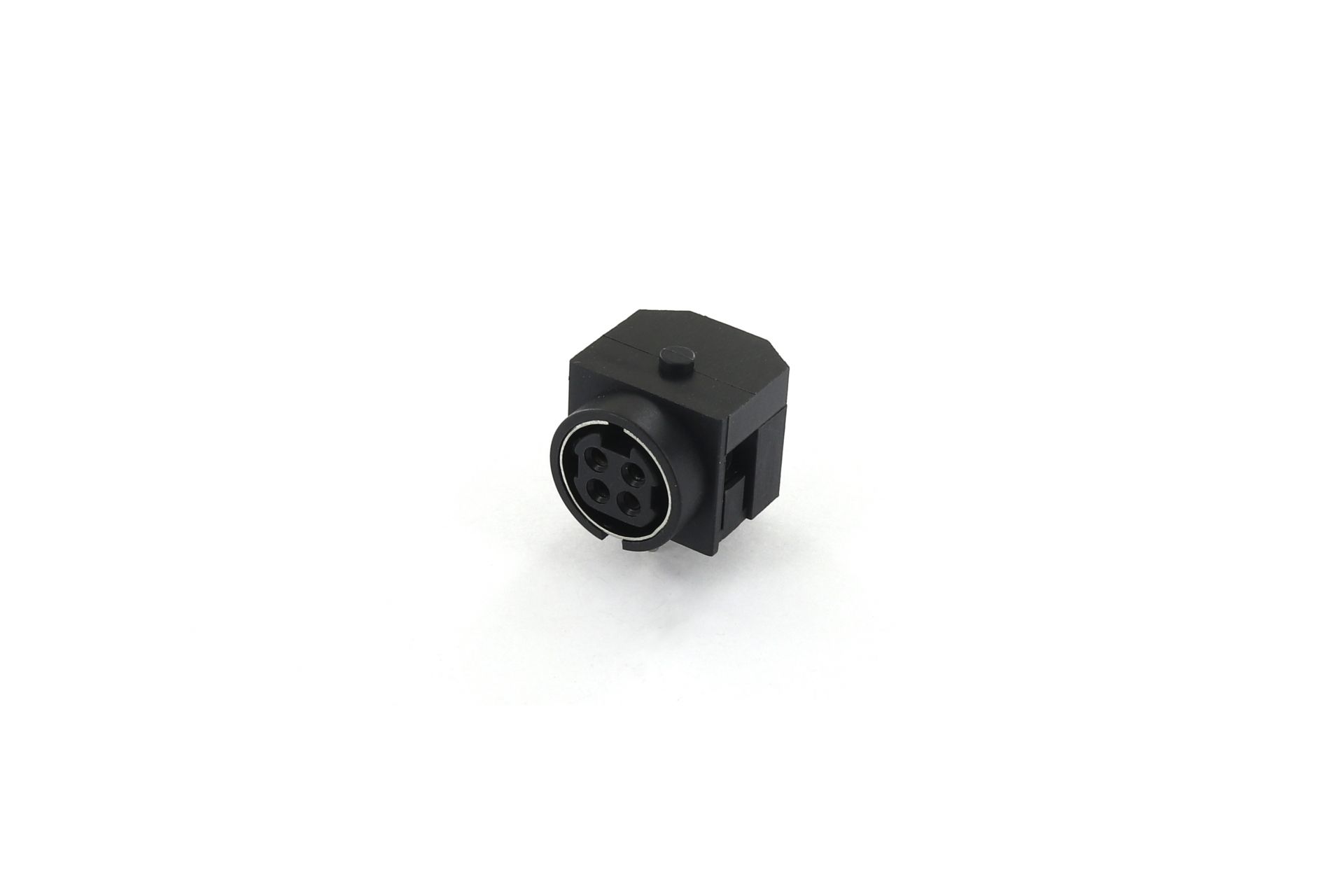

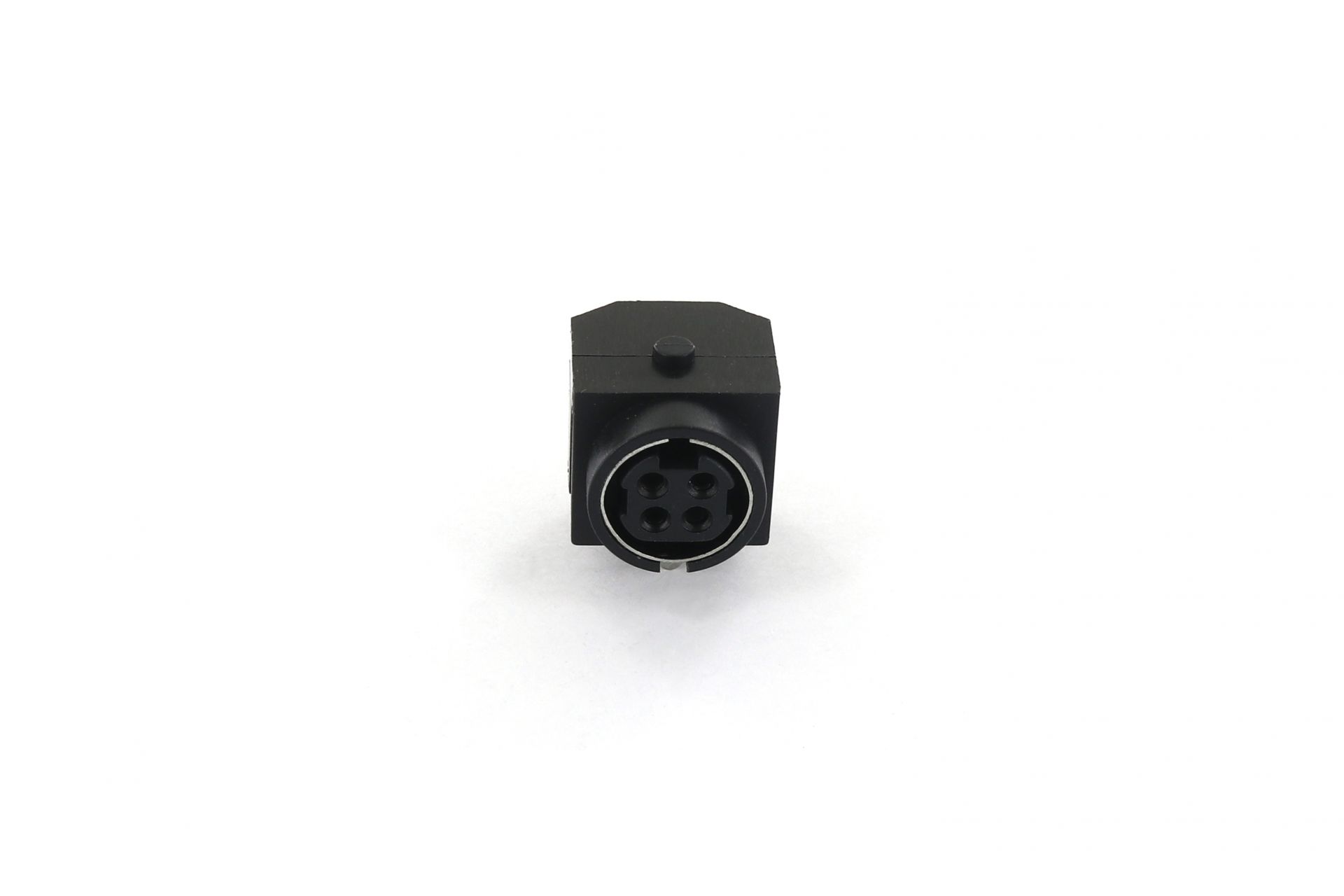

  • (2) J:FEMALE DIP REGHT ANGLE

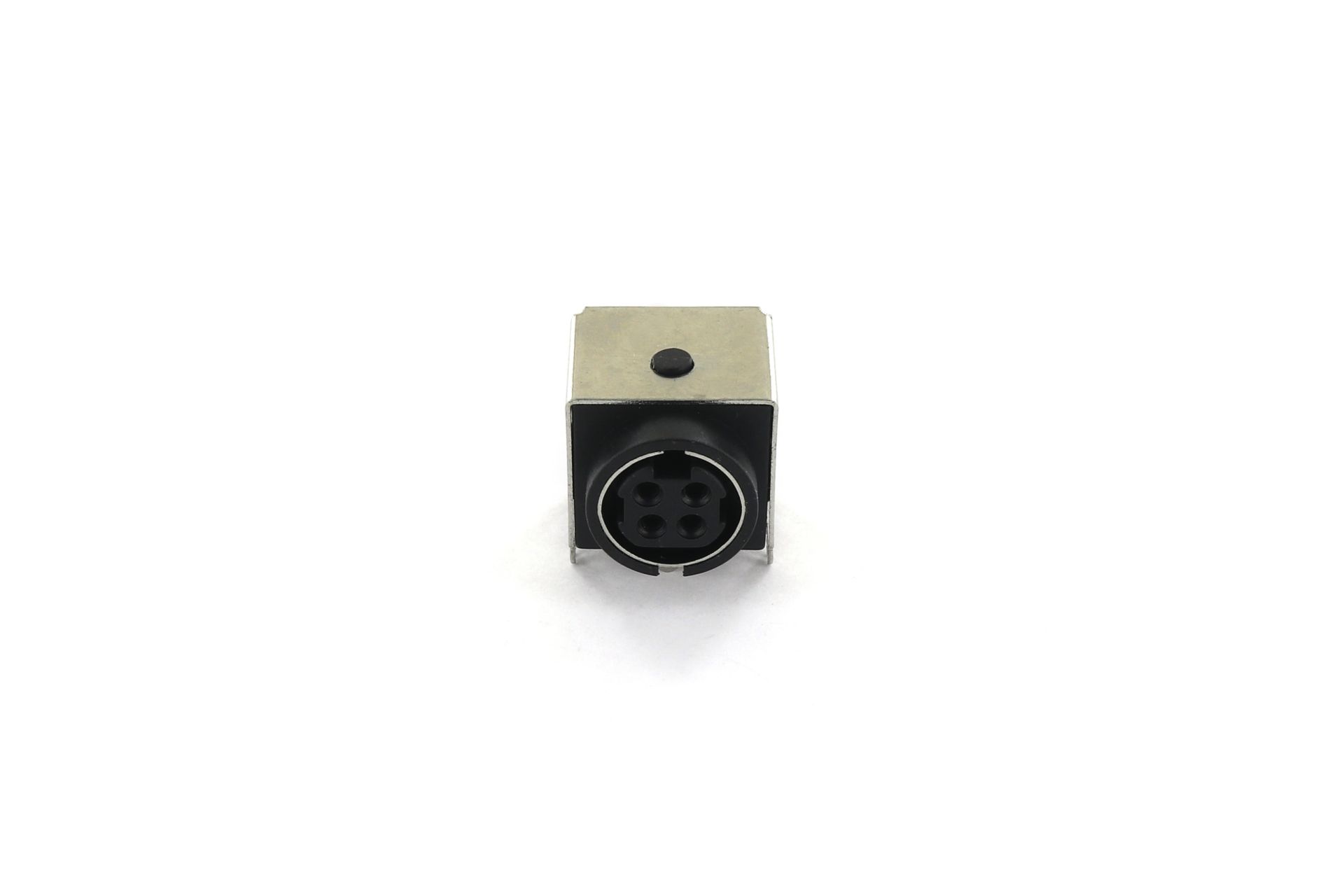

          JM:FEMALE DIP RIGHT ANGLE 4 SIDE SHIELDED
          PA:MALE SOLDEWIRE/ASSEMBLY TYPE
  • (3) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
MDP04PA-H 237KB PDF
download
DOWNLOAD
MDP03J-H 247KB PDF
download
DOWNLOAD
MDP03PA-H 340KB PDF
download
DOWNLOAD
