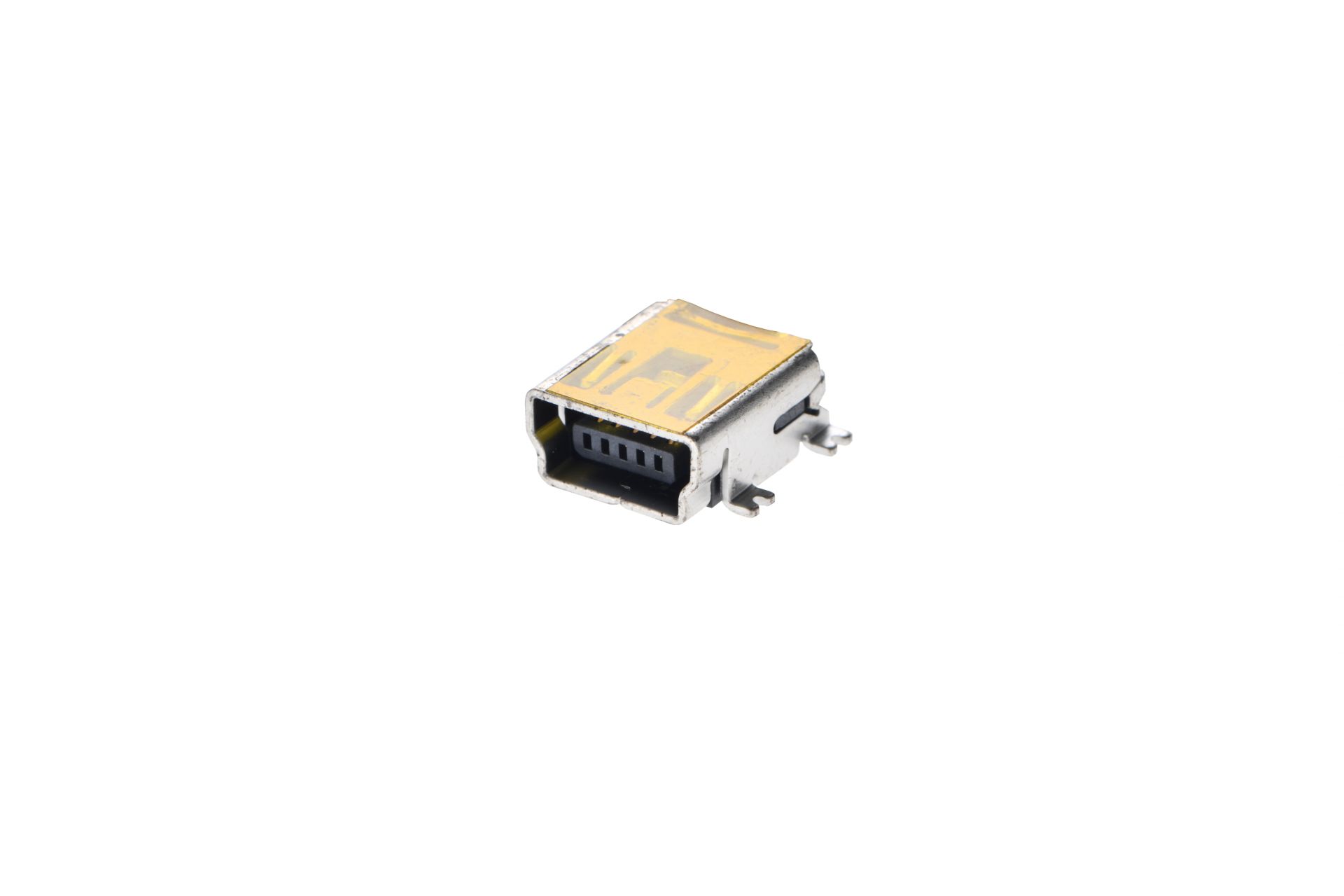

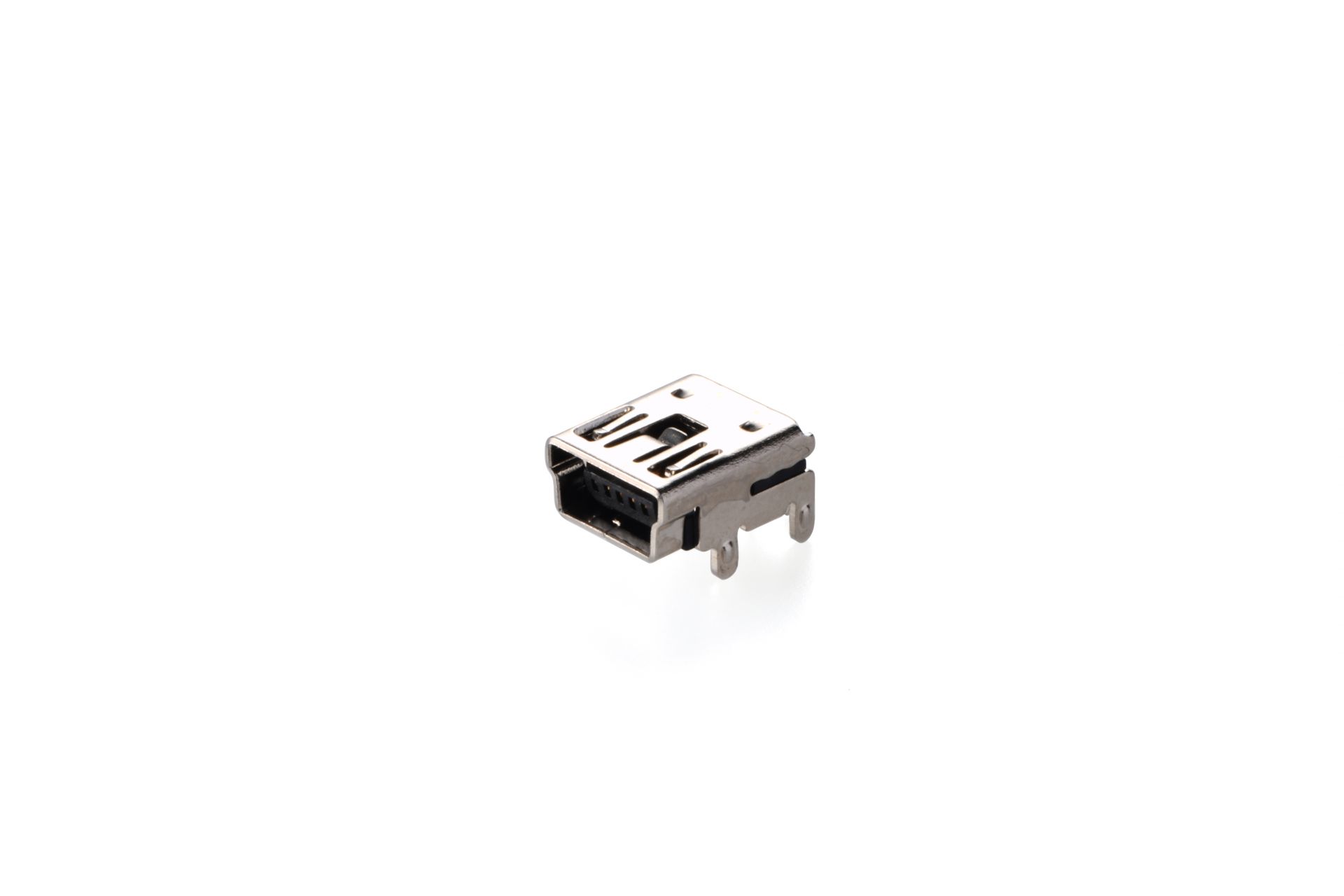

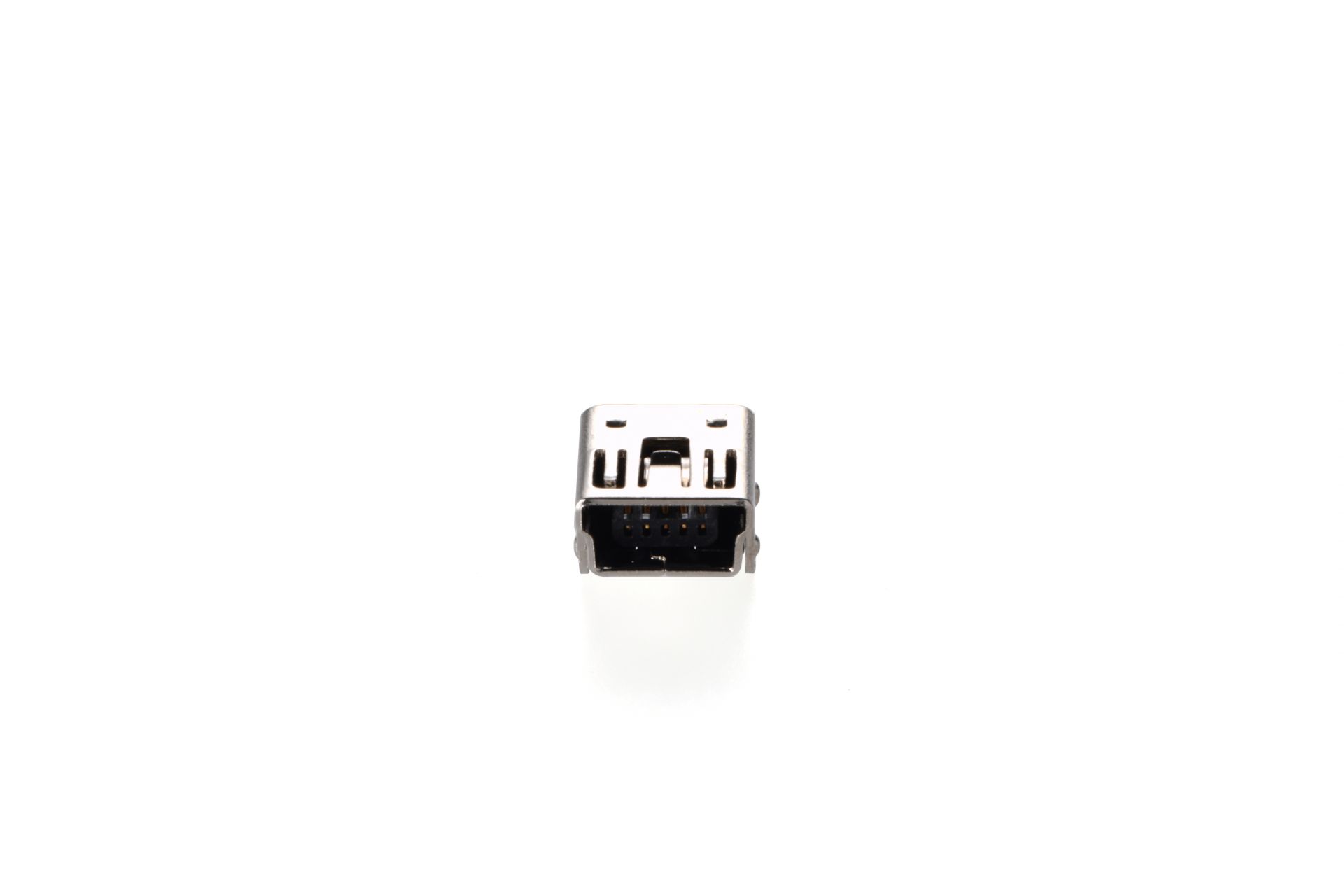

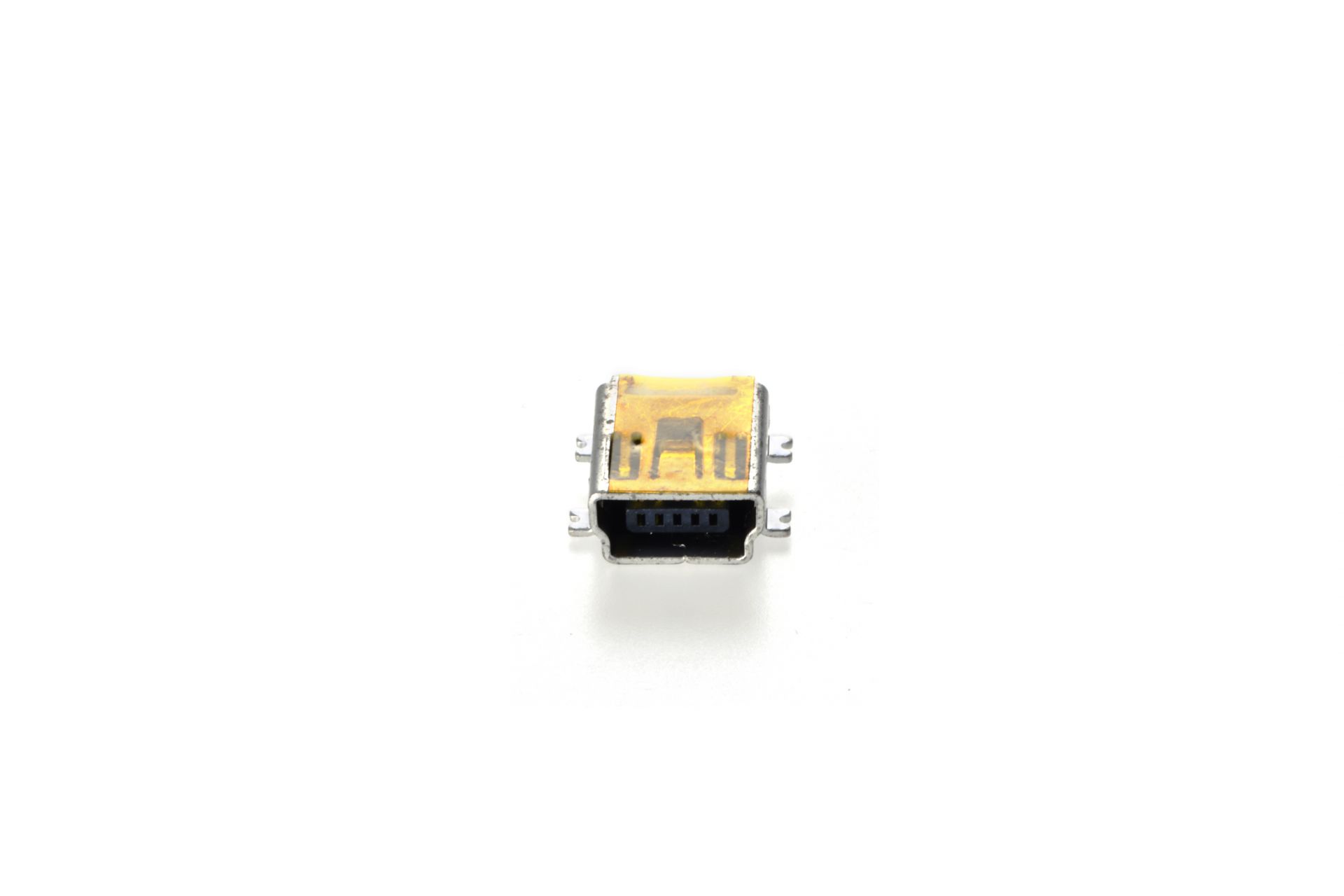

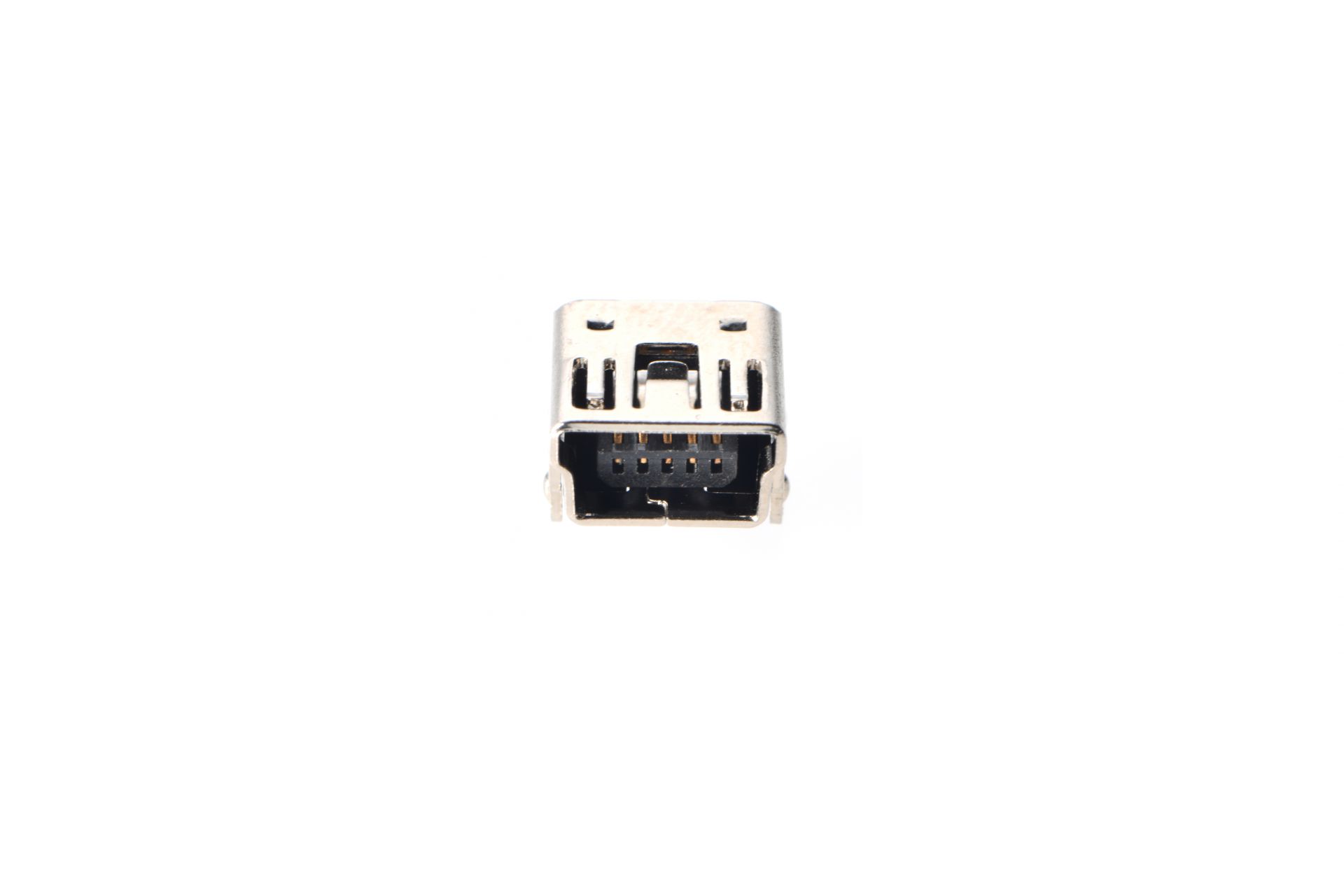

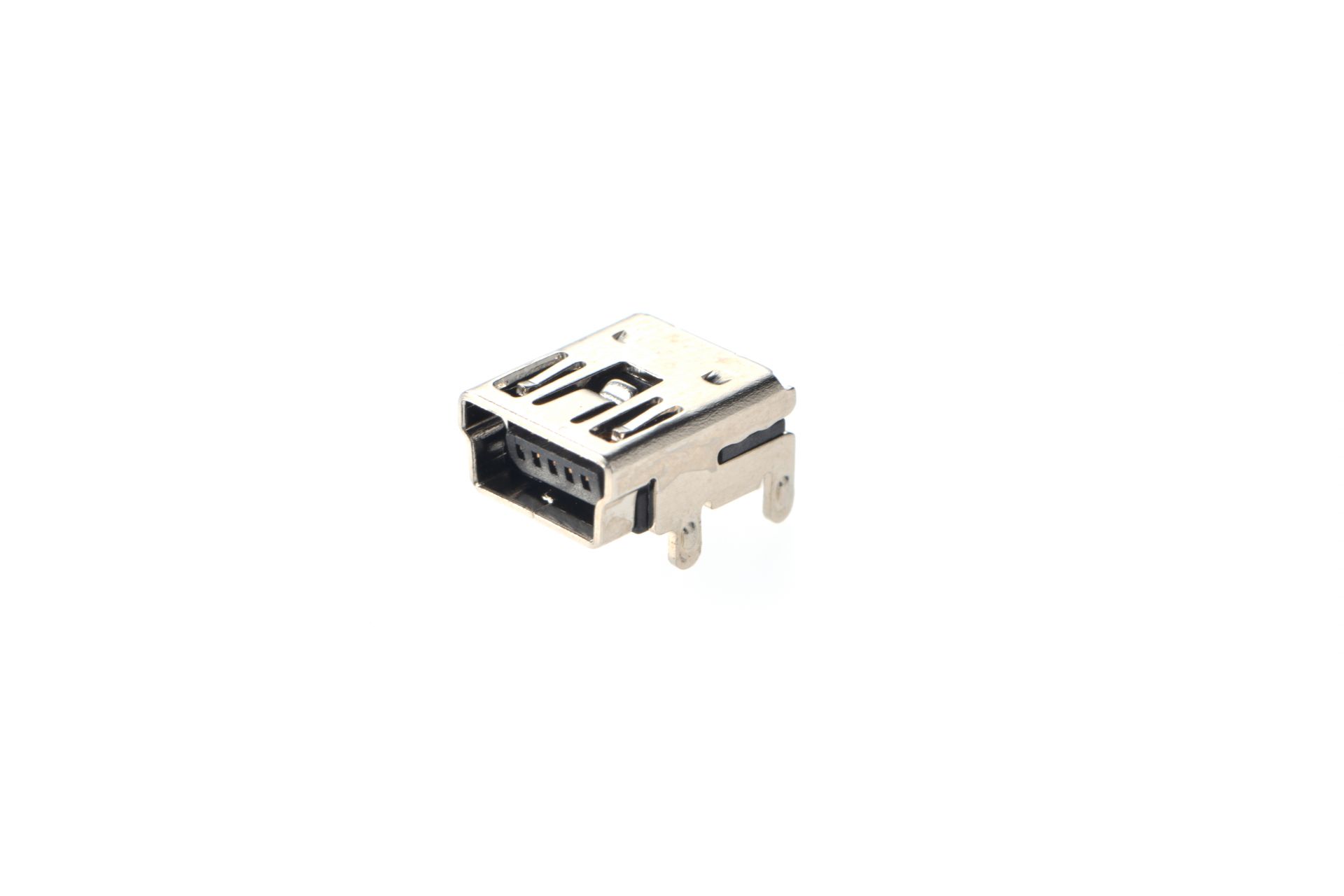

USB Connector

MSB

MINI USB 5PIN
  • MSB5

  •
    B
    (1)
  •
    PS
    (2)
  •
    H
    (3)

Description

  • (1) AB:TYPE AB
          B:TYPE B

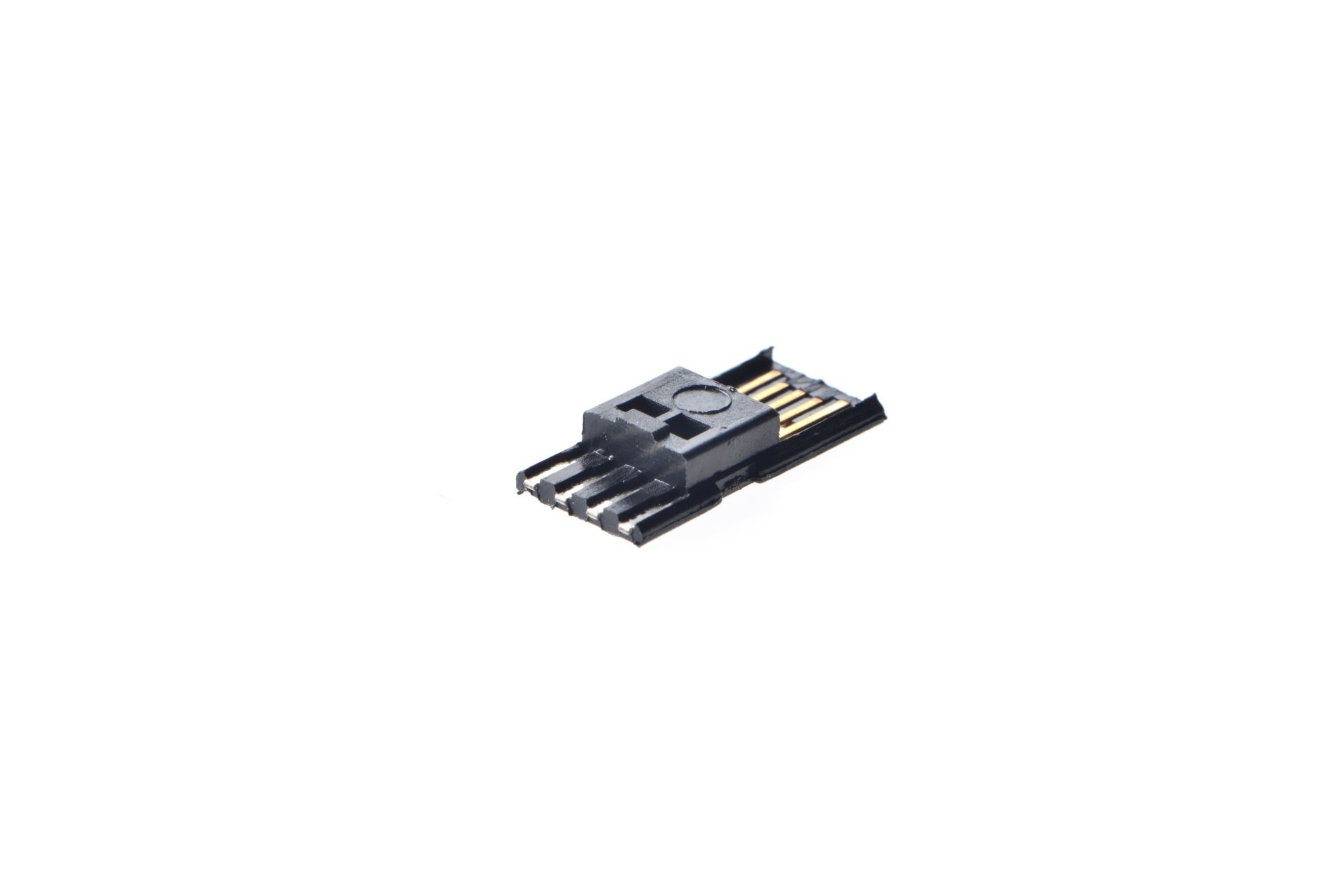

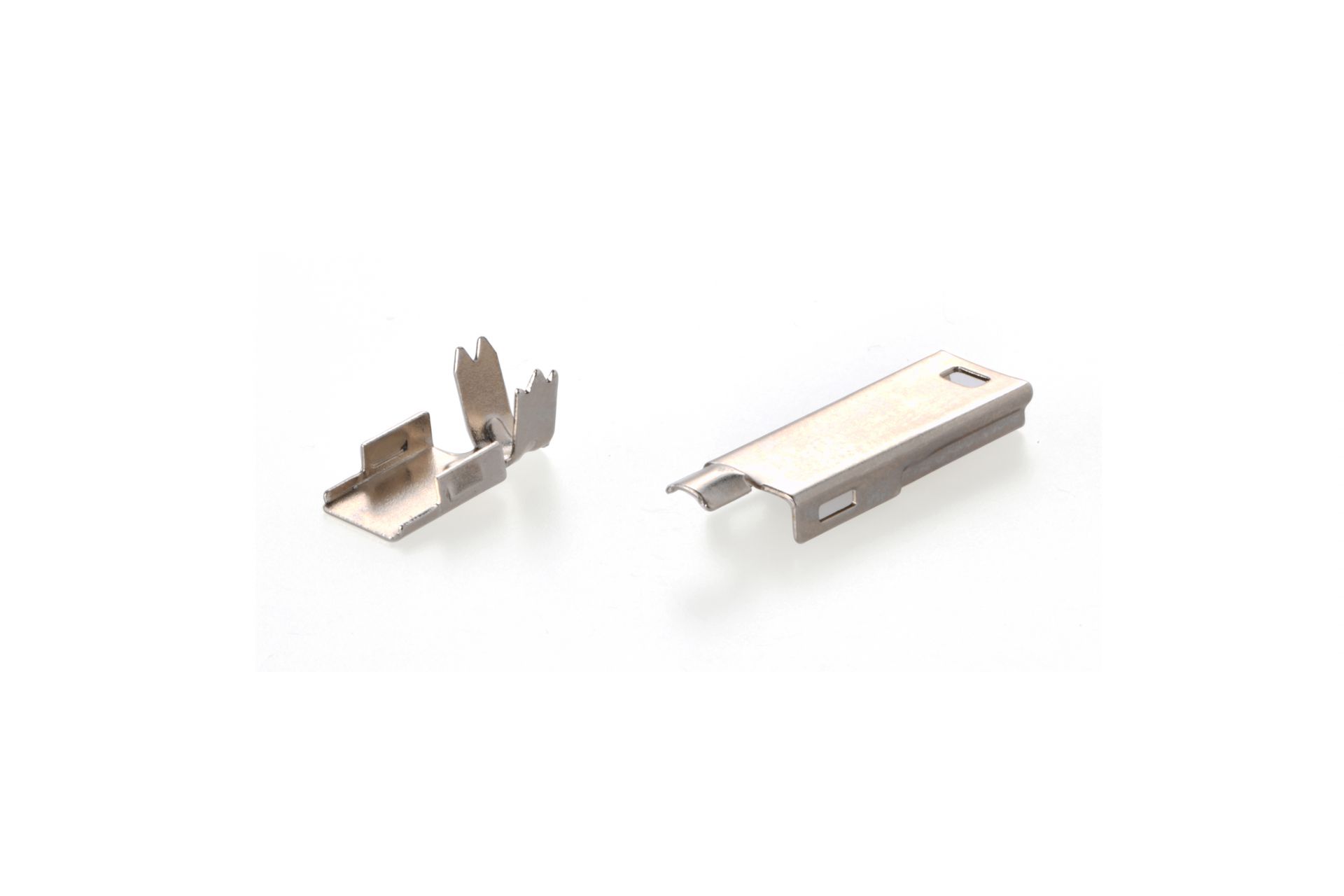

  • (2) PS:MALE SOLDER WIRE/MOLDING TYPE
          SD:FEMALE DIP STRAIGHT
          SR:FEMALE DIP RIGHT ANGLE
          SW:FEMALE SMT RIGHT ANGLE
  • (3) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
MSB5BSWC-SXX-R5H-H 282KB PDF
download
DOWNLOAD
MSB5BSD-SXX-HH 266KB PDF
download
DOWNLOAD
MSB5ABSWXC-SXX-R7H5-H 303KB PDF
download
DOWNLOAD
MSB5BSWXC-SXX-R5H-H 284KB PDF
download
DOWNLOAD
MSB5BSR-2-SXX-HH 265KB PDF
download
DOWNLOAD
