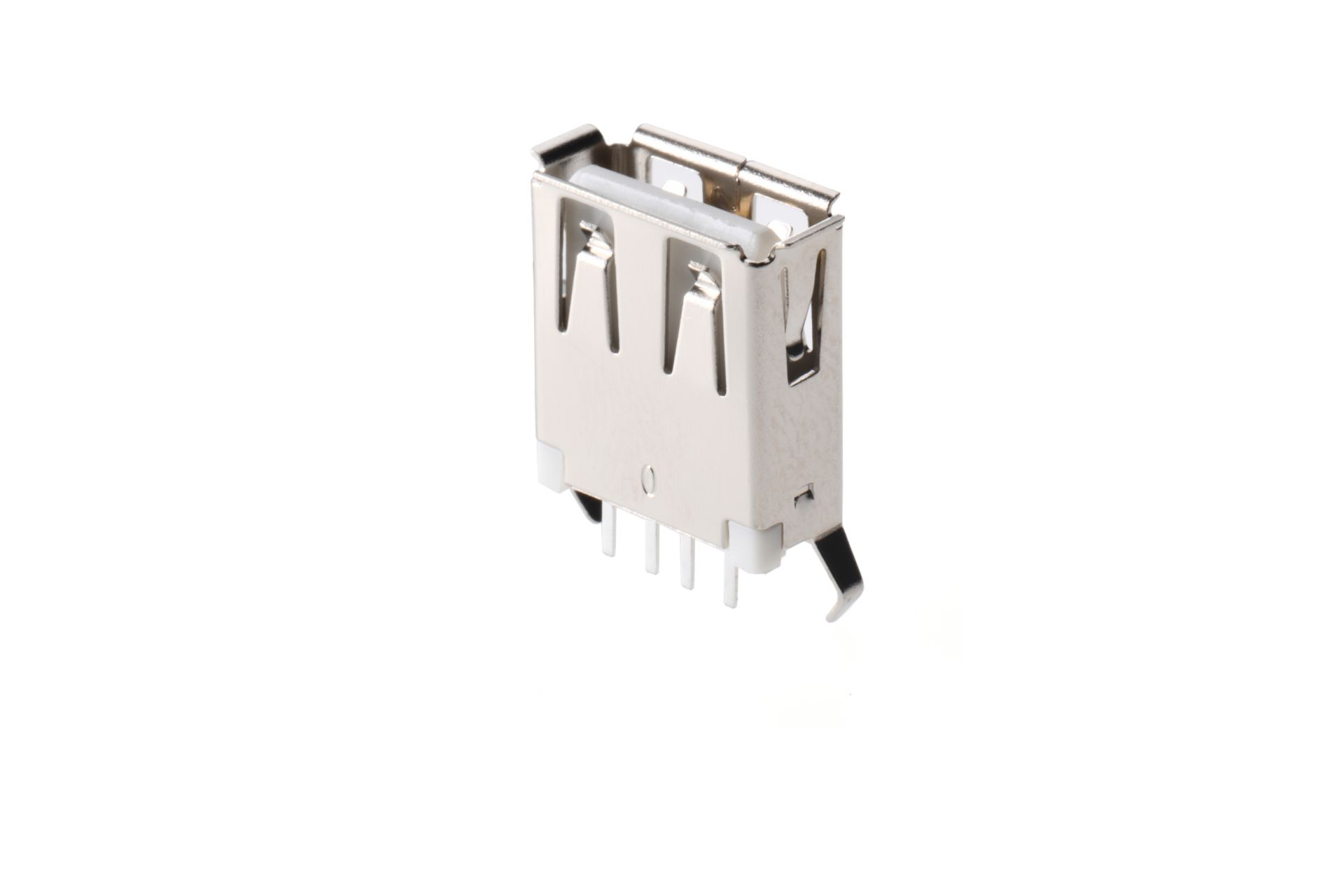

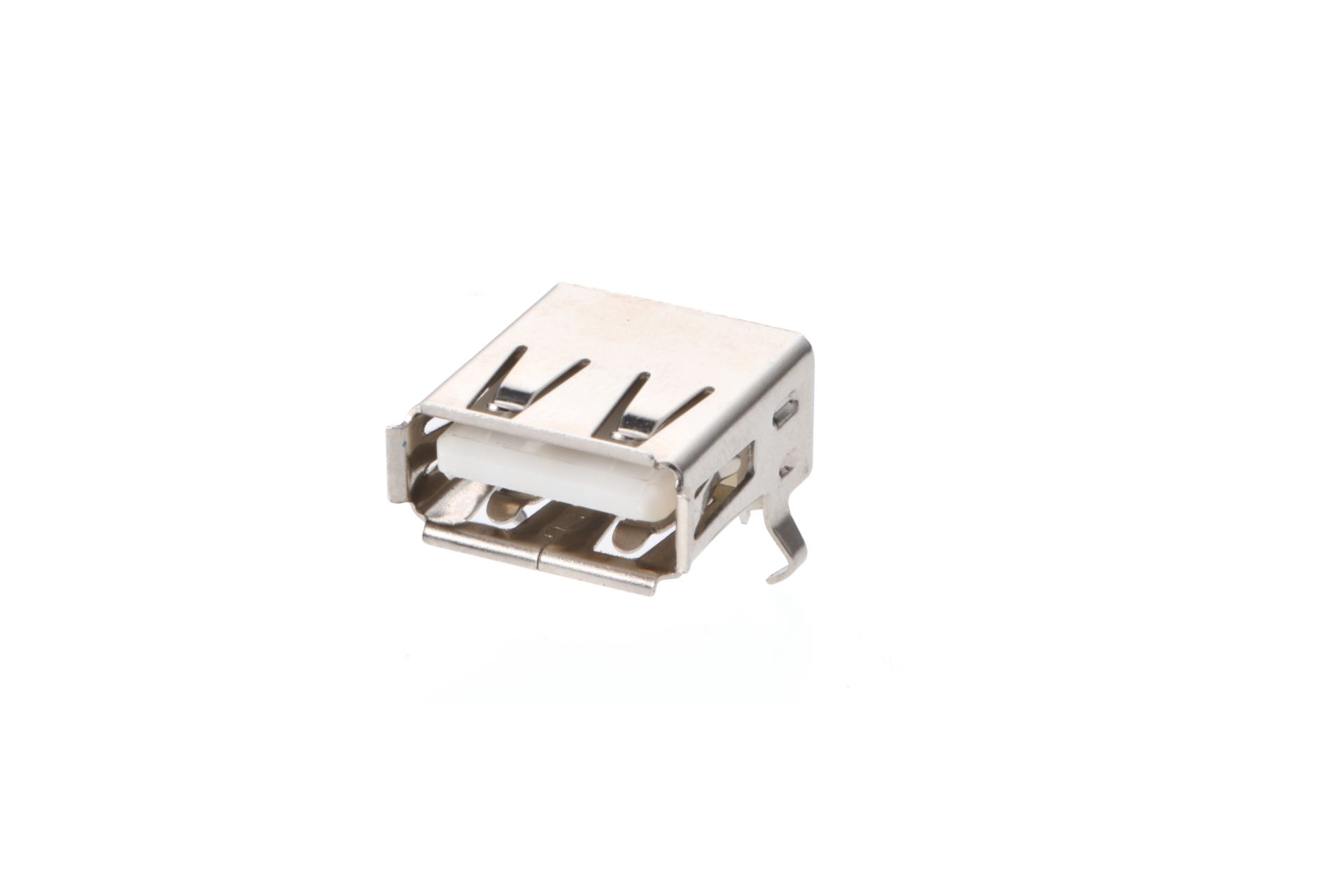

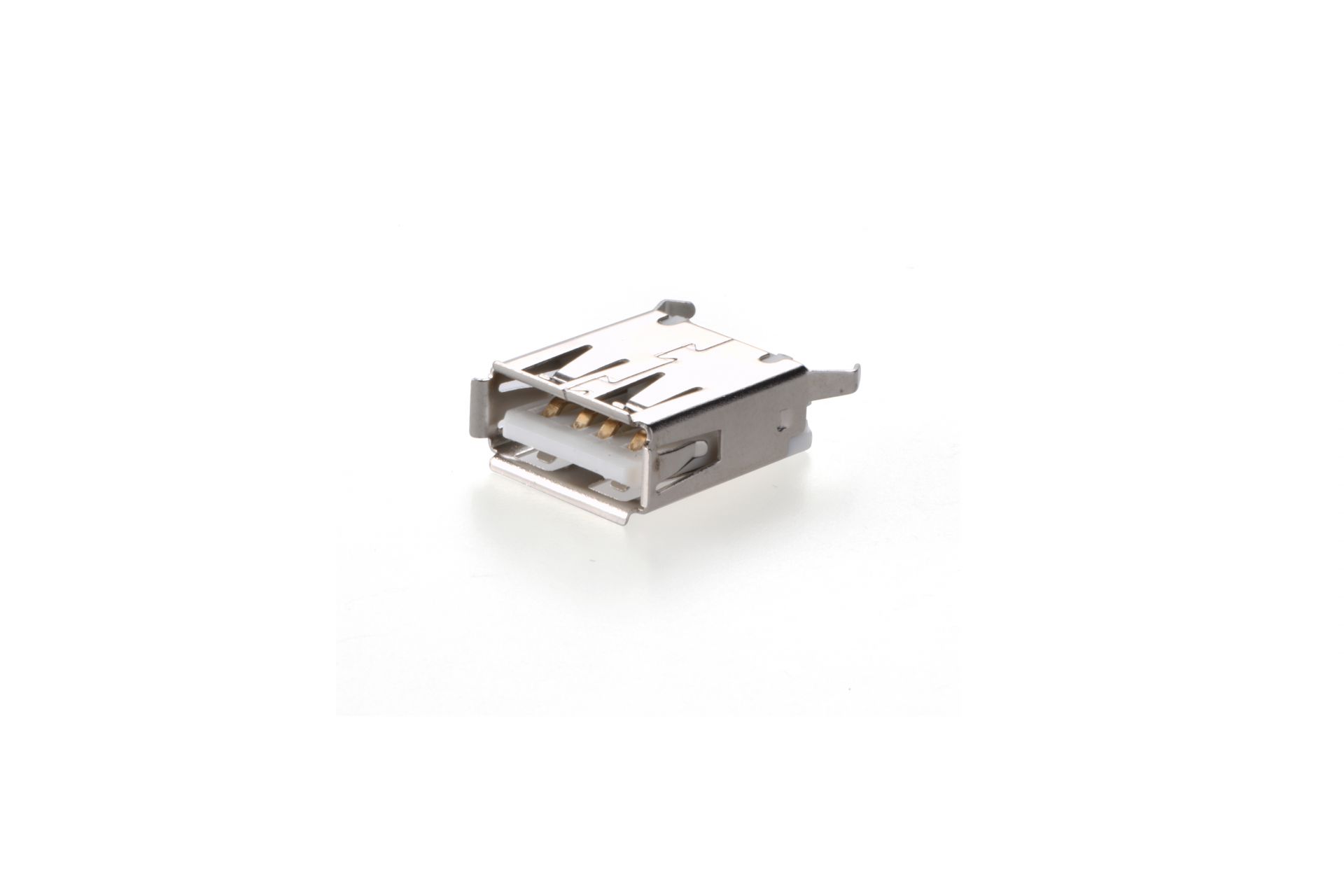

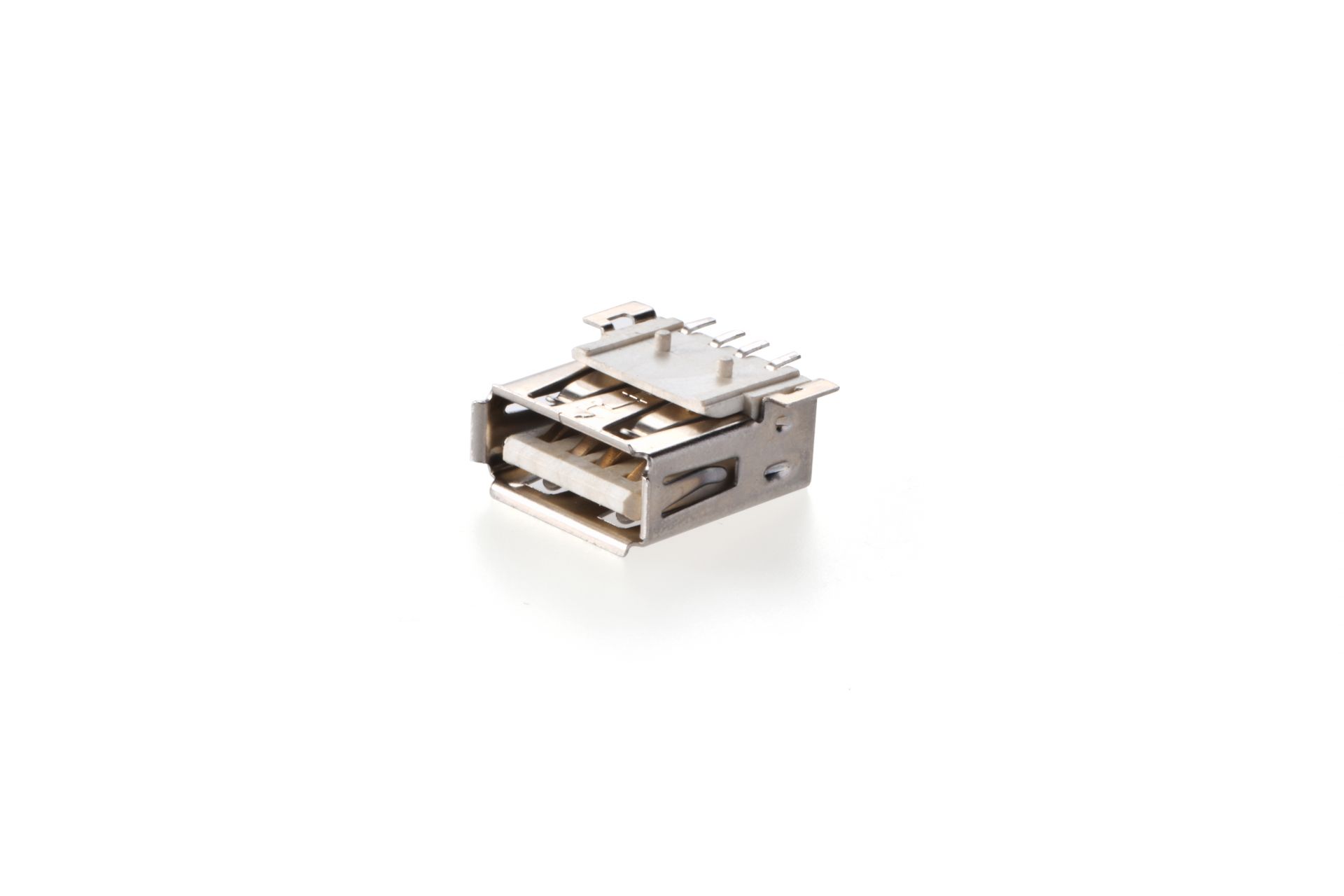

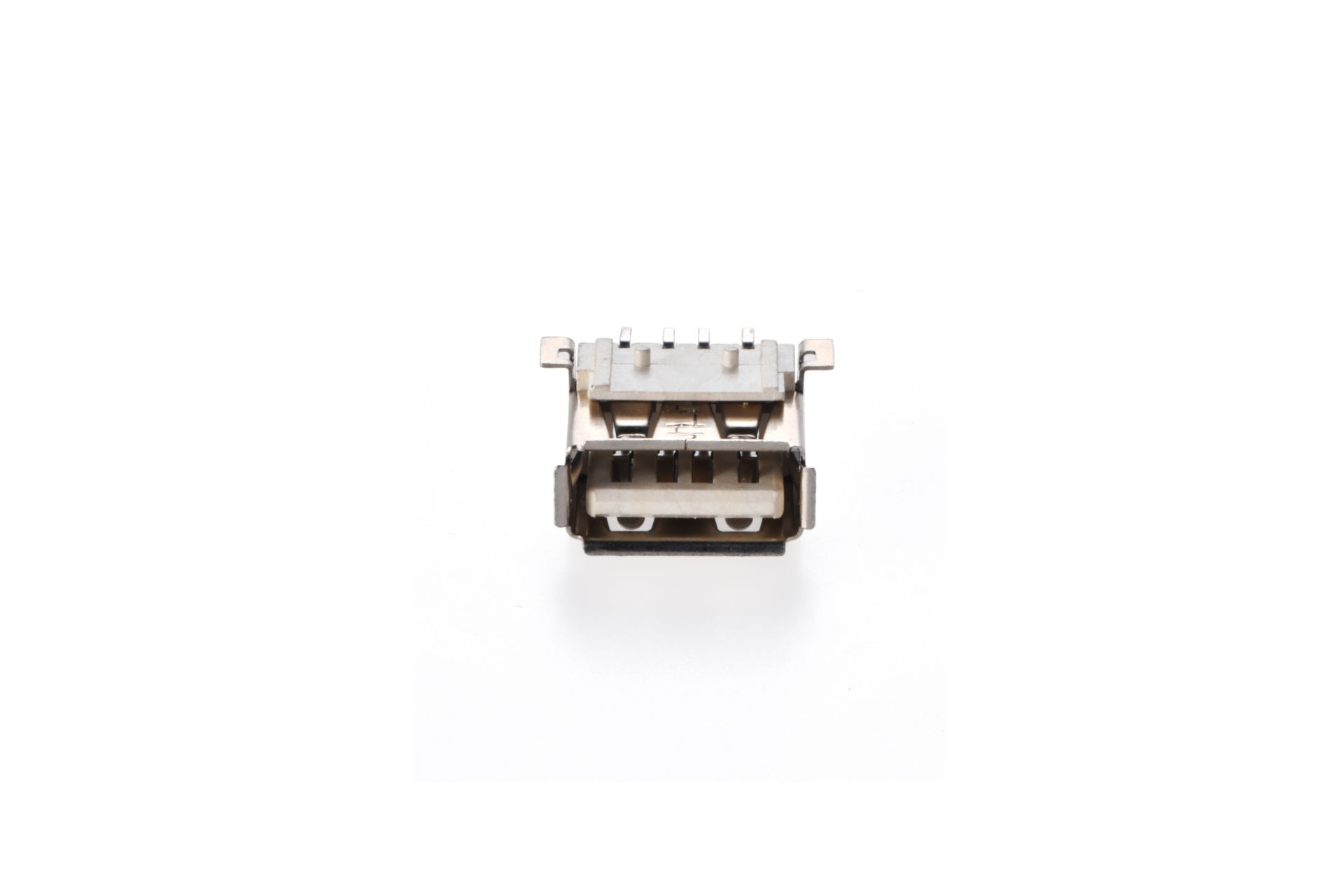

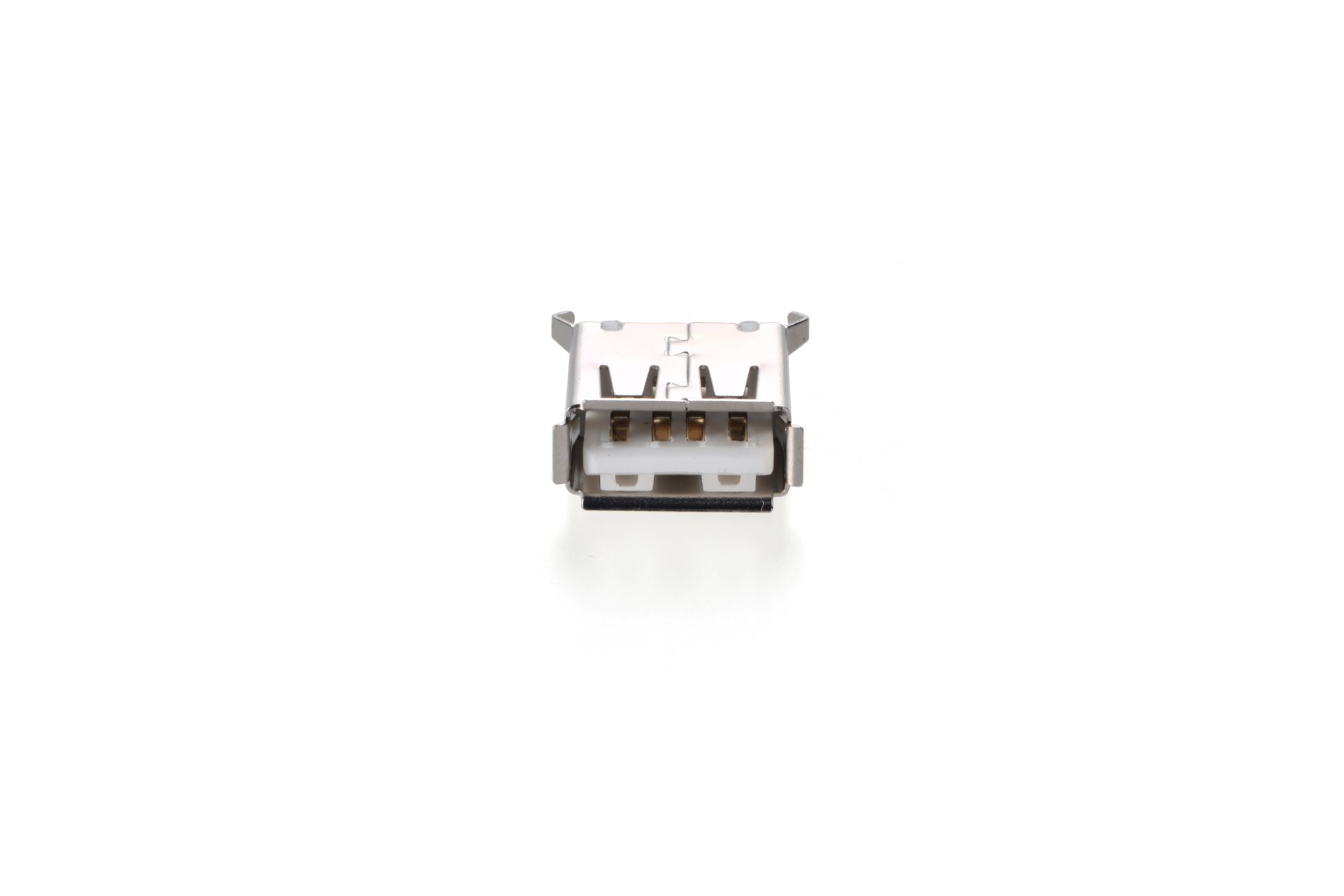

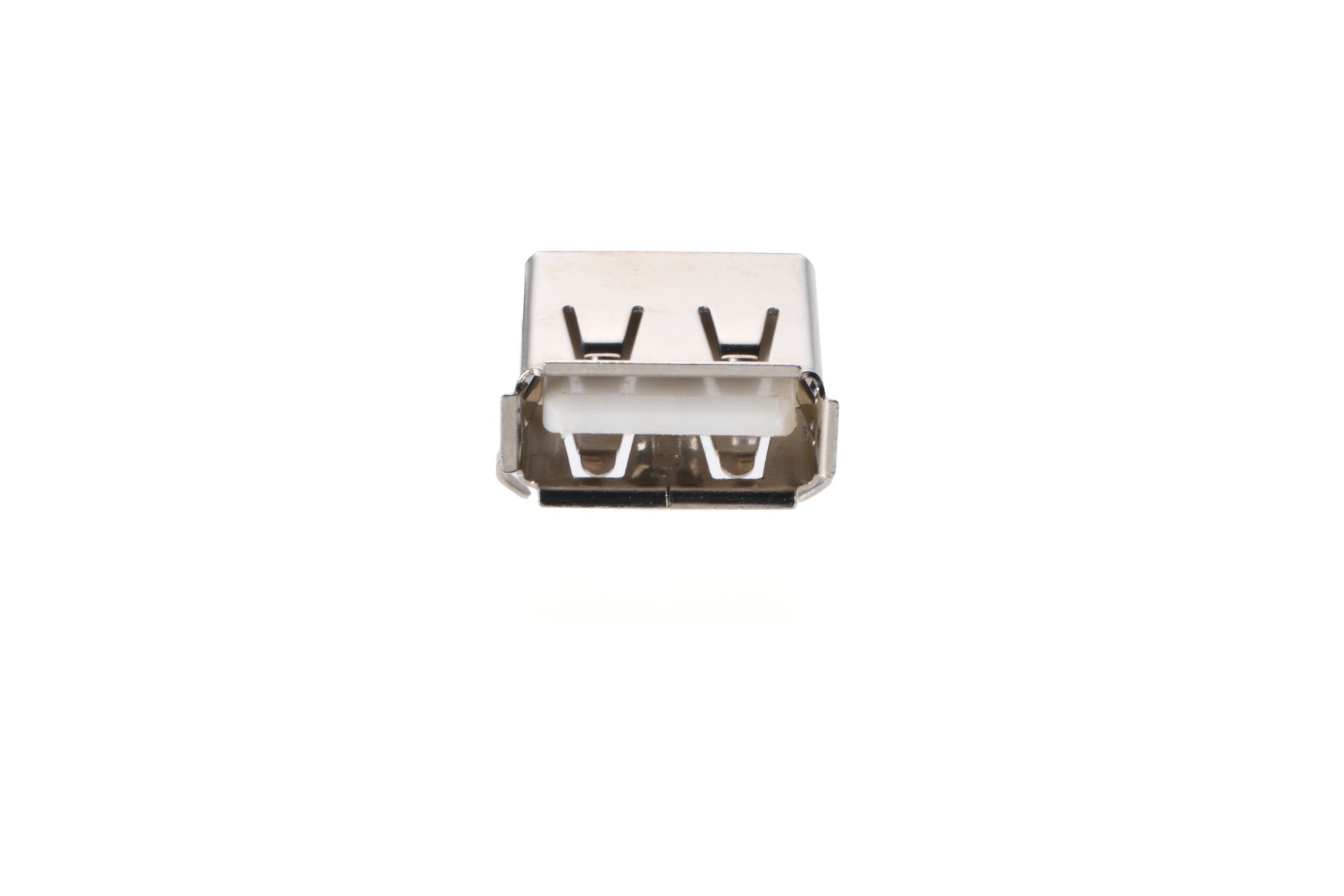

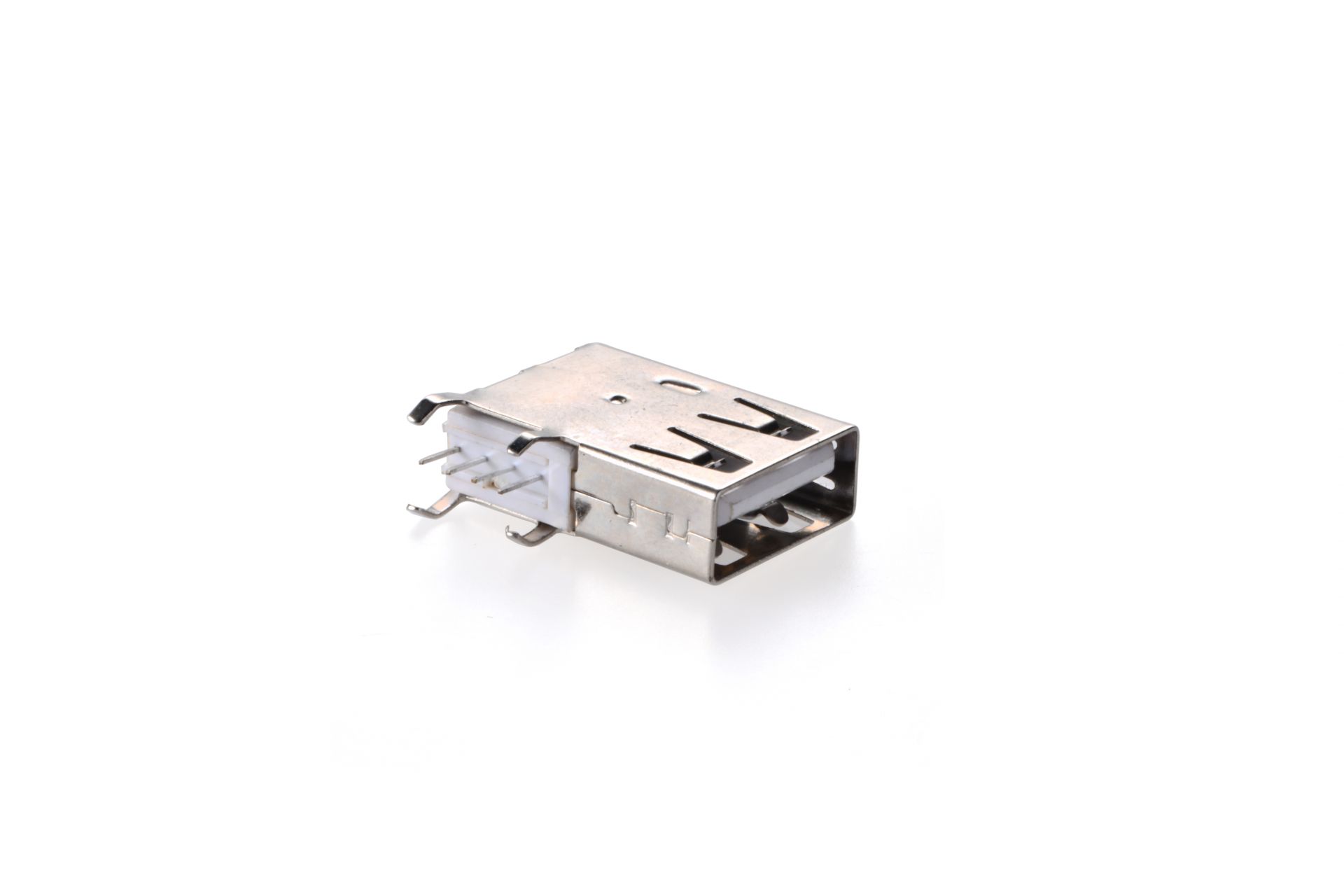

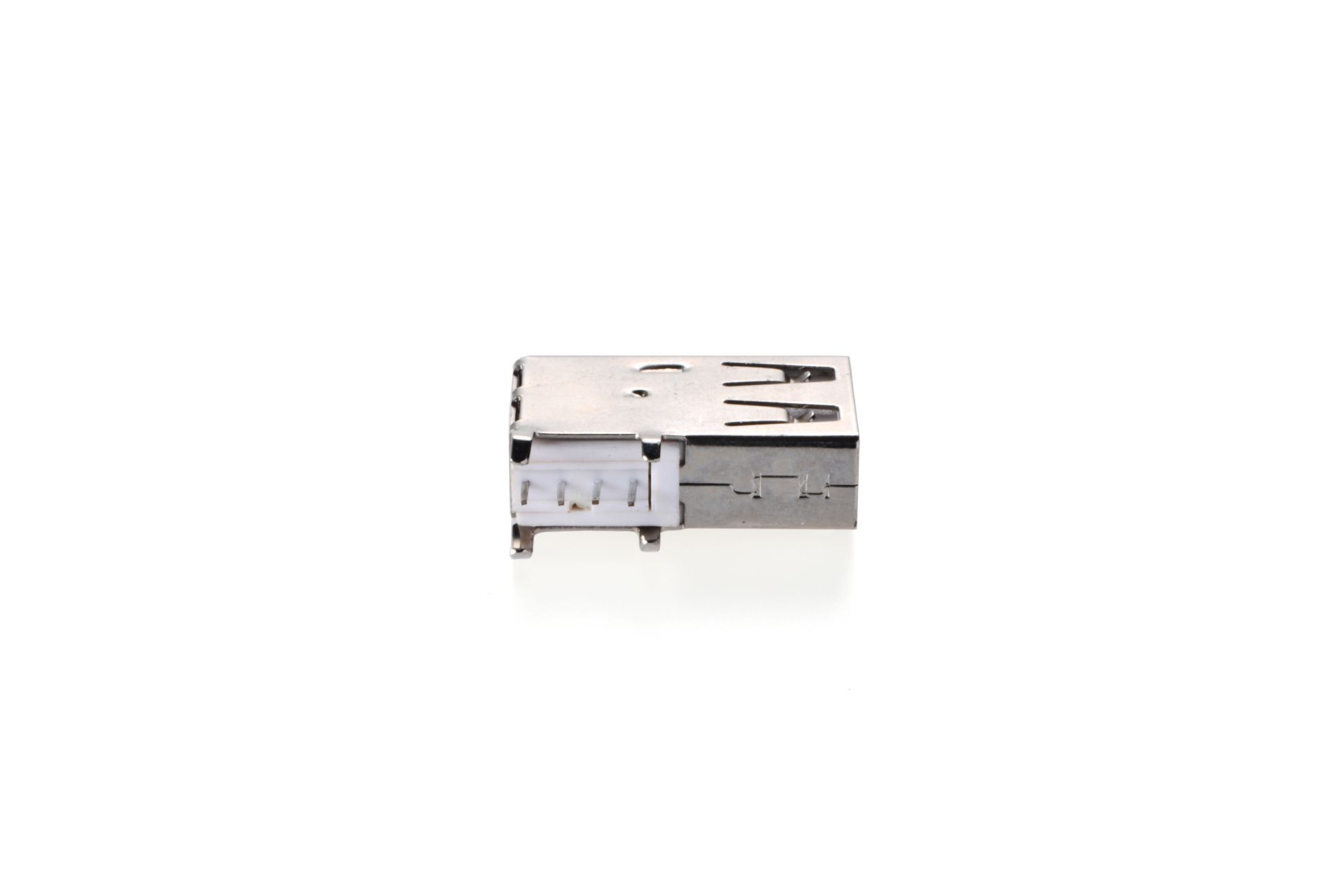

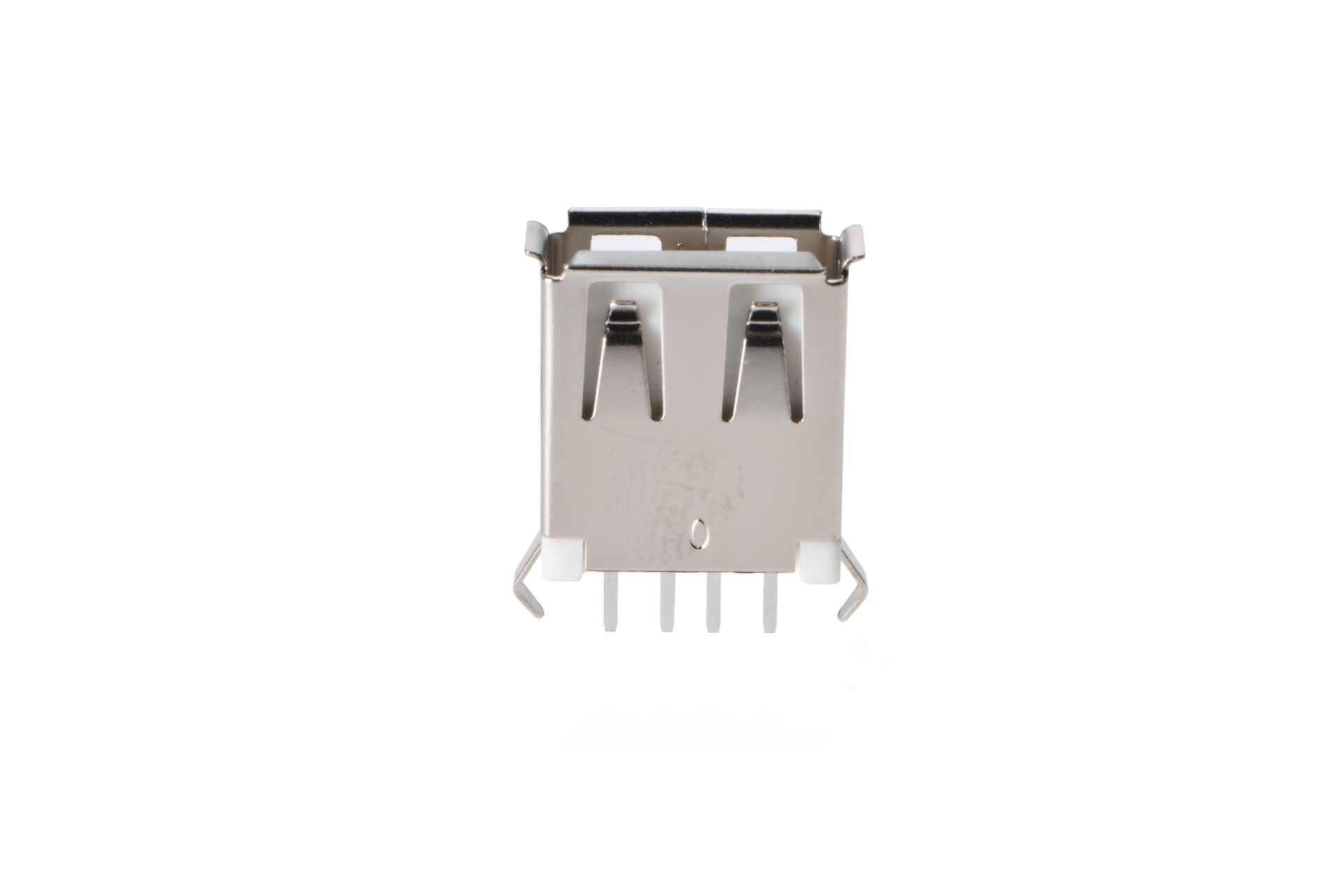

USB Connector
USB1X
USB TYPE A 4PIN
-
USB1X04
-
SD(1)
-
B(2)
-
BK(3)
-
H(4)
Description
-
(1) PR:MALE DIP RIGHT ANGLE
PW:MALE SMT RIGHT ANGLE
PS:MALE SOLDER WIRE/MOLDING TYPE
SD:FEMALE DIP STRAIGHT
SR:FEMALE DIP RIGHT ANGLE
SW:FEMALE SMT RIGHT ANGLE
SU:FEMALE DIP UPRIGHT
SS:FEMALE SOLDER WIRE/MOLDING TYPE -
(2) B:DUAL DECK
C:TRIPLE DECK -
(3) BLANK:INSULATOR COLOR WHITE
BK:INSULATOR COLOR BLACK -
(4) RoHS
INQUIRY
DOWNLOADDOWNLOAD
| PART NUMBER | SIZE | FILE TYPE | DRAWINGS | |
|---|---|---|---|---|
| USB1X04SR-H93-XX-SXX-H | 286KB |
|
||
| USB1X04SD-XX-SXX-H | 283KB |
|
||
| USB1X04PR-XX-SXX-H | 270KB |
|
||
| USB1X04SRBS-XX-SXX-H | 261KB |
|
||
| USB1X04SS-V-XX-SXX-H | 327KB |
|
||
| USB1X04SWX-XX-SXX-H | 258KB |
|
||
| USB1X04SW-XX-SXX-H | 266KB |
|
||
| USB1X04SRB-XX-SXX-H | 271KB |
|
||
| USB1X04SR-XX-SXX-H | 277KB |
|
||
| USB1X04SDB-XX-SXX-H | 279KB |
|
||
| USB1X04SWX-2-XX-SXX-H | 273KB |
|
