Board To Board Connector

NPET

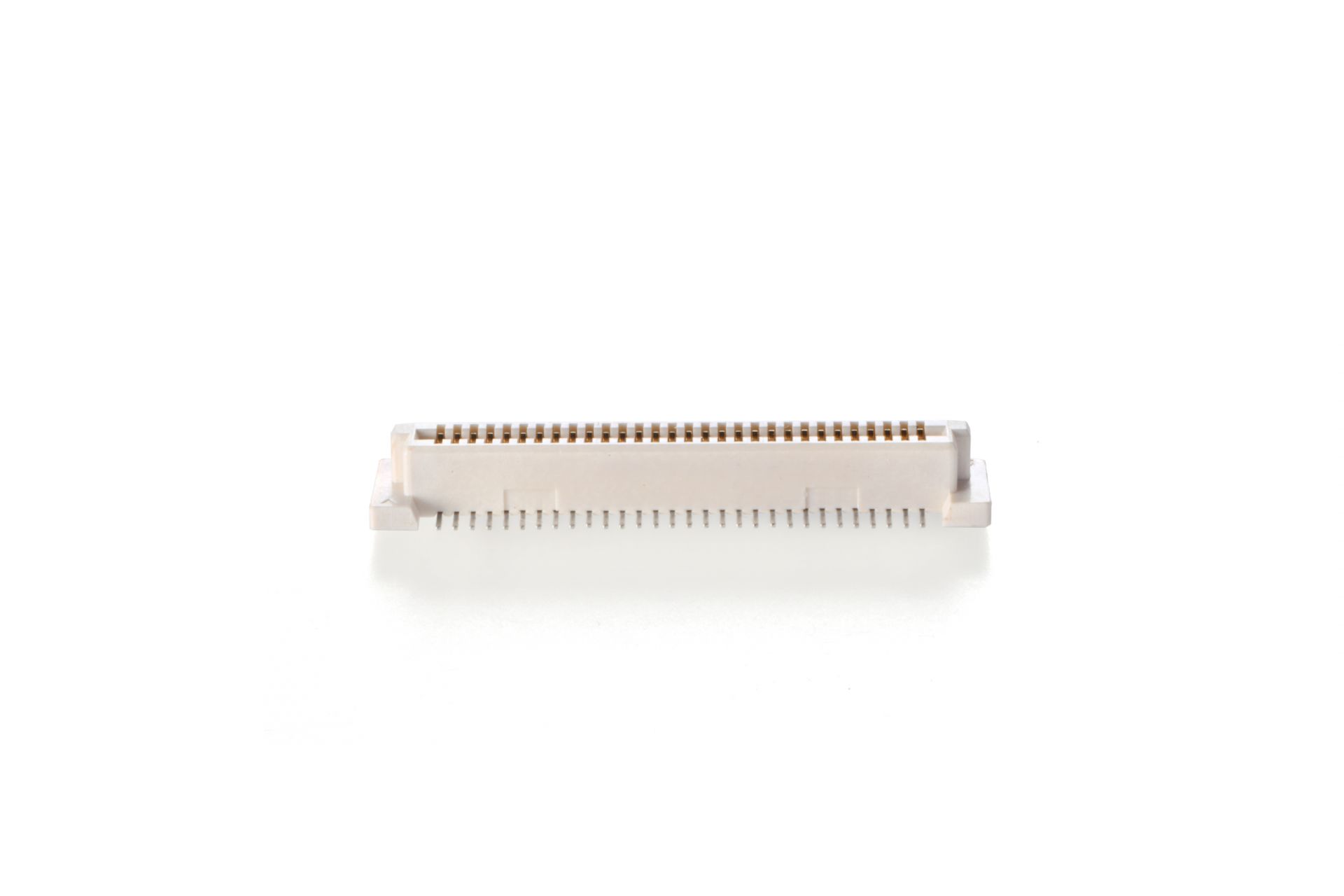

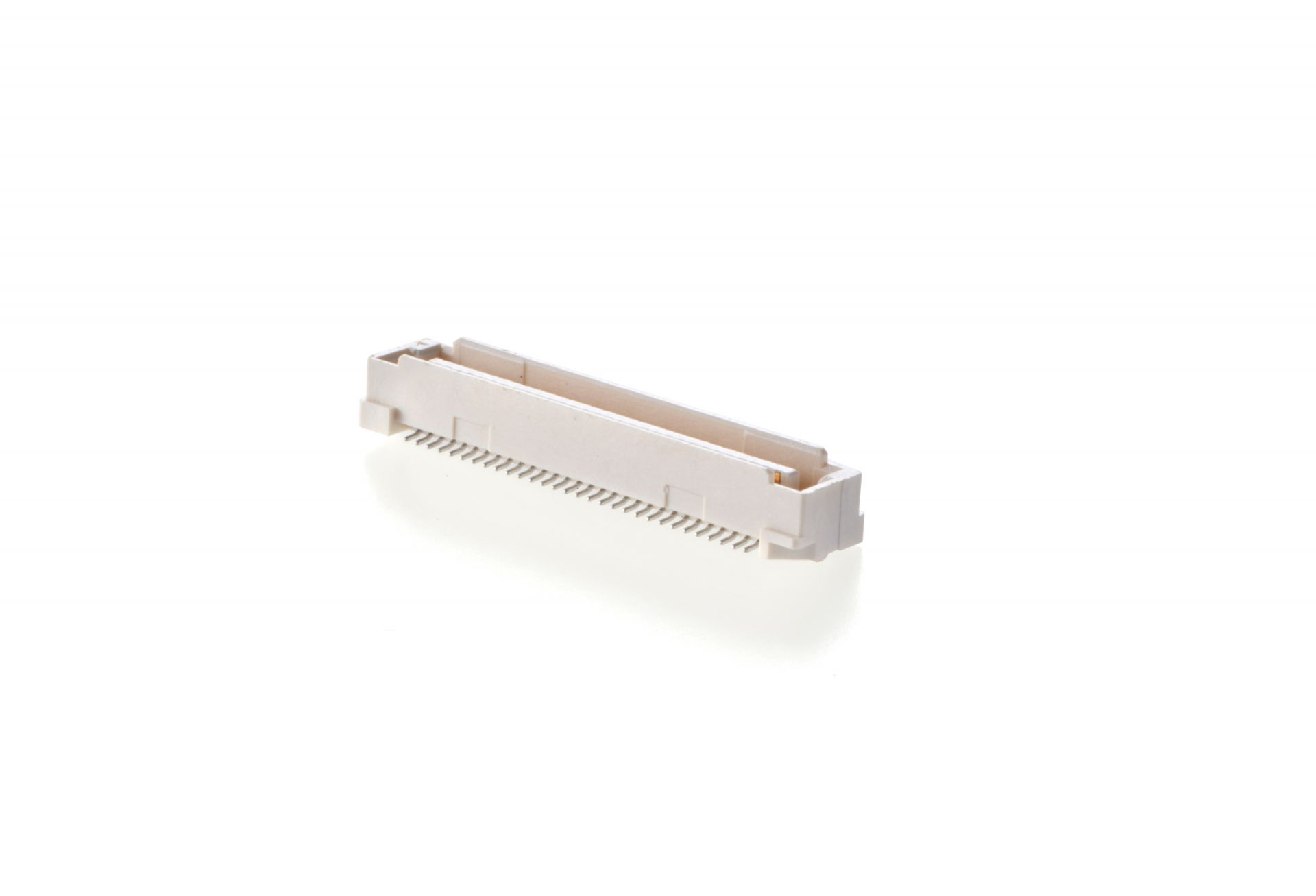

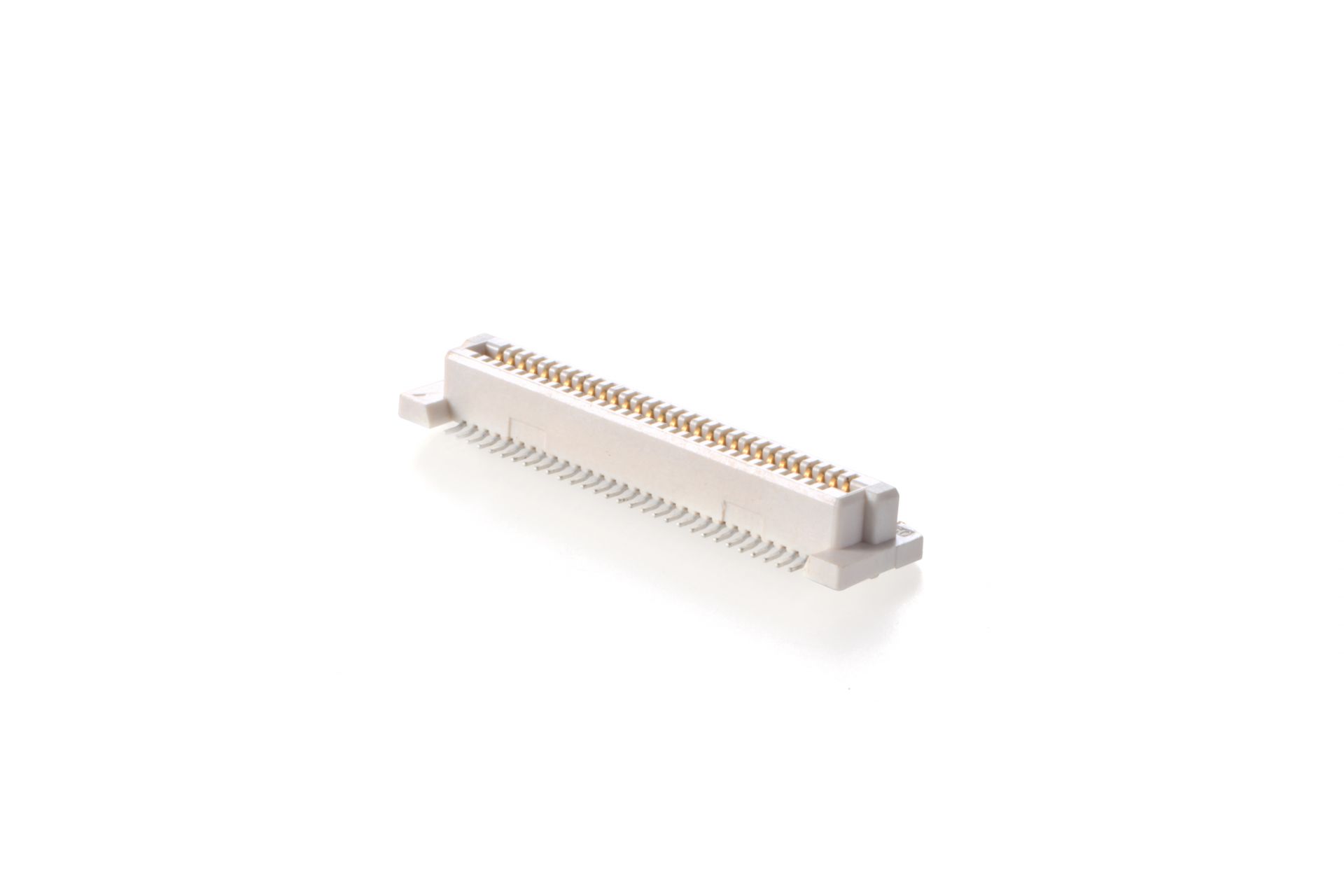

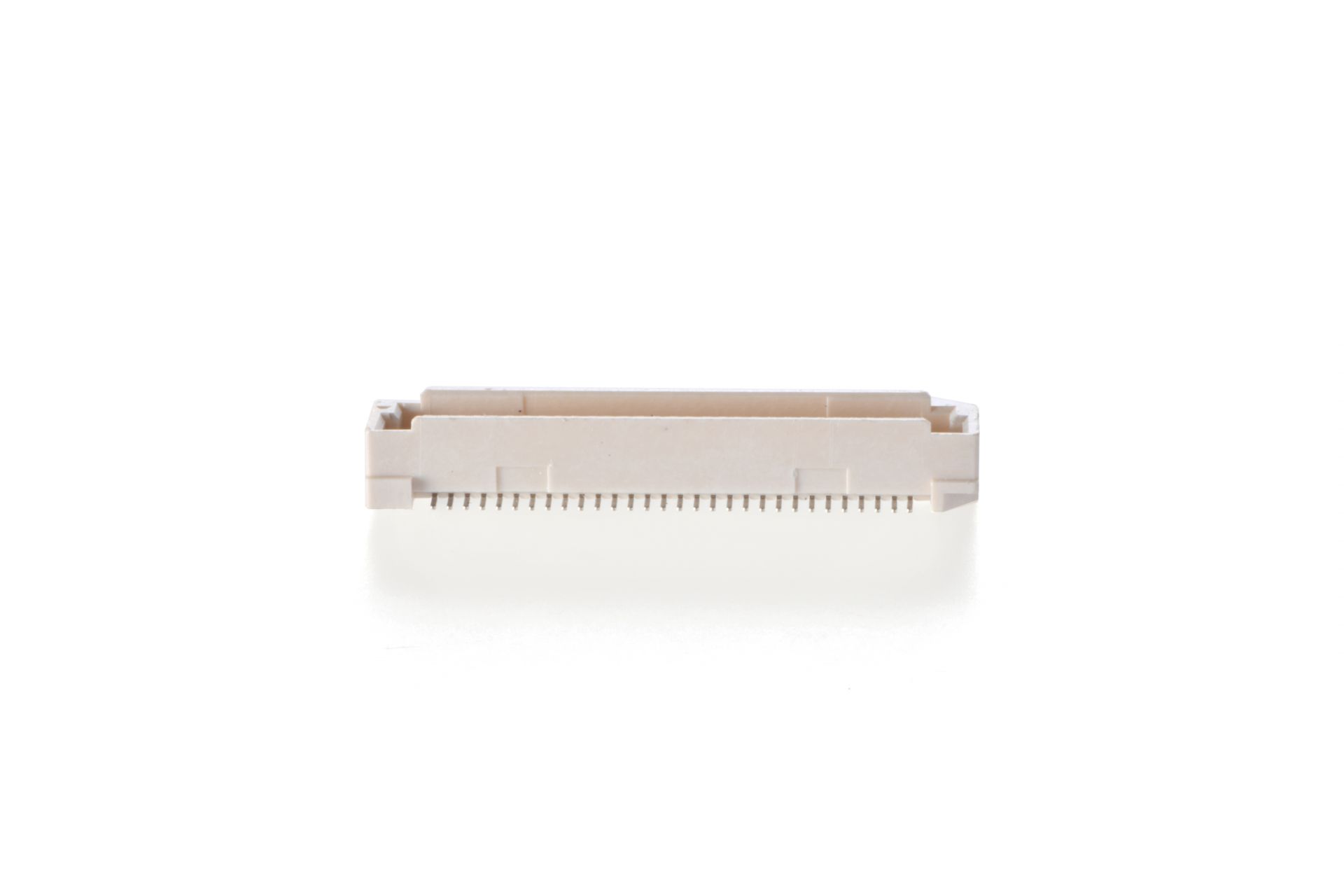

0.8mm BOARD TO BOARD T TYPE SINGLE SLOT SMT 180° WITH POST WITHOUT FITTING NAIL
  • NPET

  • 040
    (1)
  • P56
    (2)
  • RC

  •
    H
    (3)

Description

  • (1) 040、060、080、100、120、140、160、180、200: NO.OF POSITION
  • (2) STACKING HEIGHT:5.0mm:P46(MALE)+S04(FEMALE)
         STACKING HEIGHT:6.0mm:P56(MALE)+S04(FEMALE)
         STACKING HEIGHT:7.0mm:P66(MALE)+S04(FEMALE)
         STACKING HEIGHT:8.0mm:P76(MALE)+S04(FEMALE)
         STACKING HEIGHT:9.0mm:P46(MALE)+S44(FEMALE)
         STACKING HEIGHT:10.0mm:P56(MALE)+S44(FEMALE)
         STACKING HEIGHT:11.0mm:P66(MALE)+S44(FEMALE)
         STACKING HEIGHT:12.0mm:P76(MALE)+S44(FEMALE)
         STACKING HEIGHT:13.0mm:P46(MALE)+S84(FEMALE)
         STACKING HEIGHT:14.0mm:P56(MALE)+S84(FEMALE)
         STACKING HEIGHT:15.0mm:P66(MALE)+S84(FEMALE)
         STACKING HEIGHT:16.0mm:P76(MALE)+S84(FEMALE)
  • (3) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
NPETXXXPXXRC-SXX-RXXX-H 429KB PDF
download
DOWNLOAD
NPETXXXS04RC-SXX-RXXX-H 330KB PDF
download
DOWNLOAD
NPETXXXS44RC-SXX-RXXX-H 332KB PDF
download
DOWNLOAD
NPETXXXS84RC-SXX-RXXX-H 339KB PDF
download
