Board To Board Connector

NPV

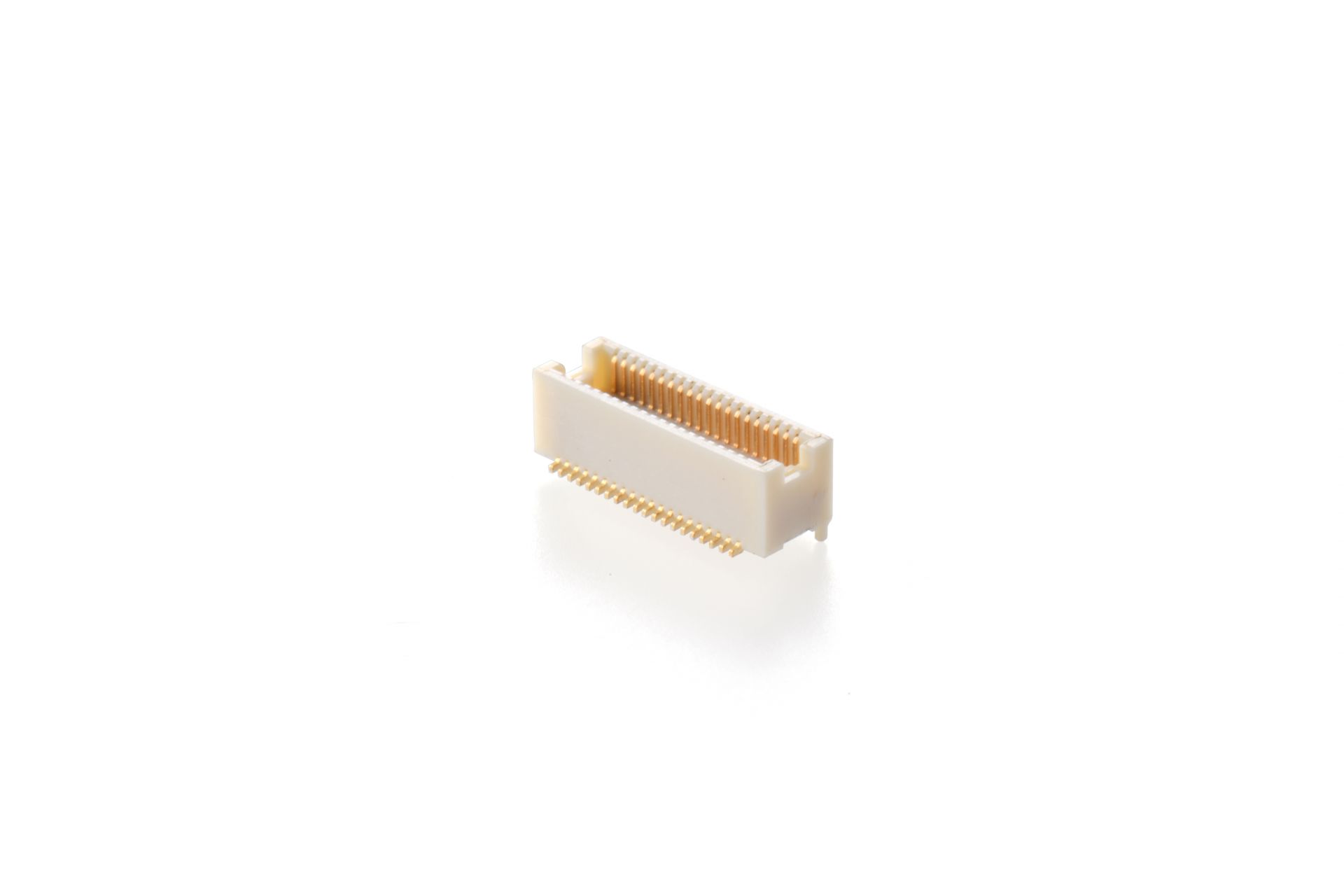

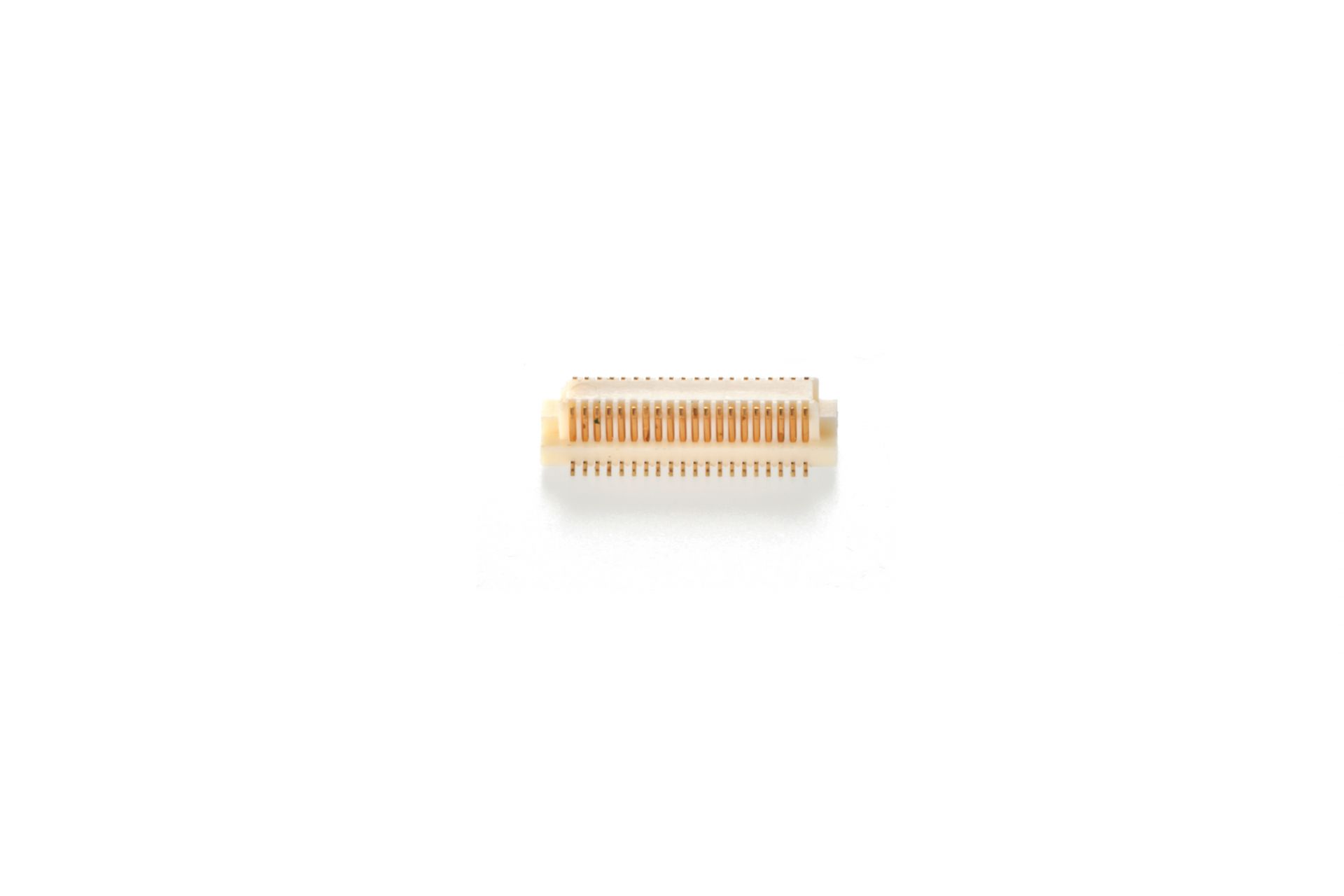

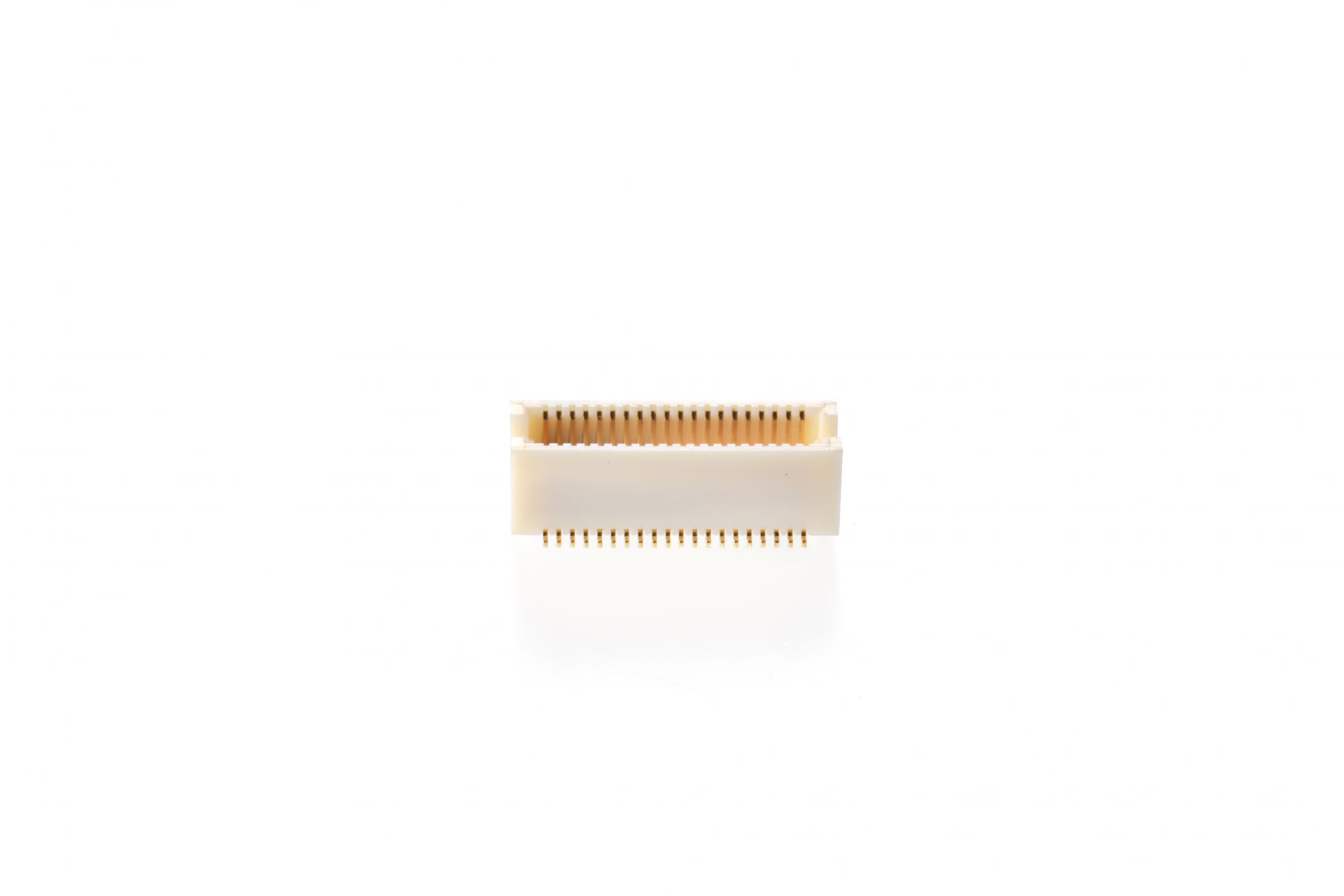

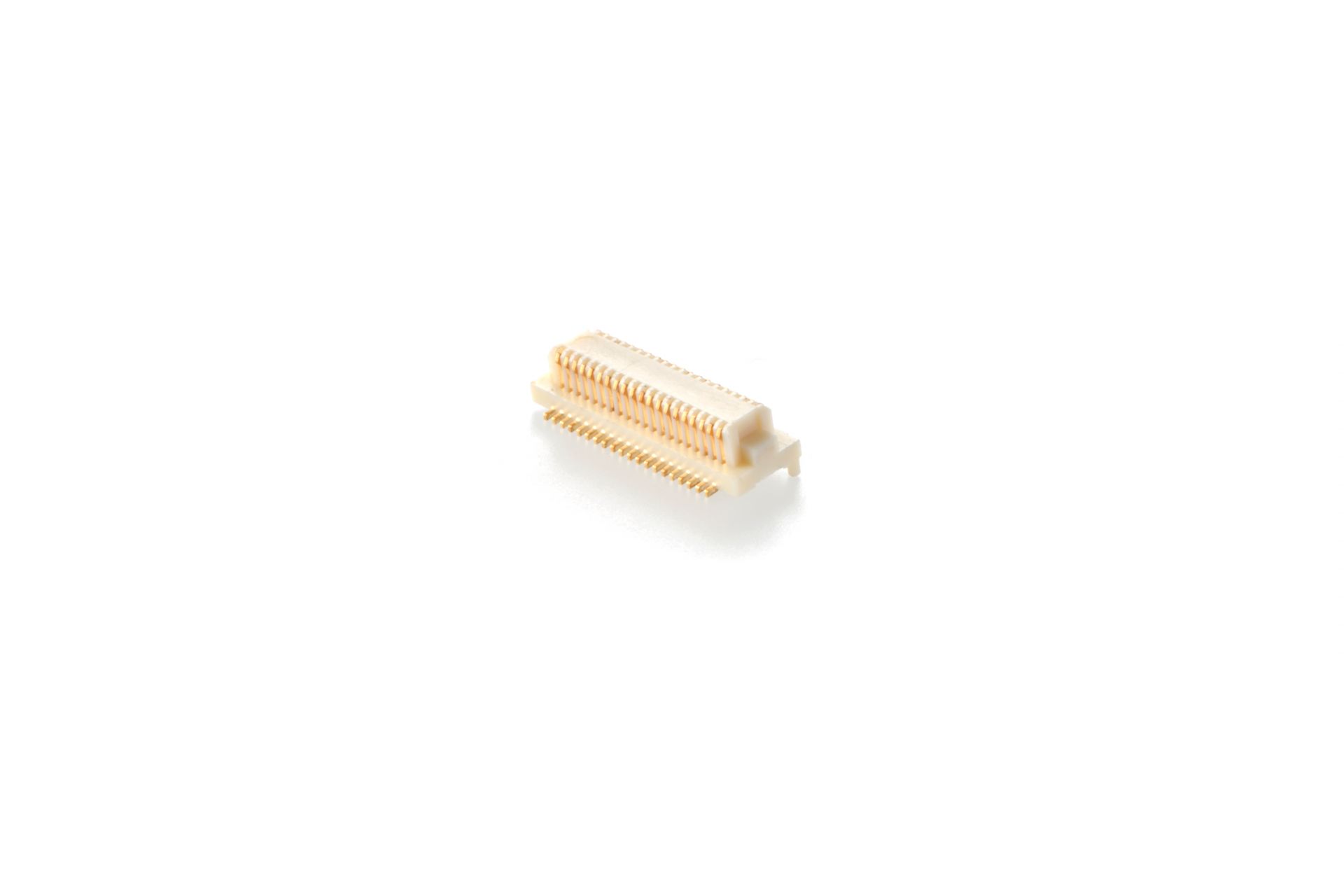

0.5mm BOARD TO BOARD SINGLE SLOT SMT 180° WITH POST WITHOUT FITTING NAIL
  • NPV

  • XXX
    (1)
  • S12
    (2)
  • R

  •
    H
    (3)

Description

  • (1) 014、020、024、030、036、040、050、060、100: NO.OF POSITION
  • (2) STACKING HEIGHT:3.0mm:P23RC(MALE)+S07R(FEMALE)
         STACKING HEIGHT:3.5mm:P28RC(MALE)+S07R(FEMALE)
         STACKING HEIGHT:4.0mm:P28RC(MALE)+S12R(FEMALE)
         STACKING HEIGHT:4.5mm:P33R(MALE)+S12R(FEMALE)
         STACKING HEIGHT:5.0mm:P38R(MALE)+S12R(FEMALE)
         STACKING HEIGHT:5.5mm:P43R(MALE)+S12RFEMALE)
         STACKING HEIGHT:6.0mm:P48R(MALE)+S12R(FEMALE)
         STACKING HEIGHT:6.5mm:P33R(MALE)+S32R(FEMALE)
         STACKING HEIGHT:7.0mm:P38R(MALE)+S32R(FEMALE)
         STACKING HEIGHT:7.5mm:P43R(MALE)+S32R(FEMALE)
         STACKING HEIGHT:8.0mm:P48R(MALE)+S32R(FEMALE)
  • (3) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
NPVXXXPXXRX-RXXX-H 236KB PDF
download
DOWNLOAD
NPVXXXSXXR-RXXX-H 344KB PDF
download
DOWNLOAD
