Memory Card

SDC

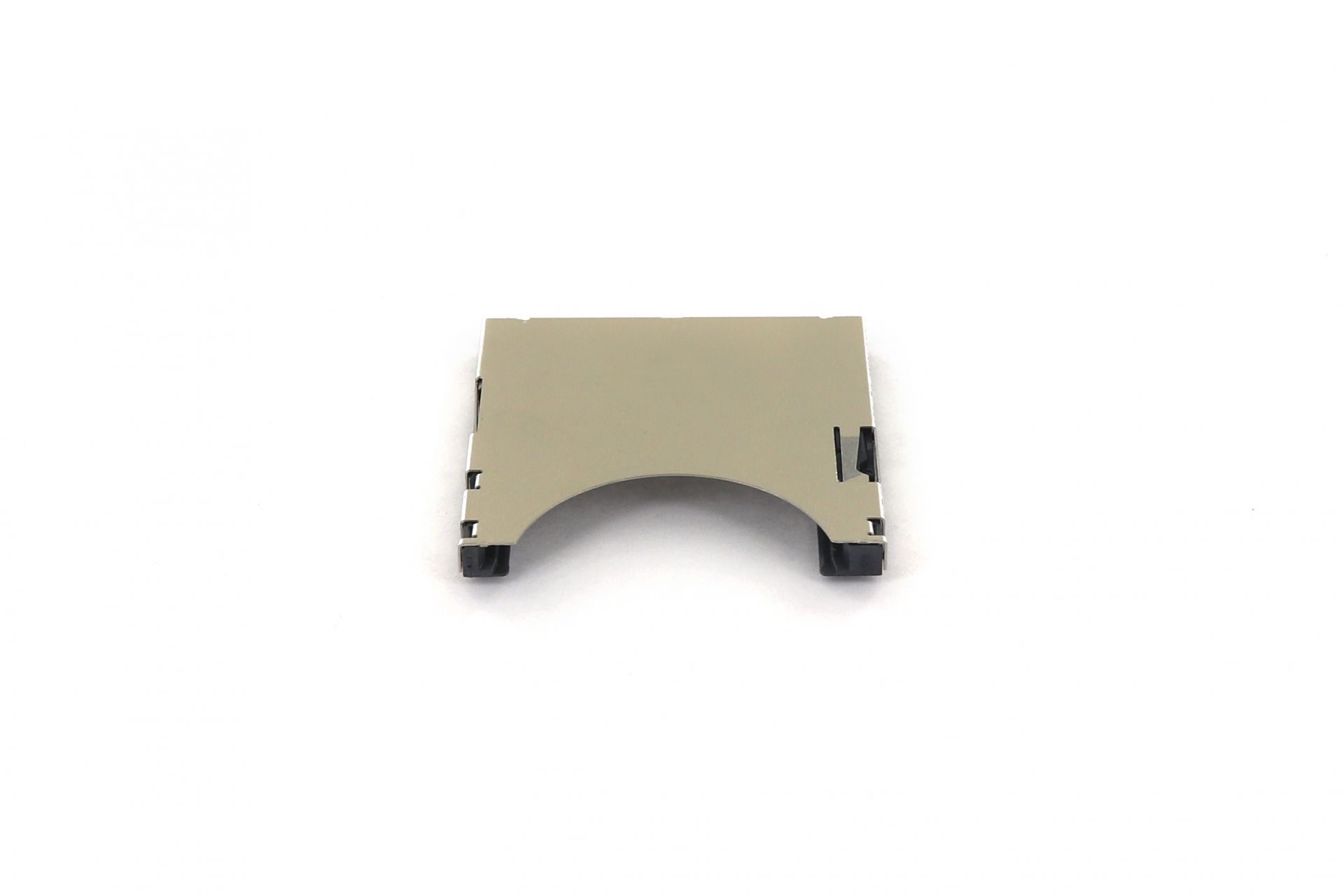

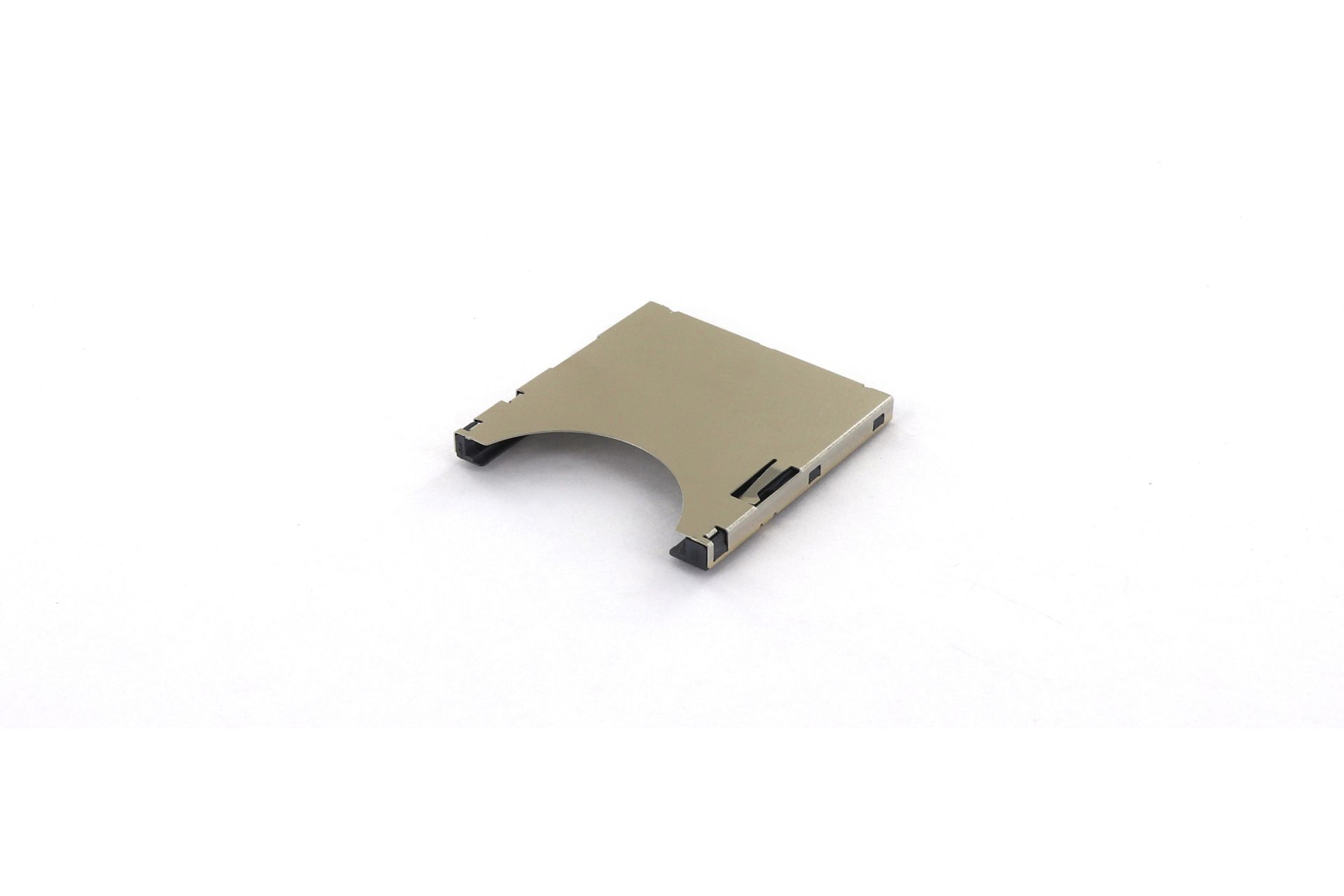

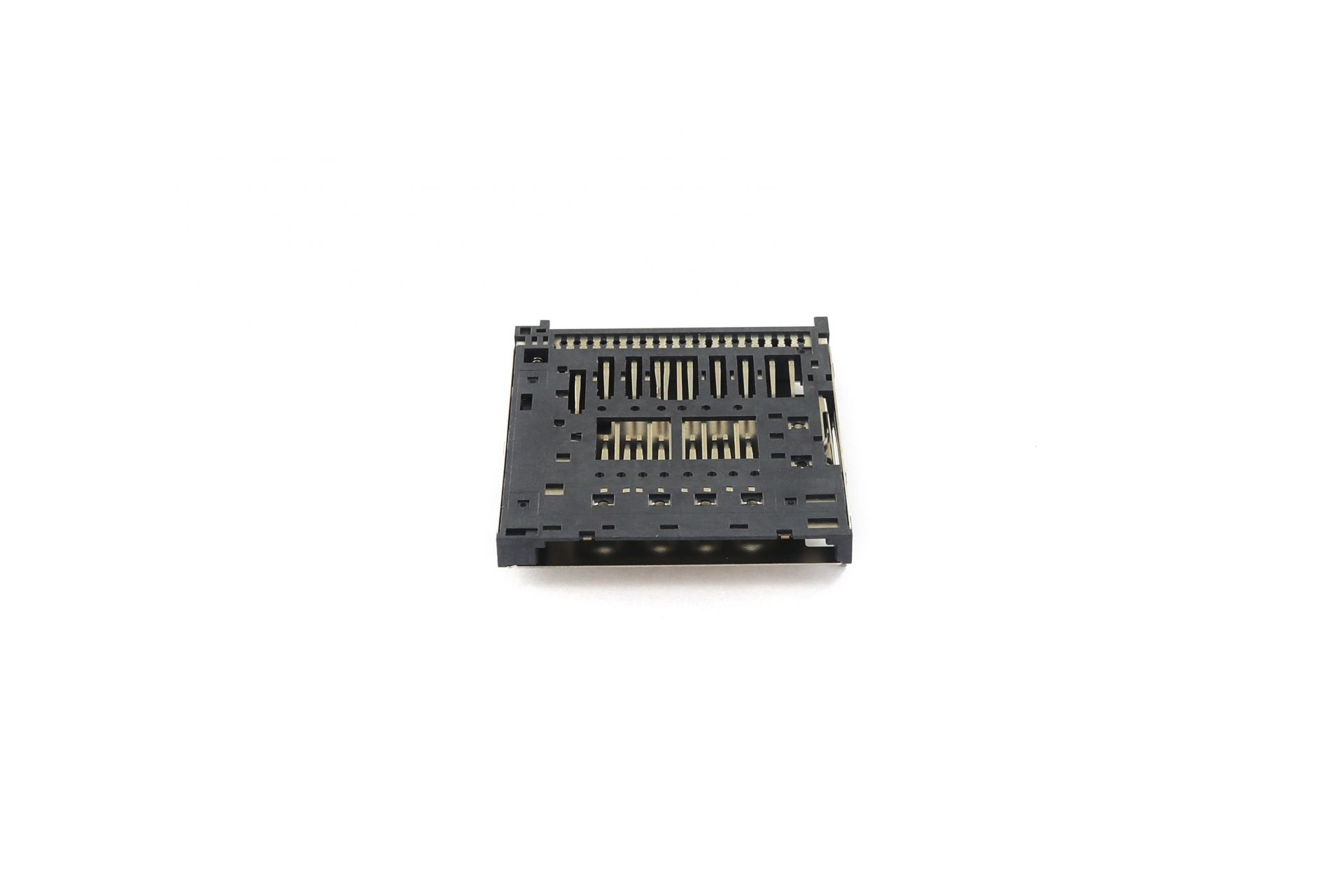

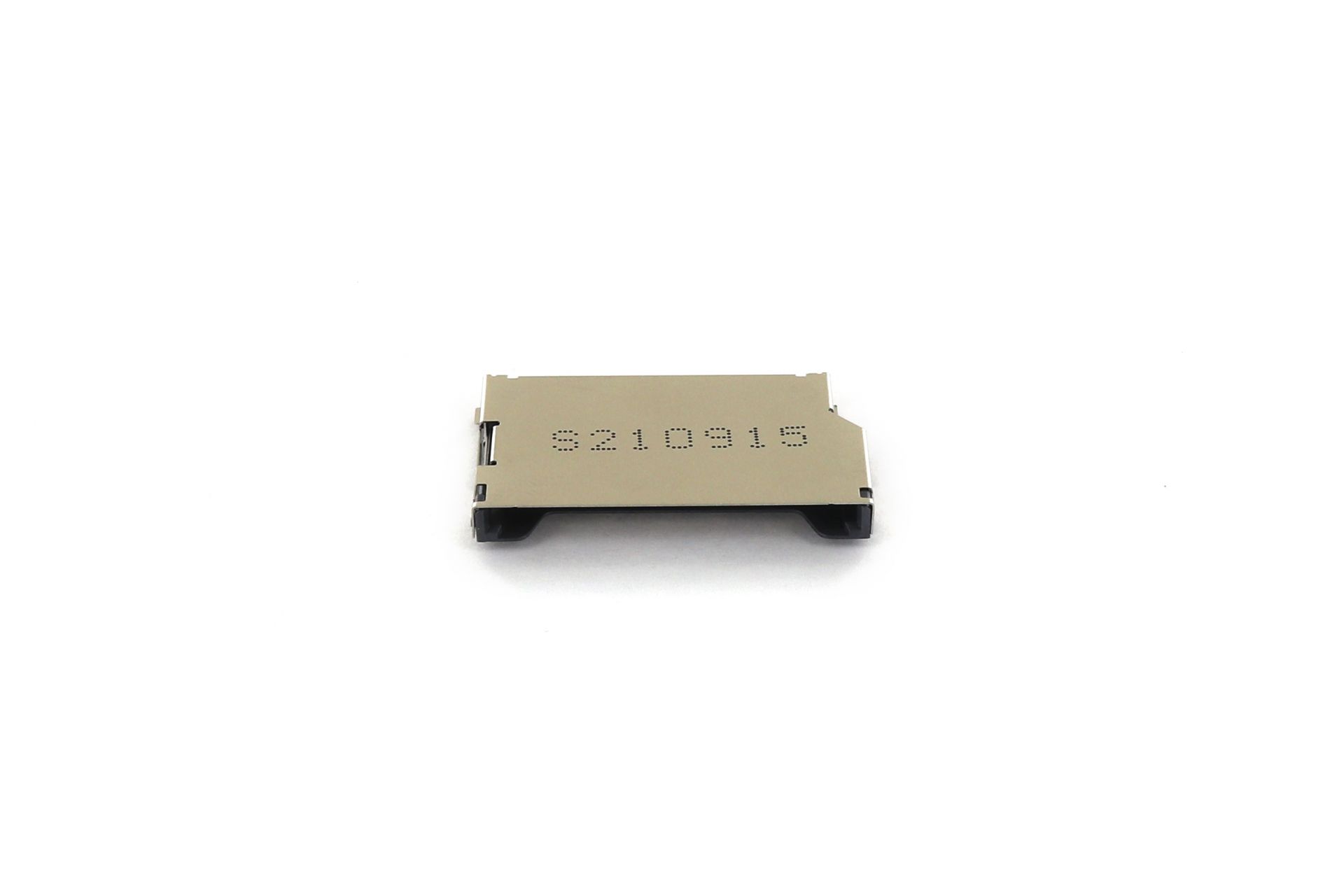

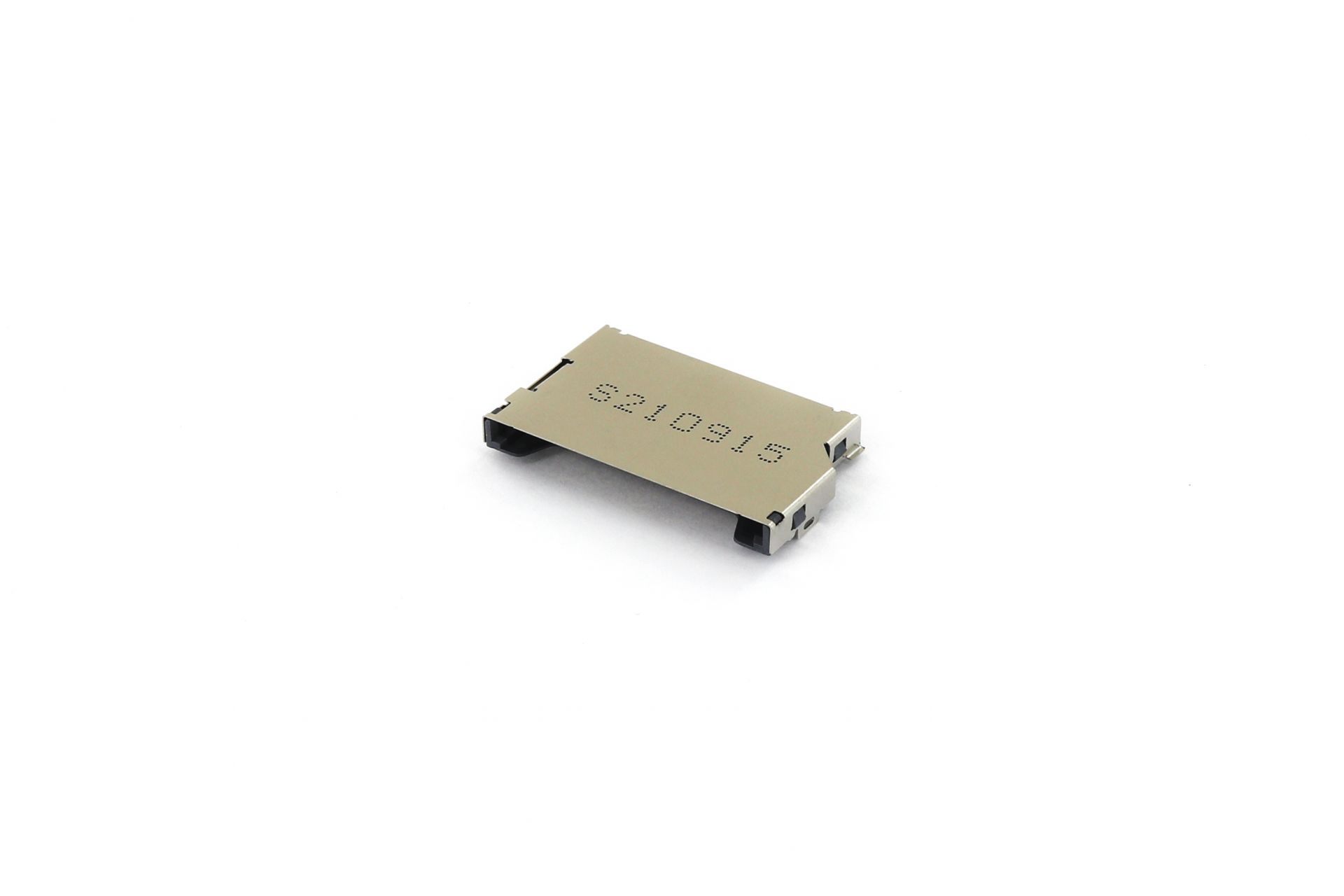

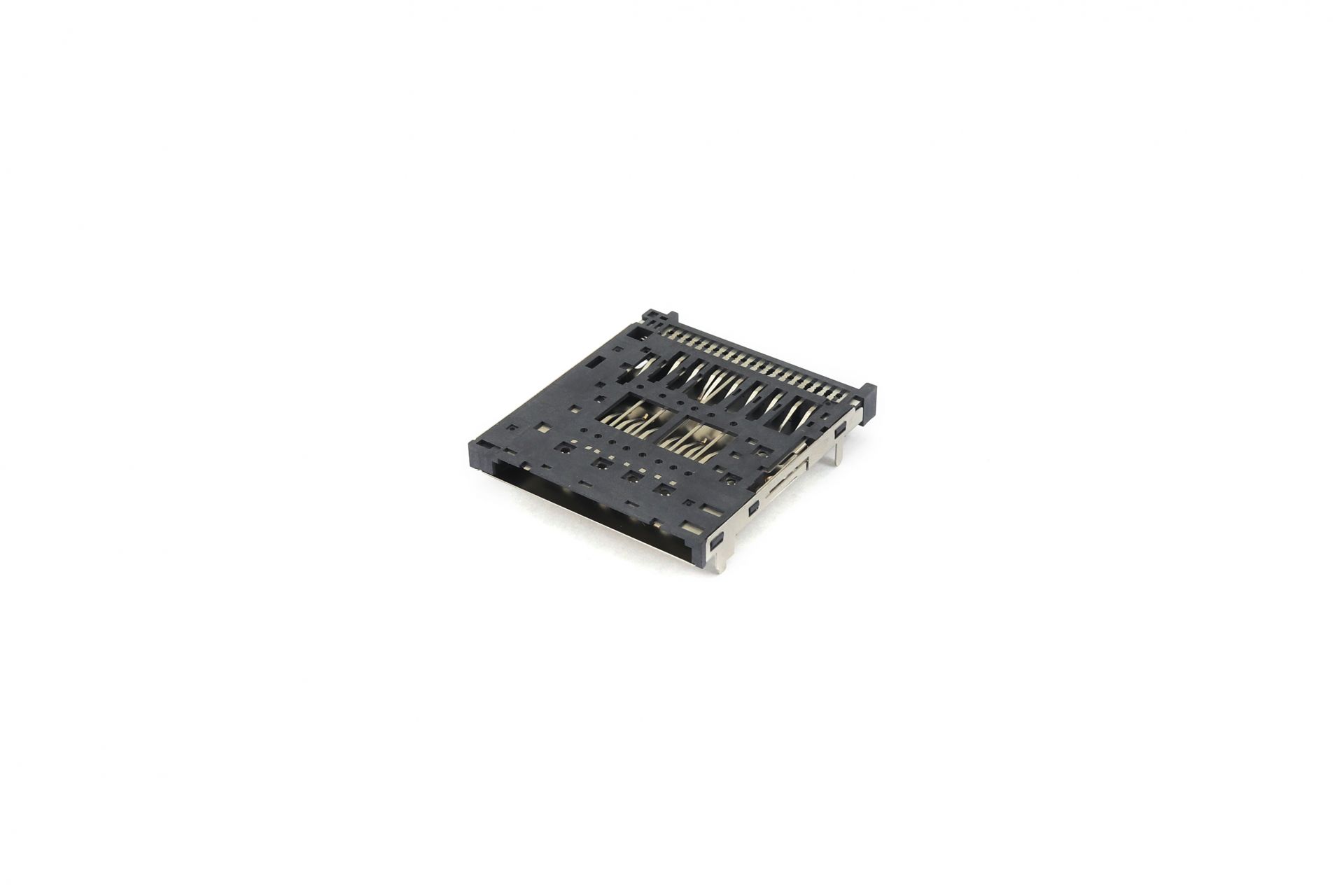

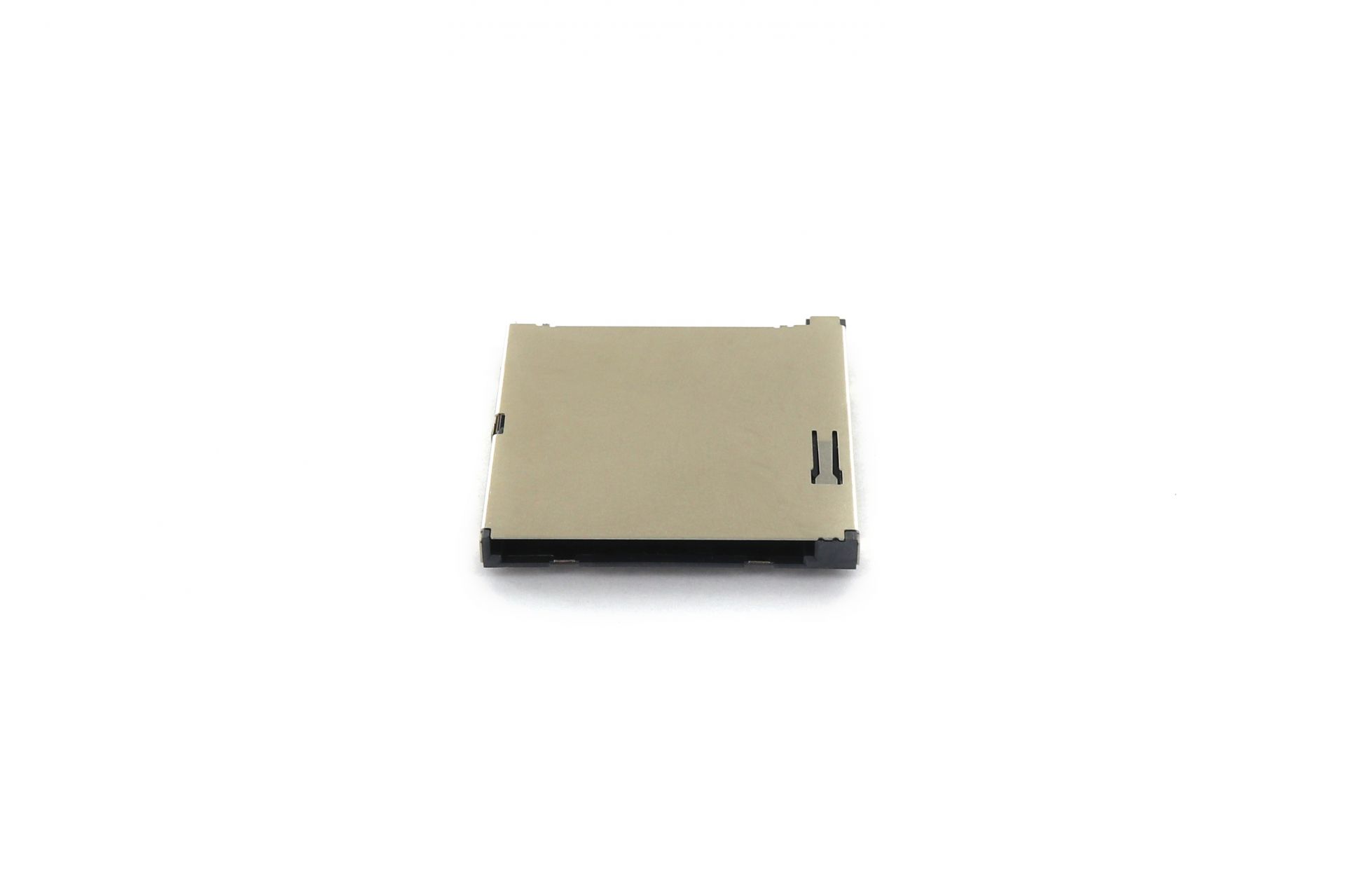

SD CARD CONNECTOR 9PIN SMT 90° STANOFF 0mm
  • SDC
    (1)
  •
    09
    (2)
  •
    W
    (3)
  •
    P
    (4)
  •
    00
    (5)
  •
    1
    (6)
  •
    R4H
    (7)
  •
    H
    (8)

Description

  • (1)  SDC:SD Card Connector
  • (2)  09:No. Of Postion
          17:No. Of Postion
  • (3) W:SMT Right Angle
  • (4) P: Push-Push Type
         BLANK:Non Push-Push Type
  • (5) 00: Standoff 0mm
  • (6) 1: Normal Type
          2: Reverse Type
  • (7) R4H: Tape & Reel 400 PCS/Reel
  • (8) H: RoHS Compliant

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
SDC09WP001-H 227KB PDF
download
DOWNLOAD
SDC09WP002-R3H5-H 214KB PDF
download
DOWNLOAD
SDC17WP182C-R2H-H 436KB PDF
download
DOWNLOAD
SDC09WP001W-R4H-H 385KB PDF
download
DOWNLOAD
SDCS09W001-R4H5-H 167KB PDF
download
DOWNLOAD
