Memory Card

TFC

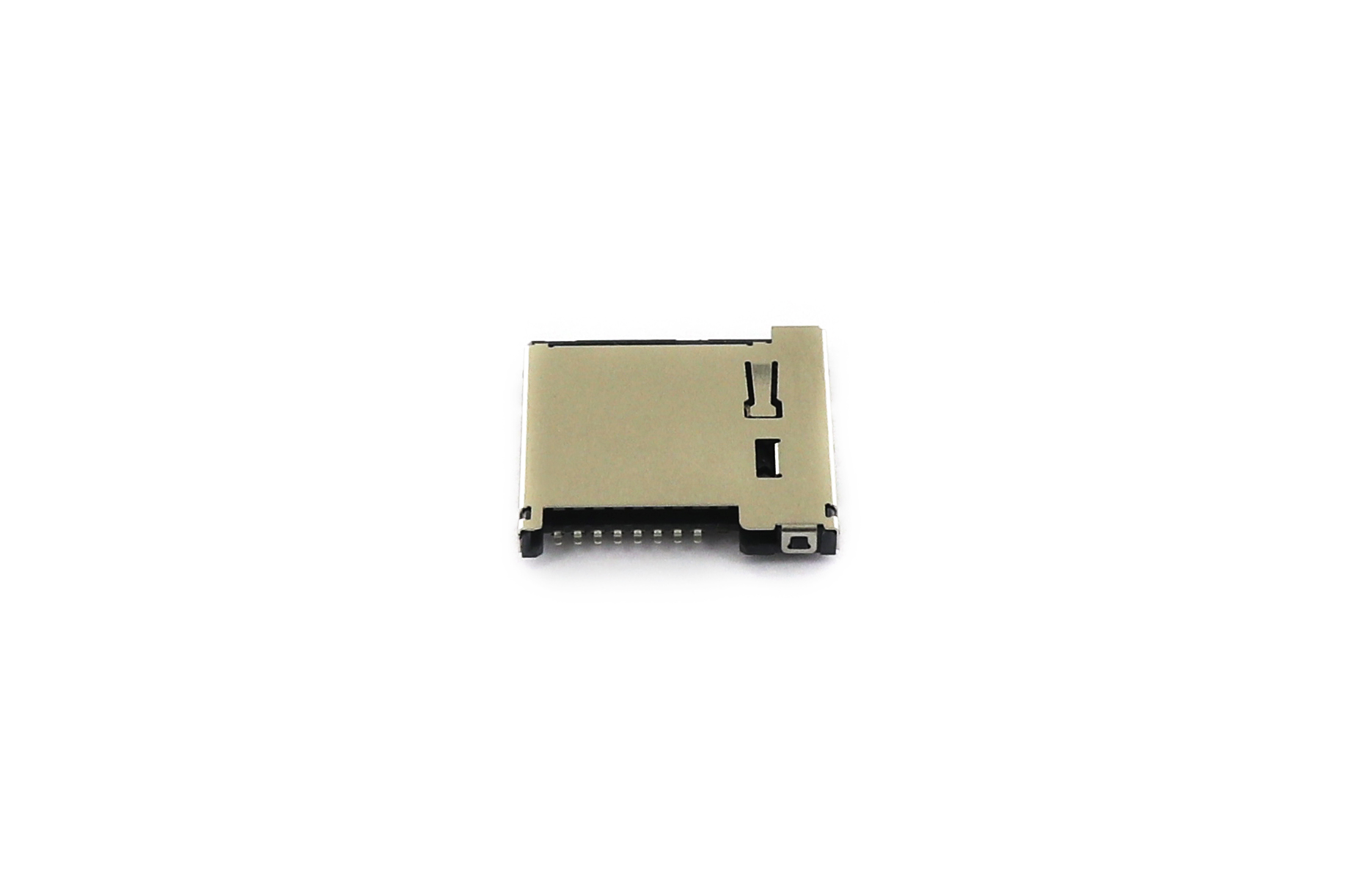

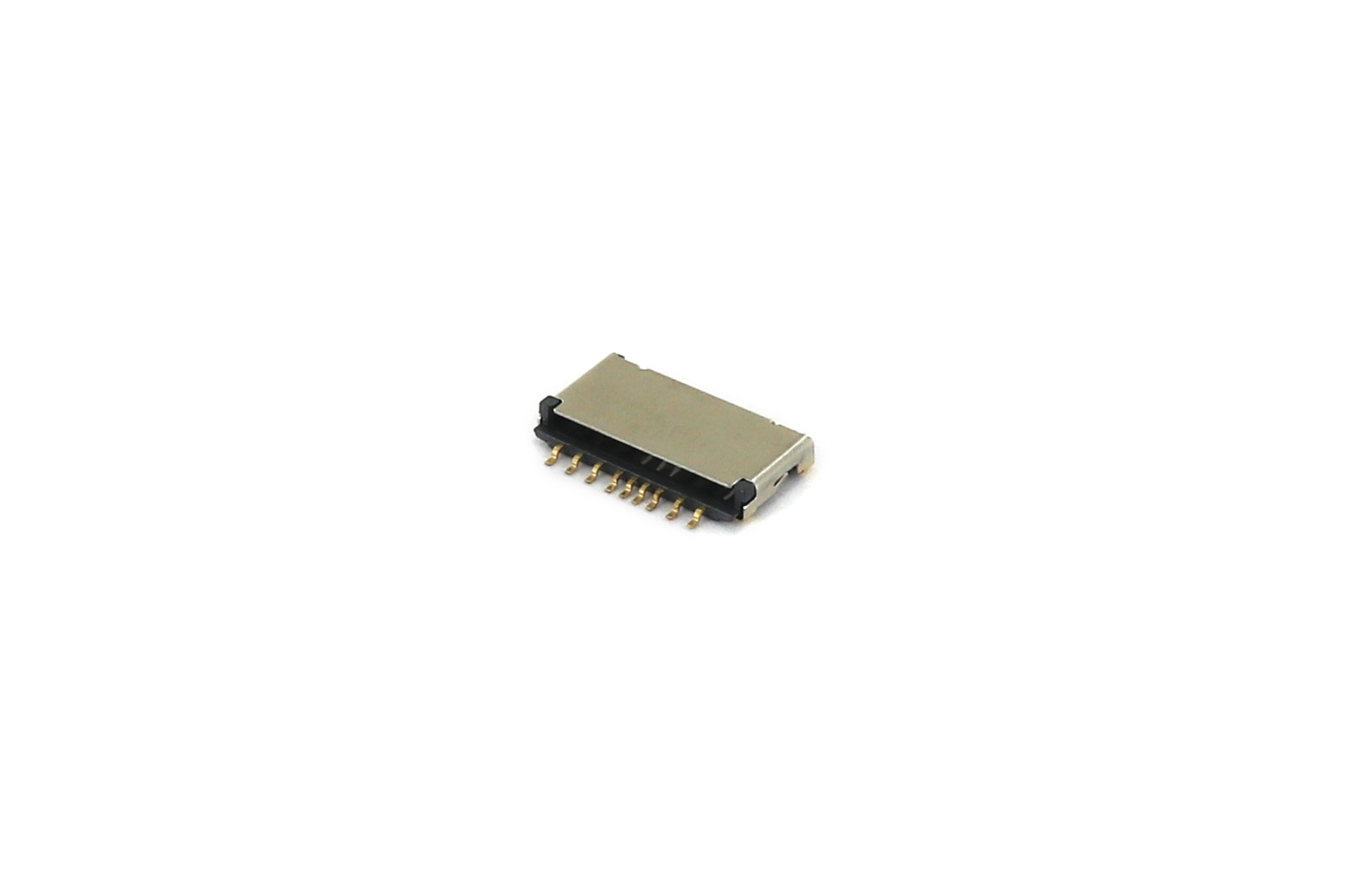

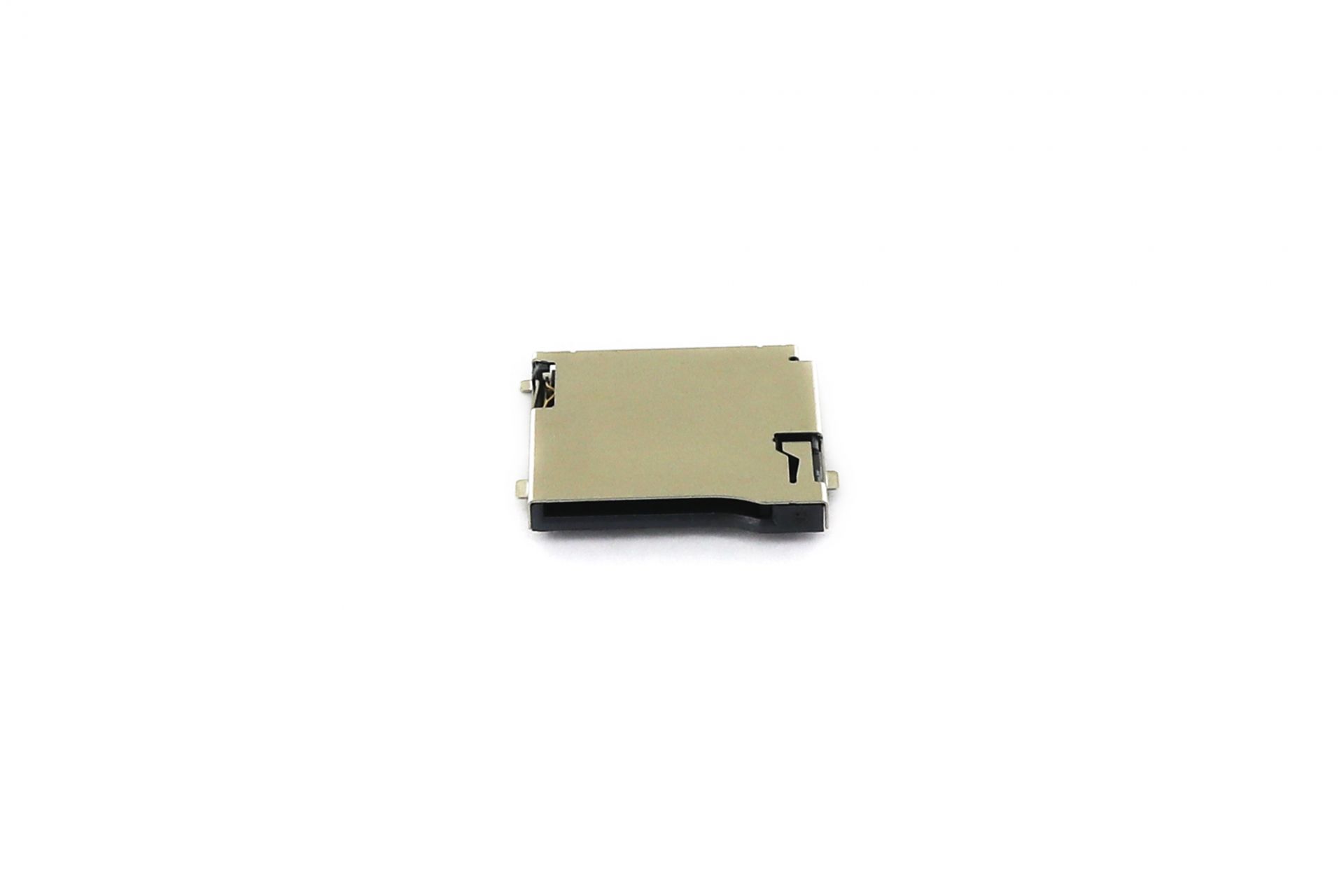

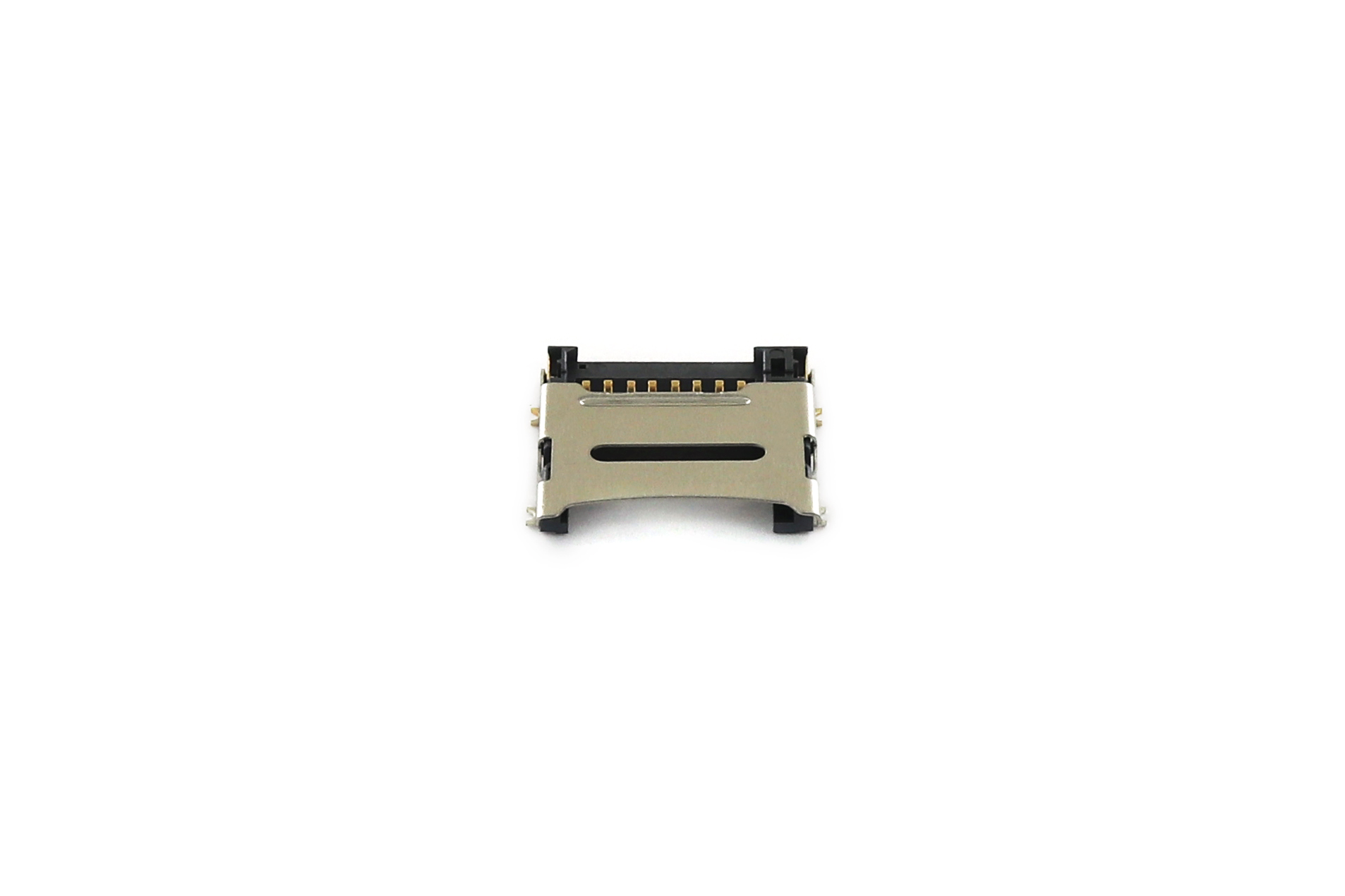

T-FLASH CONNECTOR 08PIN SMT 90°
  • TFC
    (1)
  •
    08
    (2)
  •
    W
    (3)
  •
    P
    (4)
  •
    0
    (5)
  •
    1
    (6)
  •
    R
    (7)
  •
    H
    (8)
  •

Description

  • (1)  TFC:T-Flash Connector
    (2) 08:No. Of Position
  • (3) W:SMT Right Angle
  • (4) P: Push-Push Type
          BLANK:Non Push-Push Type
  • (5) 0: Standoff 0mm
  • (6) 1:  Normal Type
  • (7) R:Tape & Reel
  • (8) H:RoHS Compliant

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
TFC08WP01-R1K-H 377KB PDF
download
DOWNLOAD
TFC17WP01-H15-R8H-H 398KB PDF
download
DOWNLOAD
TFCD08WP02-R8H-H 368KB PDF
download
DOWNLOAD
TFC08W01-R1K5-H 308KB PDF
download
DOWNLOAD
TFC08WP01F-A-R1K-H 342KB PDF
download
DOWNLOAD
TFCS08W01-H17-R2K5-H 307KB PDF
download
DOWNLOAD
TFC08W01-HC-SXX-R1K-H 342KB PDF
download
DOWNLOAD
TFC08WP01-H14-R1K5-H 335KB PDF
download
DOWNLOAD
TFC08WP01F-R1K-H 343KB PDF
download
DOWNLOAD
