Others Terminal Block TBB
Terminal Block

TBB

TERMINAL BLOCK BARRIER TYPE
  • TBB

  • 110
    (1)
  • A
    (2)
  • 02
    (3)
  • DE
    (4)
  •
    H
    (5)

Description

  • (1)063:PITCH 6.35mm
        076:PITCH 7.62mm
        082:PITCH 8.25mm
        095:PITCH 9.5mm
        100:PITCH 10.0mm
        110:PITCH 11.0mm
  • (2)A:SINGLE ROW
        B:DUAL ROW
  • (3)02~30:NO. OF POSITION
  • (4)D:DIP STRAIGHT WITHOUT MOUNTING EAR
        DE:DIP STRAIGHT WITH MOUNTING EAR
        DS:DIP STRAIGHT WITHOUT MOUNTING EAR SIDE TYPE
        DSB:DIP STRAIGHT WITHOUT MOUNTING EAR SIDE TYPE REAR BLACK
        SB:SIDE ENTRY REAR BLACK
        SE:SOLDER WIRE TYPE WITH MOUNTING EAR
  • (5)RoHS

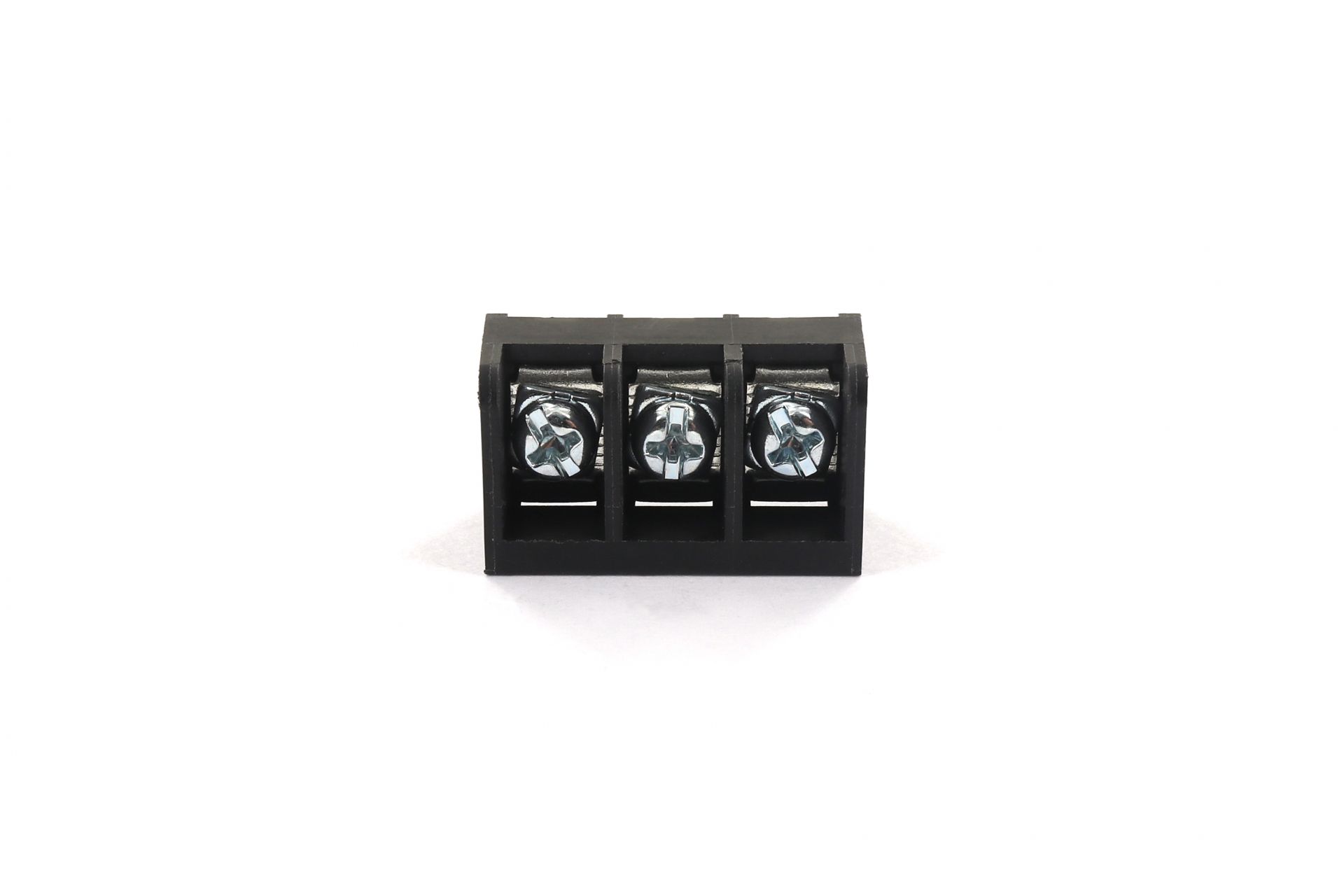

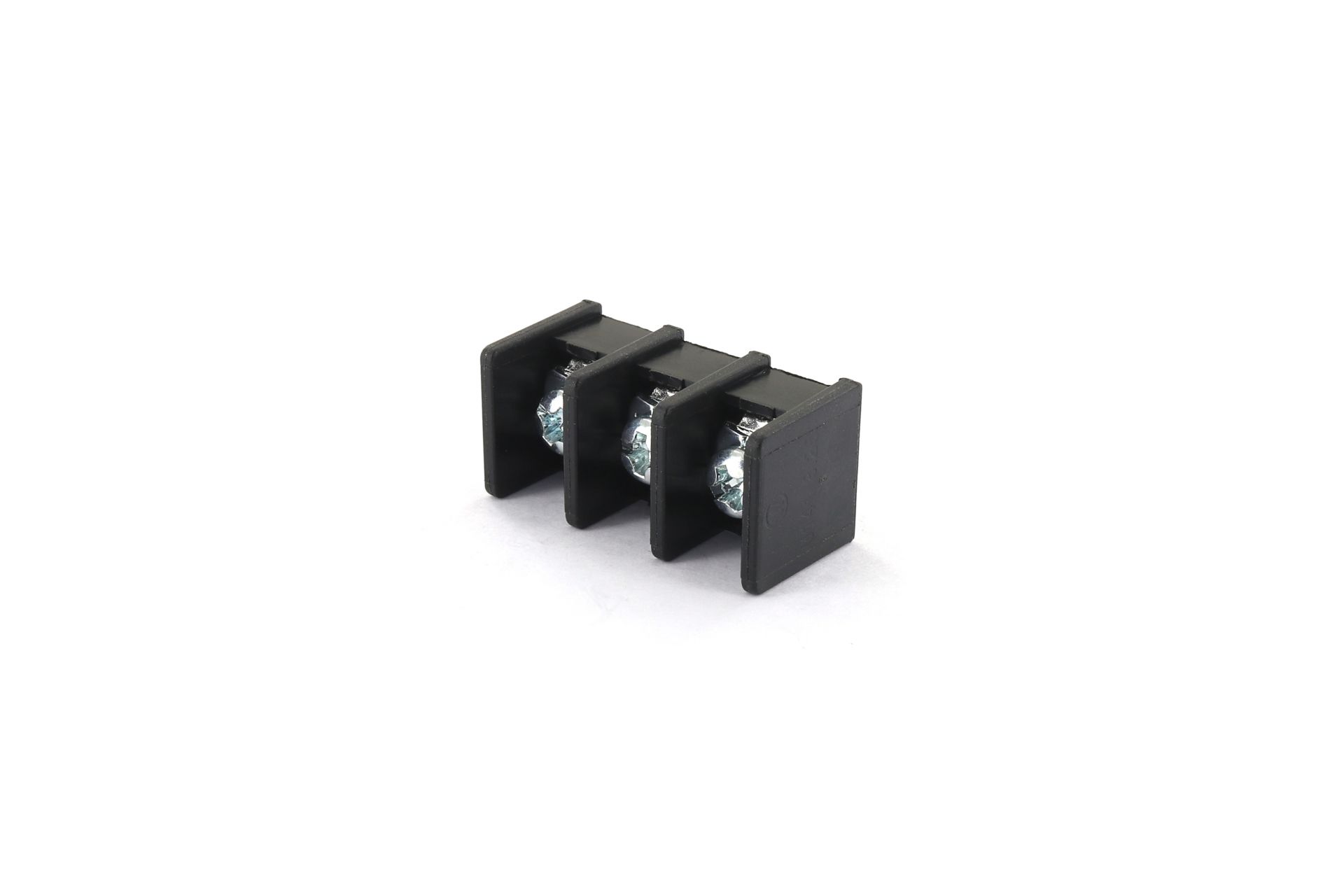

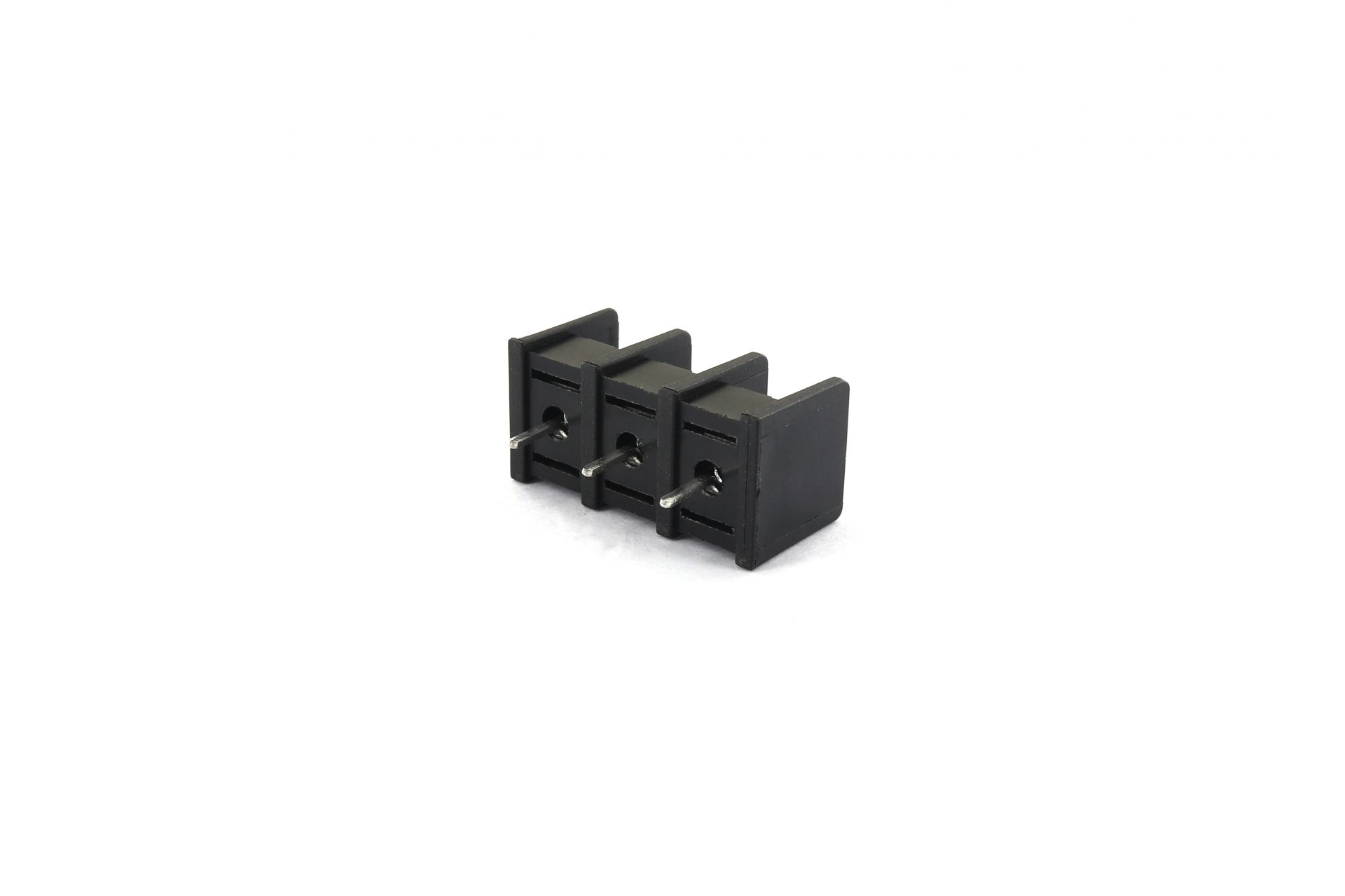

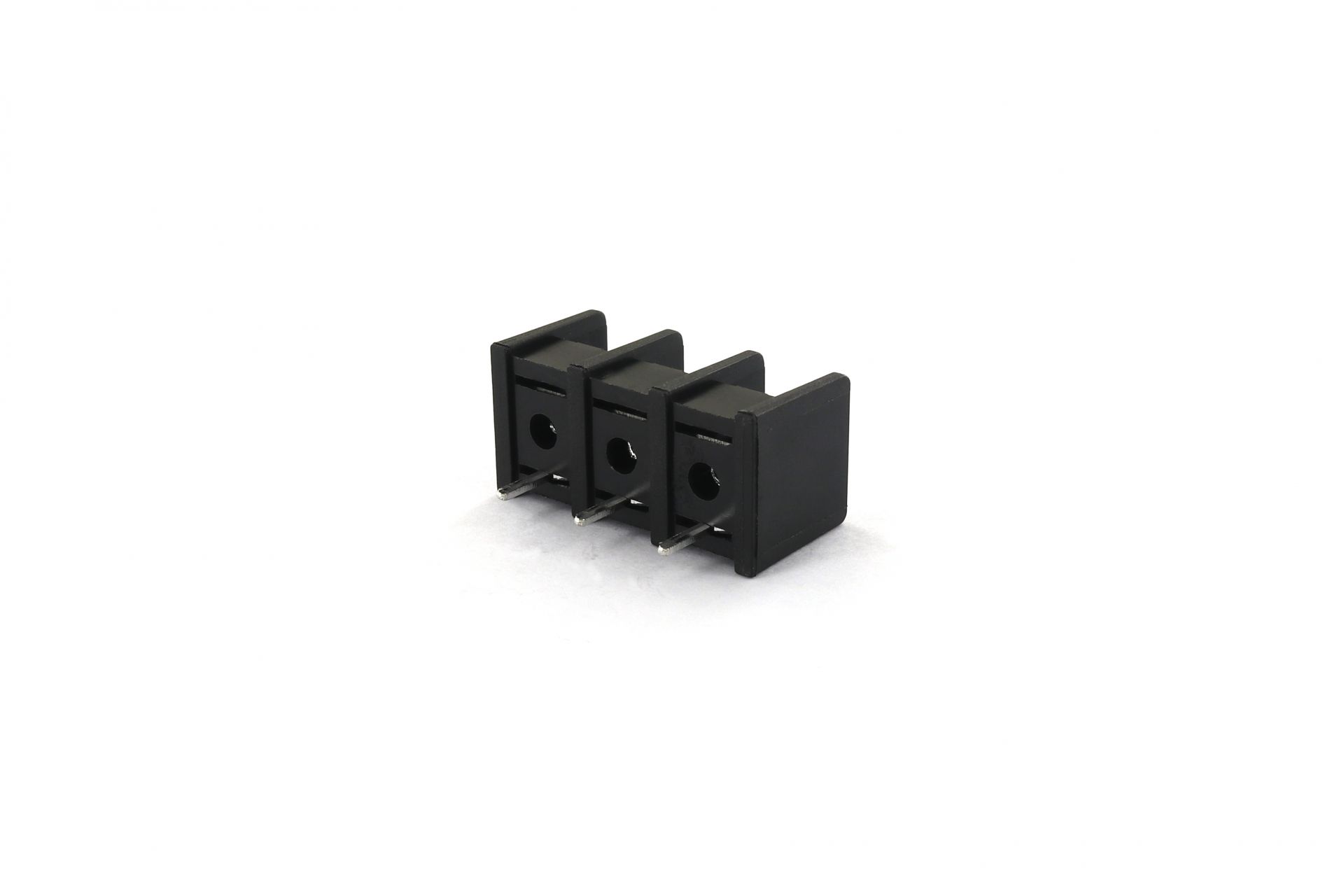

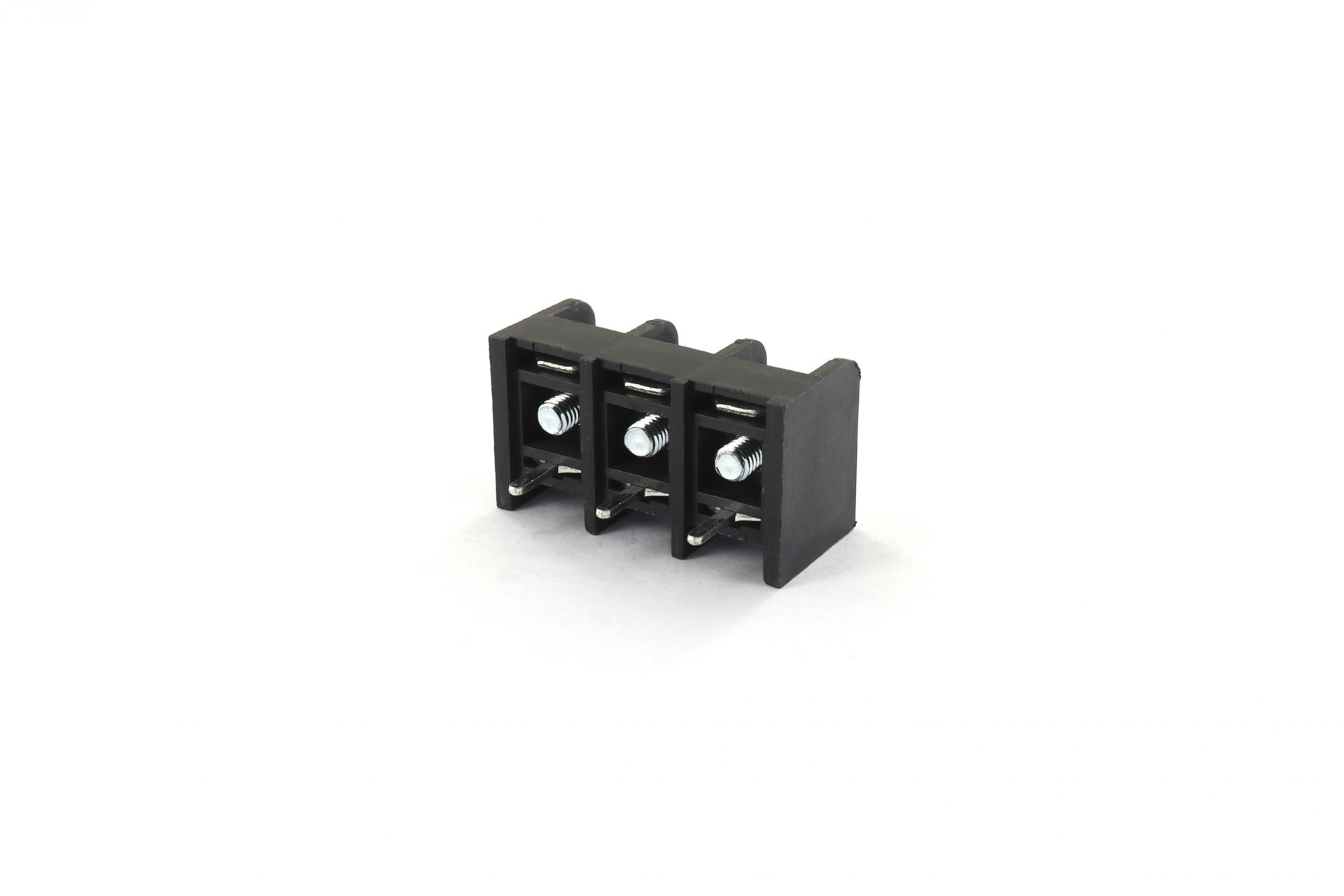

  • TBB082A03D(689)_1
  • TBB082A03D(689)_3
  • TBB082A03D(689)
  • TBB082A03D(689)_2

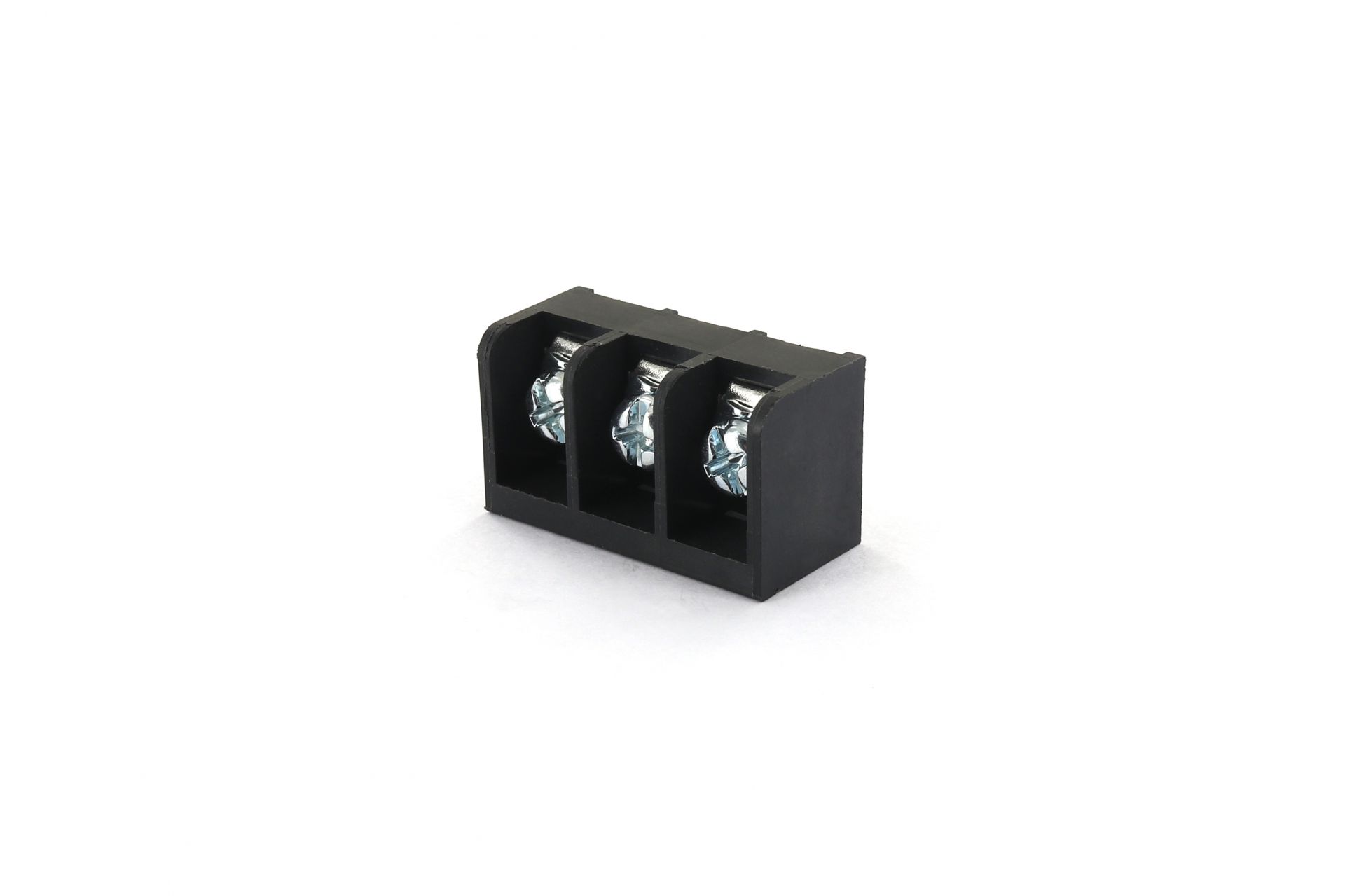

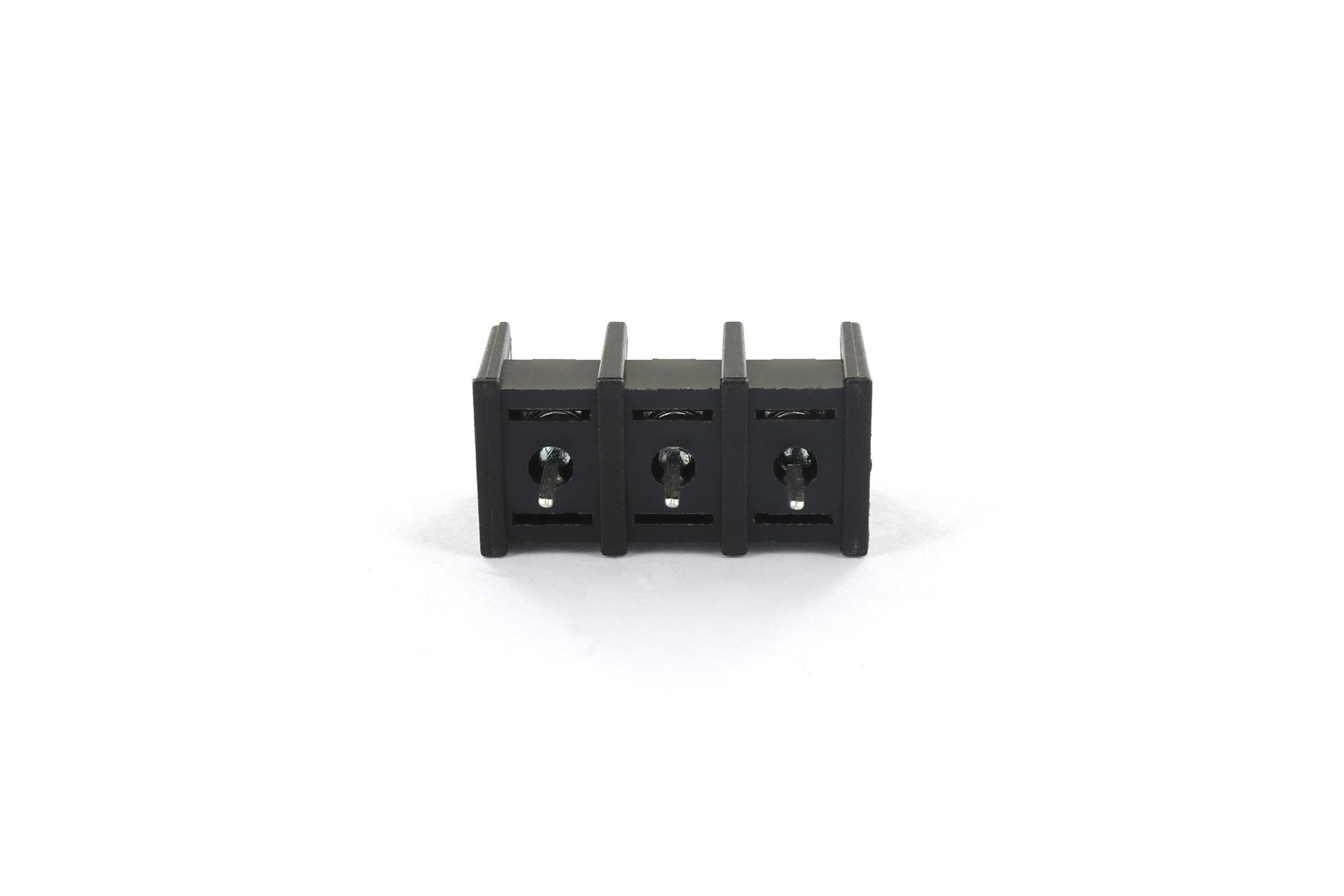

  • TBB082A03DS(689)_1
  • TBB082A03DS(689)
  • TBB082A03DS(689)_2

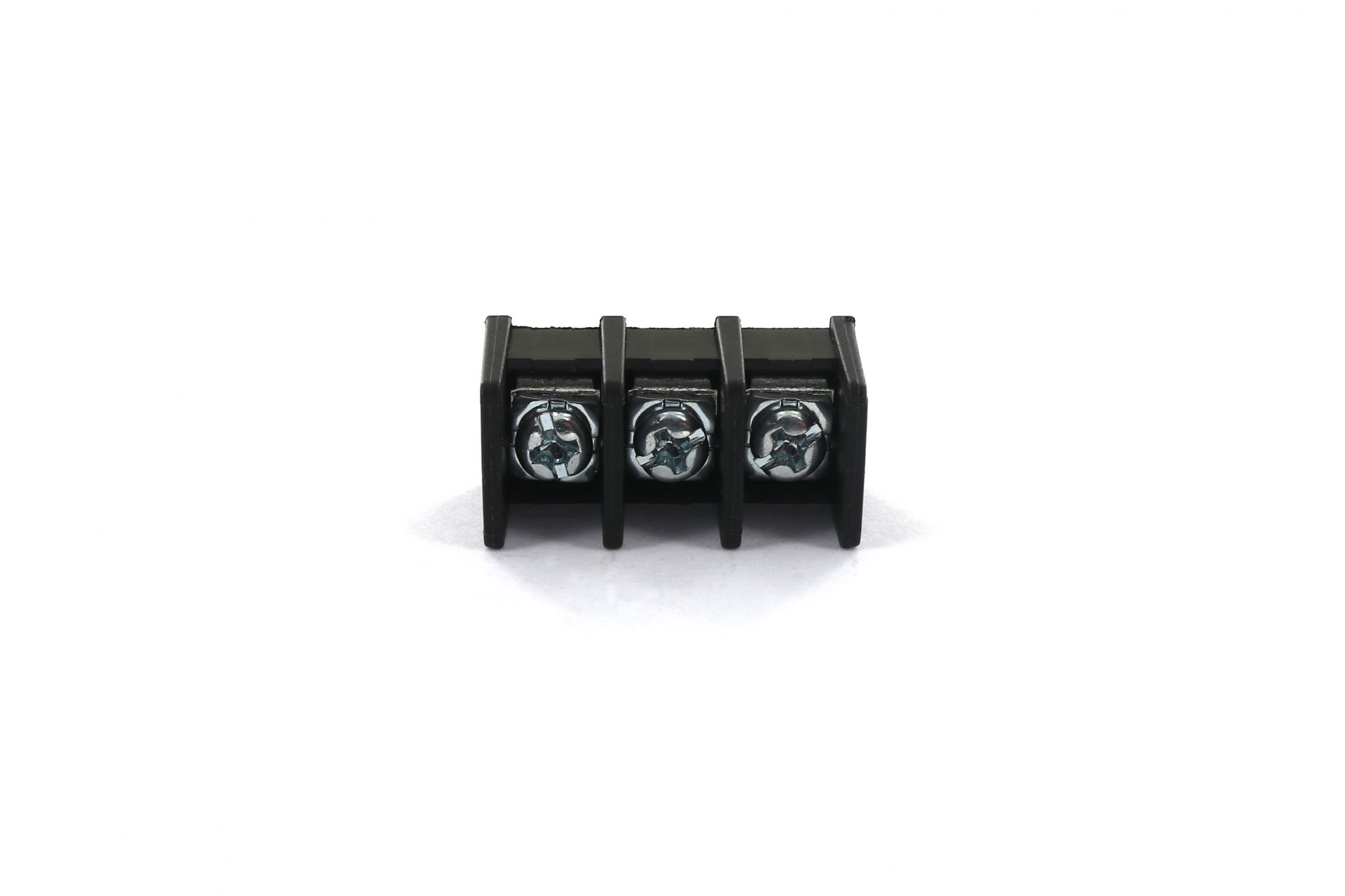

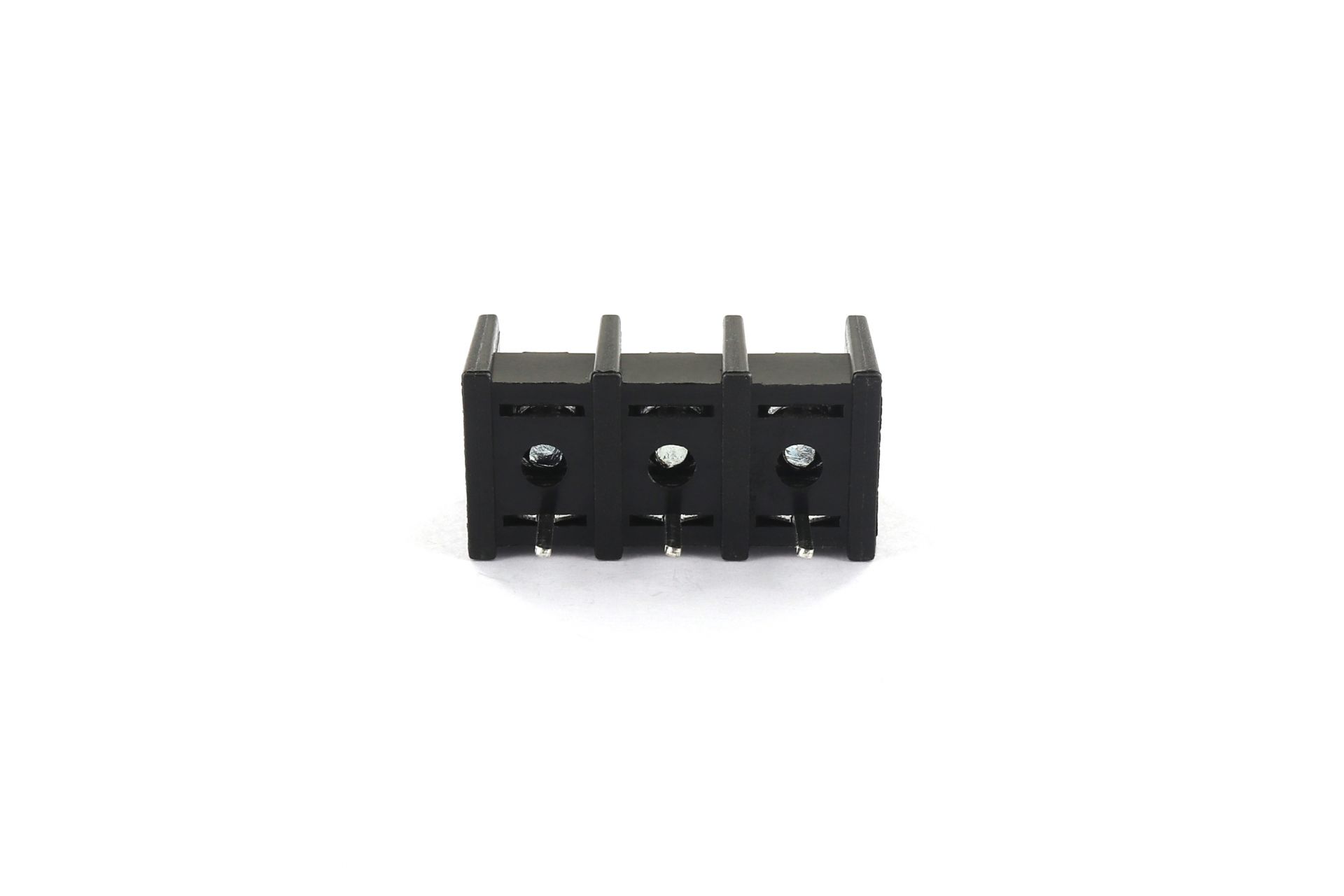

  • TBB082A03DSB(689)_1
  • TBB082A03DSB(689)
  • TBB082A03DSB(689)_2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
TBB063AXXDSB-H 271KB PDF
download
DOWNLOAD
TBB076AXXD-H 270KB PDF
download
DOWNLOAD
TBB076AXXDE-H 99KB PDF
download
DOWNLOAD
TBB082AXXDS-XX-H 271KB PDF
download
DOWNLOAD
TBB082AXXSB-H 109KB PDF
download
DOWNLOAD
