Input/Output Connector D-SUB Connector DH(Q)

D-SUB Connectors

DH(Q)

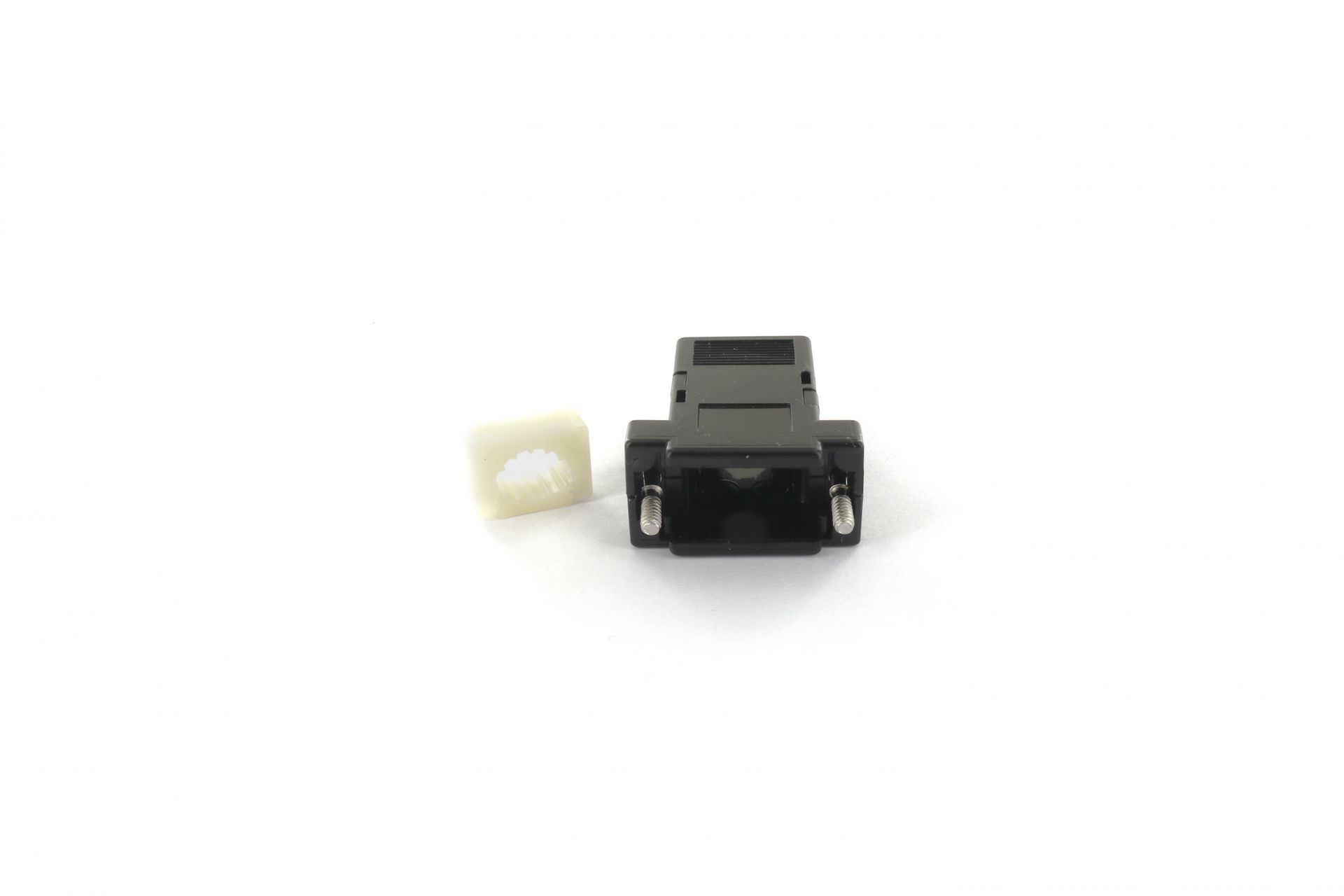

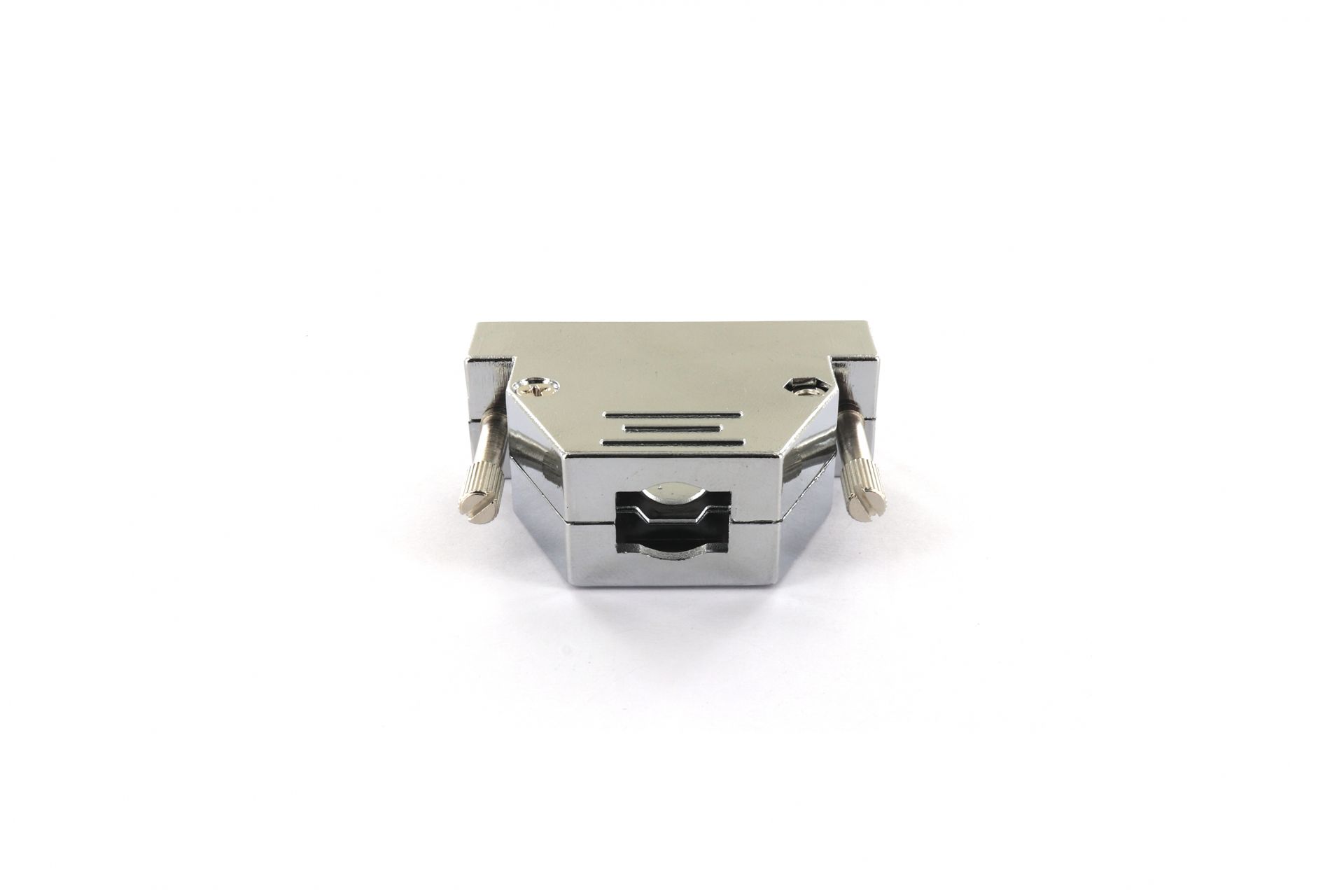

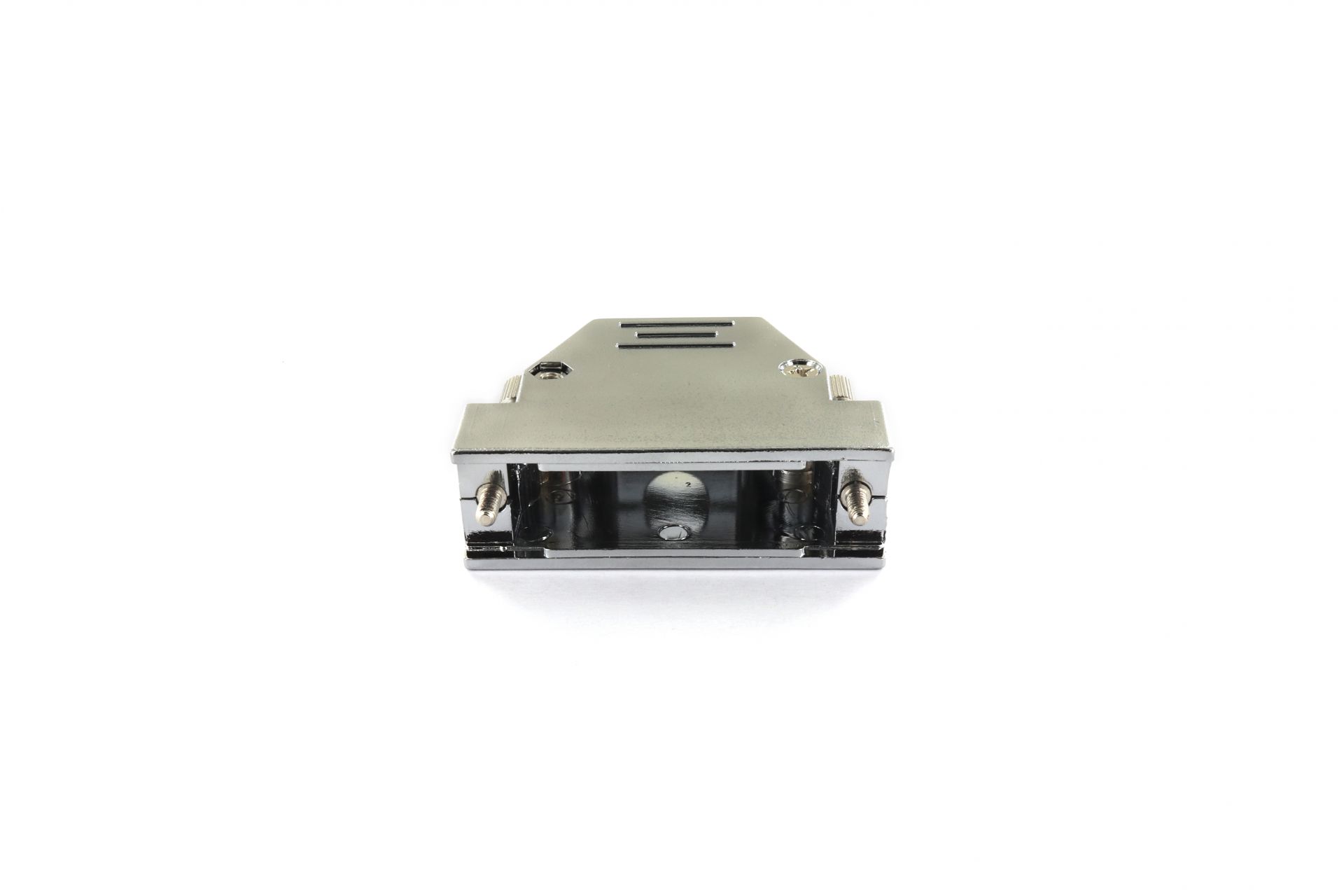

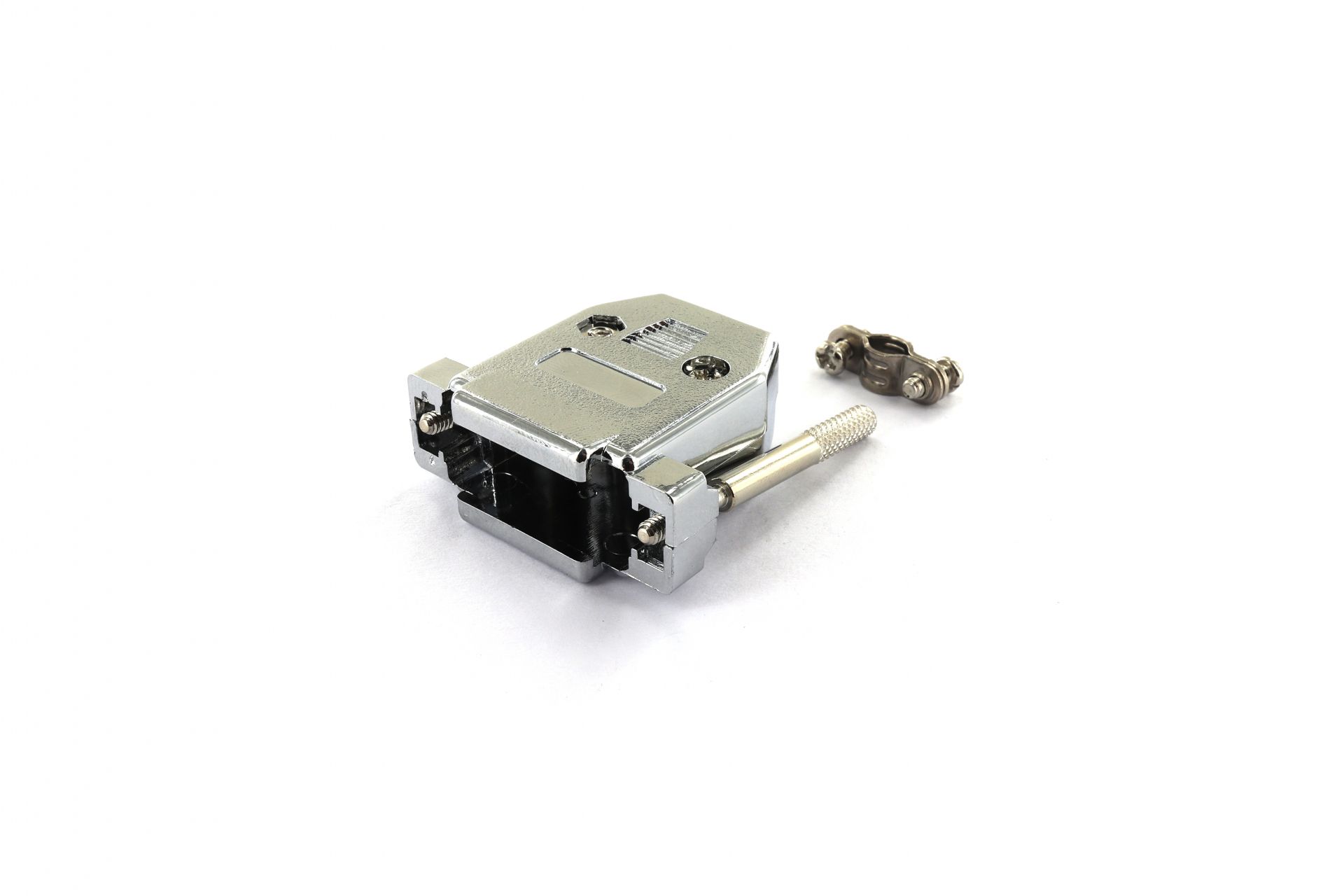

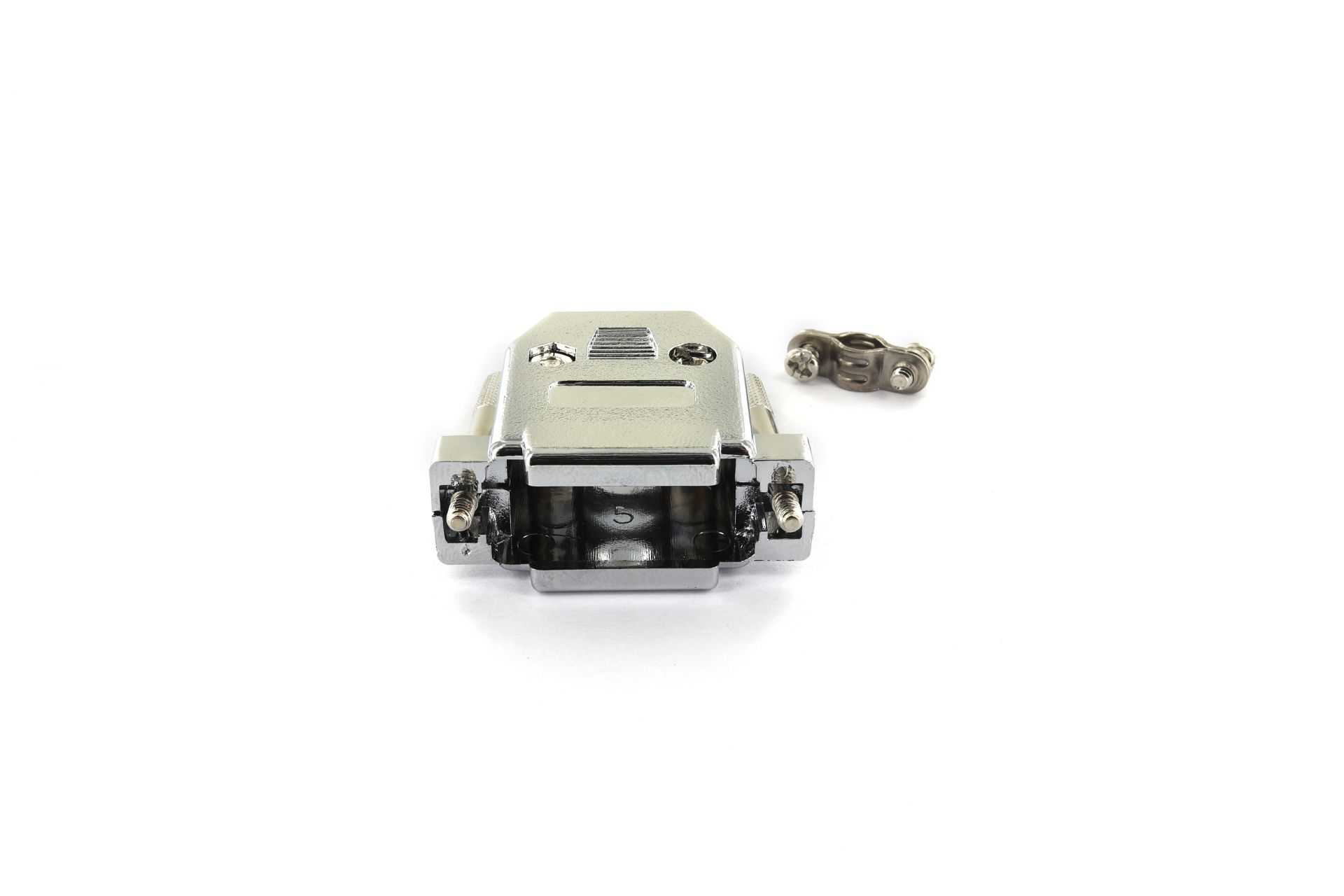

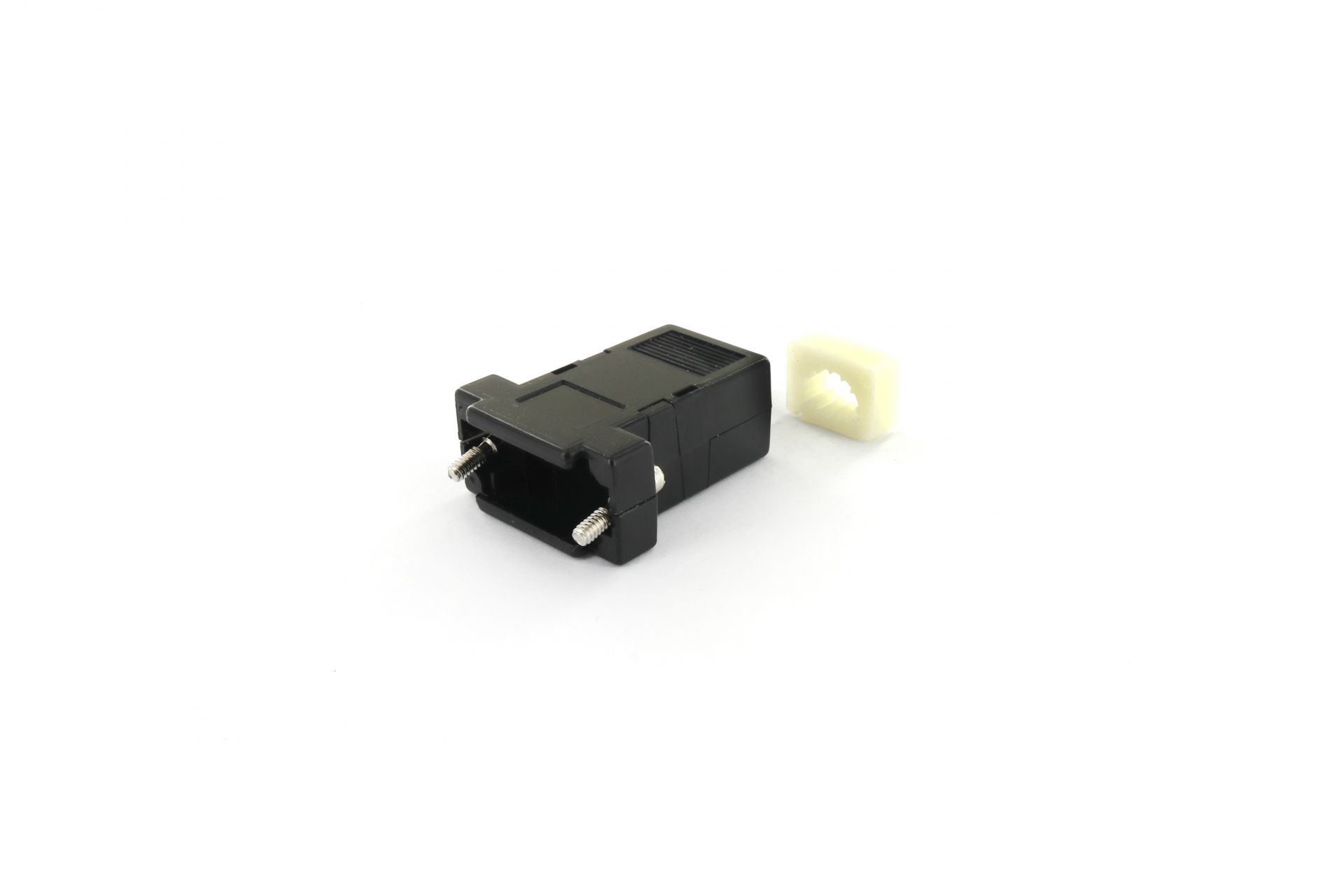

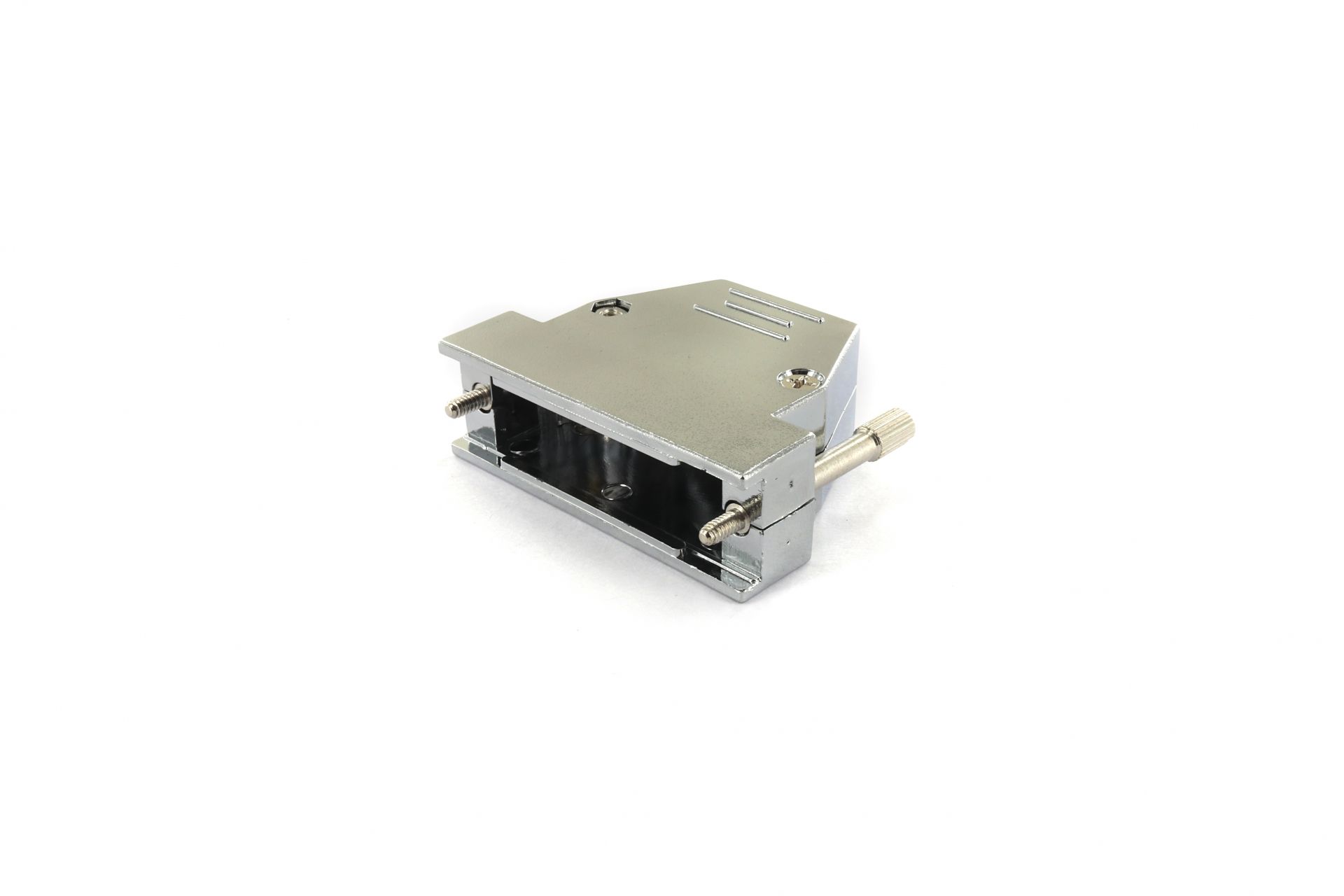

2.77mm D-SUB HOOD & QUICK-ON HOOD ,PLASTIC SR & ACCESSORIES

D
H
(1)
09
(2)
G
(3)
T
(4)
1
(5)
H
(6)

Description

(1) H:D-SUB HOOD SCREW TYPE
Q:D-SUB HOOD QUICK-ON TYPE
QL:D-SUB HOOD QUICK-ON TYPE LONG EAR ONLY 25 PIN
BLANK:STANDARD
(2) 09、15、25:NO. OF POSITION
(3) B:INSULATOR COLOR BEIGE
G:INSULATOR COLOR GRAY
K:INSULATOR COLOR BLACK
C:CHROMATE PLATED
(4) BLANK:SHORT SCREW
T:THUMBSCREW
(5) -1:SINGLE PACK(POLY BAG)
BLANK:BULK PACK
(5) RoHS

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	DQL25XT-1-H	236KB	PDF	DOWNLOAD
	DH50XT-1-H	84KB	PDF	DOWNLOAD
	DH37X-1-H	255KB	PDF	DOWNLOAD
	DH15XT-1-H	263KB	PDF	DOWNLOAD
	DH37XT-1-H	87KB	PDF	DOWNLOAD
	DH25X-1-H	248KB	PDF	DOWNLOAD
	DH25XT-1-H	270KB	PDF	DOWNLOAD
	DH09X-1-H	240KB	PDF	DOWNLOAD
	DH15X-1-H	250KB	PDF	DOWNLOAD
	DQ15XT-X-H	252KB	PDF	DOWNLOAD
	DQ25XT-X-H	251KB	PDF	DOWNLOAD
	DQ09X-X-H	252KB	PDF	DOWNLOAD
	DQ15X-X-H	245KB	PDF	DOWNLOAD
	DQ25X-X-H	246KB	PDF	DOWNLOAD
	DH09XT-1-H	175KB	PDF	DOWNLOAD
