Input/Output Connector D-SUB Connector HDC
D-SUB Connectors

HDC

2.29mm HIGH DENSITY D-SUB CRIMP TYPE BLACK INSULATOR TRAY
  • HDC

  • 15
    (1)
  • P
    (2)
  • N
    (3)
  • T

  •
    H
    (4)

Description

  • (1) 15、26、44、62、78:NO. OF POSITION
          M:MALE TERMINAL SELECTIVE GOLD FLASH
          F:FEMALE TERMINAL SELECTIVE GOLD FLASH
          MS:MALE TERMINAL SELECTIVE GOLD FLASH
          FS:FEMALE TERMINAL SELECTIVE GOLD FLASH
  • (2) P:MALE
          S:FEMALE
  • (3) N:RIVET REAR NUT
          J:RIVET FRONT NUT
          NJ:RIVET REAR NUT WITH FRONT JACKSCREW
  • (4) RoHS

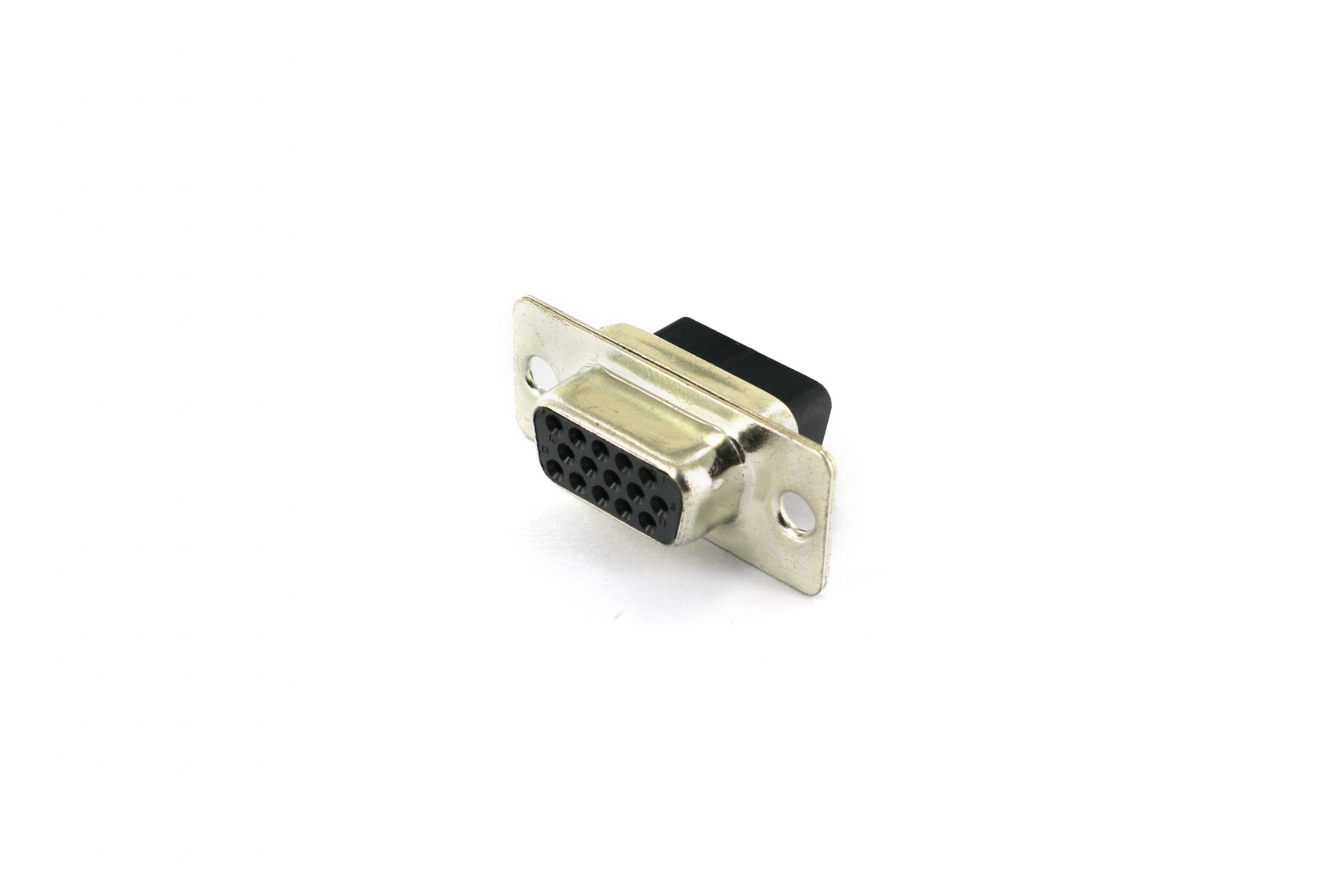

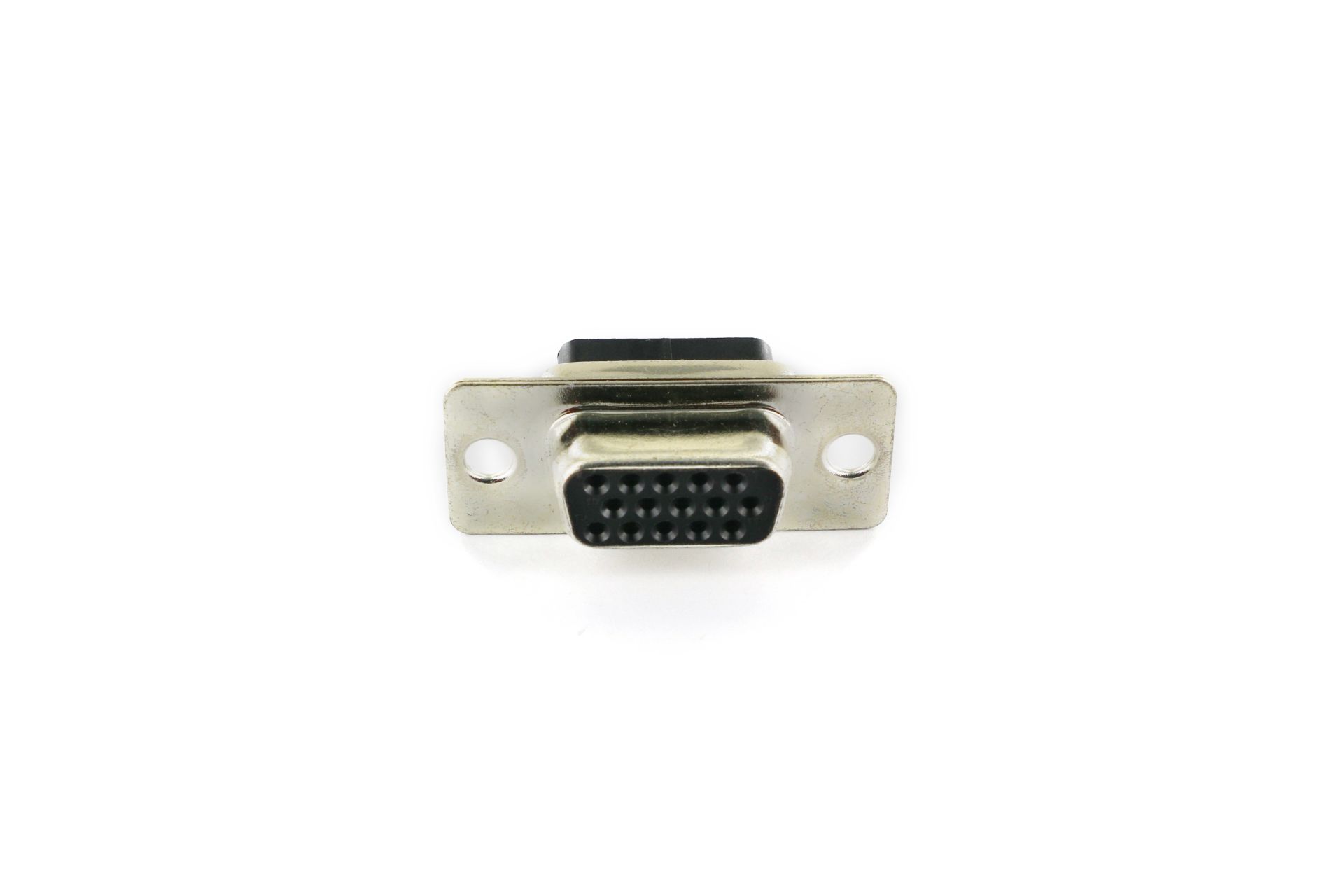

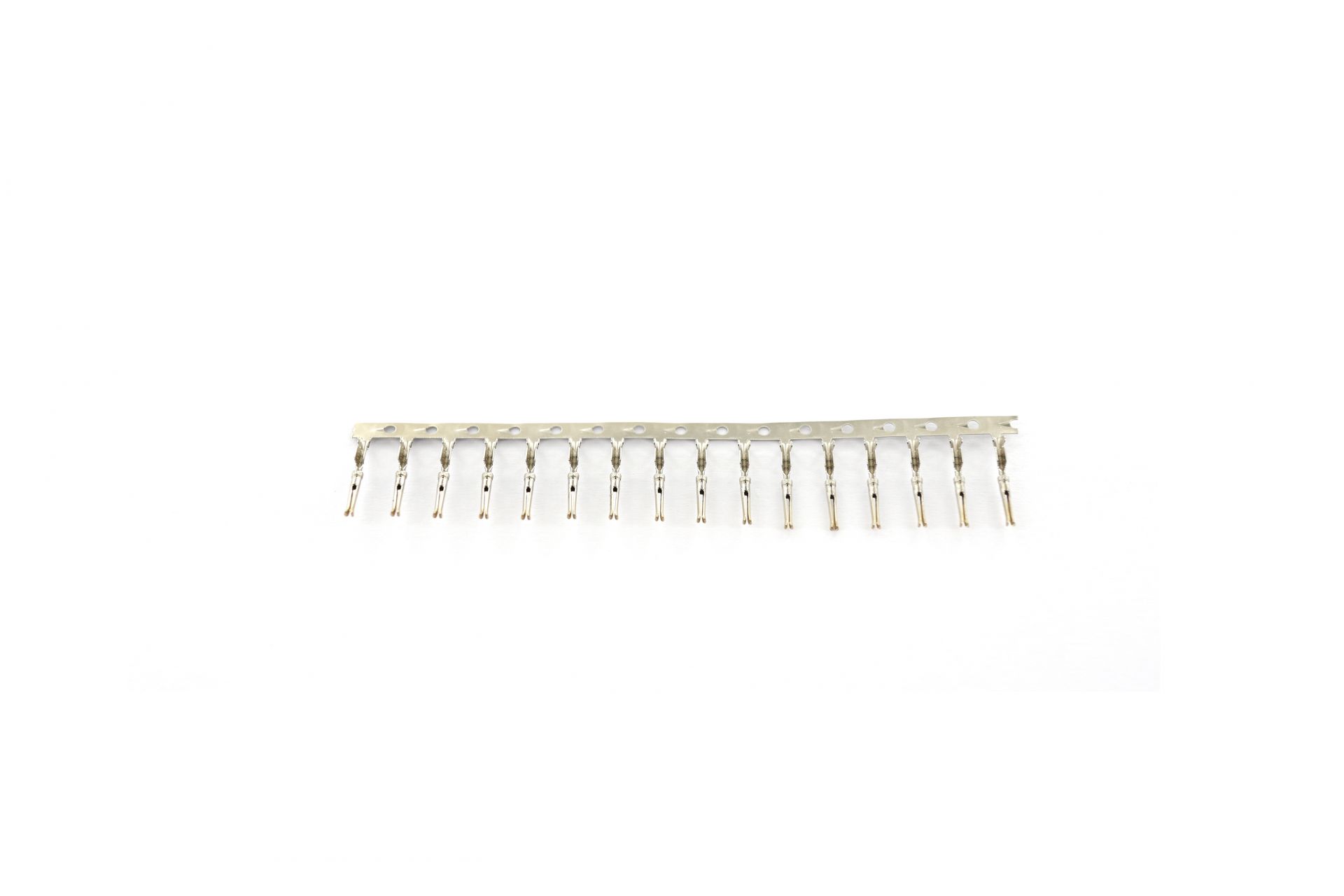

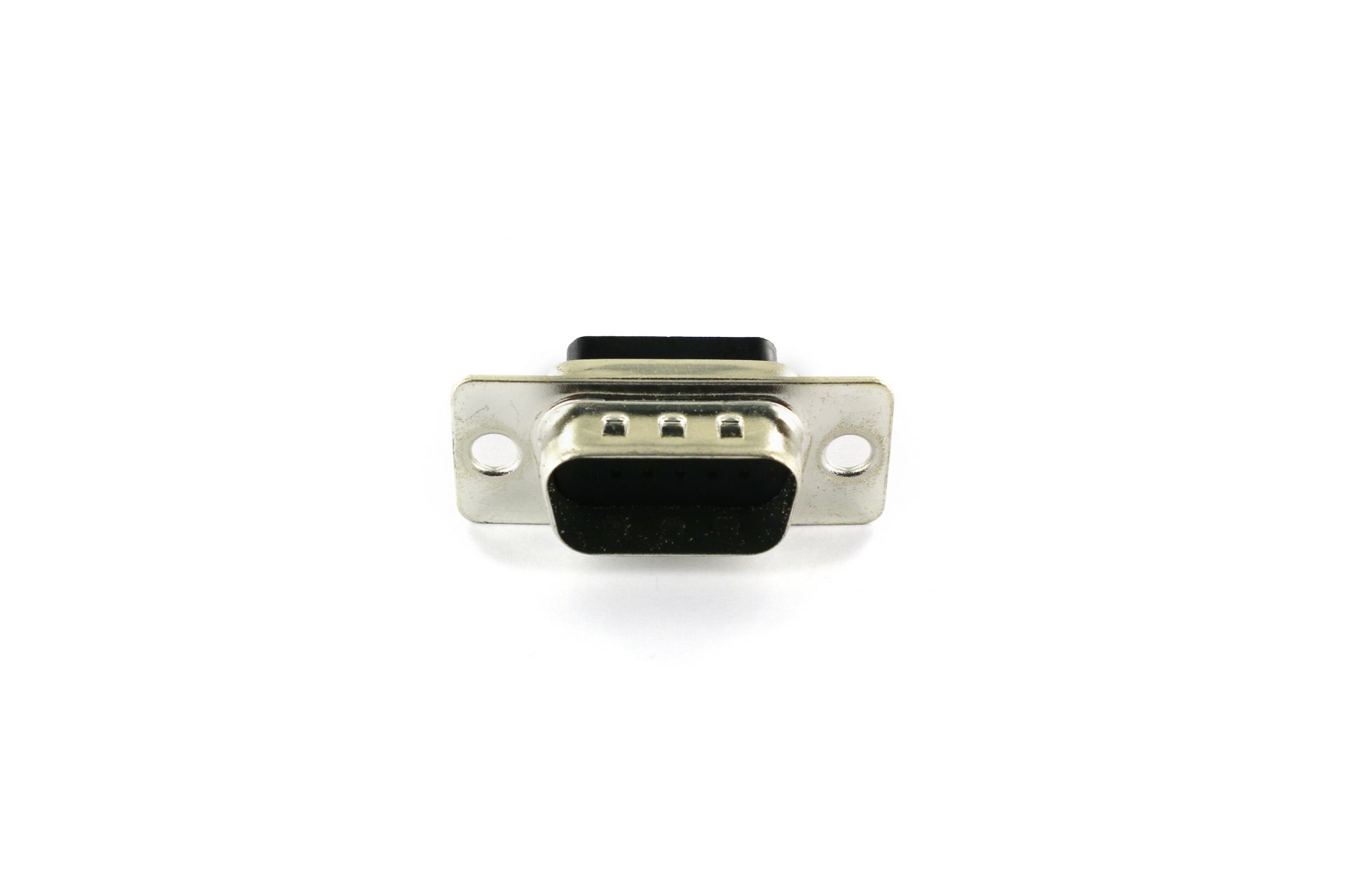

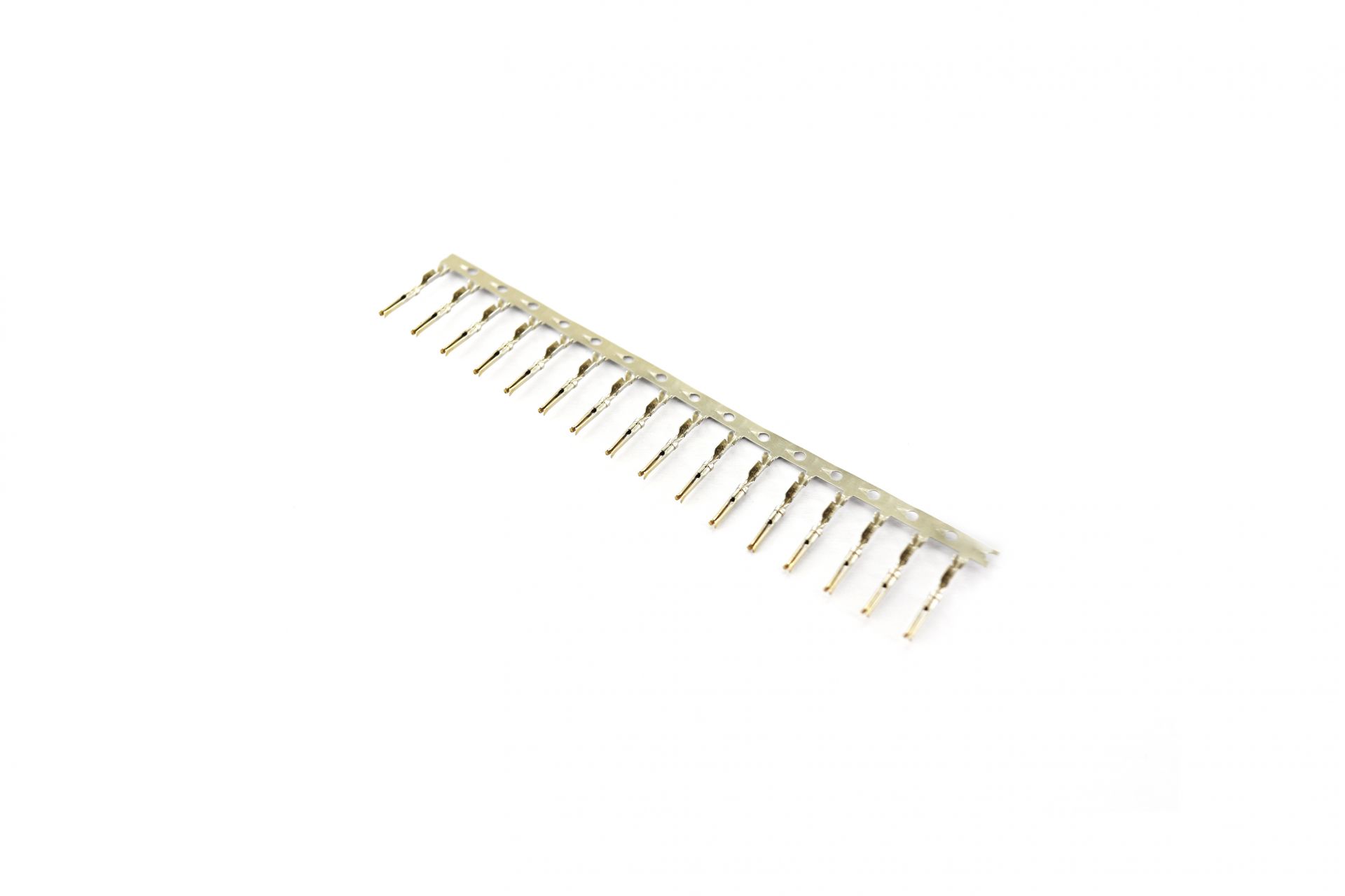

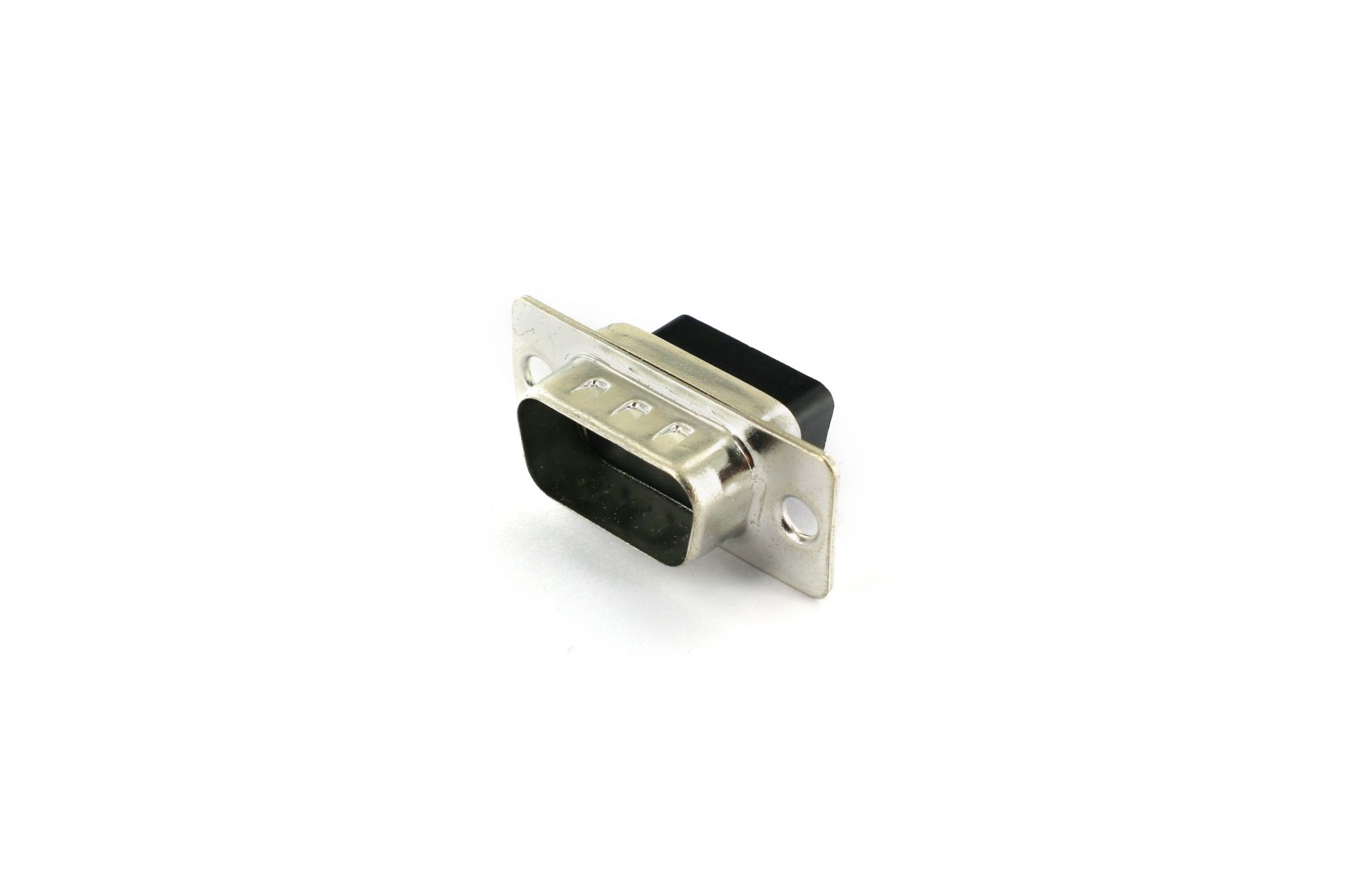

  • IMG_3042-2
  • IMG_3041-2
  • IMG_3045-2
  • IMG_3044-2
  • IMG_2364-2
  • IMG_2363-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
HDCXXSNT-H 91KB PDF
download
DOWNLOAD
HDCXXSJT-H 91KB PDF
download
DOWNLOAD
HDCXXPNT-H 88KB PDF
download
DOWNLOAD
HDCXXPJT-H 88KB PDF
download
DOWNLOAD
HDCFS-R10K-H 254KB PDF
download
DOWNLOAD
HDCMS-R10K-H 252KB PDF
download
DOWNLOAD
HDCXXPT-H 258KB PDF
download
DOWNLOAD
HDCXXST-H 261KB PDF
download
DOWNLOAD
