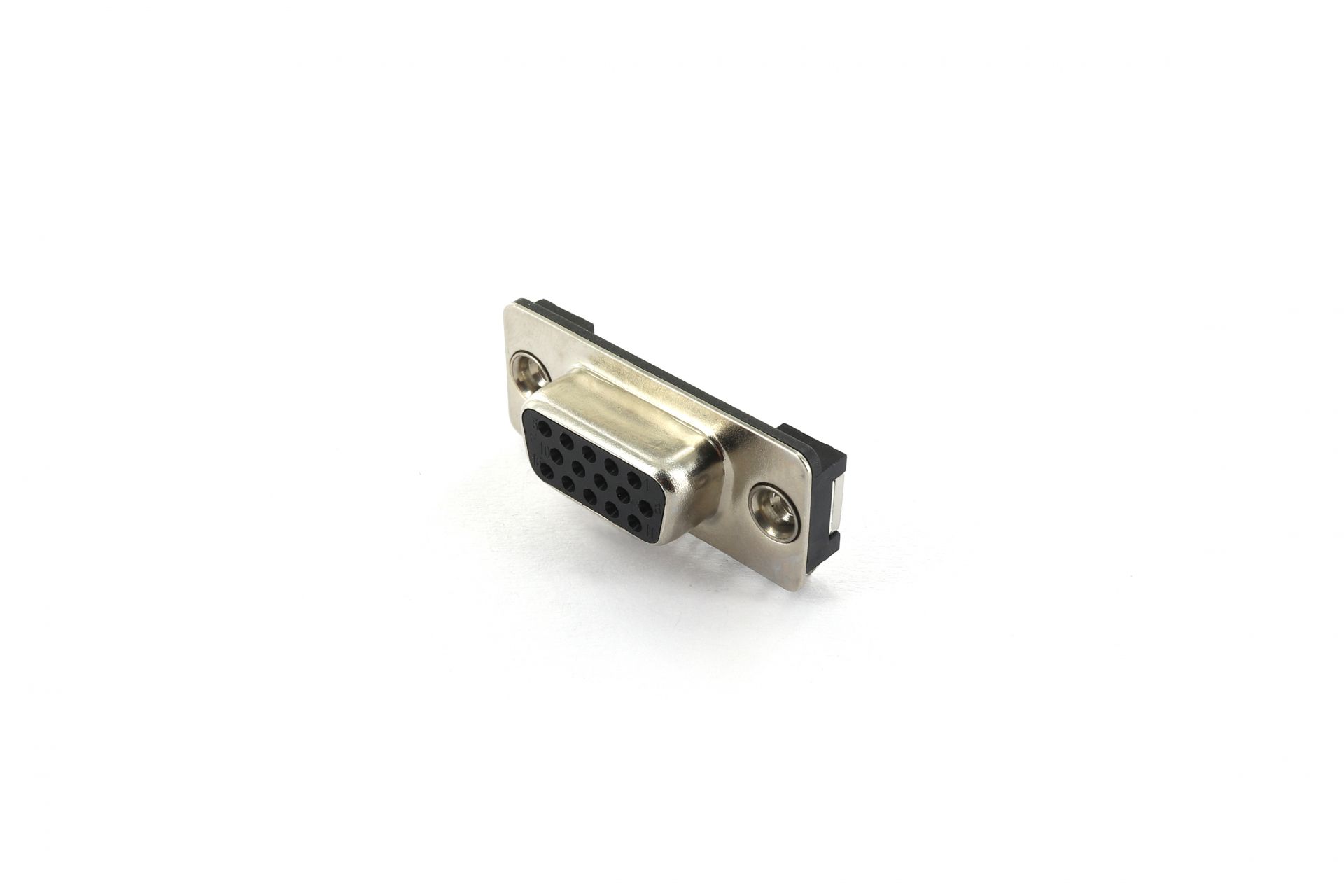

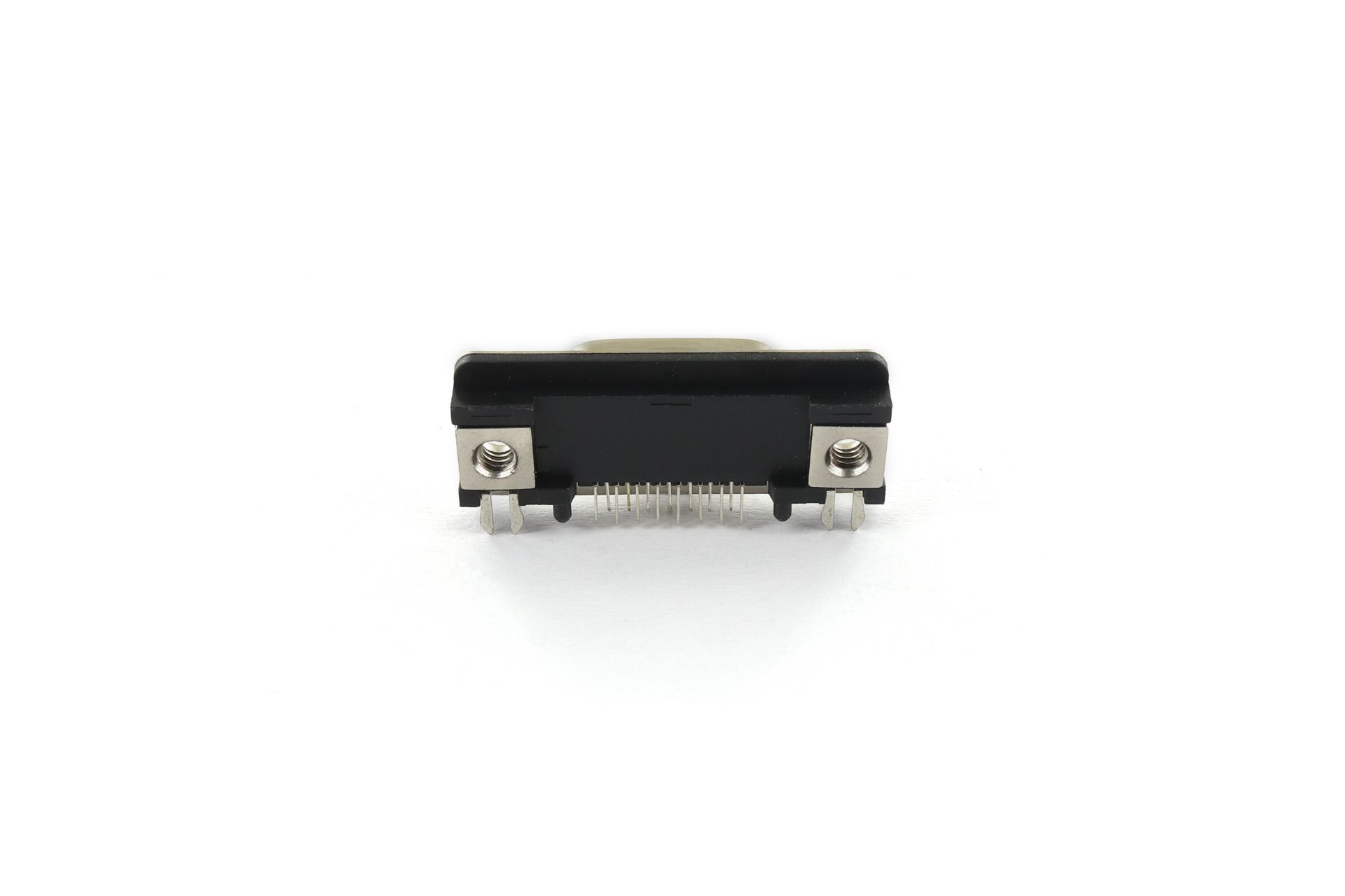

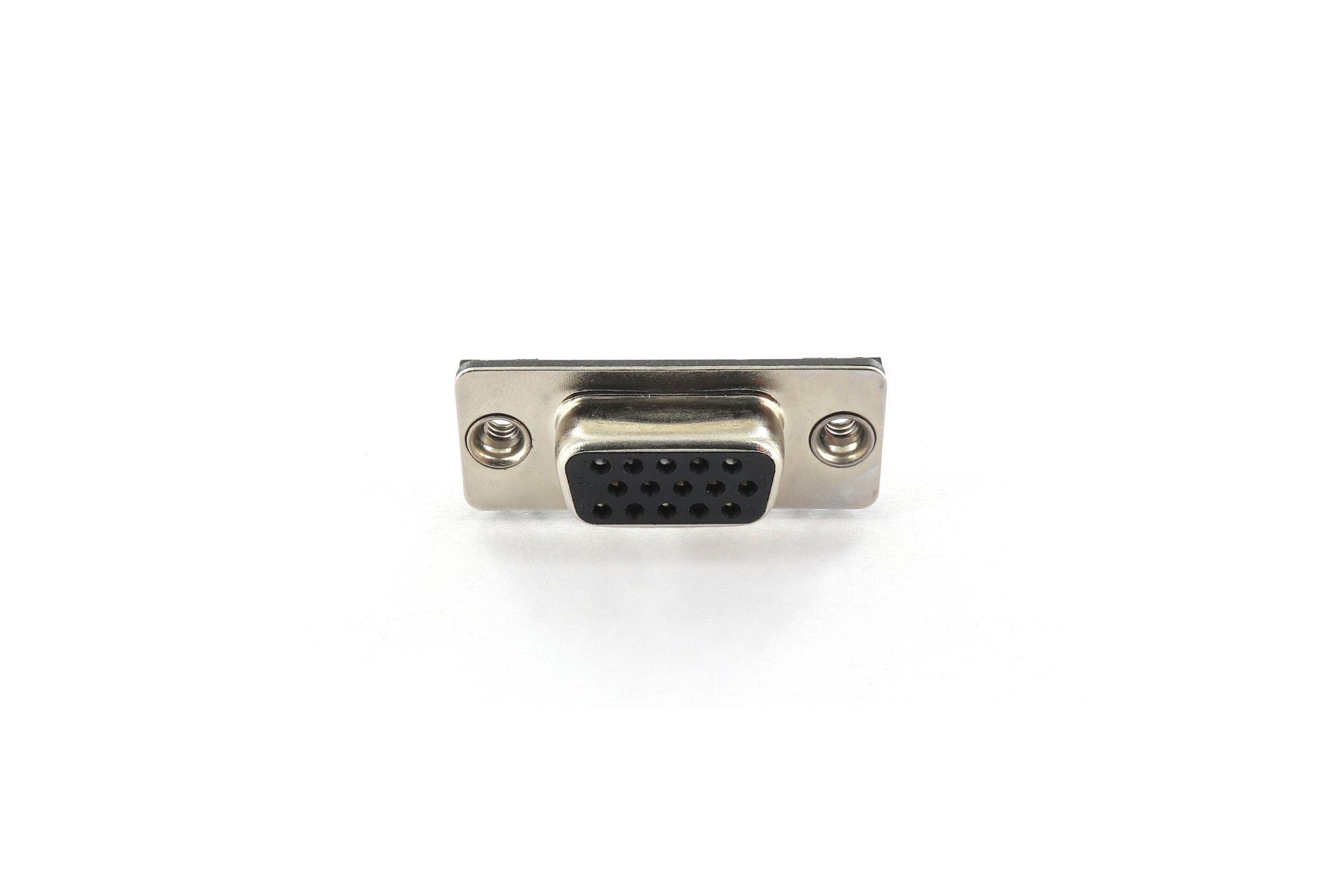

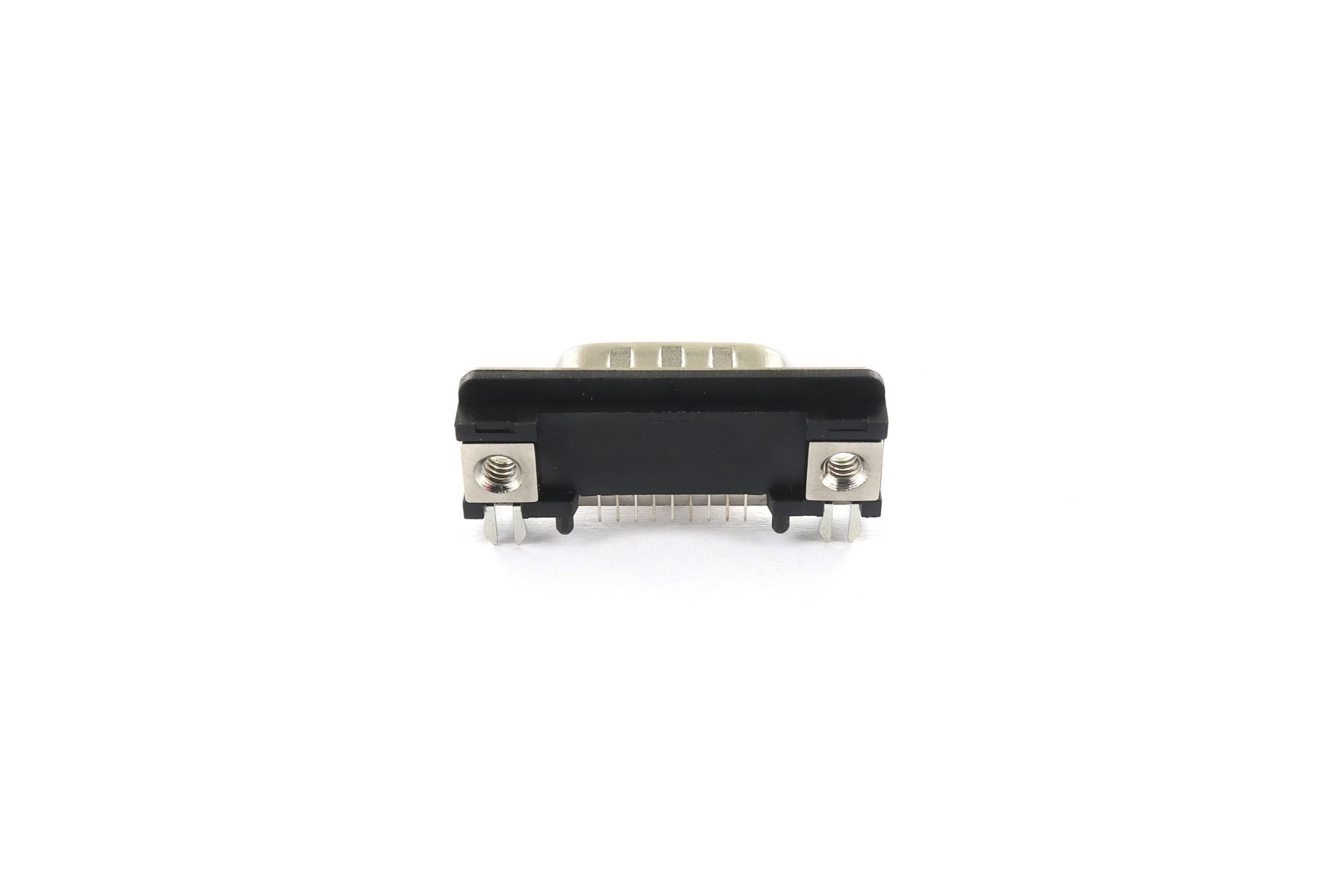

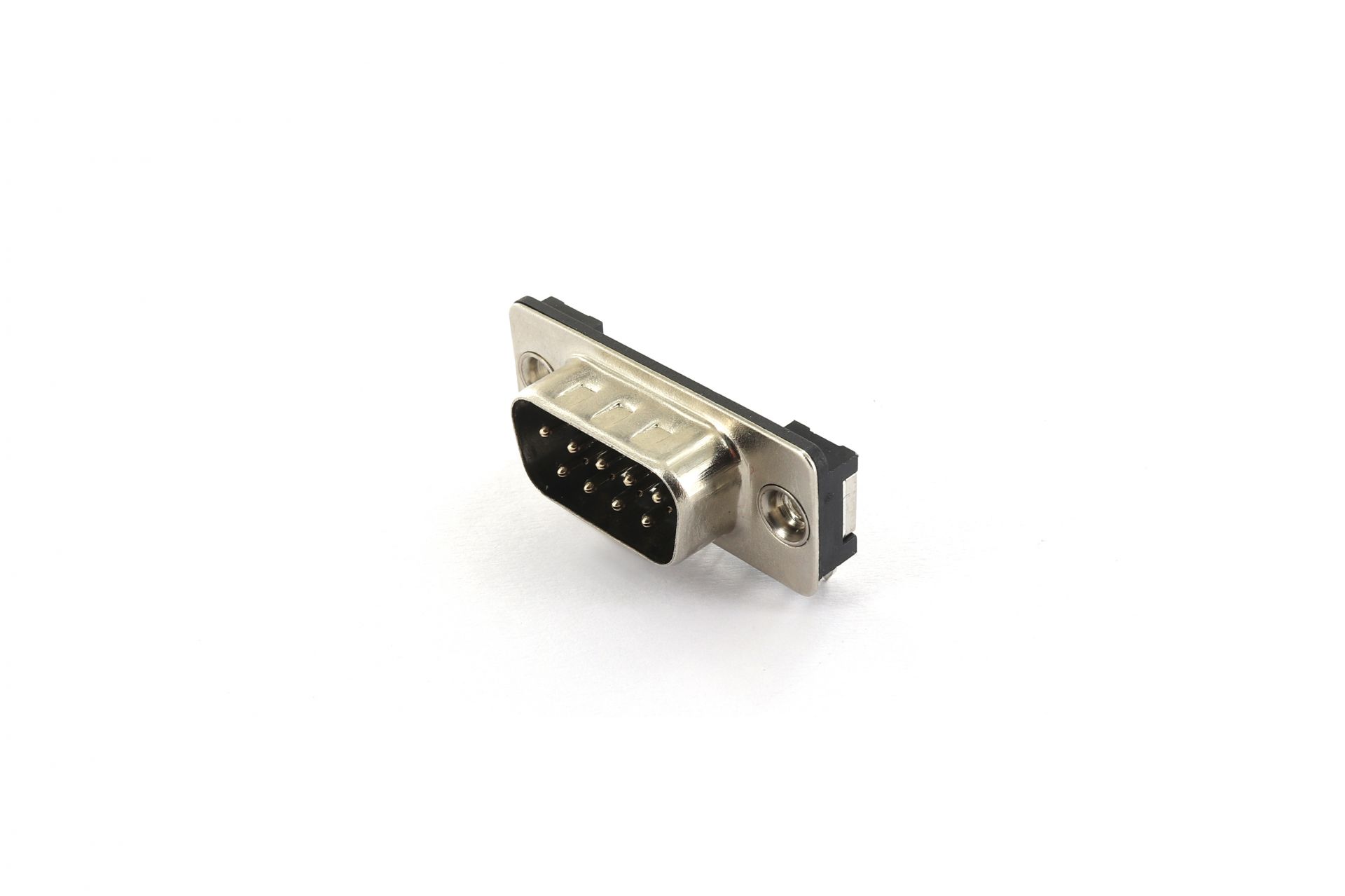

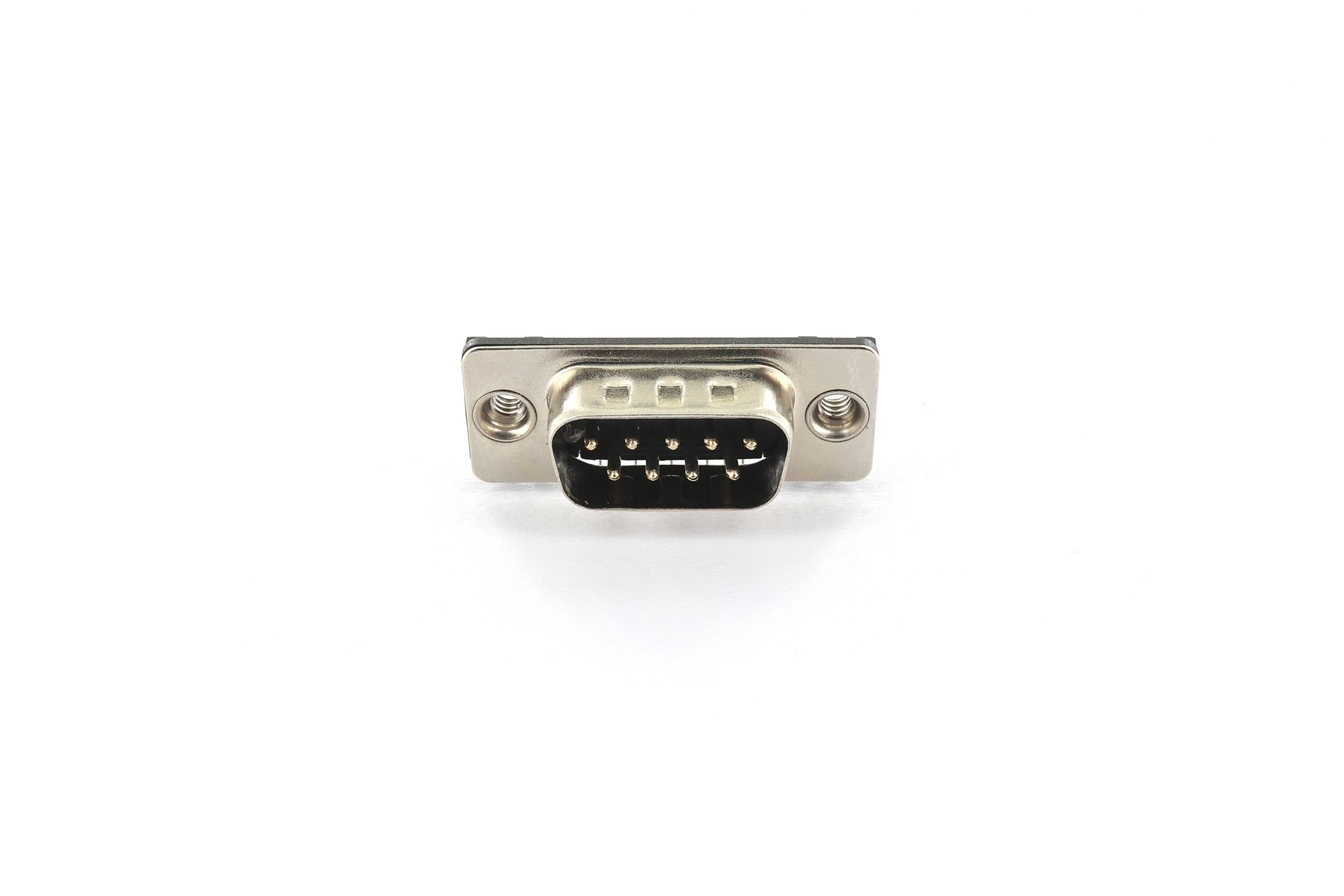

D-SUB Connectors
DRXX-XX
2.77mm D-SUB SLIM TYPE BLACK
-
DR(1)
-
12(2)
-
09(3)
-
P(4)
-
H(5)
Description
-
(1) DR:DIP RIGHT ANGLE
HDR:HIGH DENSITY D-SUB ONLY 15 PIN -
(2) 12:FOOTPRINT=1.2mm
15:FOOTPRINT=1.5mm
25:FOOTPRINT=2.5mm
50:FOOTPRINT=5.08mm -
(3) 09、15、25:NO. OF POSITION
-
(4) PN:MALE RIVET TYPE WITHOUT JACKSCREW
SN:FEMALE RIVET TYPE WITHOUT JACKSCREW
PNH:MALE RIVET TYPE ATTACH SEPARATED JACKSCREW
SNH:FEMALE RIVET TYPE ATTACH SEPARATED JACKSCREW
PNJ:MALE RIVET TYPE WITH FRONT JACKSCREW
SNJ:FEMALE RIVET TYPE WITH FRONT JACKSCREW -
(5) RoHS
INQUIRY
DOWNLOADDOWNLOAD
| PART NUMBER | SIZE | FILE TYPE | DRAWINGS | |
|---|---|---|---|---|
| DR50-09SN-H | 272KB |
|
||
| HDR25-15SN-H | 273KB |
|
||
| DR50-XXSNJ-H | 257KB |
|
||
| DR50-XXSNH-H | 97KB |
|
||
| DR25-09SNJ-H | 99KB |
|
||
| DR25-09PNJ-H | 116KB |
|
||
| DR25-09PNH-H | 112KB |
|
||
| DR15-09PN-H | 105KB |
|
||
| DR12-09SN-H | 101KB |
|
||
| DR12-09PNJ-XX-H | 115KB |
|
||
| HDR15-15SN-XX-H | 283KB |
|
||
| DR12-09PN-XX-H | 276KB |
|
||
| DR25-09PN-XX-H | 290KB |
|
||
| HDR15-15SNJ-7-H | 192KB |
|
||
| DR50-09PNH-H | 258KB |
|
||
| DR25-09SNH-H | 284KB |
|
||
| DR25-09SN-H | 281KB |
|
||
| DR50-09PN-H | 267KB |
|
