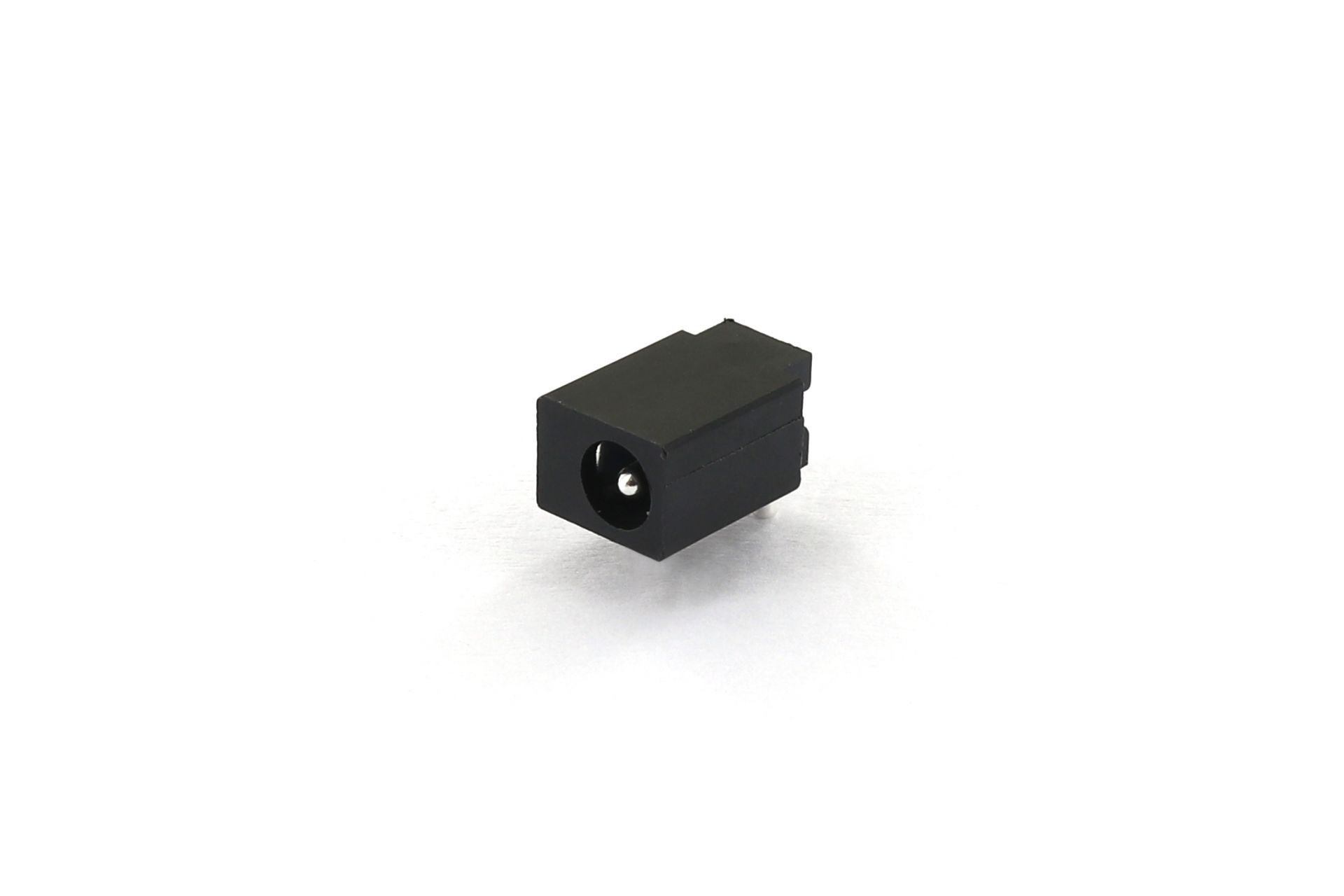

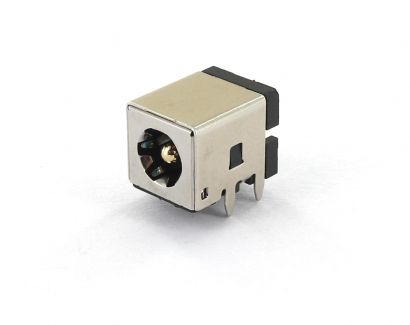

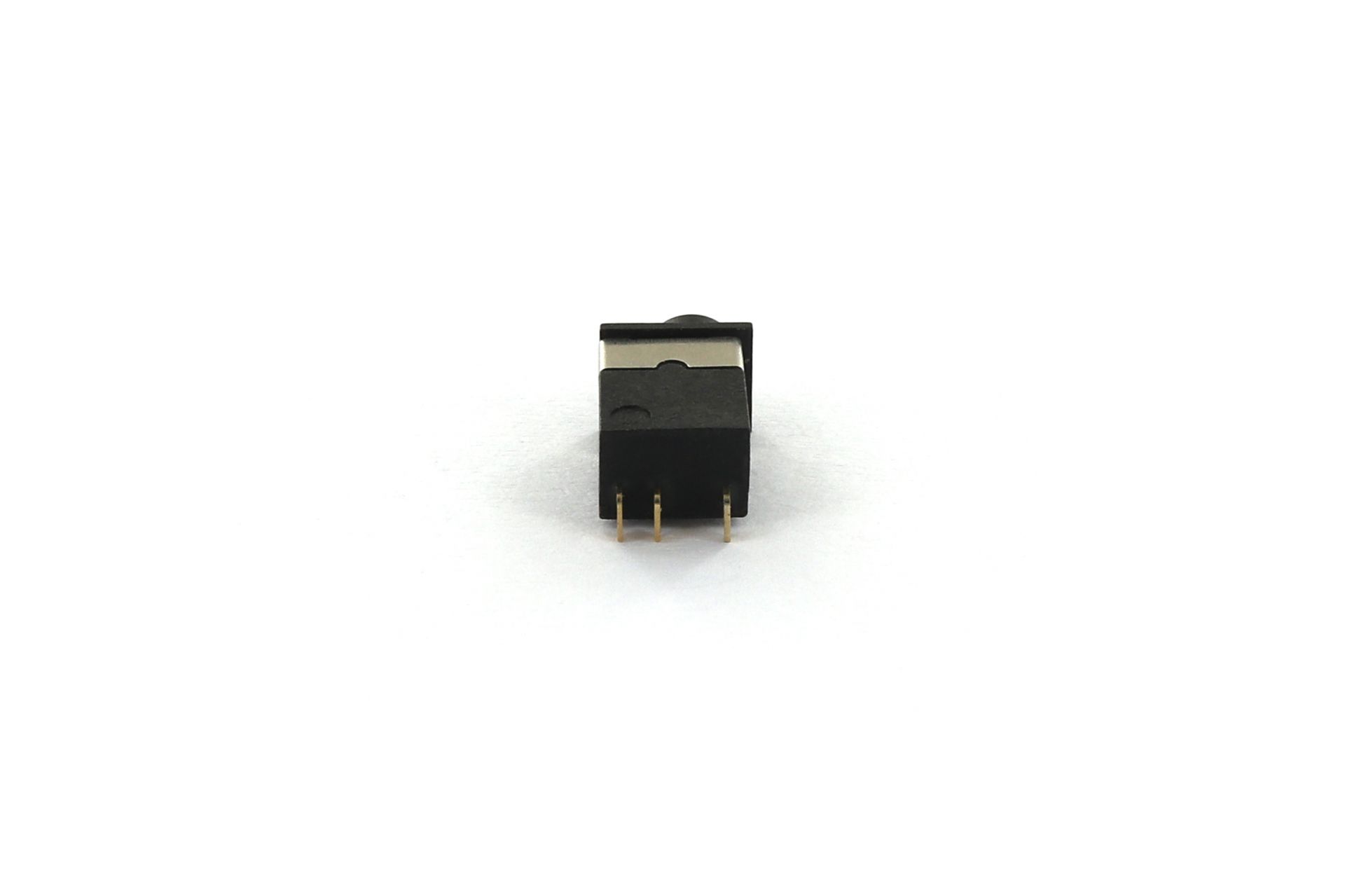

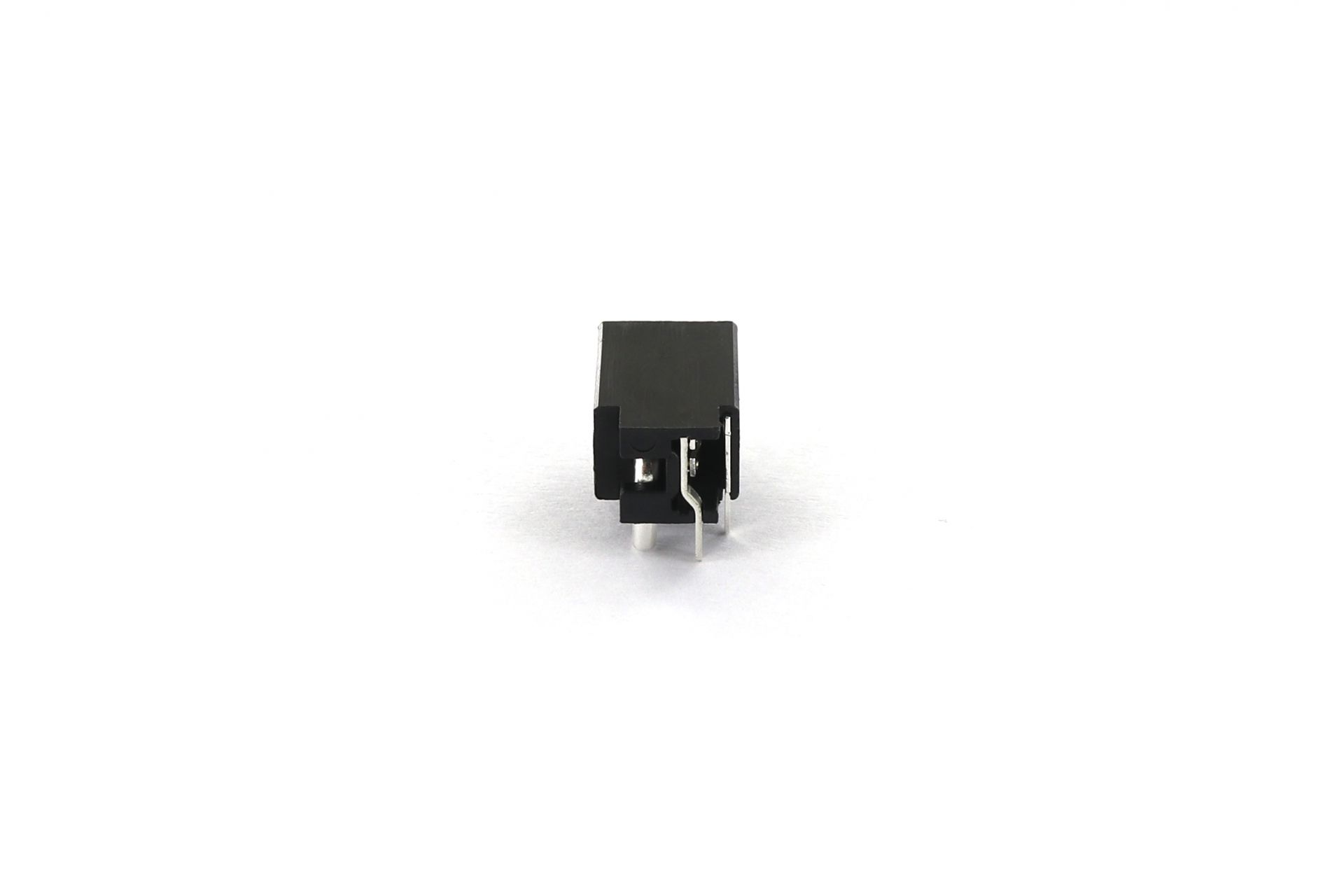

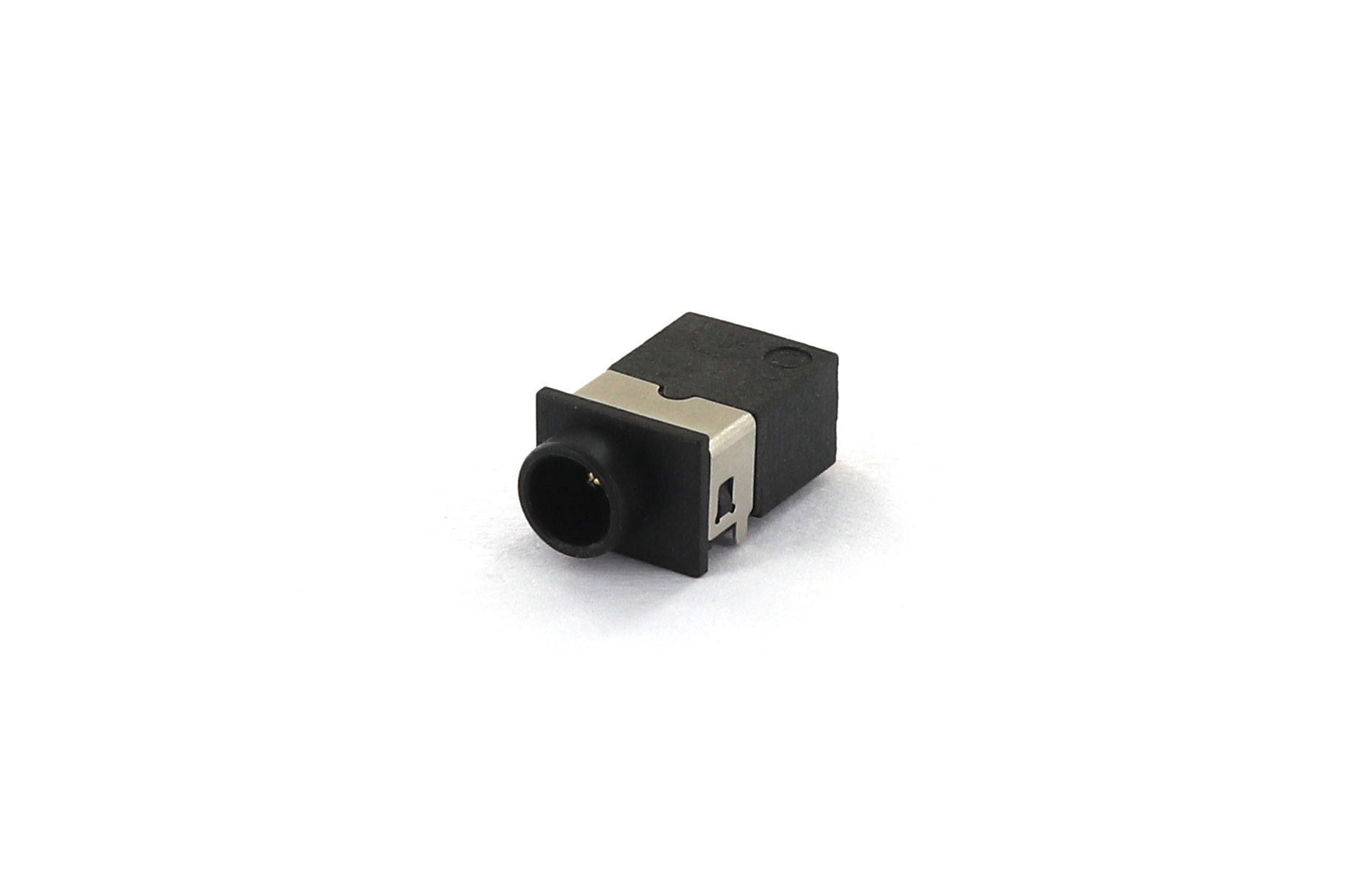

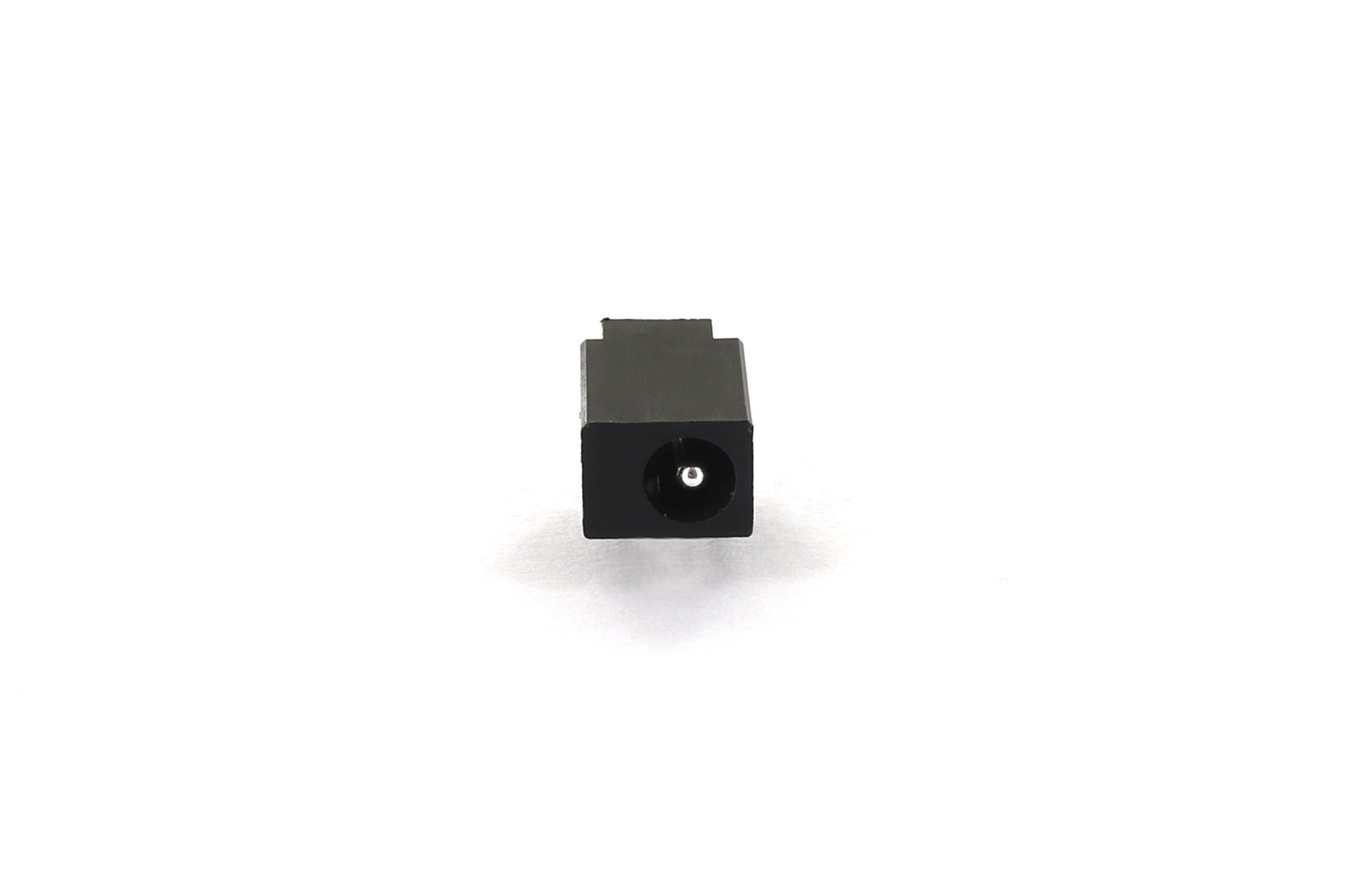

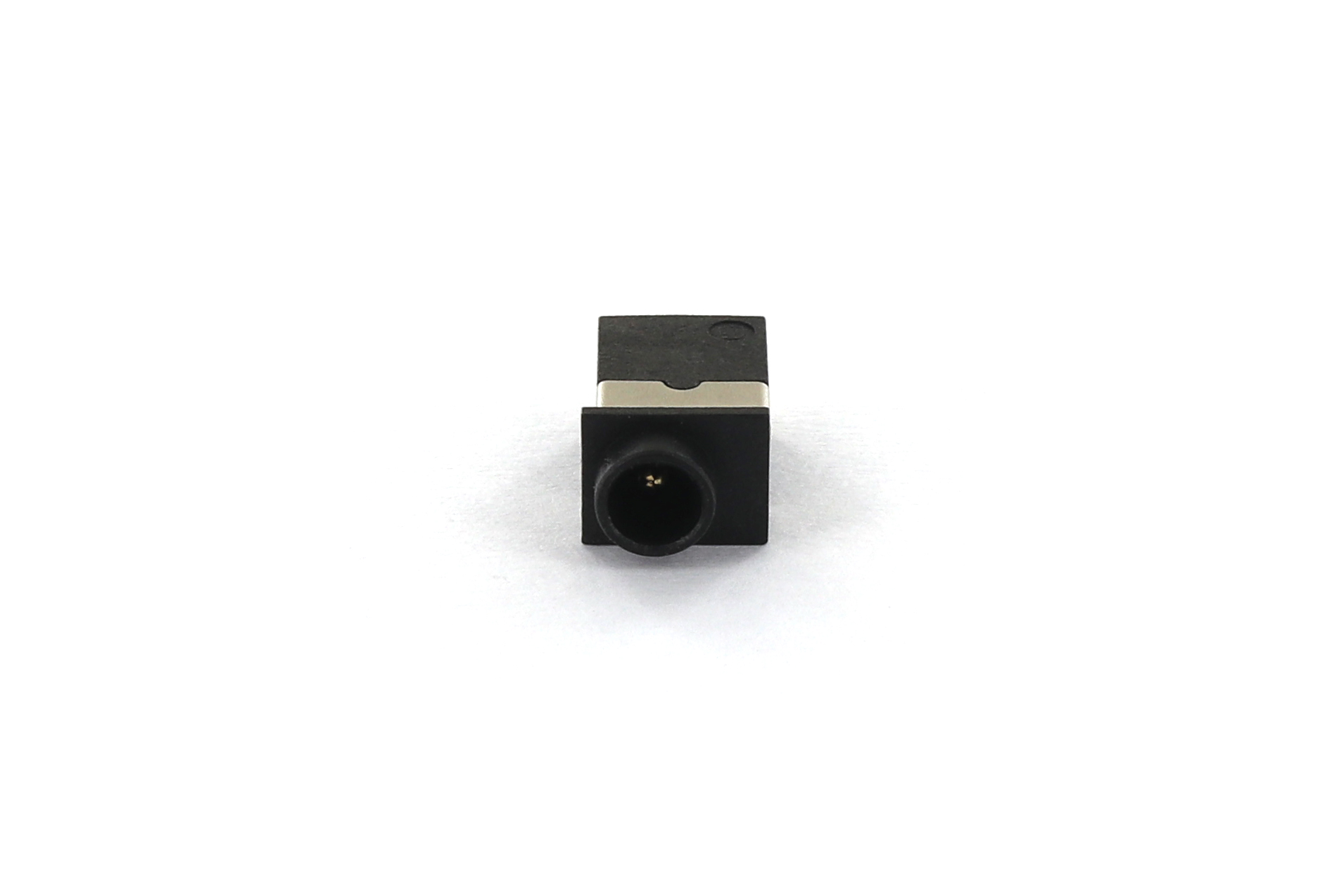

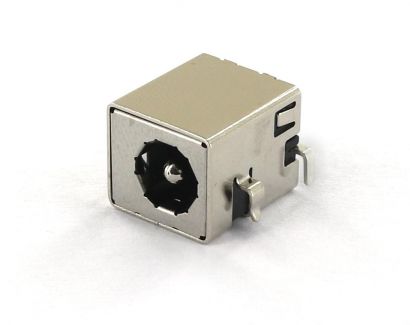

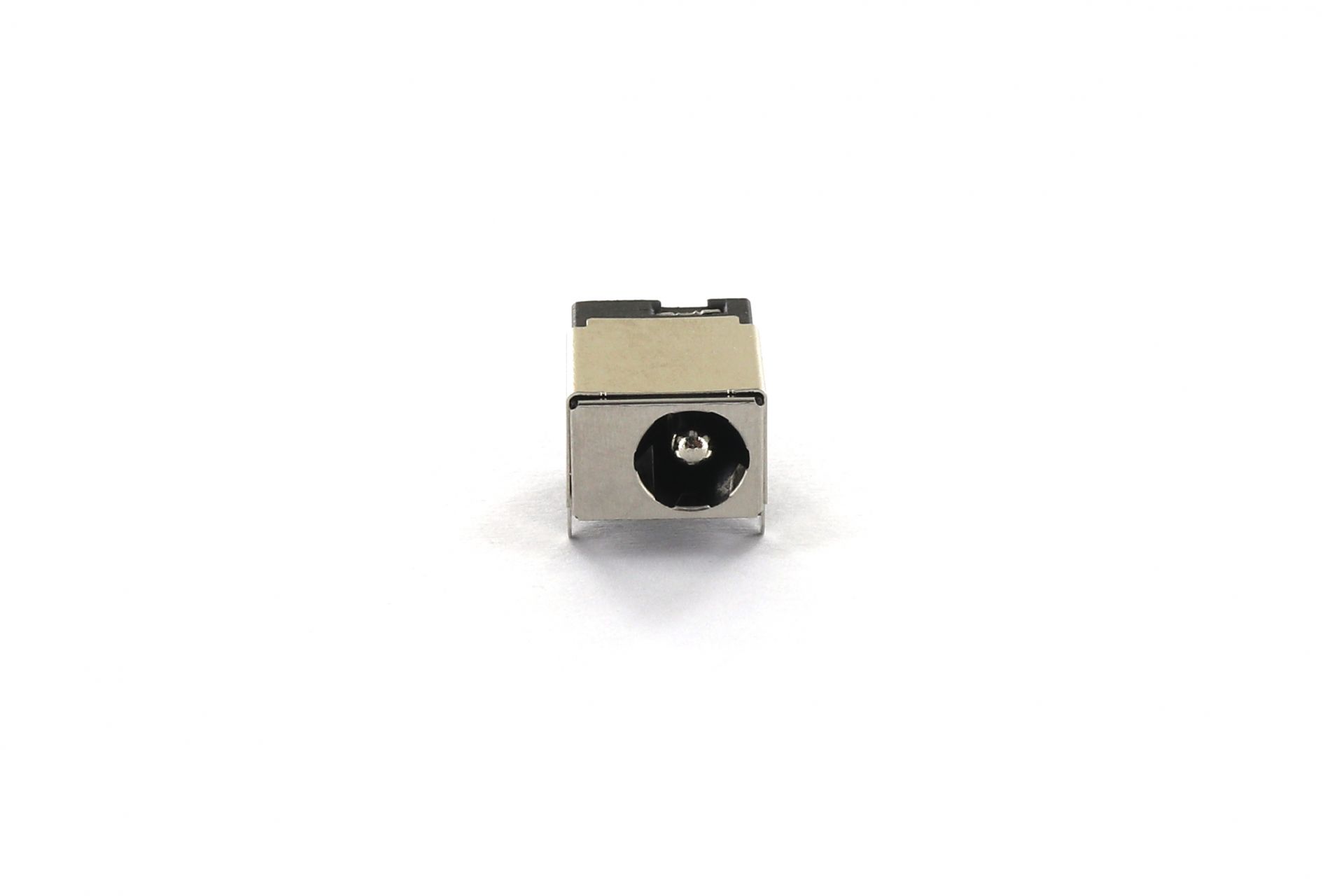

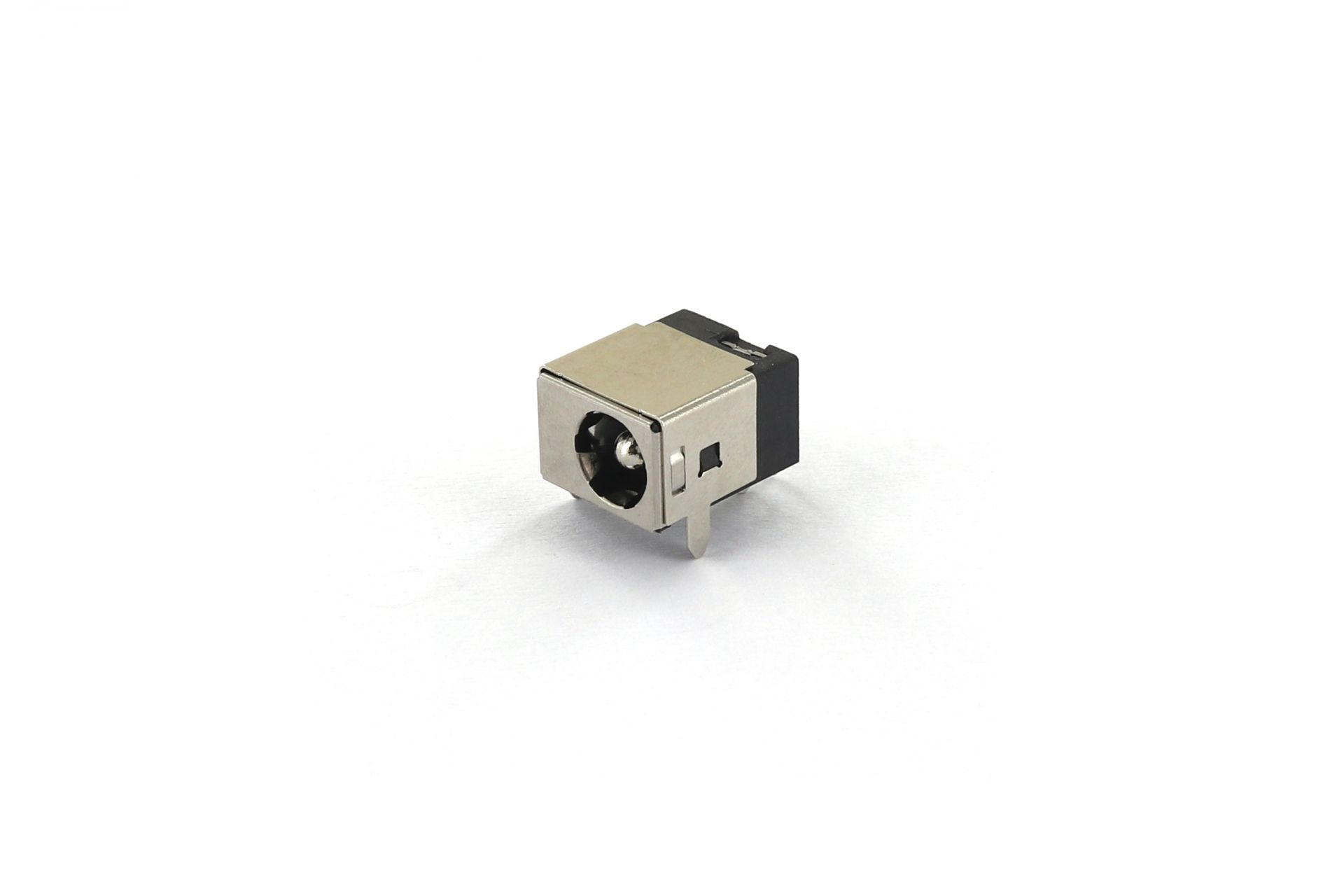

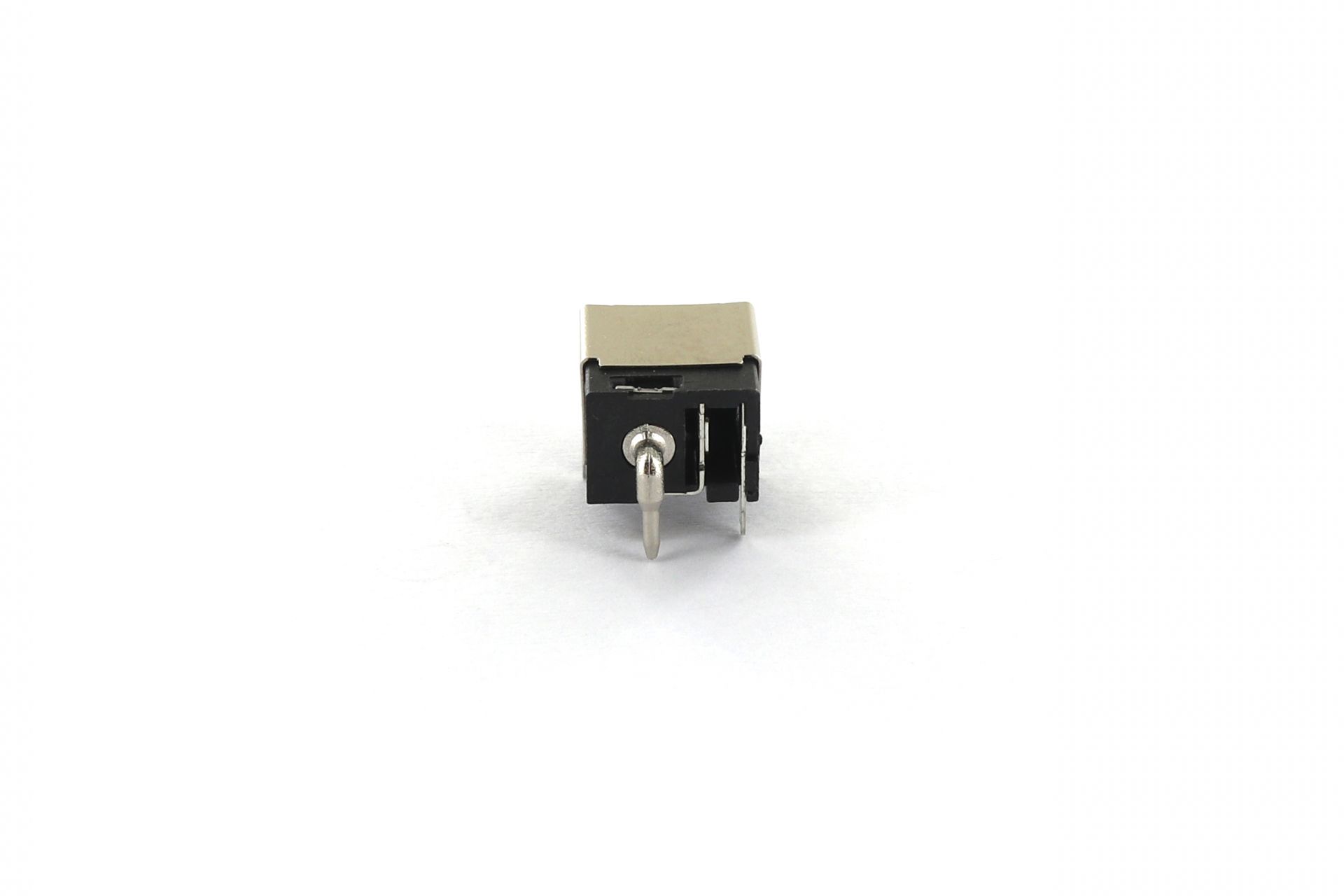

DC Jack / Power Jack Connector

DCJL(R)XX

DC JACK LEFT & RIGHT TYPE
  • DCJ

  • L
    (1)
  • 2
    (2)
  •
  • H
    (3)

Description

  • (1)  L: LIFT TYPE
          R: RIGHT TYPE
  • (2) 06:0.65mm PIN DIAMETER
          10:1.0mm PIN DIAMETER
          13:1.3mm PIN DIAMETER
          16:1.65mm PIN DIAMETER
          2:2.0mm PIN DIAMETER
          25:2.5mm PIN DIAMETER
          3.0:3.0mm PIN DIAMETER
  • (3) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
DCJRXXM-H(DIA1.65,2.0,2.5) 284KB PDF
download
DOWNLOAD
DCJRXX-H(DIA1.65,2.0,2.5) 291KB PDF
download
DOWNLOAD

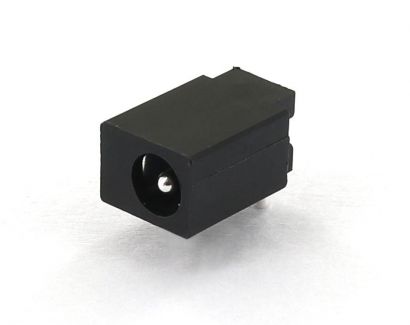

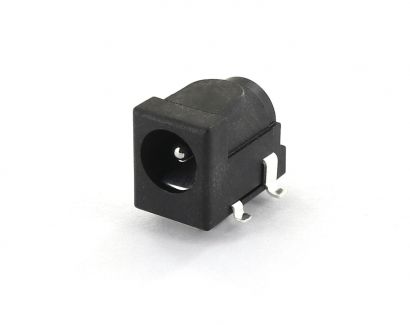

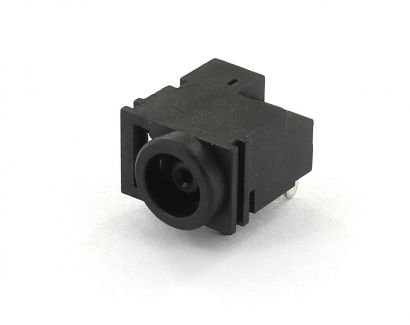

YOU MAY ALSO LIKE
