Input/Output Connector DC Jack / Power Jack Connector DCJ(V.W)XXX
DC Jack / Power Jack Connectors

DCJ(V.W)XXX

DC JACK SMT TYPE
  • DCJW

  •
    L
    (1)
  •
    10
    (2)
  •
    H
    (3)

Description

  • (1)  BLANK:STANDARD TYPE
          L:LEFT TYPE
          R:RIGHT TYPE
  • (2) 06:0.65mm PIN DIAMETER
          10:1.0mm PIN DIAMETER
          13:1.3mm PIN DIAMETER
          16:1.65mm PIN DIAMETER
          2:2.0mm PIN DIAMETER
          25:2.5mm PIN DIAMETER
  • (3) RoHS

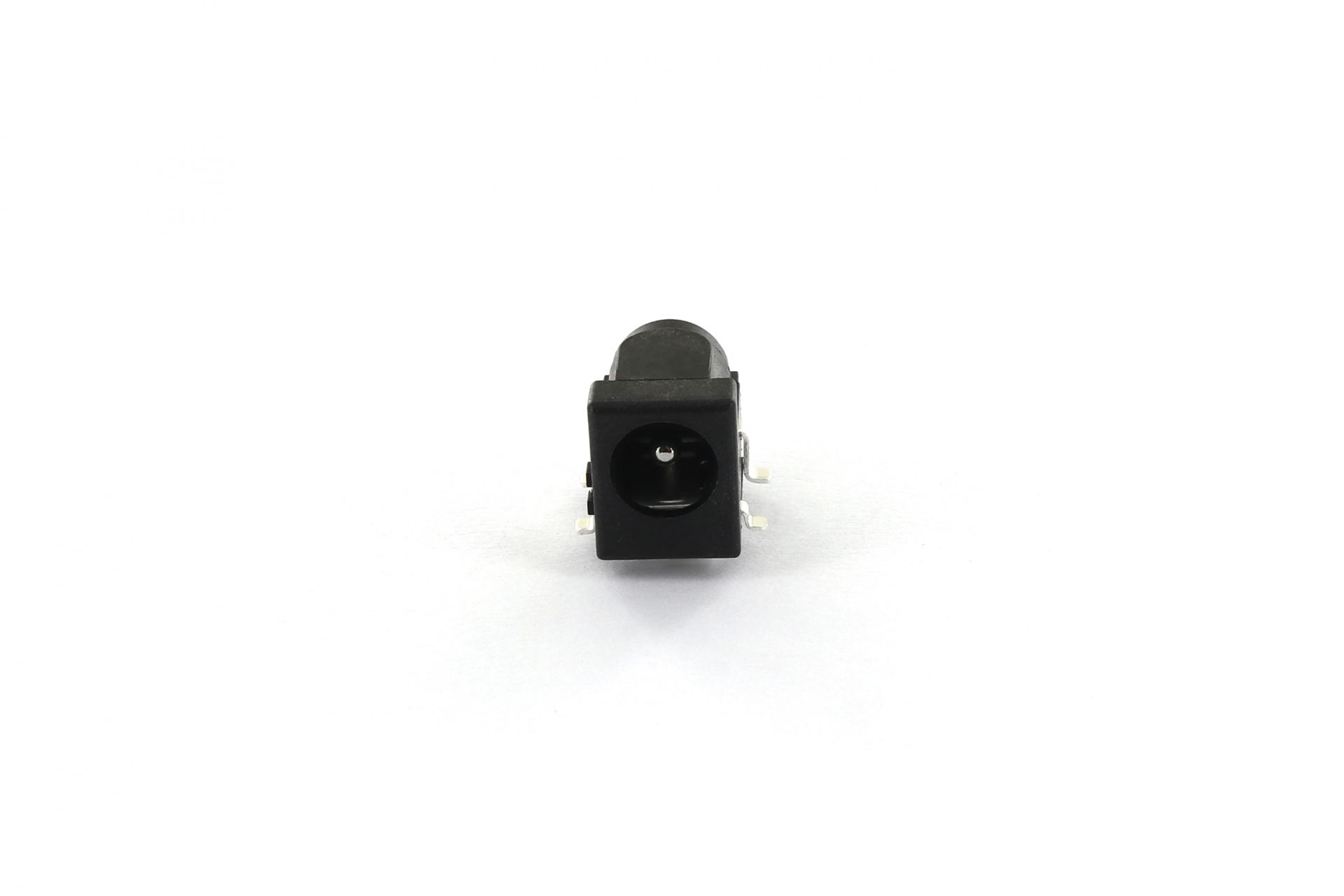

  • IMG_2035-2

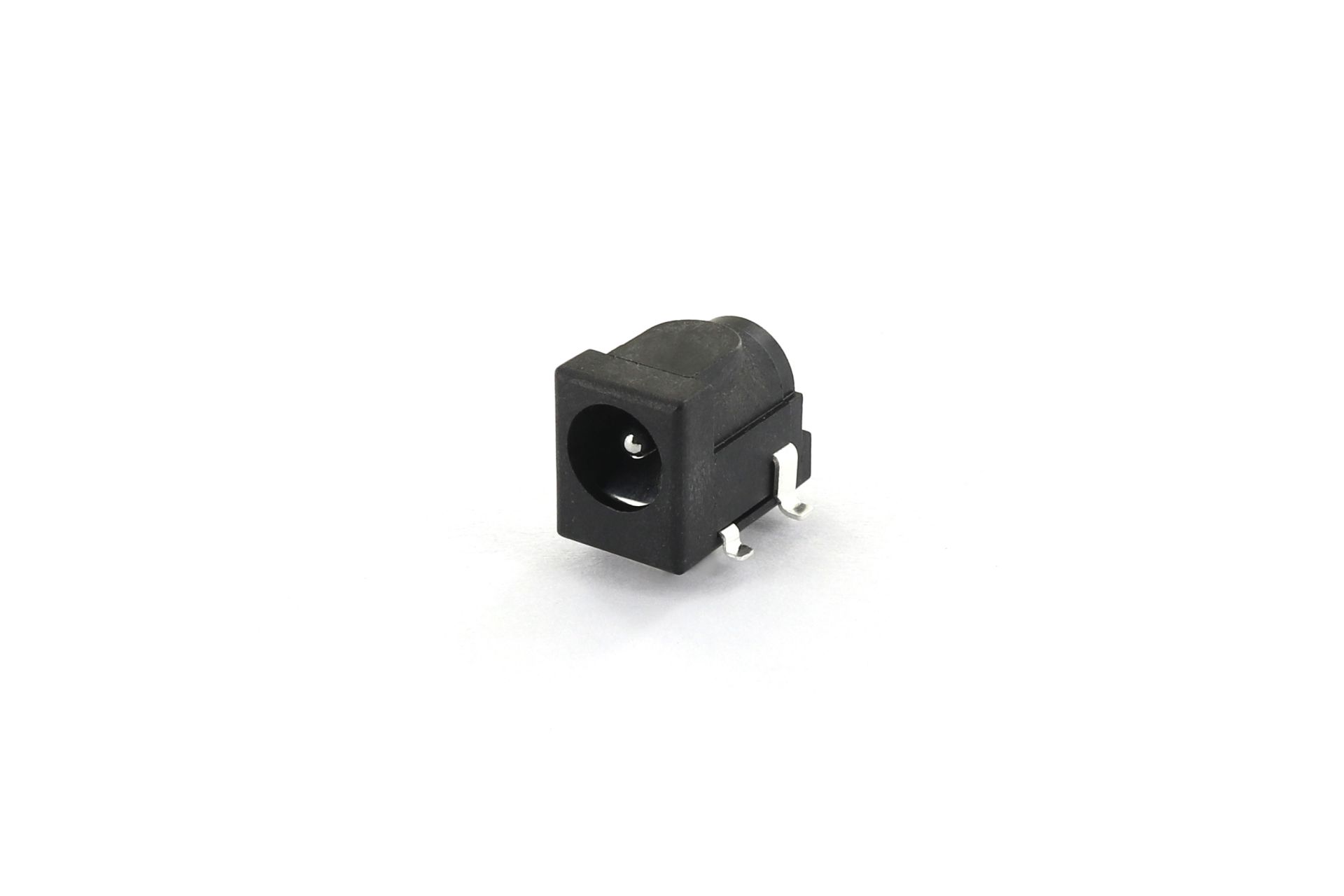

  • IMG_2034-2

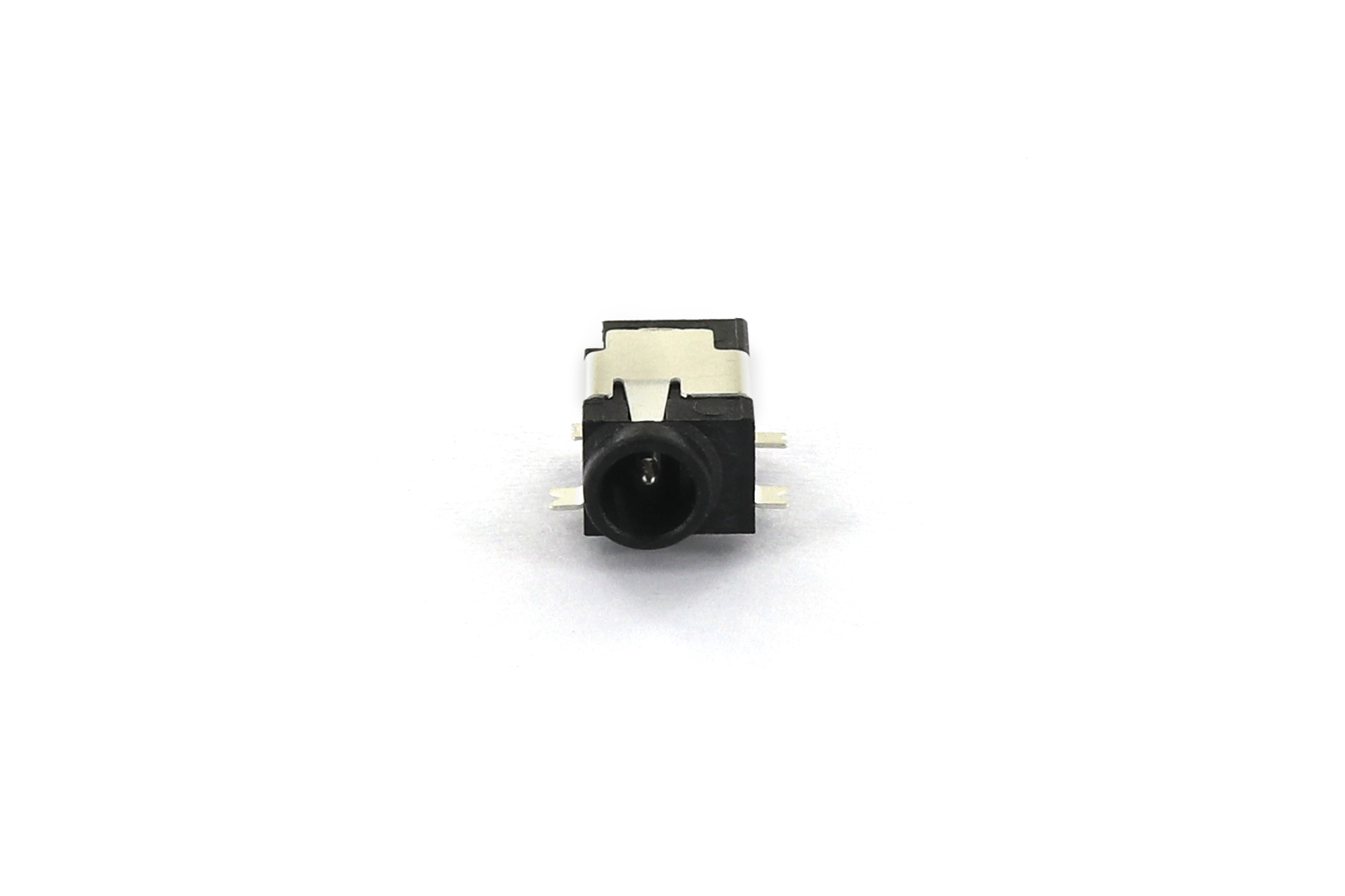

  • IMG_2032-2

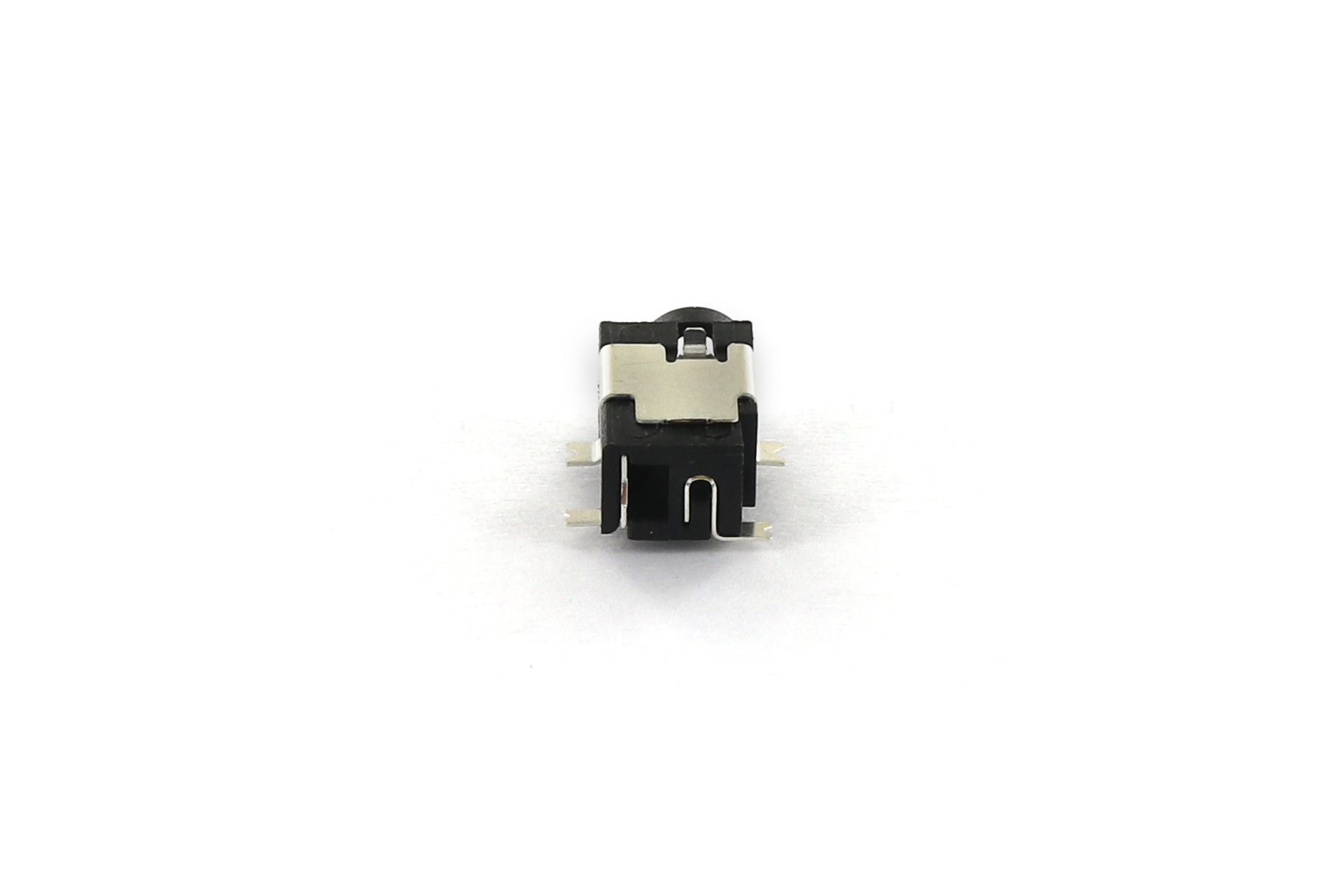

  • IMG_2037-2

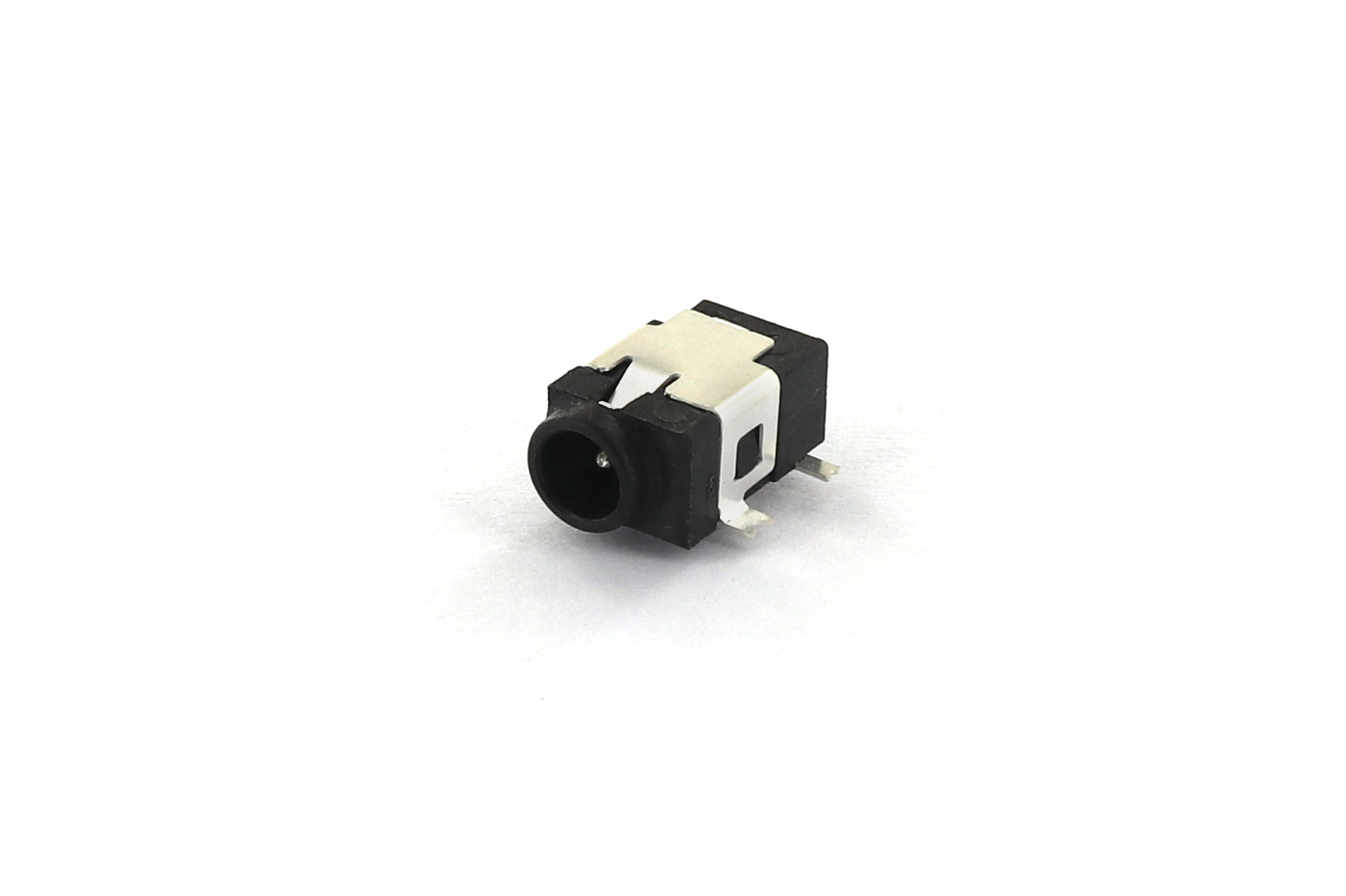

  • IMG_2036-2

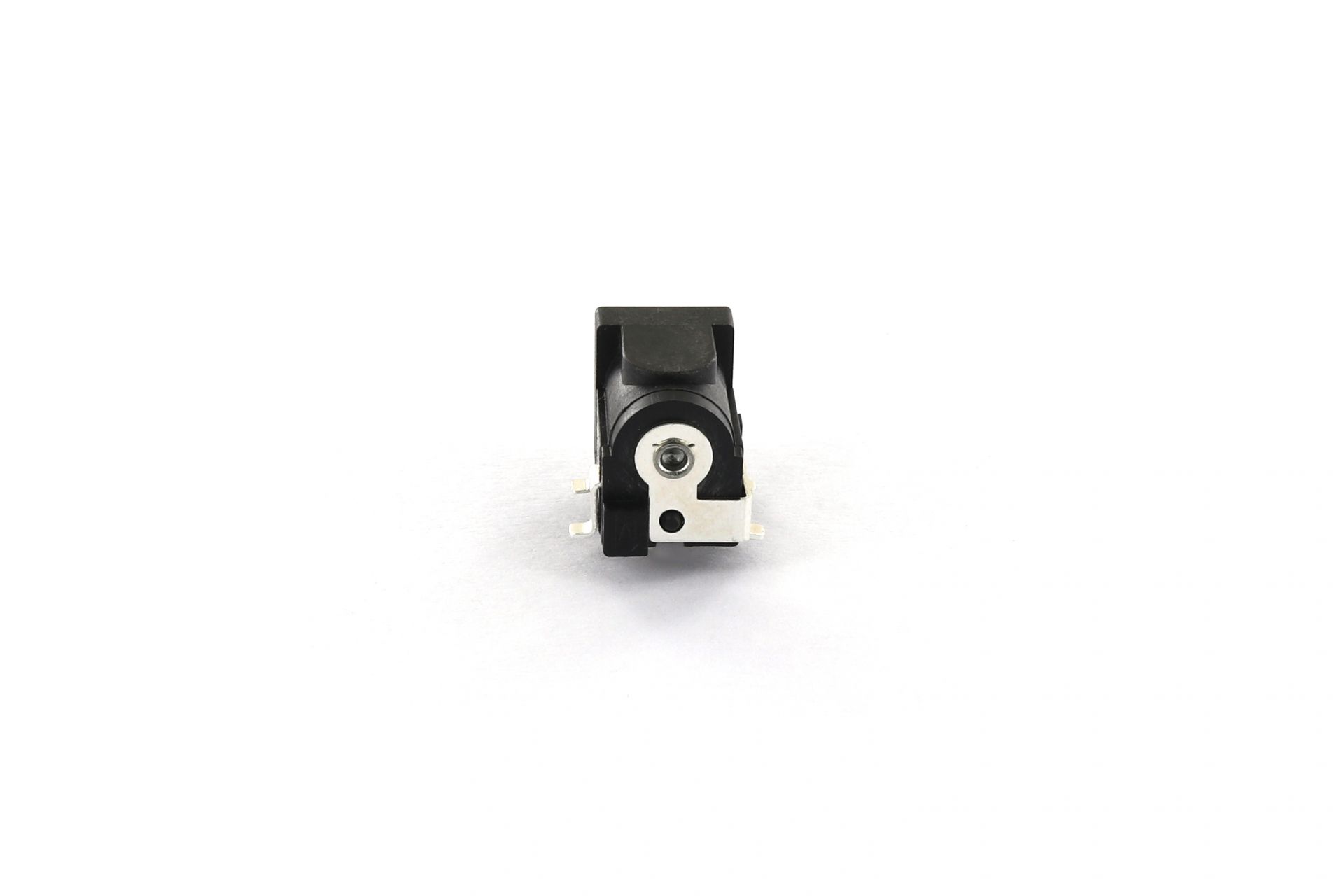

  • IMG_2038-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
DCJWXX-10-H(DIA1.0 1.3 1.65) 84KB PDF
download
DOWNLOAD
DCJWLXX-R8H-H(DIA1.0 1.3) 167KB PDF
download
DOWNLOAD
DCJVXXC-R1H5-H(DIA2.0 2.5) 280KB PDF
download
DOWNLOAD
DCJWXX-R2H5-H(DIA2.0,2.35,2.5) 341KB PDF
download
DOWNLOAD
