Housing,Header and Terminal

DFT

1.25mm DF13 BOARD TO WIRE
  • DFT

  • 1
    (1)
  • X

  • 02
    (2)
  • H
    (3)
  •
    H
    (4)

Description

  • (1) 1:SINGLE ROW
          2:DUAL ROW
  • (2) 02~15、20、25、30:NO. OF POSITION / SINGLE ROW
          05、10、15、20:NO. OF POSITION / DUAL ROW

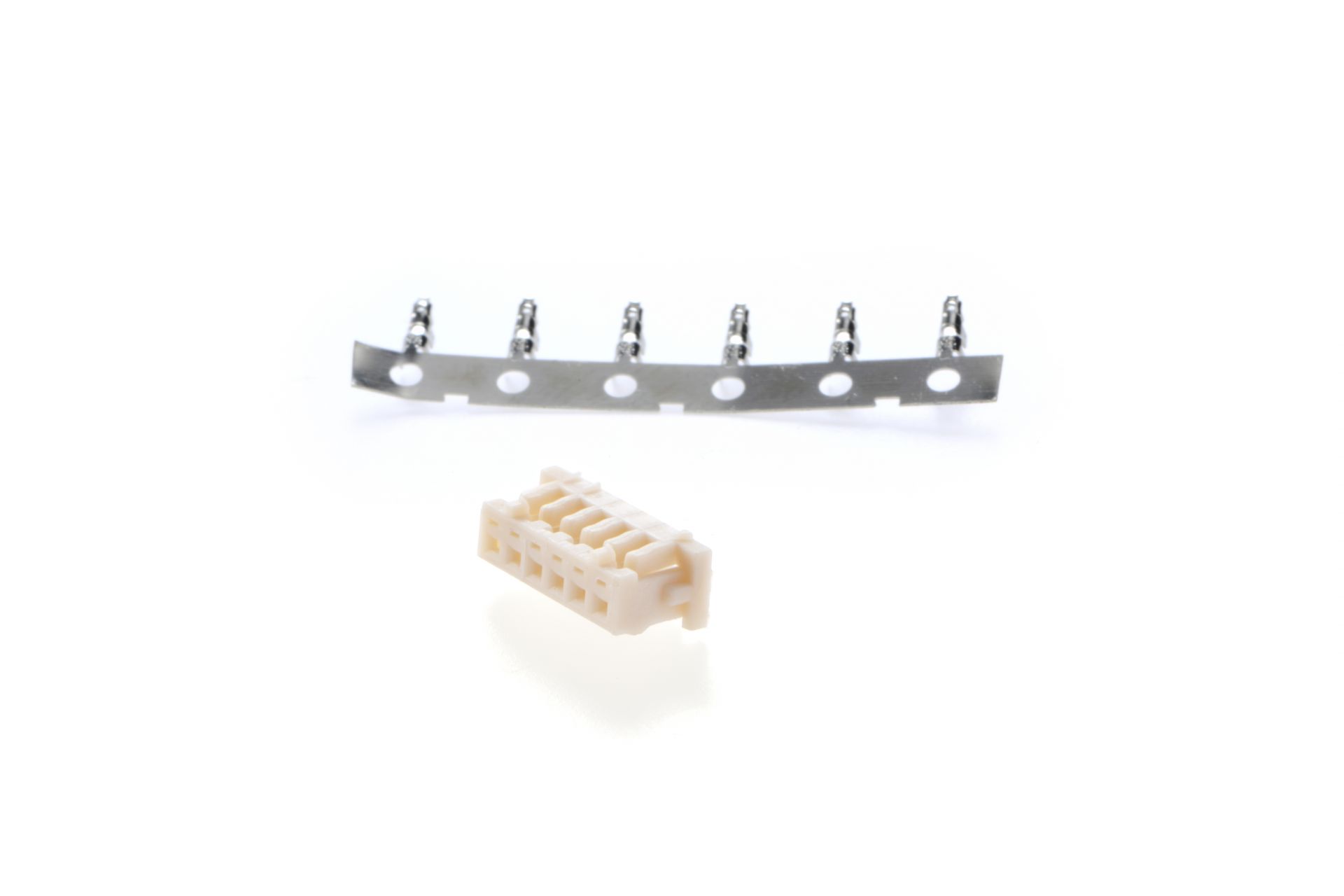

  • (3) T:FEMALE TERMINAL TIN PLATED
          H:FEMALE HOUSING
          D:MALE DIP STRAIGHT
          R:MALE DIP RIGHT ANGLE

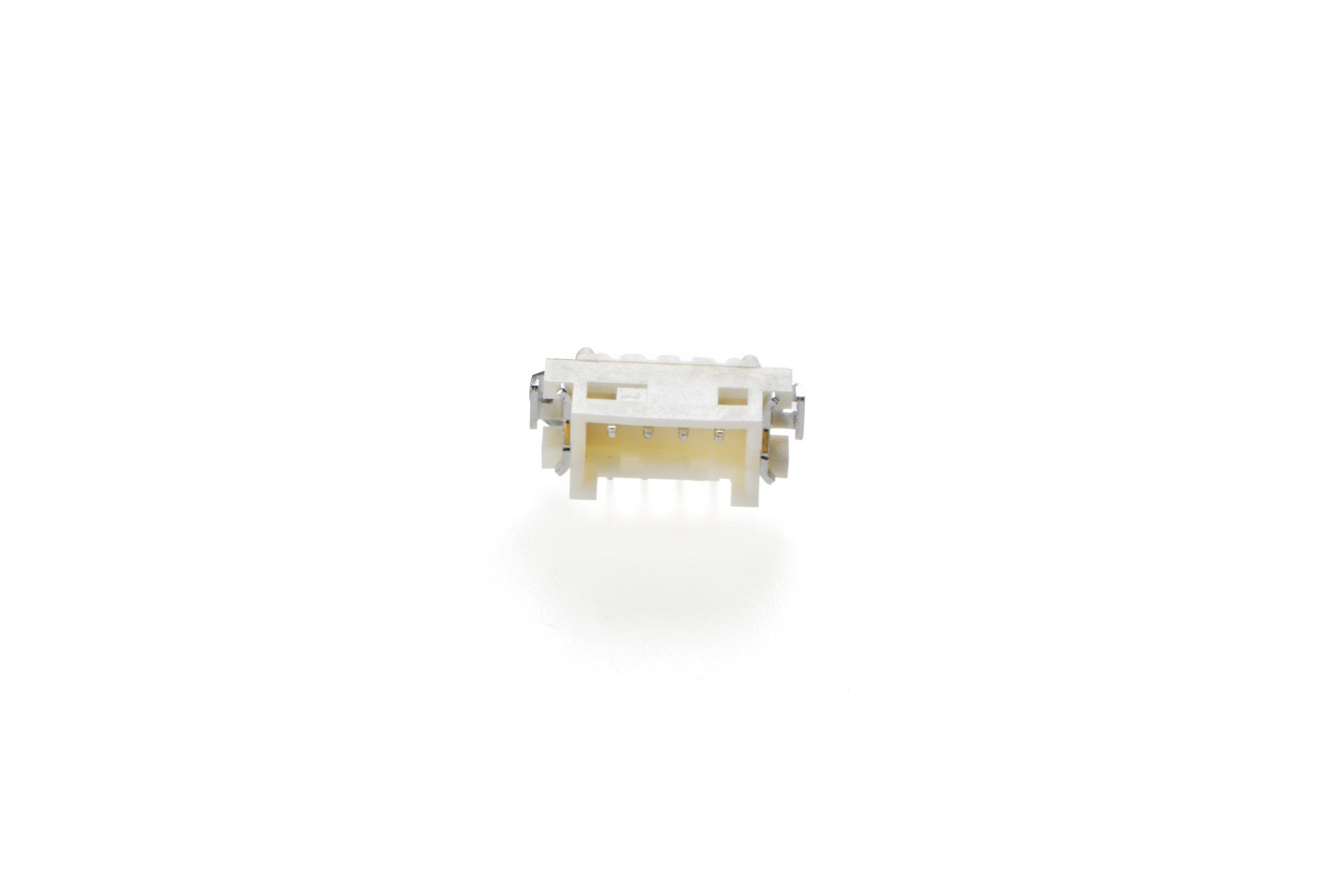

          V:MALE SMT STRAIGHT
          W:MALE SMT RIGHT ANGLE
  • (4) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
DFT2XXXVC-R1K-H 168KB PDF
download
DOWNLOAD
DFT2XXXH-H 241KB PDF
download
DOWNLOAD
DFT1XXXD-H 258KB PDF
download
DOWNLOAD
DFT1XXXW-R1K-H 256KB PDF
download
DOWNLOAD
DFT1XXXVC-R1K-H 266KB PDF
download
DOWNLOAD
DFTT-R10K-H 248KB PDF
download
DOWNLOAD
DFT1XXXH-H 264KB PDF
download
DOWNLOAD
