Housing,Header and Terminal

SHD

1.0mm SHD BOARD TO WIRE
  • SHD

  • 50
    (1)
  • H
    (2)
  •
    H
    (3)

Description

  • (1) 20、30、40、50:NO. OF POSITION

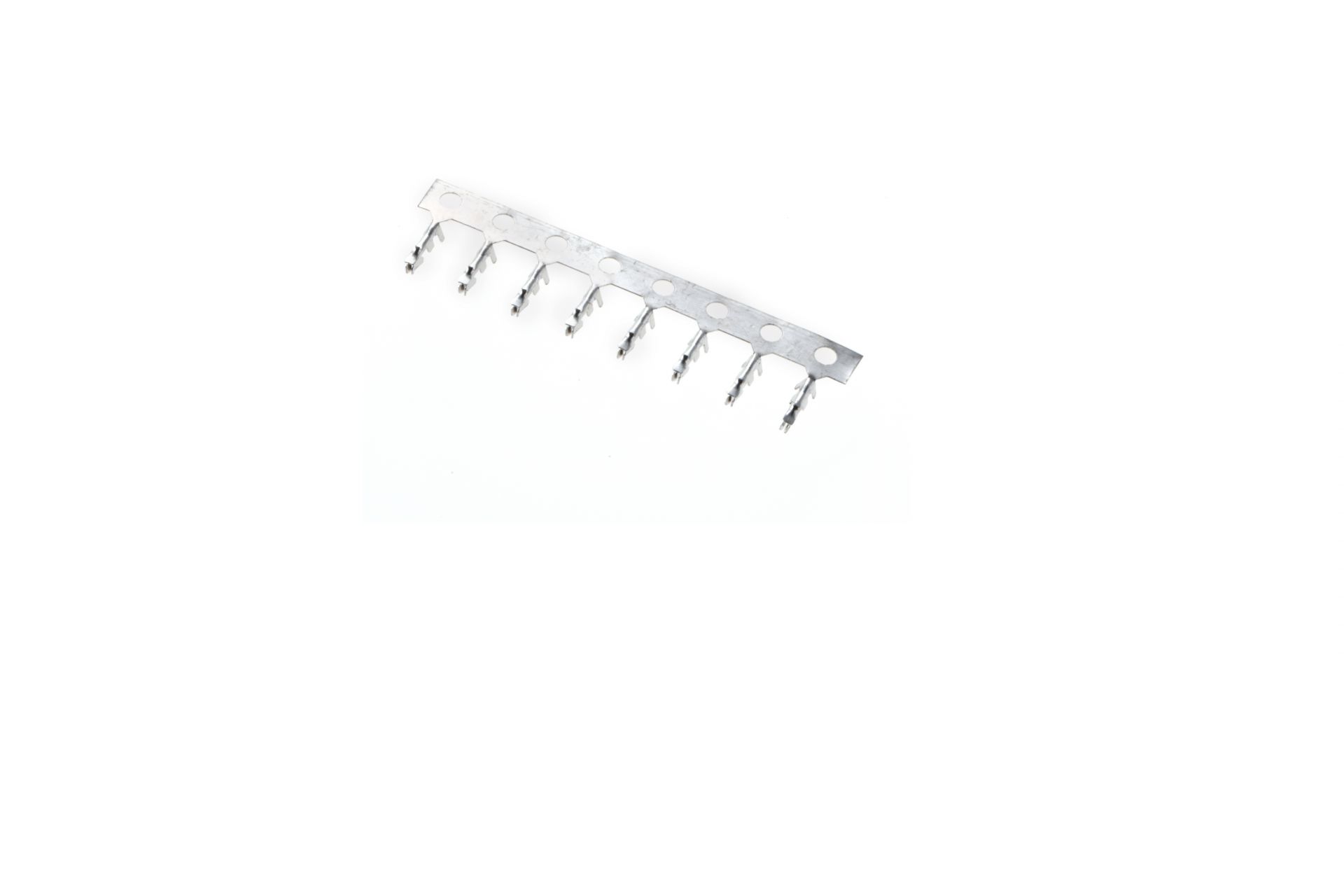

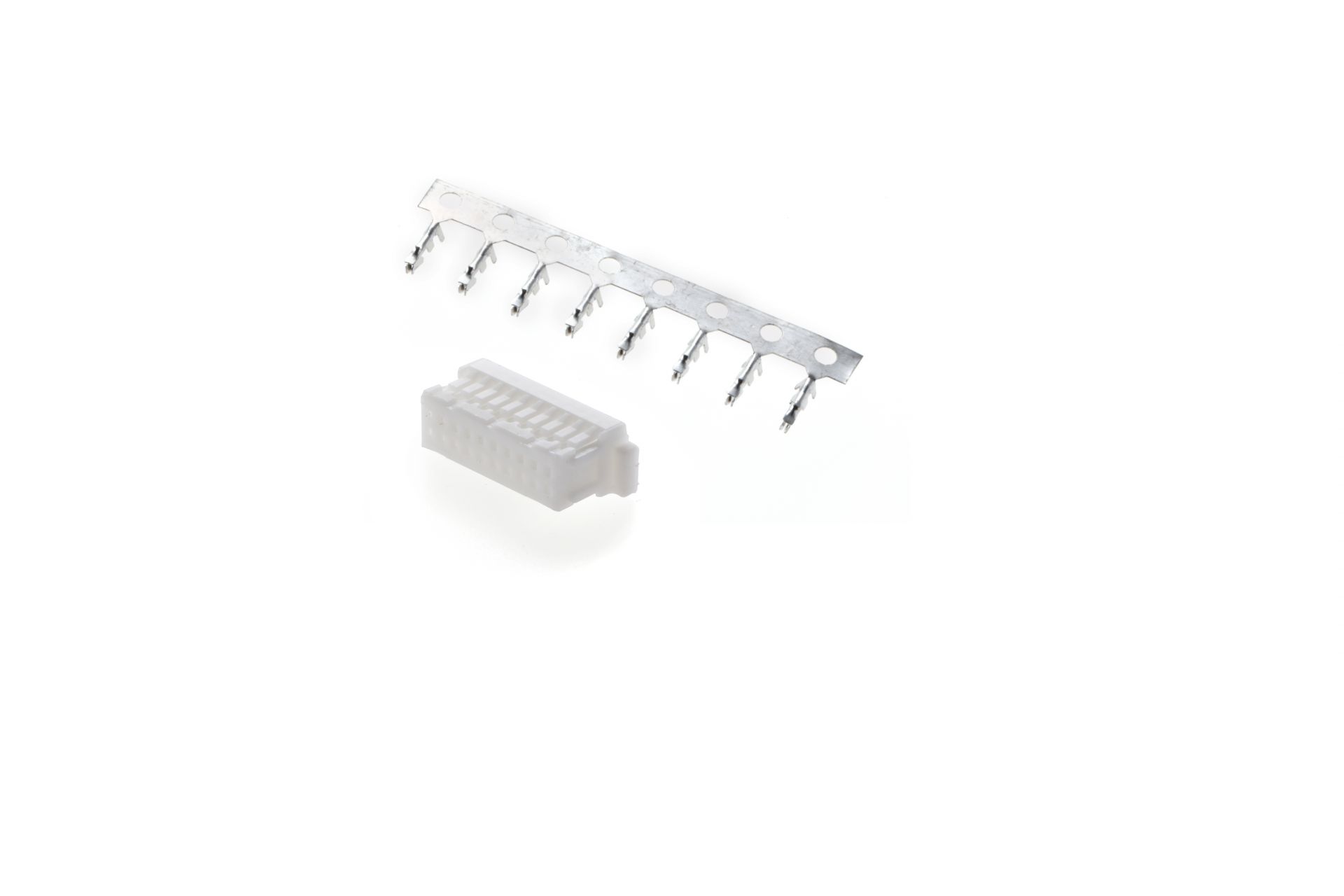

  • (2) T:FEMALE TERMINAL TIN PLATED

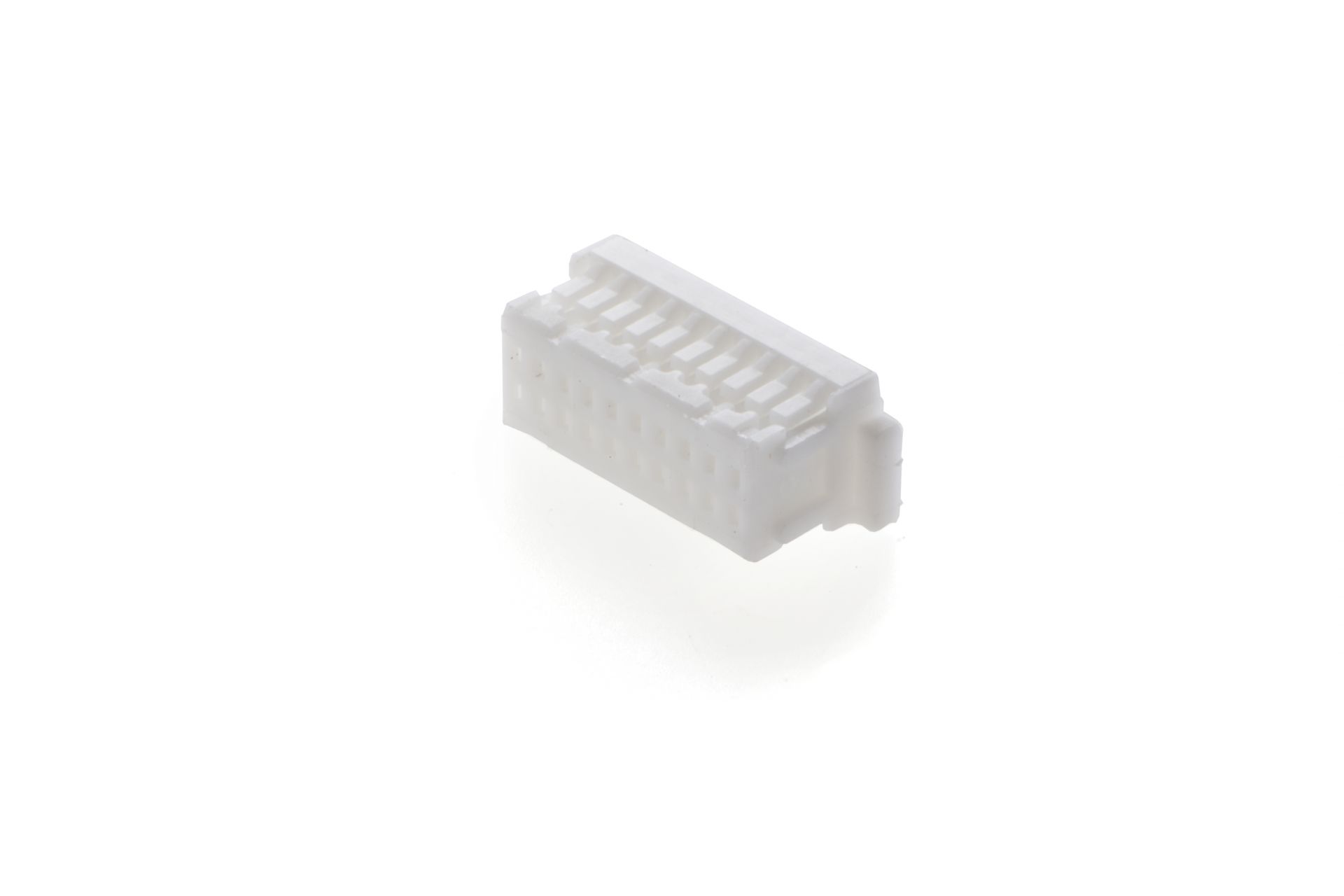

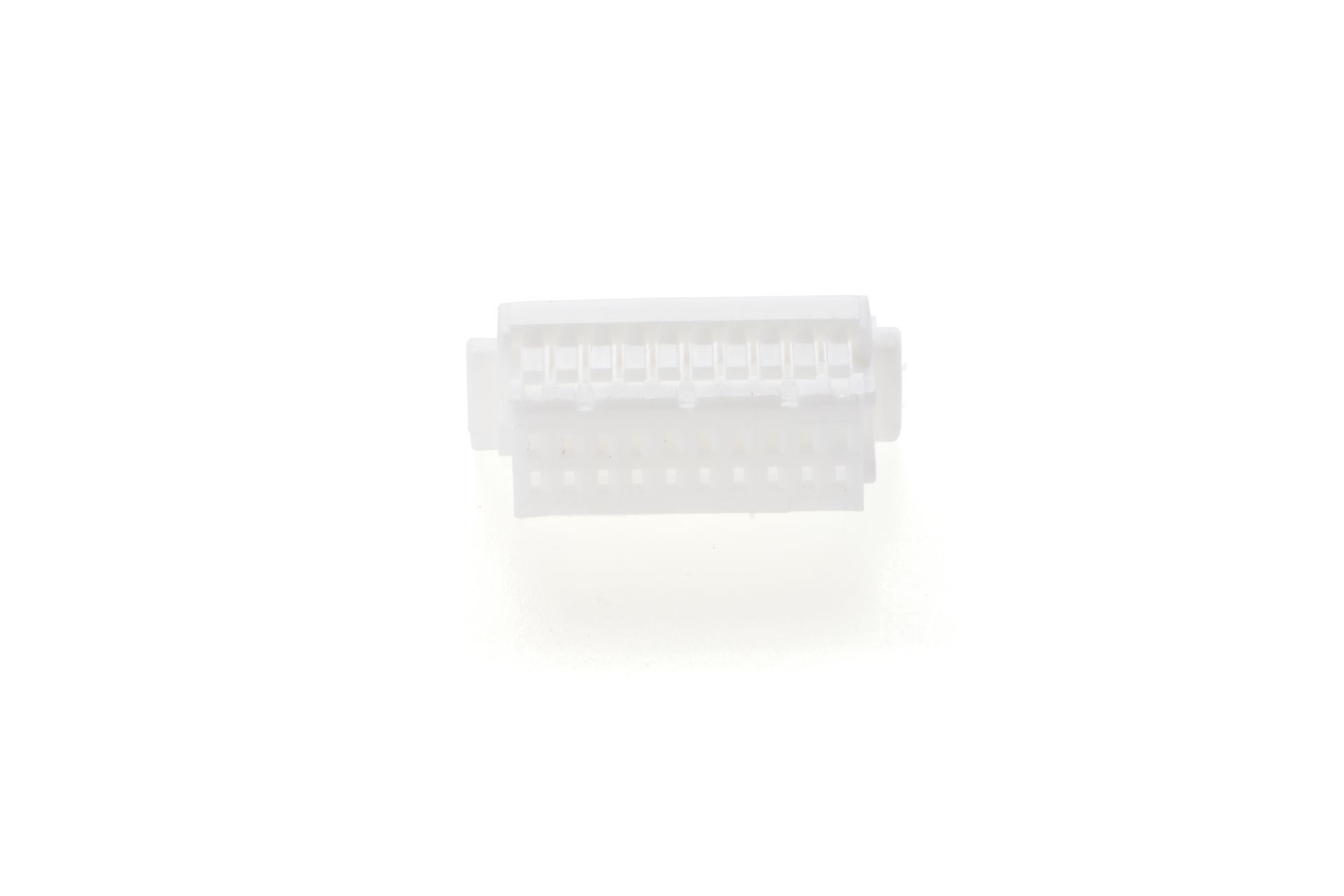

          H:FEMALE HOUSING

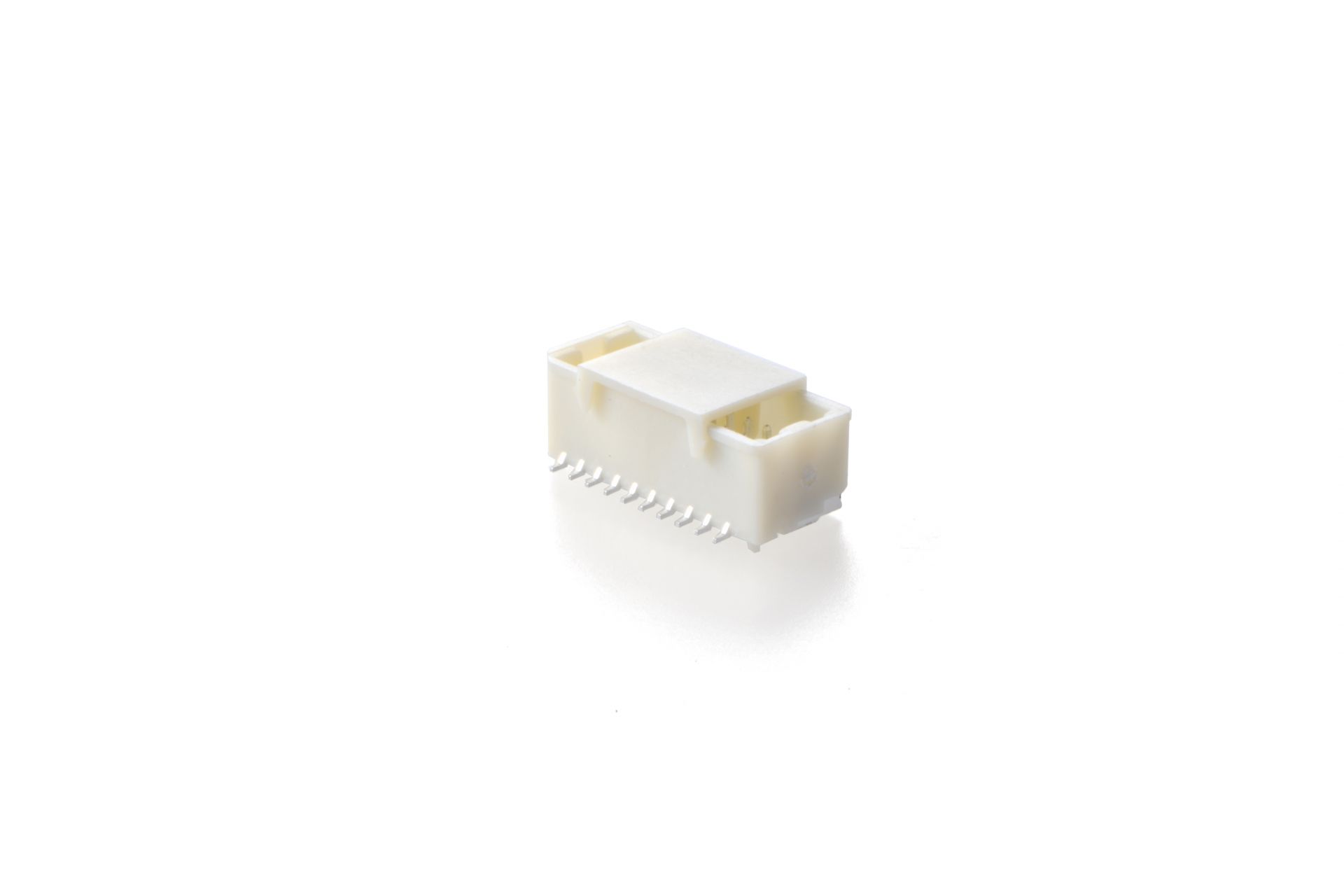

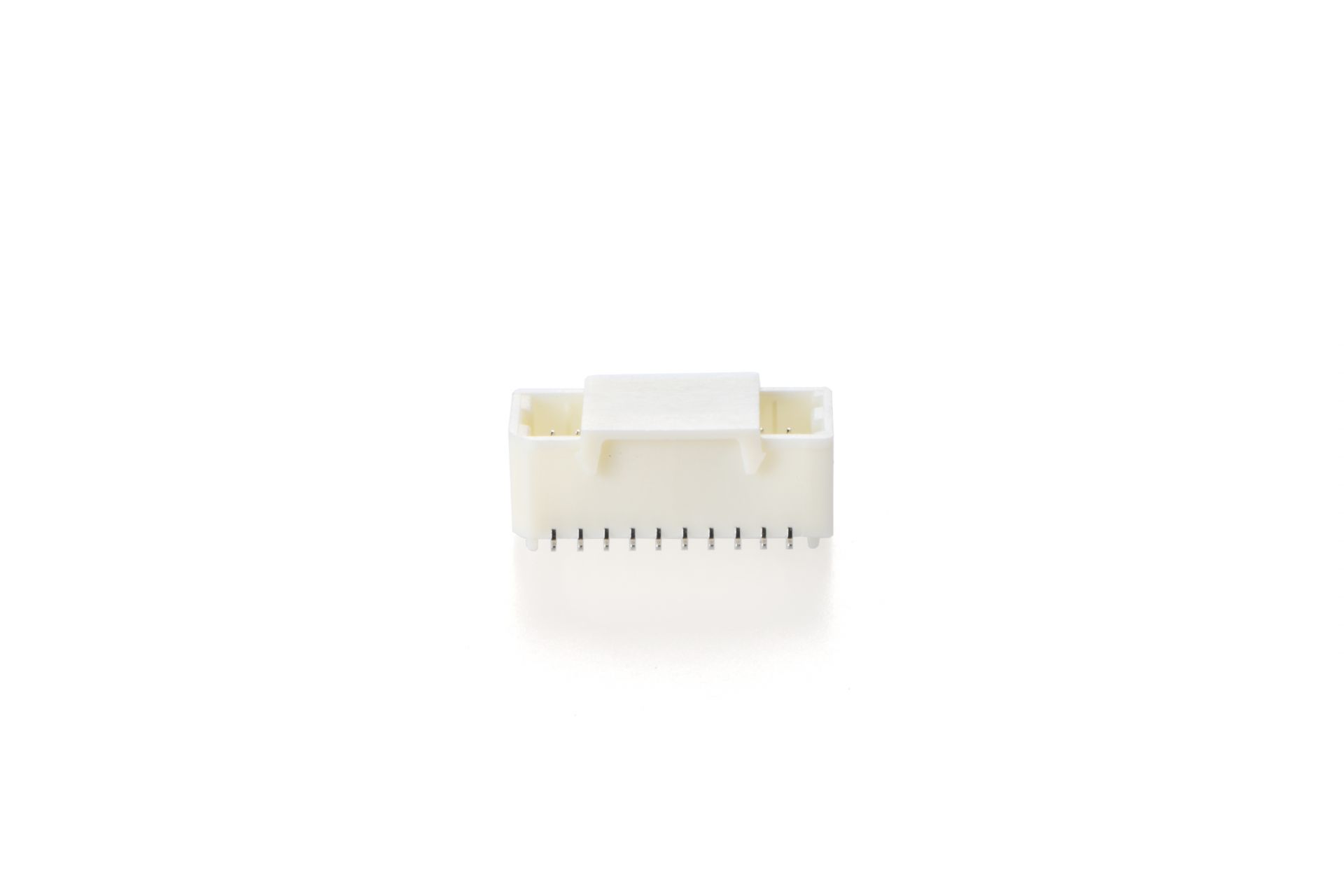

          V:MALE SMT STRAIGHT

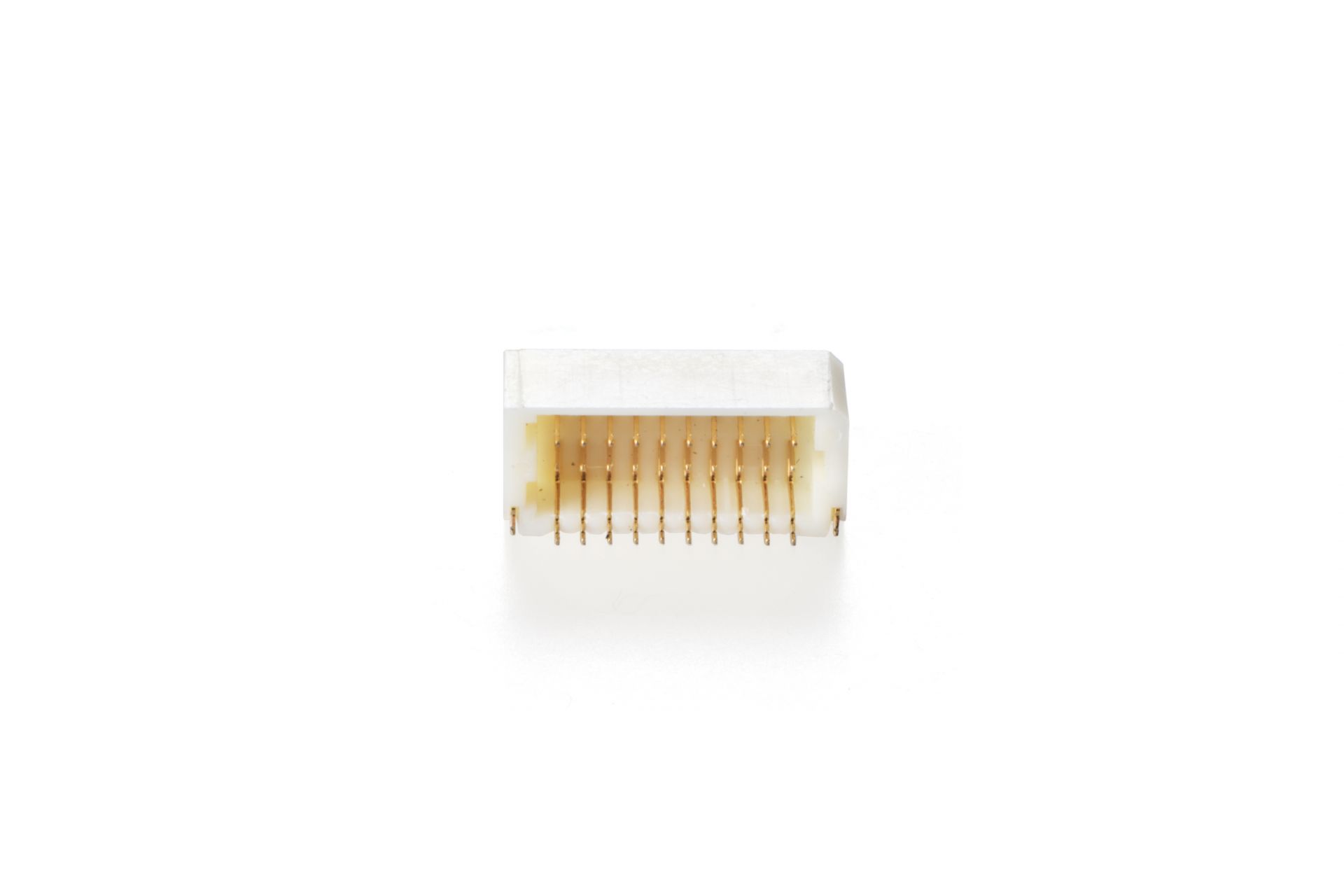

          VG:MALE SMT STRAIGHT GOLD FLASH
          W:MALE SMT RIGHT ANGLE

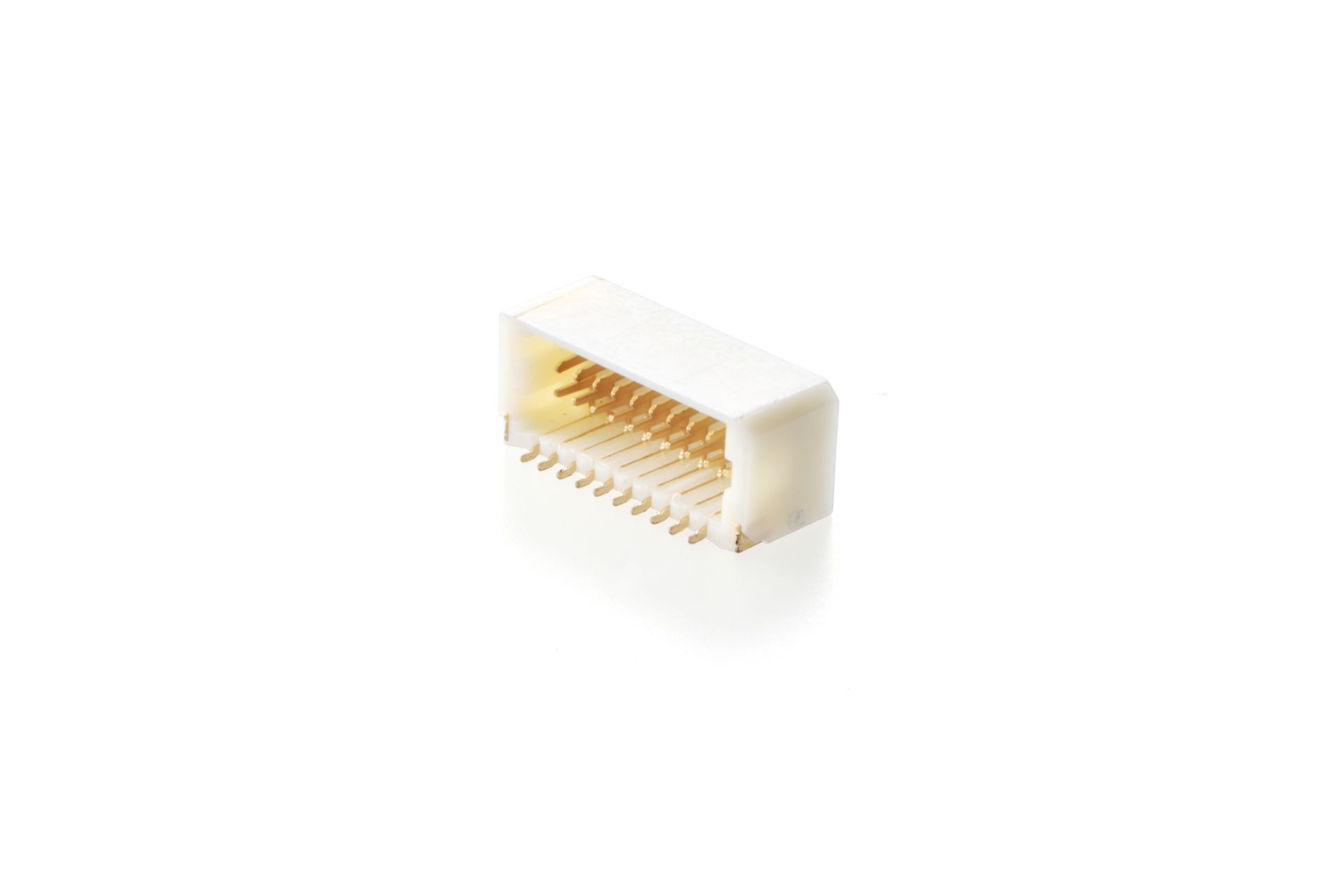

          WG:MALE SMT RIGHT ANGLE GOLD FLASH
  • (3) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
SHDXXVXGC-R1K-H 192KB PDF
download
DOWNLOAD
SHDXXWG-R1K-H 275KB PDF
download
DOWNLOAD
SHDXXH-H 281KB PDF
download
DOWNLOAD
SHDT-R20K-H 76KB PDF
download
DOWNLOAD
