Housing,Header and Terminal

PNM

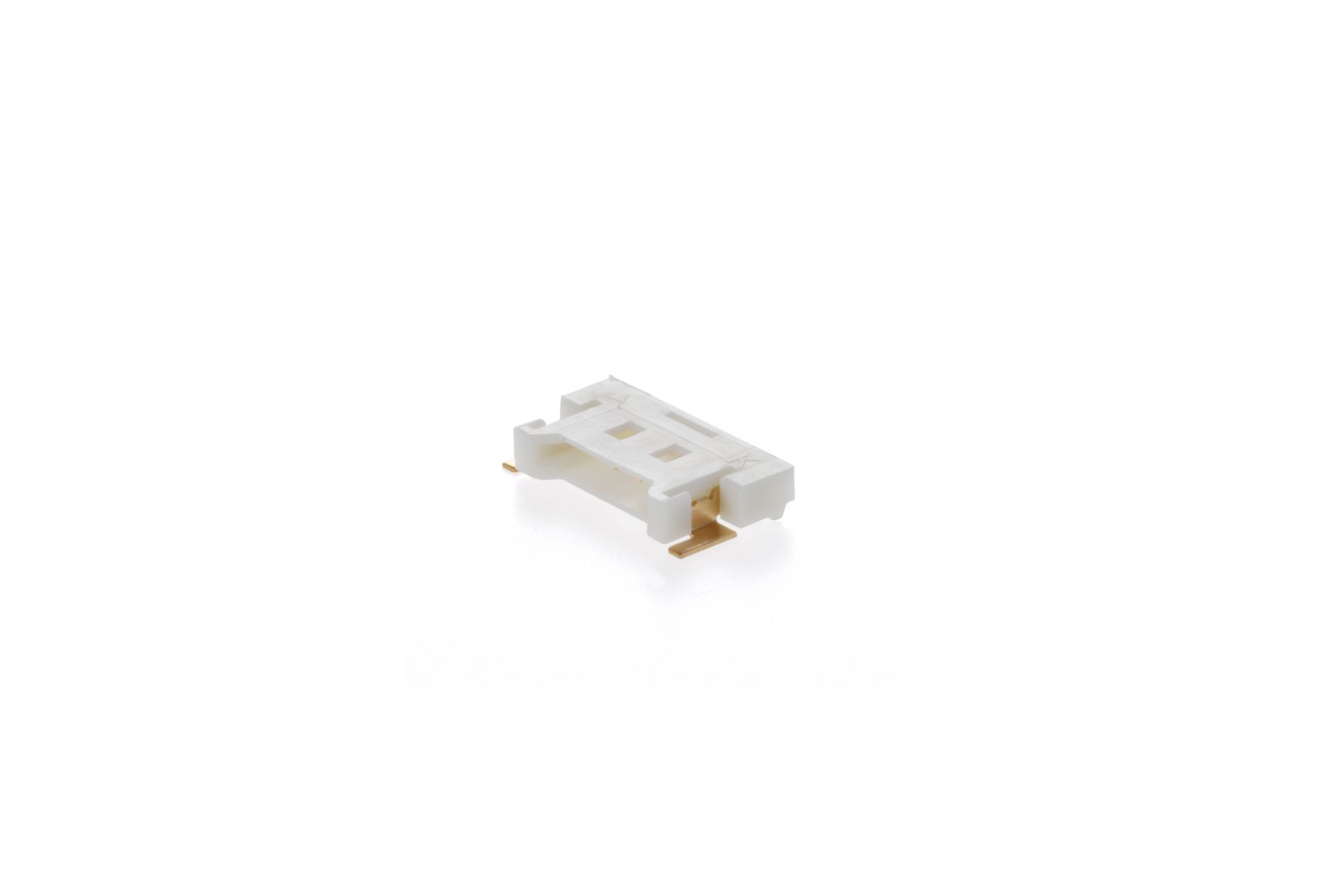

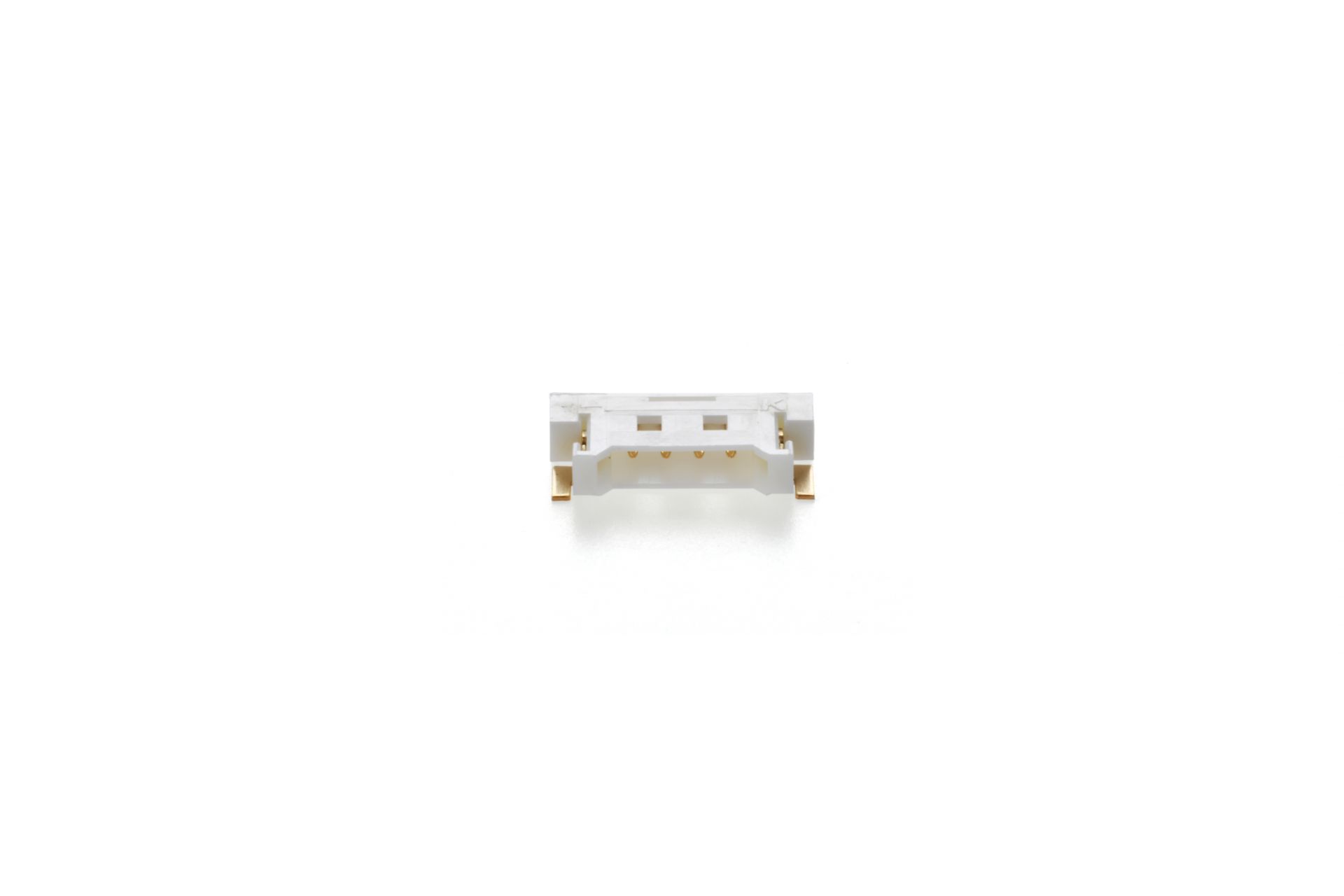

1.25mm PANEL MATE BOARD TO WIRE GOLD FLASH
  • PNM

  • 20
    (1)
  • H
    (2)
  •
    H
    (3)

Description

  • (1) 02~15、20、30:NO. OF POSITION
  • (2) T:FEMALE TERMINAL TIN PLATED
          G:FEMALE TERMINAL GOLD FLASH
          H:FEMALE HOUSING
          W:MALE SMT RIGHT ANGLE
  • (3) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
PNMXXWG-R3K-H 289KB PDF
download
DOWNLOAD
PNMXXH-H 180KB PDF
download
DOWNLOAD
PNMG-R20K-H 79KB PDF
download
DOWNLOAD
