Housing,Header and Terminal

MK

2.54mm MK BOARD TO WIRE
  • MK

  • 10
    (1)
  • D
    (2)
  •
    H
    (3)

Description

  • (1) 02~20:NO. OF POSITION

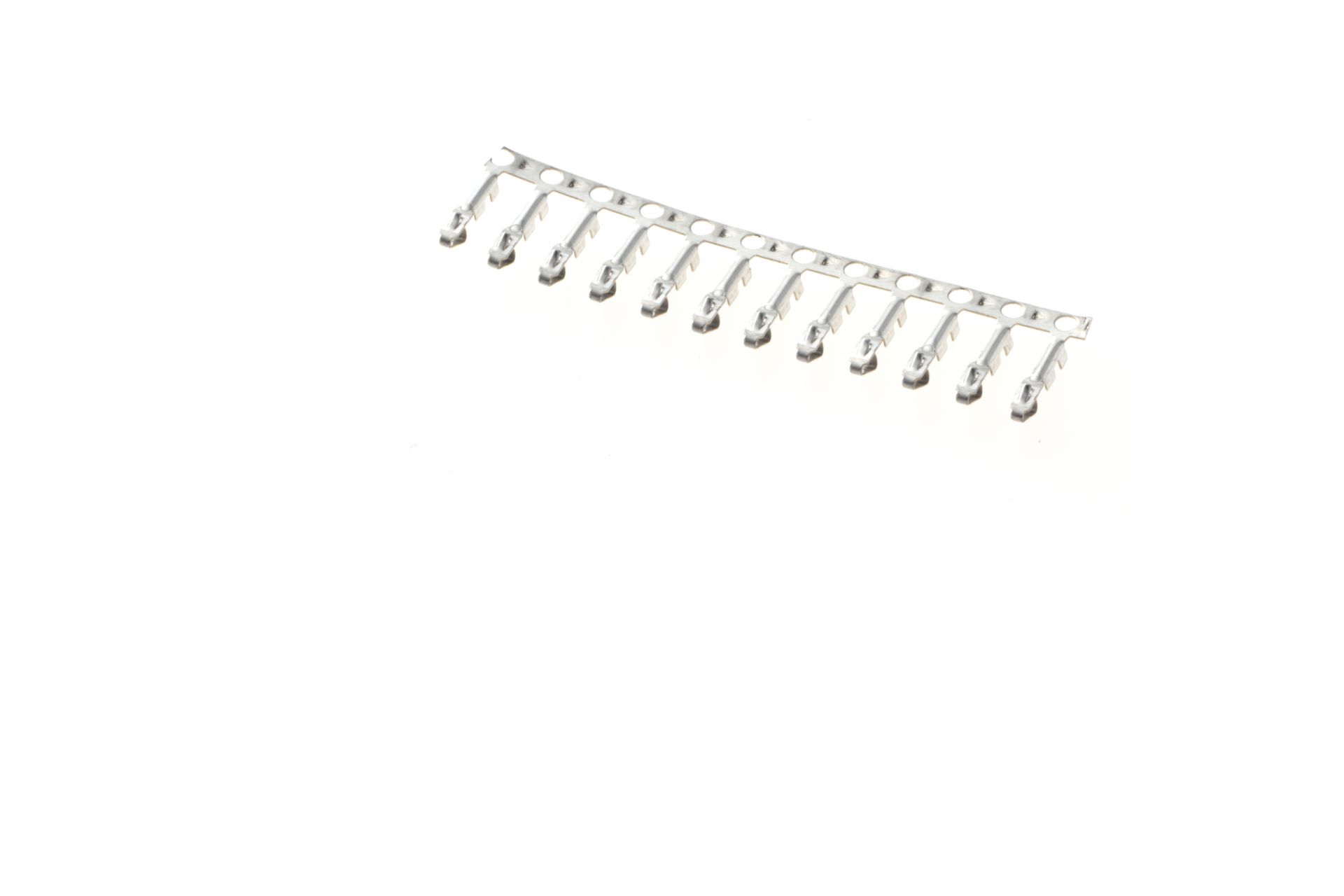

          T:FEMALE TERMINAL TIN PLATED

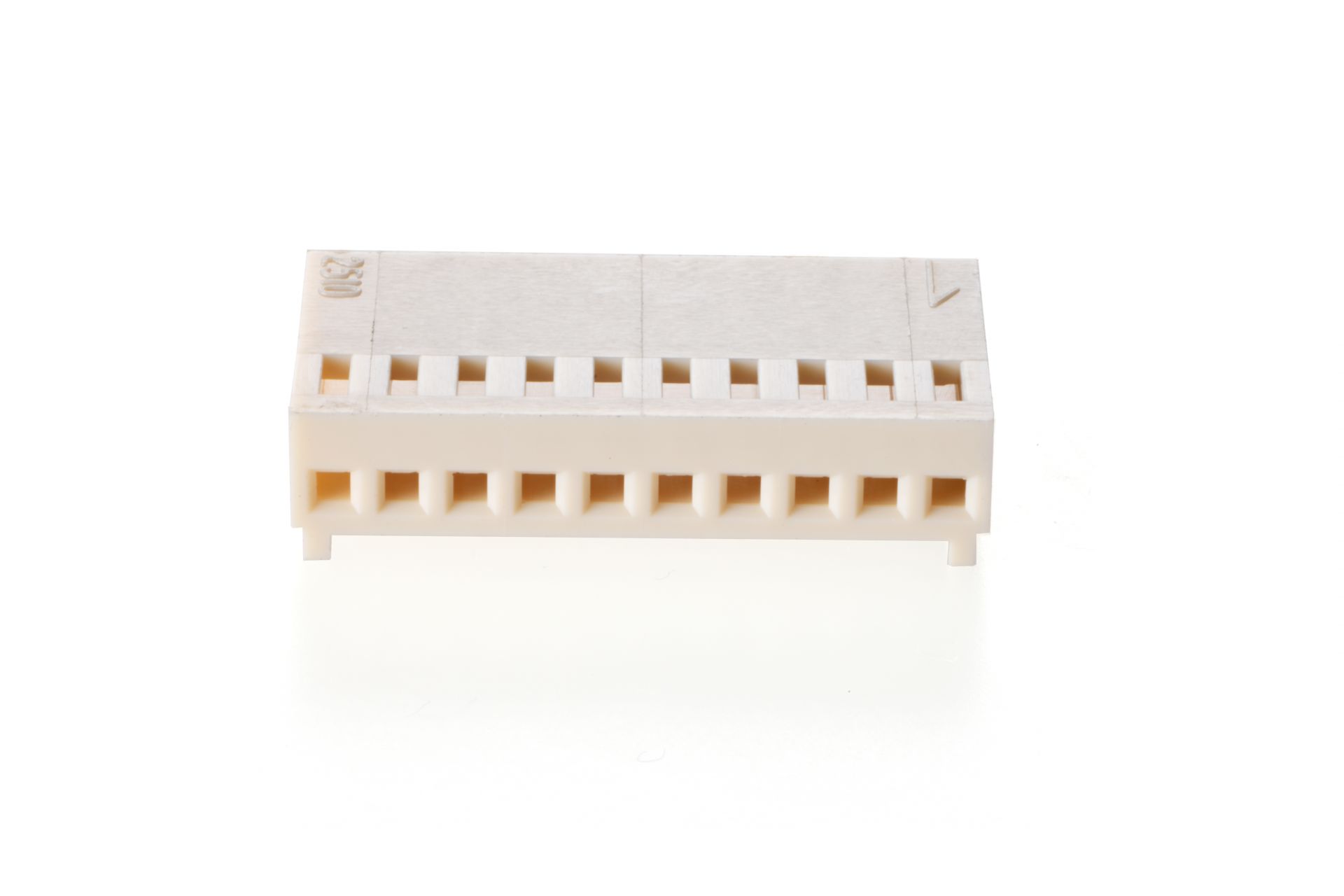

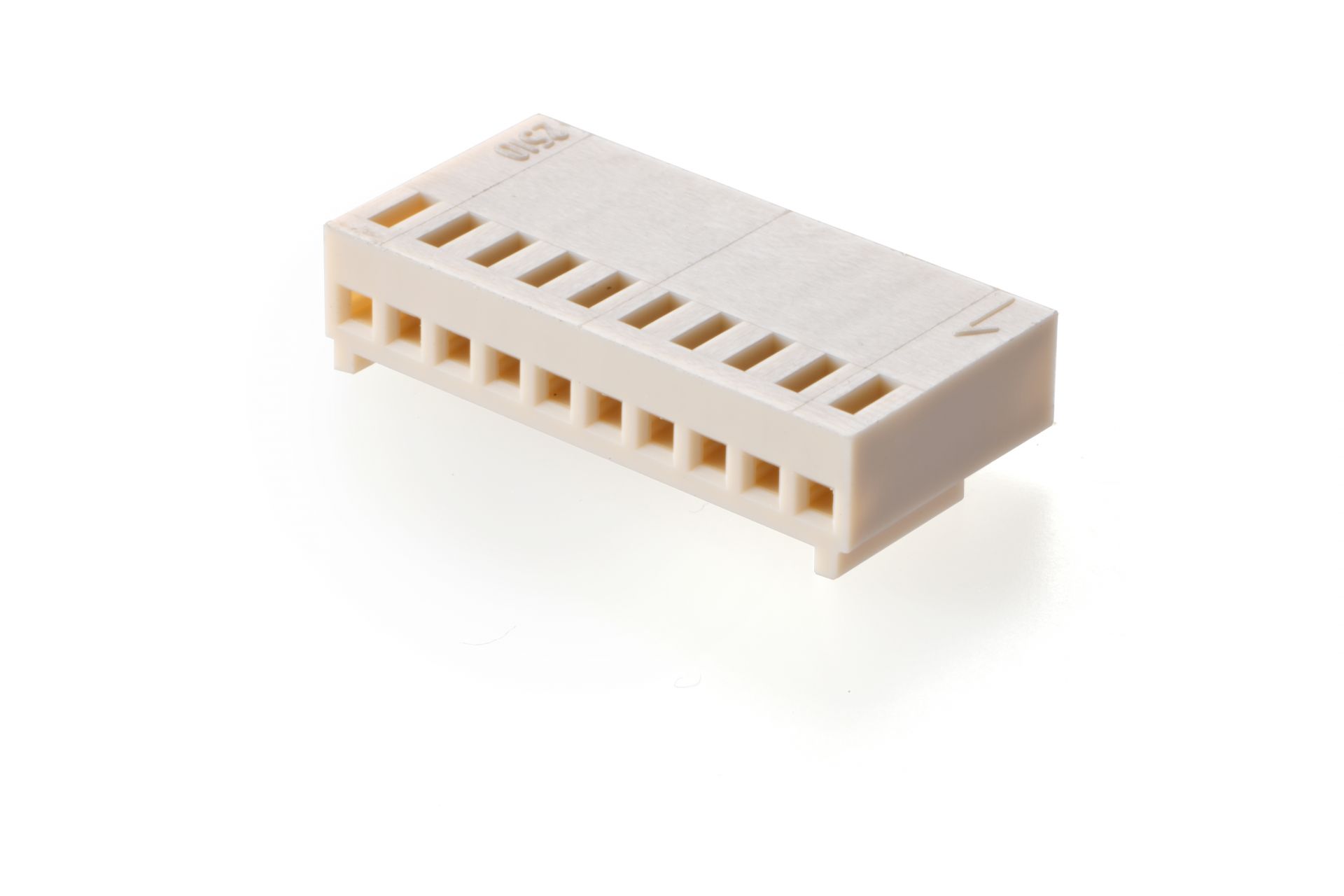

  • (2) H:FEMALE HOUSING
          D:MALE DIP STRAIGHT

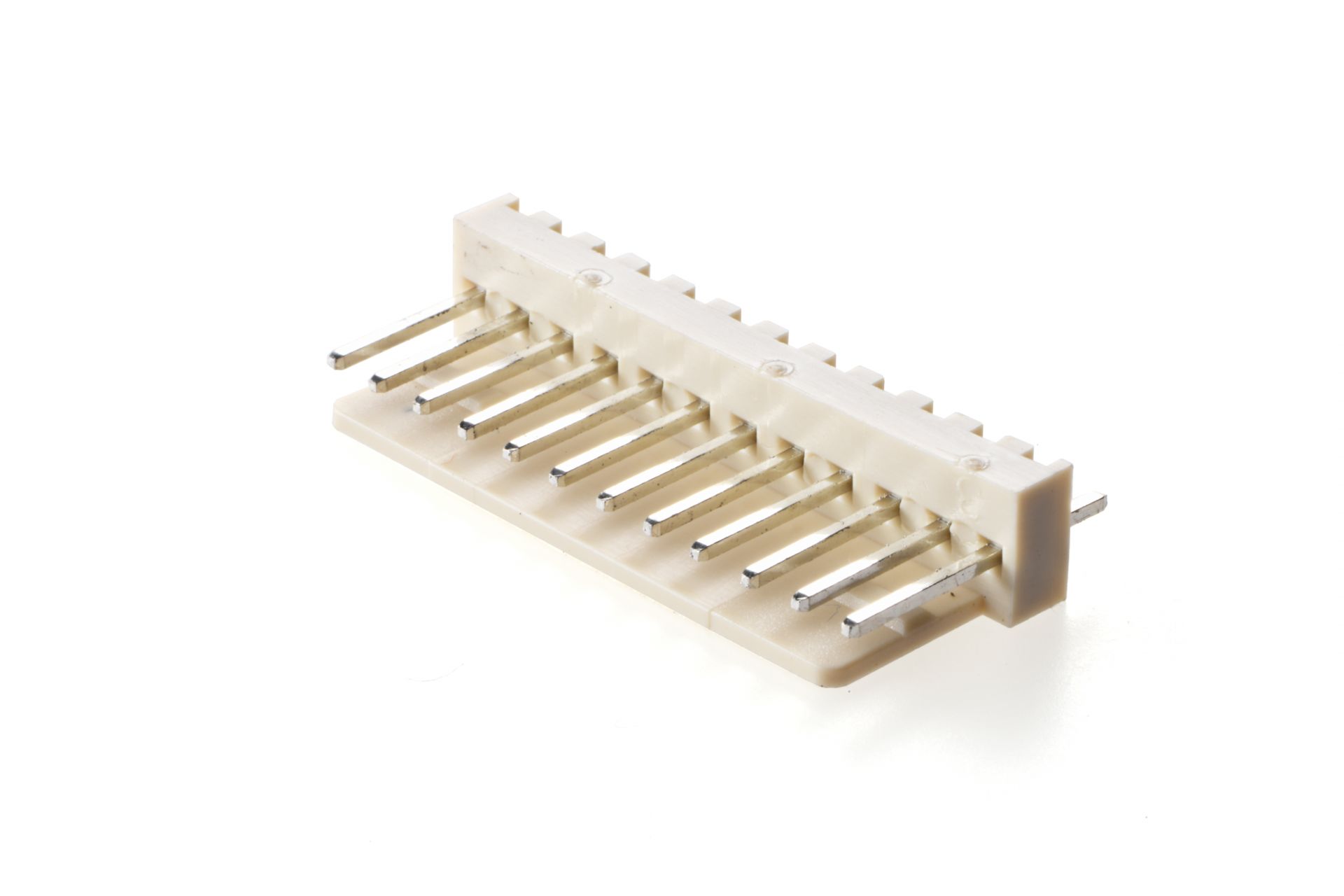

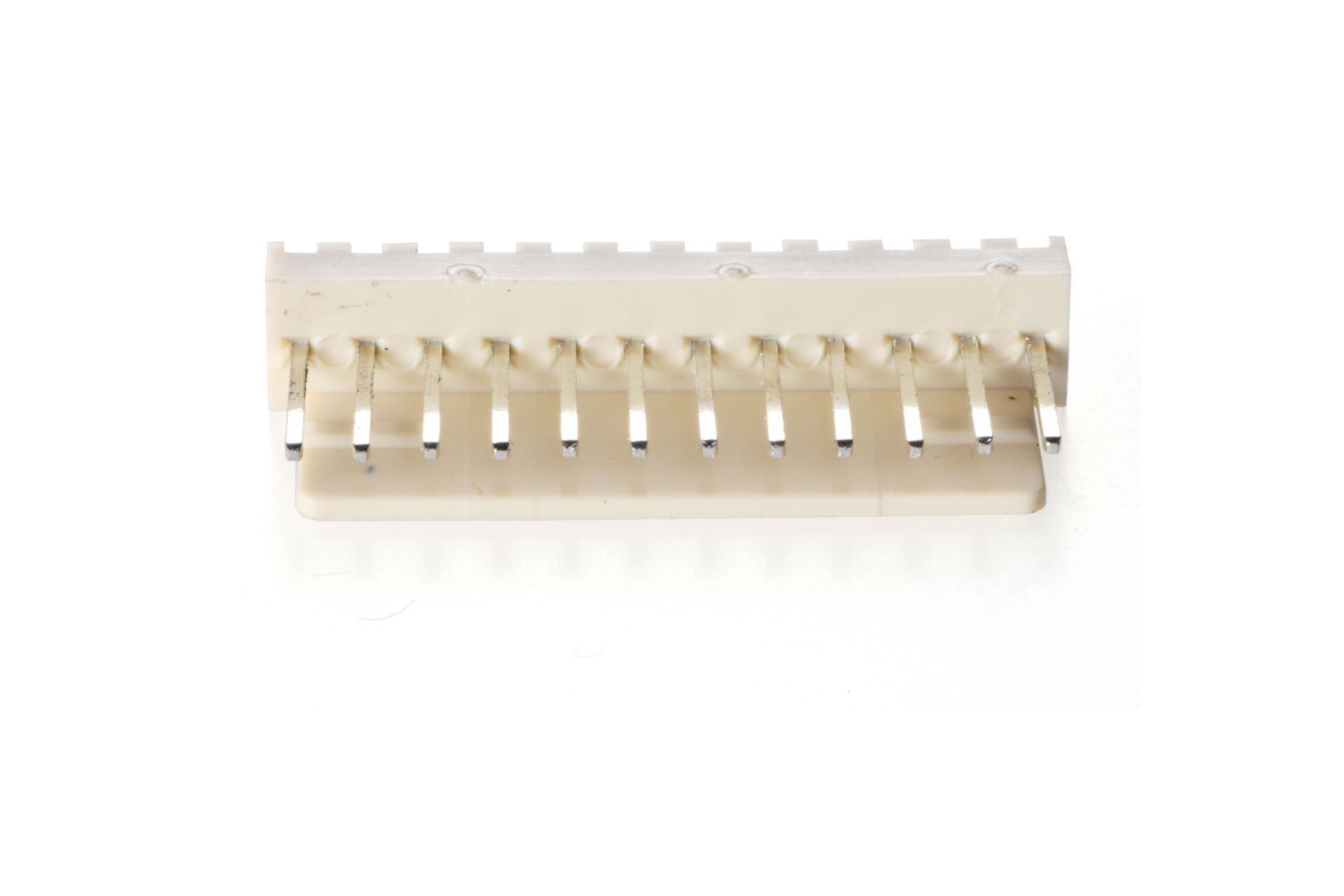

          R:MALE DIP RIGHT ANGLE
          L:MALE DIP RIGHT ANGLE REVERSE TYPE
  • (3) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
MKXXD-H 274KB PDF
download
DOWNLOAD
MKXXR-H 268KB PDF
download
DOWNLOAD
MKXXW-RXX-H 260KB PDF
download
DOWNLOAD
MKXXH-H 84KB PDF
download
DOWNLOAD
MKT-R10K-H 76KB PDF
download
DOWNLOAD
