Pin / Female Header

AHD/R10-2X

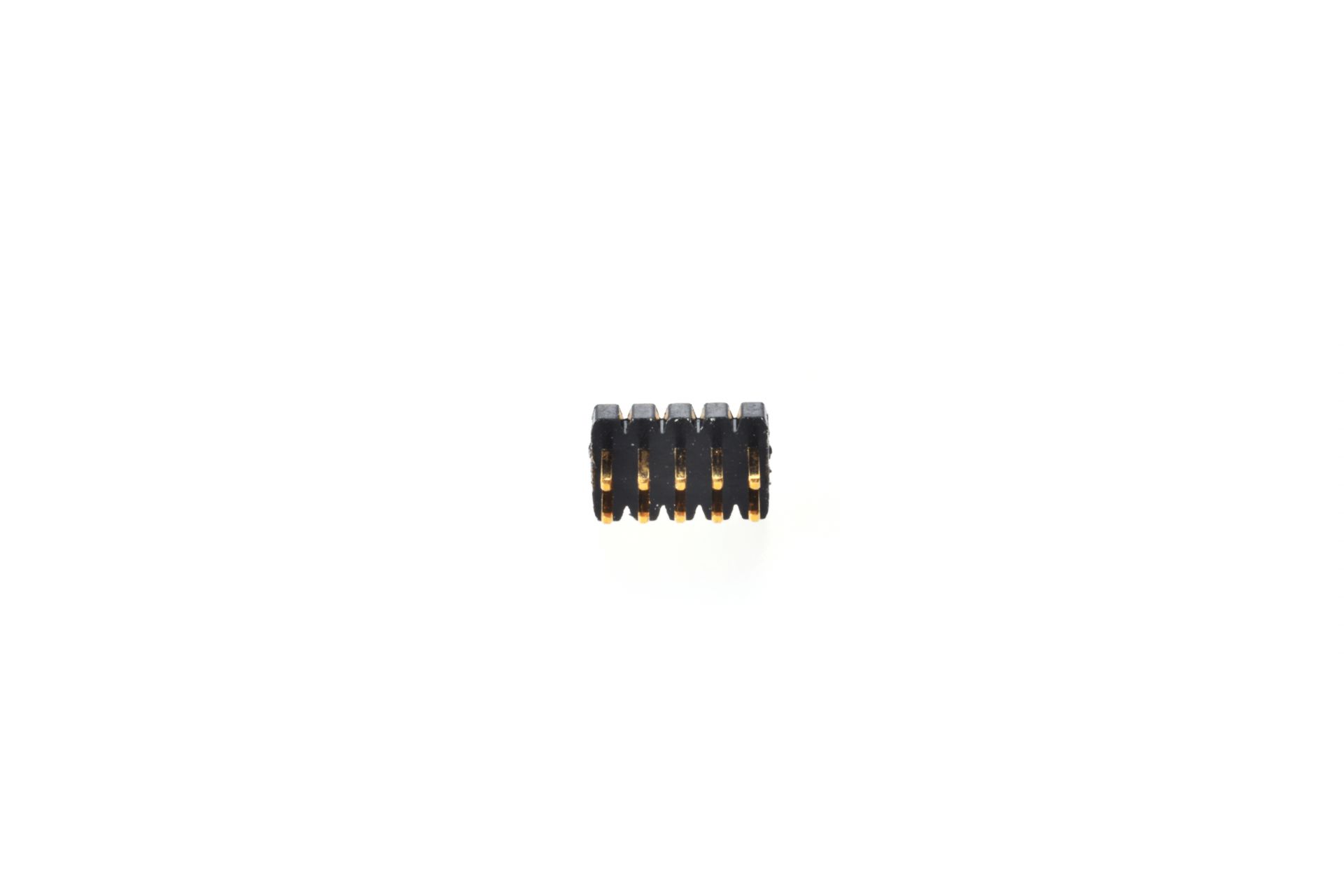

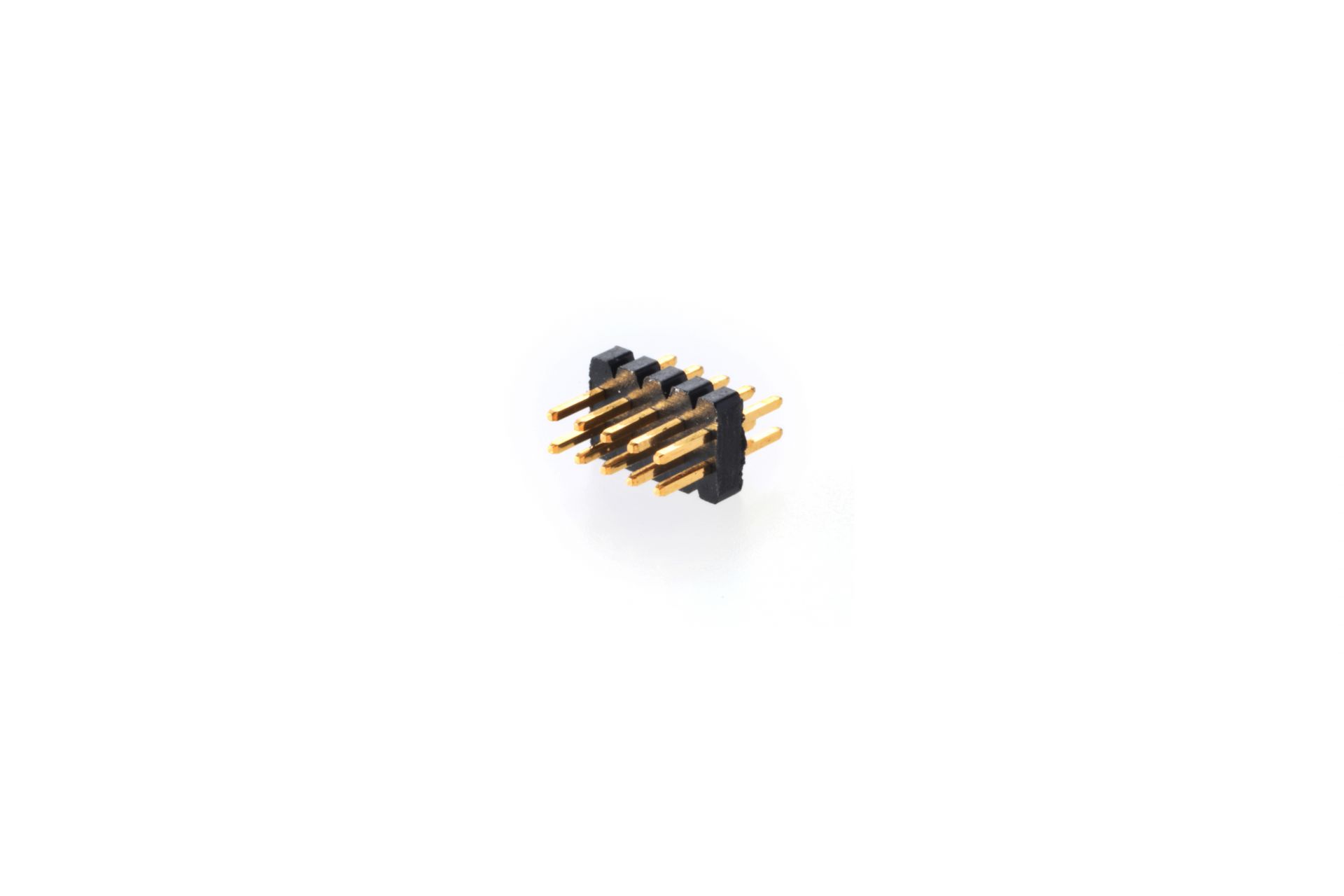

1.0X1.0mm PIN HEADER INSULATOR HEIGHT=1.0mm DUAL ROW
  • AH

  • D
    (1)
  •
    10-2X

  • 20
    (2)
  •
    H
    (3)
  • H
    (4)

Description

  • (1)D:DIP STRAIGHT
        R:DIP RIGHT ANGLE
  • (2)02~40:NO. OF POSITION / PER ROW
  • (3)WITHSTAND HIGH TEMPERATURE
  • (4)RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
AHD10-2XXX-HH 253KB PDF
download
DOWNLOAD
AHR10-2XXX-HH 82KB PDF
download
DOWNLOAD
