Board & Wire Connector Pin / Female Header YAVXX-1XXXL/R

Pin / Female Header

YAVXX-1XXXL/R

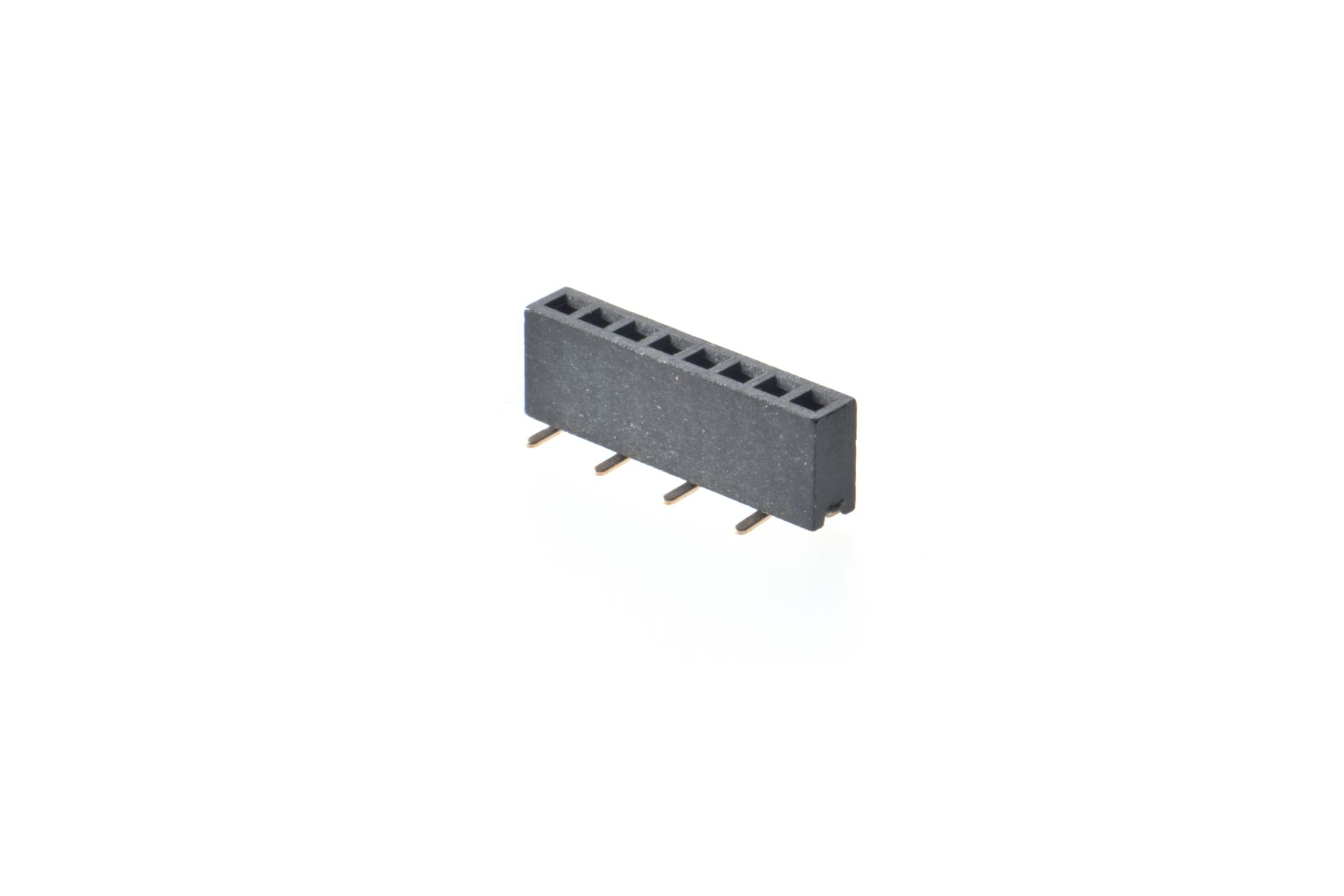

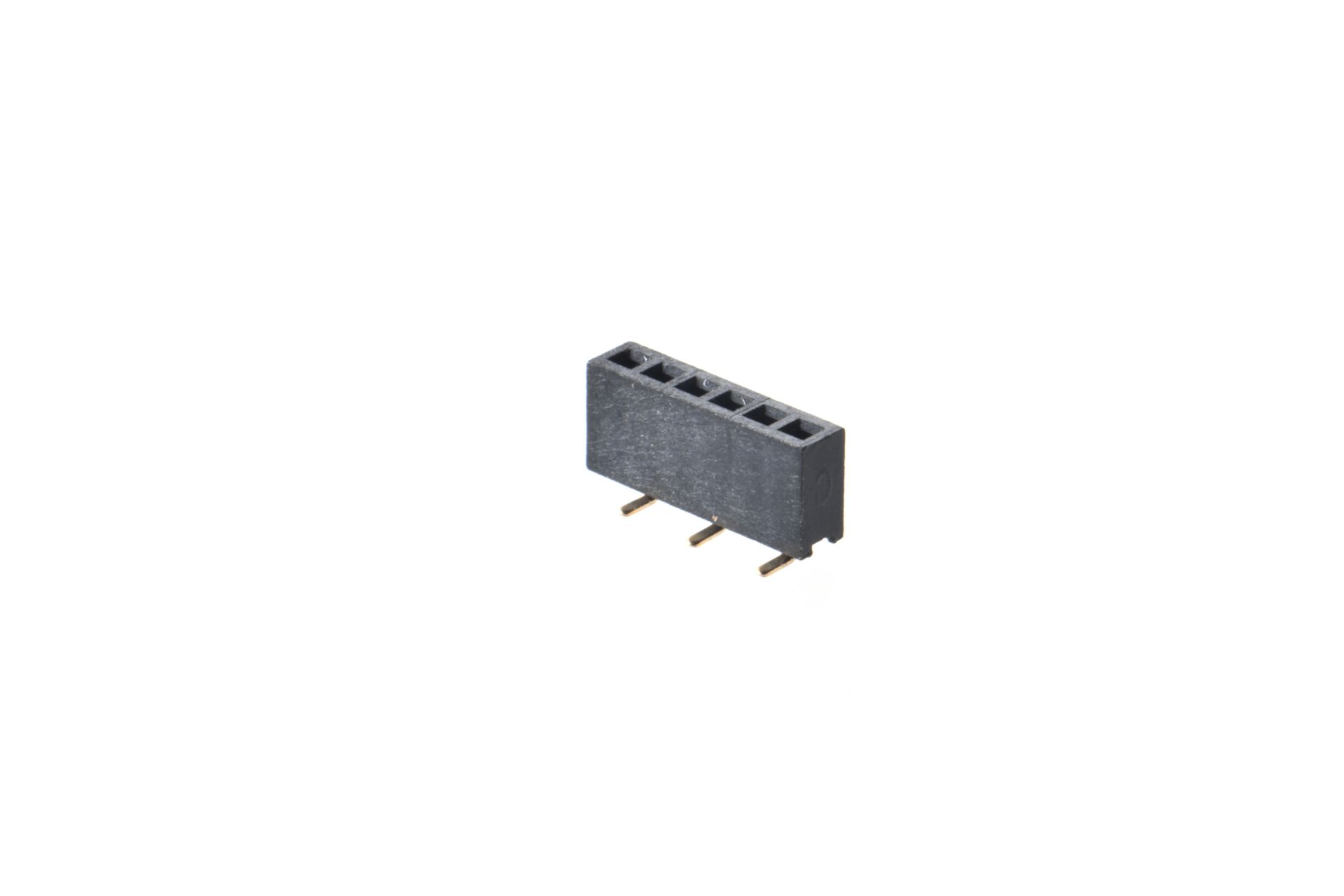

1.27X1.27mm FEMALE HEADER SMT 180° WITHOUT POST SINGLE ROW

YAVX
46
(1)
1X
20
(2)
L
(3)
C
(4)
H
(5)

Description

(1)23:2.3mm TOTAL HEIGHT
36:3.6mm TOTAL HEIGHT
46:4.6mm TOTAL HEIGHT
(2)02~40:NO. OF POSITION / PER ROW
(3)L:STANDARD LAYOUT
R:REVERSE LAYOUT
(4)BLANK:WITHOUT CAP
C:WITH CAP
(5)RoHS

INQUIRY

DOWNLOAD

PART NUMBER	SIZE	FILE TYPE	DRAWINGS
YAVX23-1XXXL(R)C-H	271KB	PDF	DOWNLOAD
YAVX36-1XXXL(R)C-H	261KB	PDF	DOWNLOAD
YAVX46-1XXXL(R)C-H	262KB	PDF	DOWNLOAD
