Board & Wire Connector Pin / Female Header PABD/R2X

Pin / Female Header

PABD/R2X

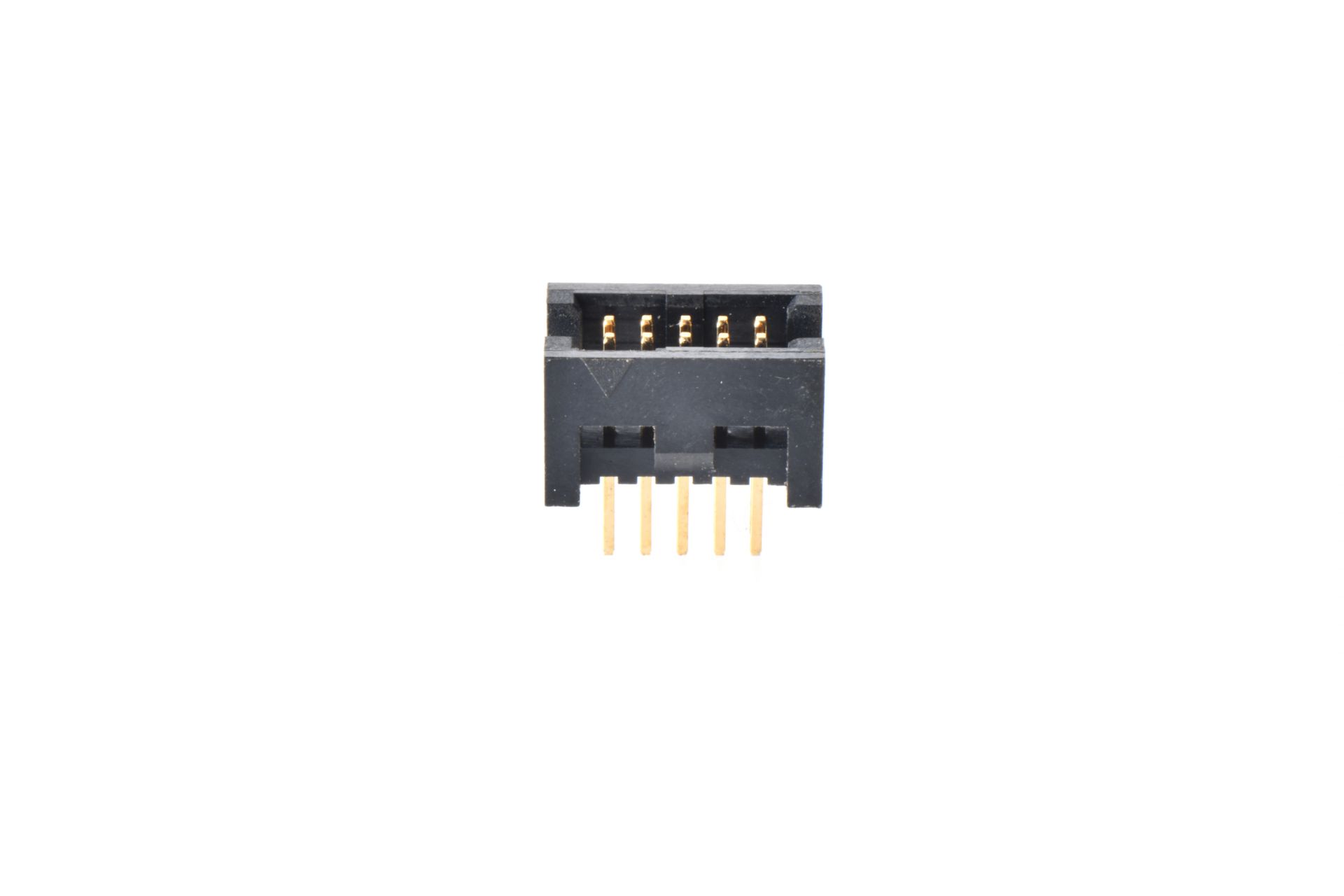

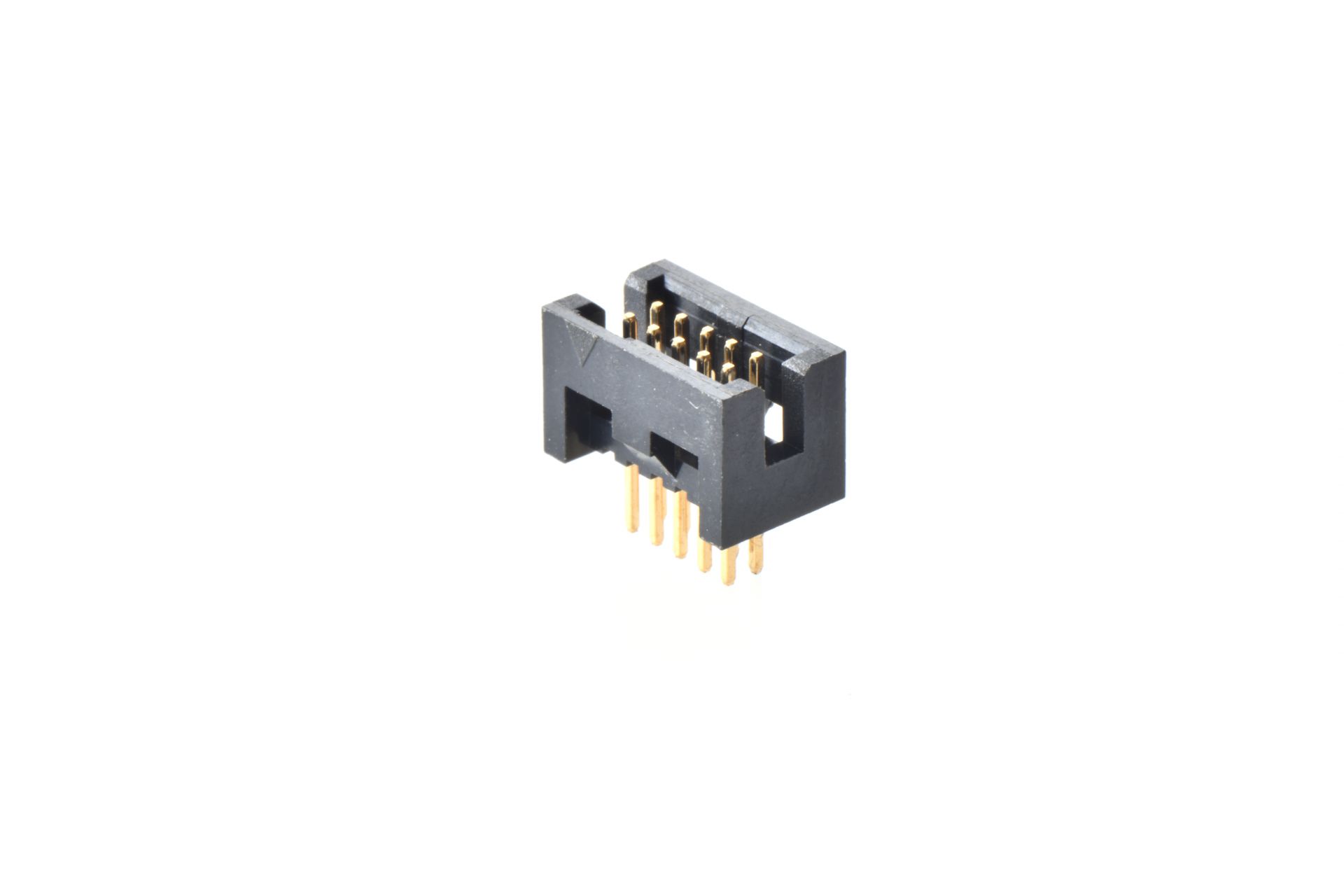

1.27X1.27mm PIN HEADER BOX TYPE DUAL ROW

PAB
D
(1)
2X
20
(2)
H
(3)
H
(4)

Description

(1)D:DIP Straight

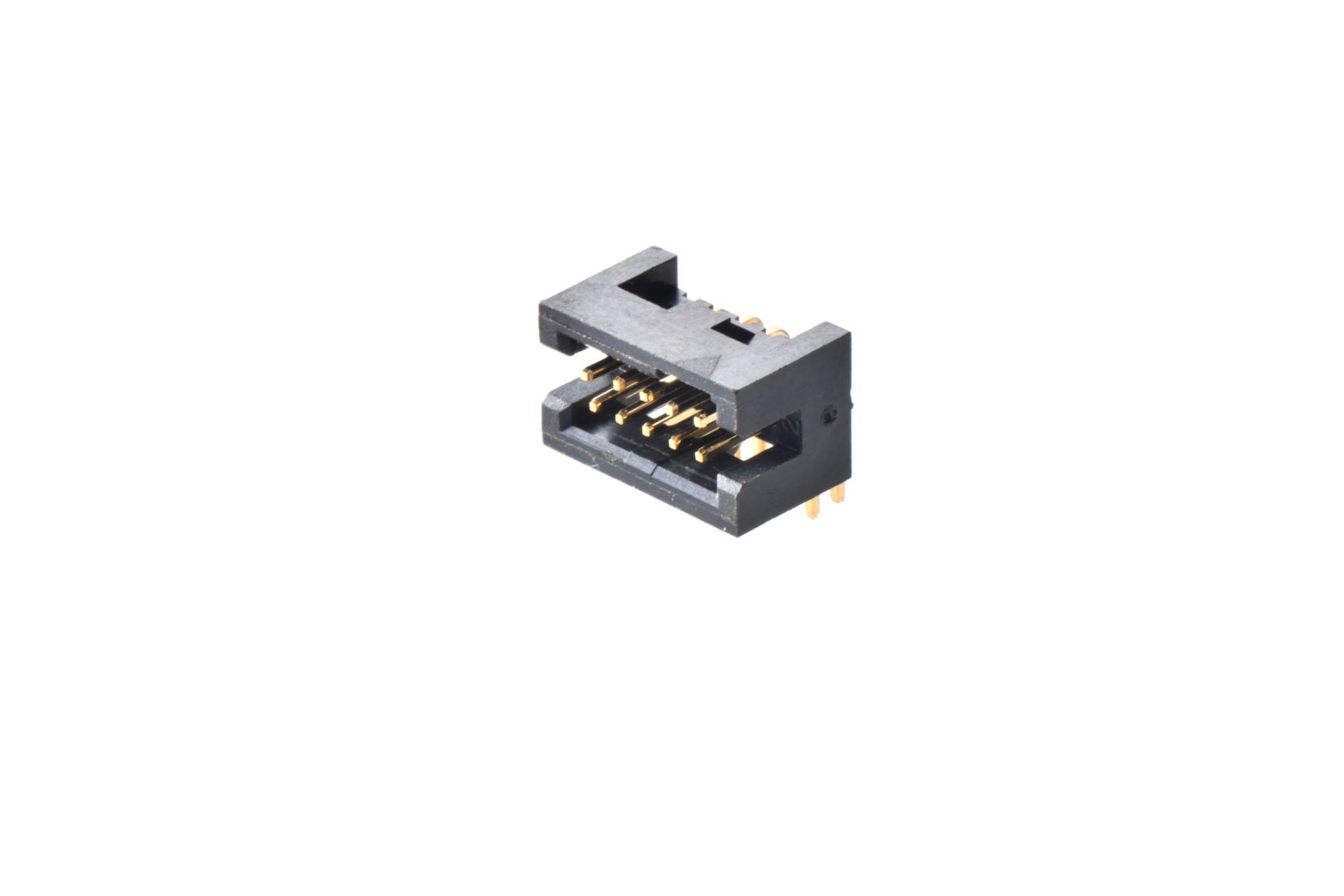

R:DIP Right Angle
(2)02~40:NO. OF POSITION / PER ROW
(3)WITHSTAND HIGH TEMPERATURE
(4)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	PABD2XXX-HH	302KB	PDF	DOWNLOAD
	PABR2XXX-HH	317KB	PDF	DOWNLOAD
