Board & Wire Connector Pin / Female Header MVXXX-2X

Pin / Female Header

MVXXX-2X

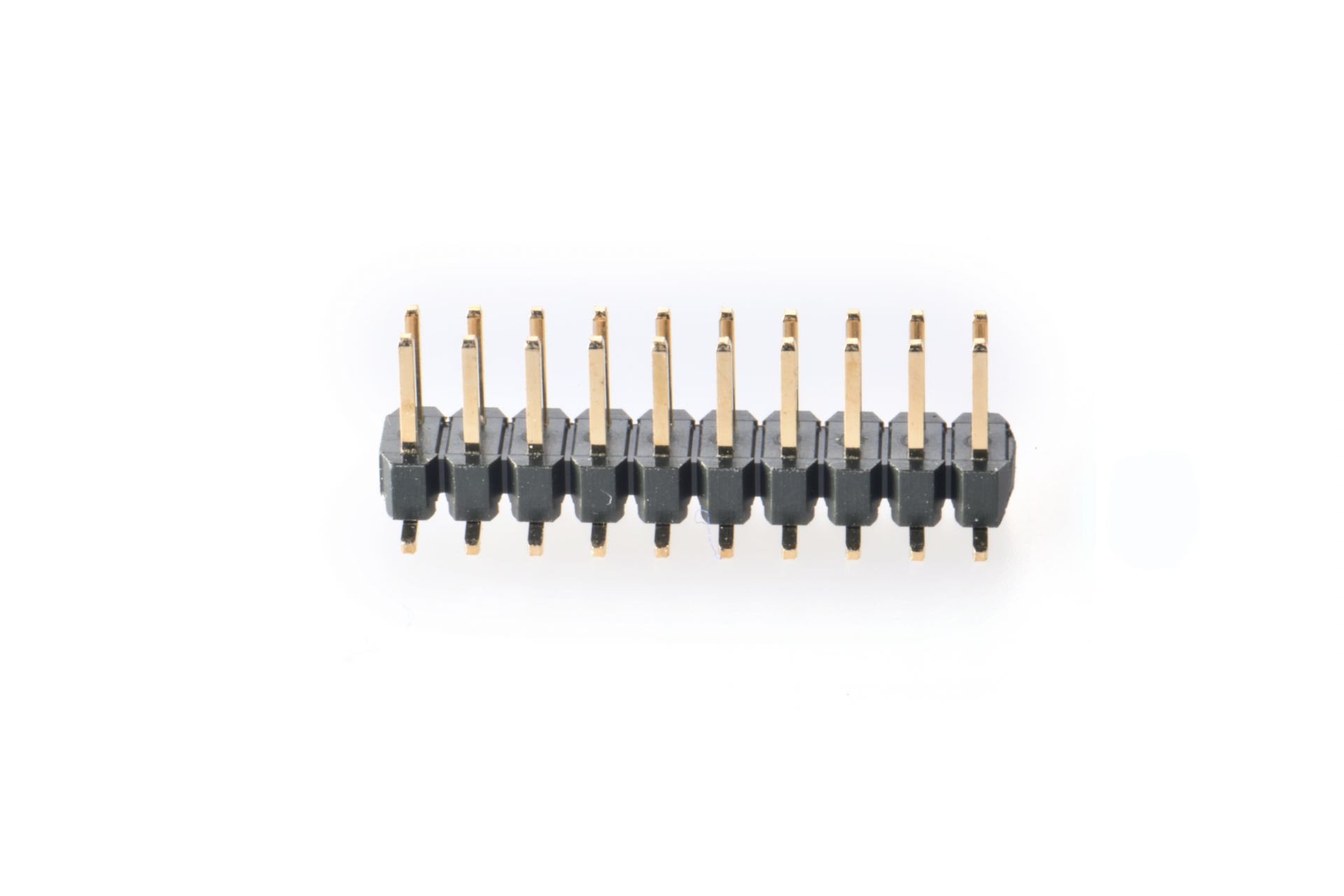

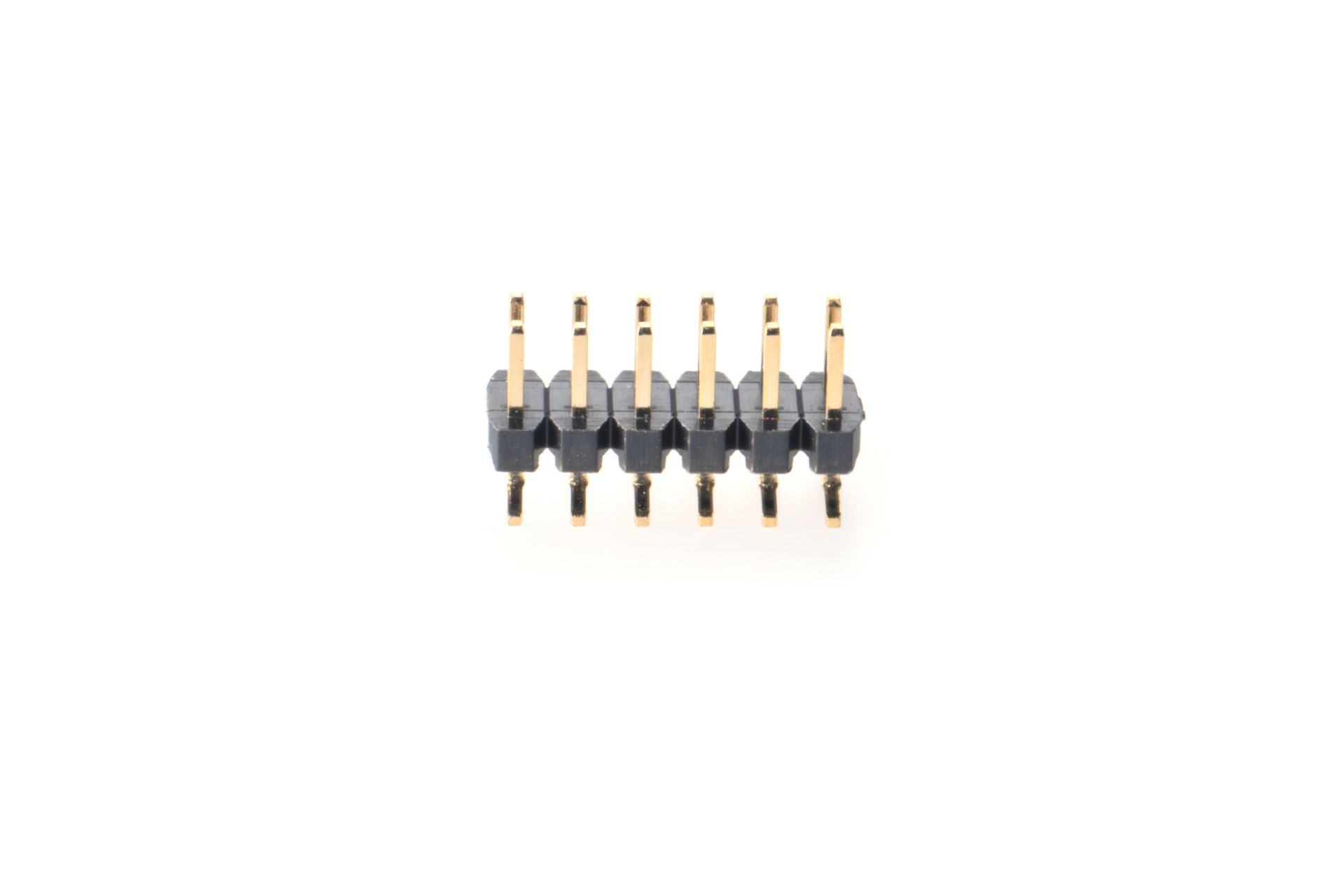

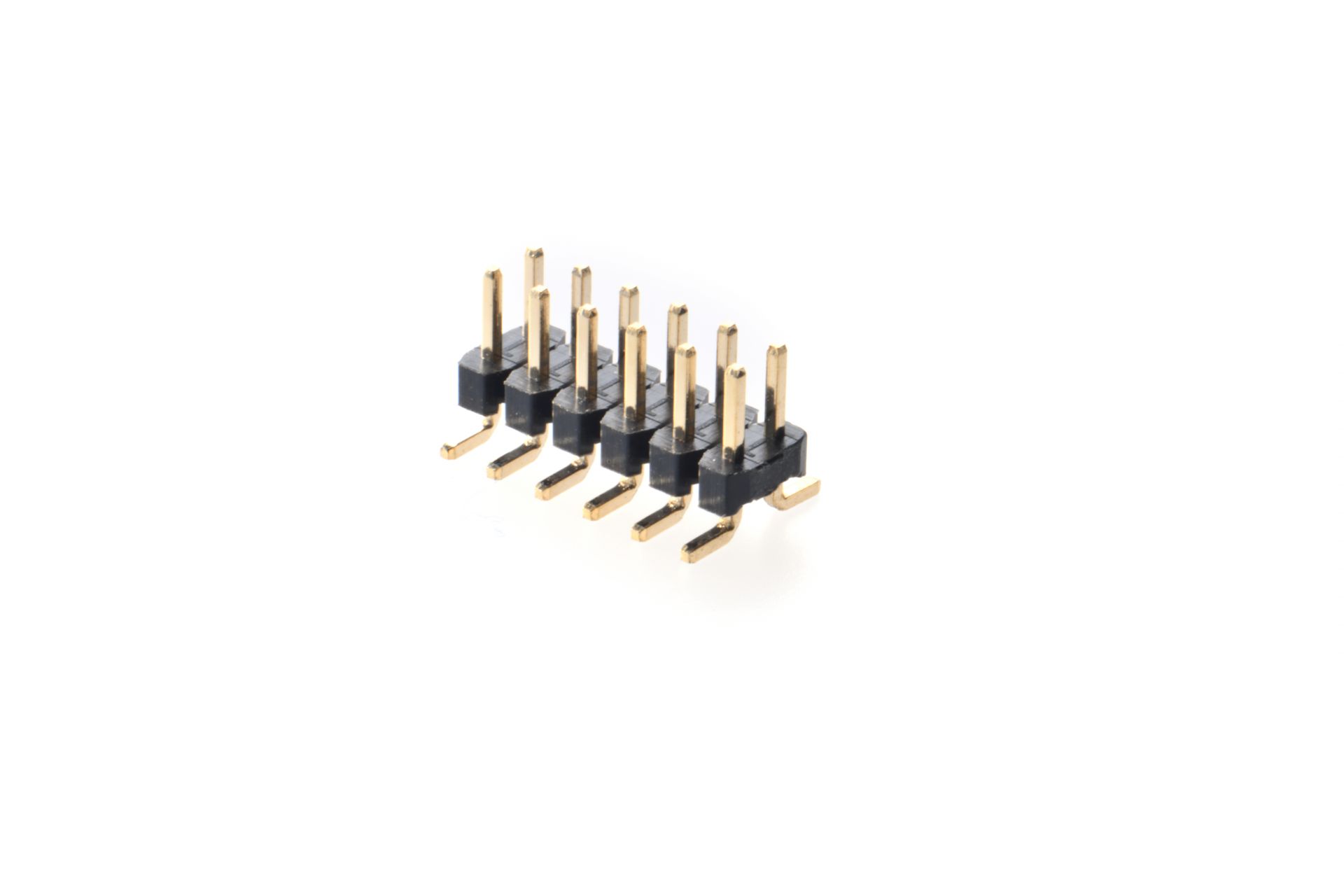

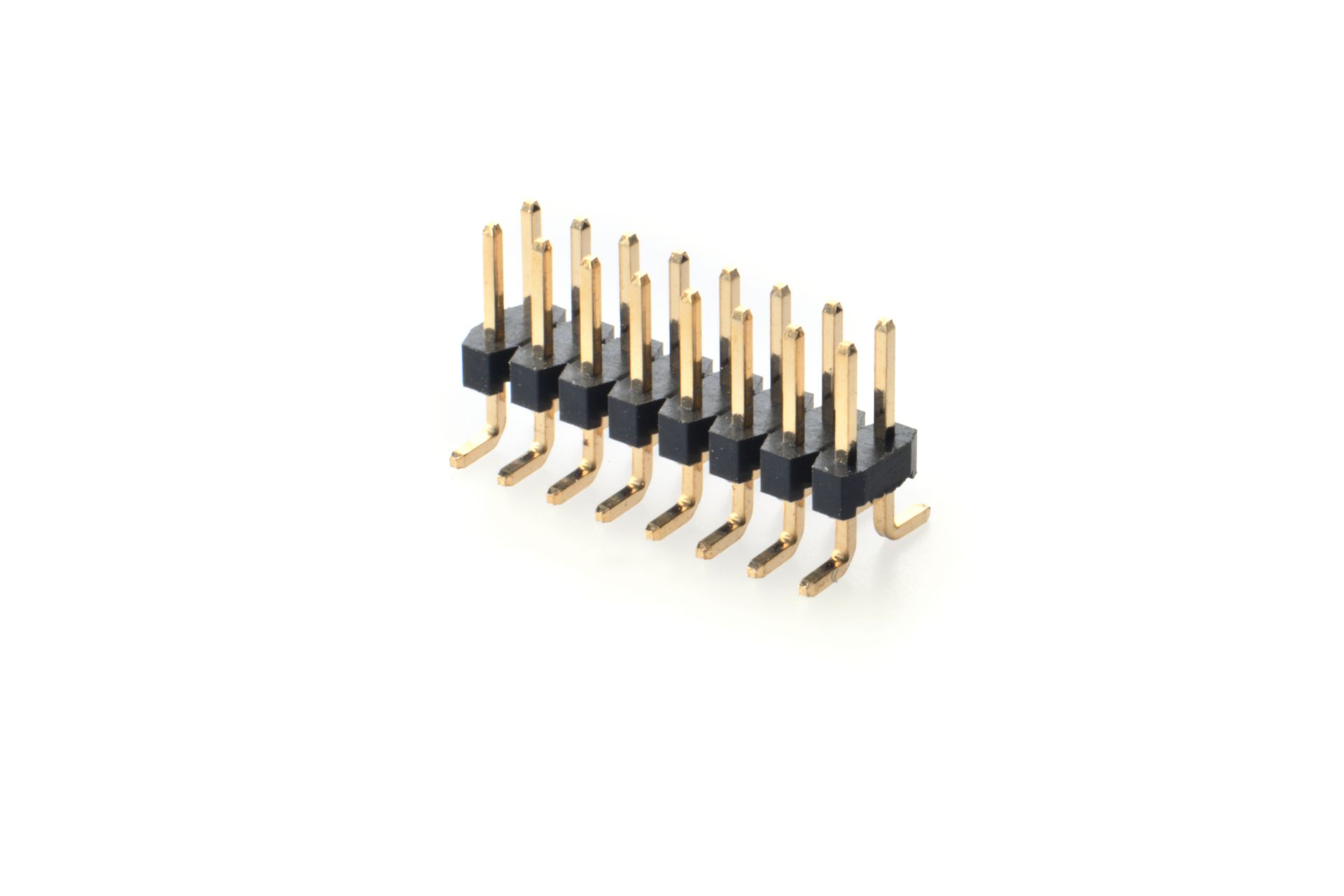

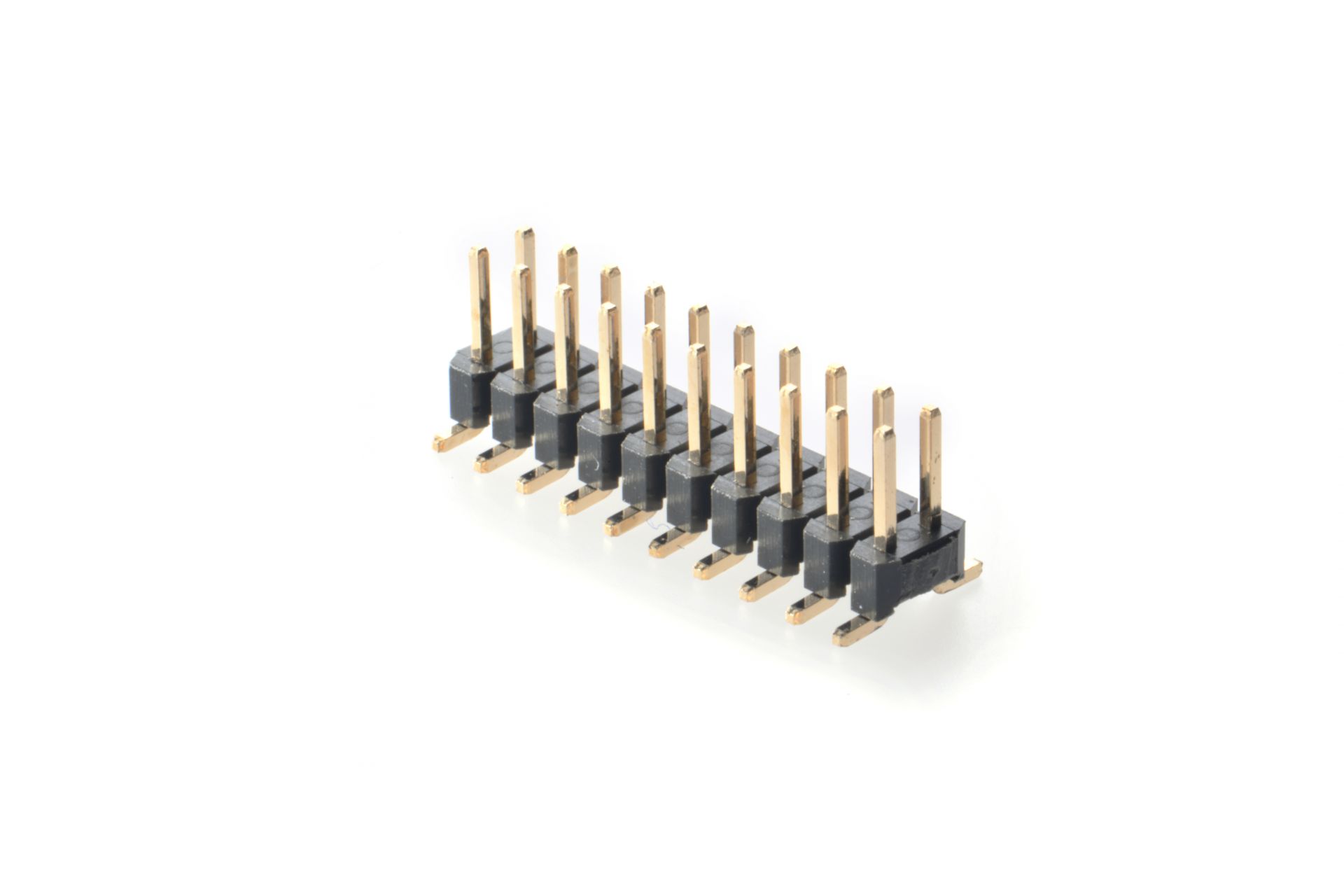

2.0mm PIN HEADER SMT 180° WITHOUT POST DUAL ROW

MVX
27
(1)
2X
20
(2)
C35
(3)
C
H
(4)

Description

(1)22:SMT HEIGHT 2.2mm
27:SMT HEIGHT 2.7mm
32:SMT HEIGHT 3.25mm
(2)02~40:NO. OF POSITION / PER ROW
(3)BLANK:CONTACT LENGTH 4.0mm
C20:CONTACT LENGTH 2.0mm
C35:CONTACT LENGTH 3.5mm
C60:CONTACT LENGTH 6.0mm
(4)RoHS

INQUIRY

DOWNLOAD

PART NUMBER	SIZE	FILE TYPE	DRAWINGS
MVX22-2XXXC-H	253KB	PDF	DOWNLOAD
MVX25-2XXXC60C-H	252KB	PDF	DOWNLOAD
MVX27-2XXXC35C-H	255KB	PDF	DOWNLOAD
MVX32-2XXXC-H	98KB	PDF	DOWNLOAD
