Board & Wire Connector Pin / Female Header FED2X

Pin / Female Header

FED2X

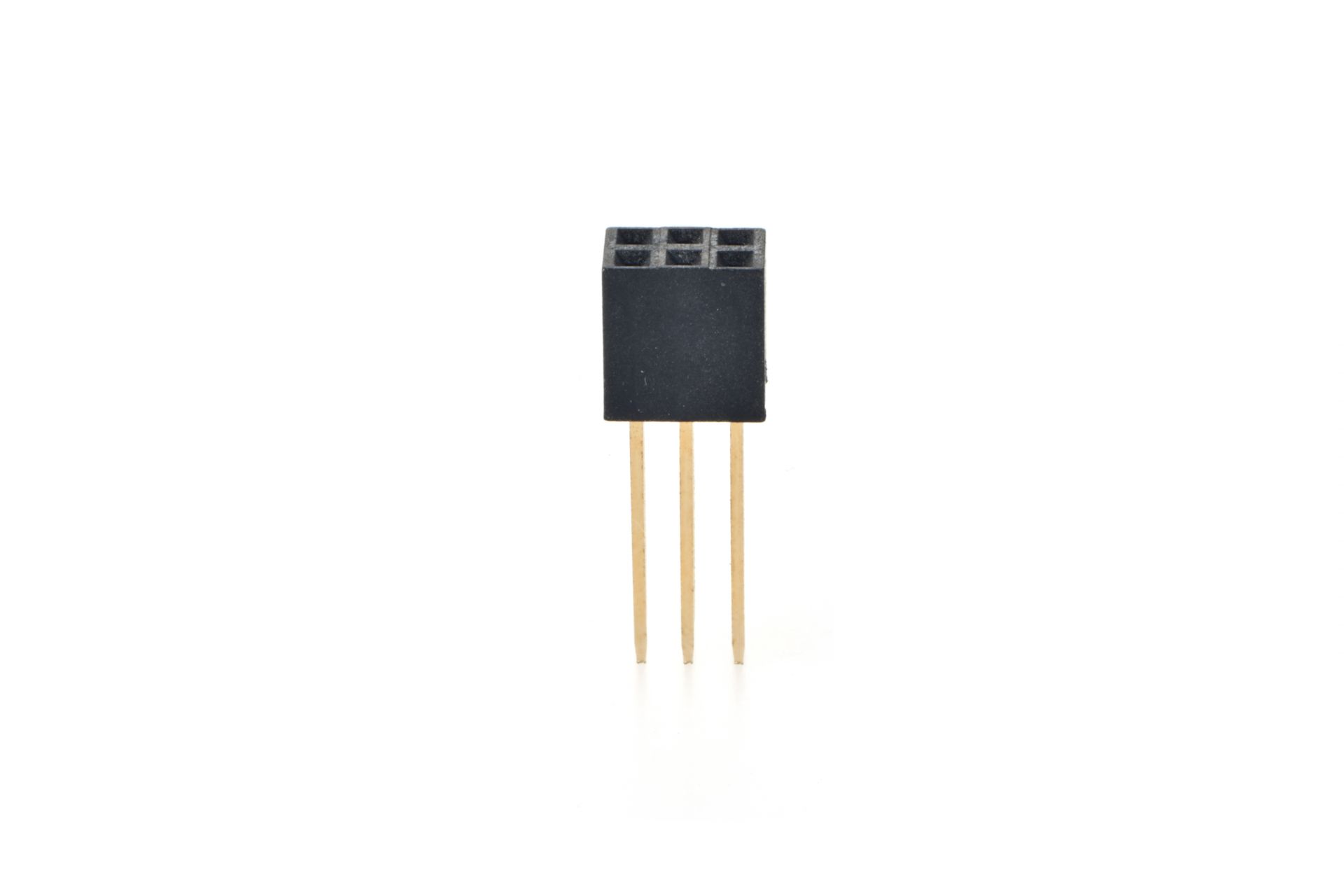

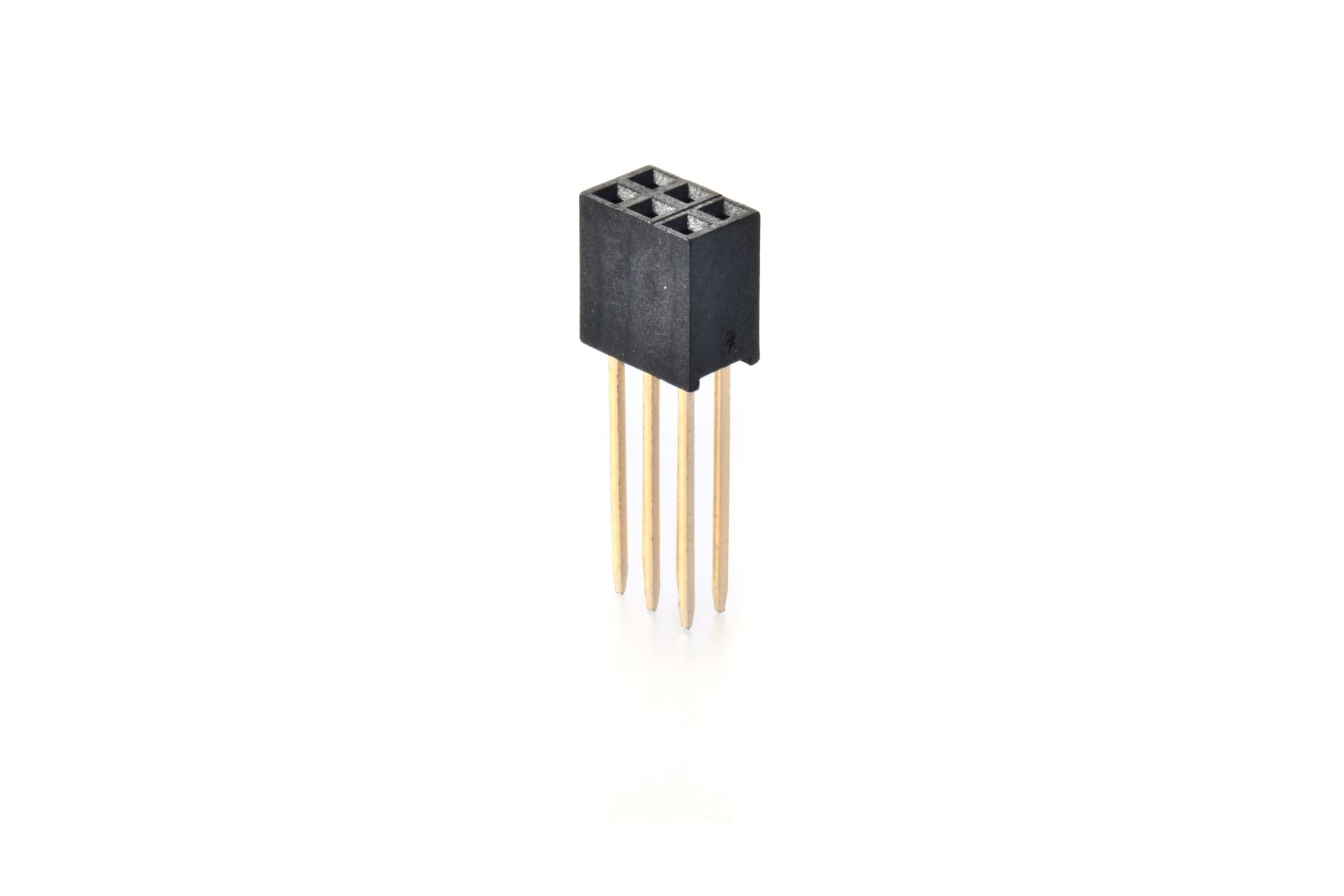

2.54mm FEMALE HEADER DIP 180° DUAL ROW

FED2X
30
(1)
D123
(2)
H
(3)
H
(4)

Description

(1)02~40:NO. OF POSITION / PER ROW
(2)D123:DIP LENGTH 12.3mm
D62:DIP LENGTH 6.2mm
(3)WITHSTAND HIGH TEMPERATURE
(4)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	FED2XXXD62-HH	250KB	PDF	DOWNLOAD
	FED2XXXD123-HH	250KB	PDF	DOWNLOAD
