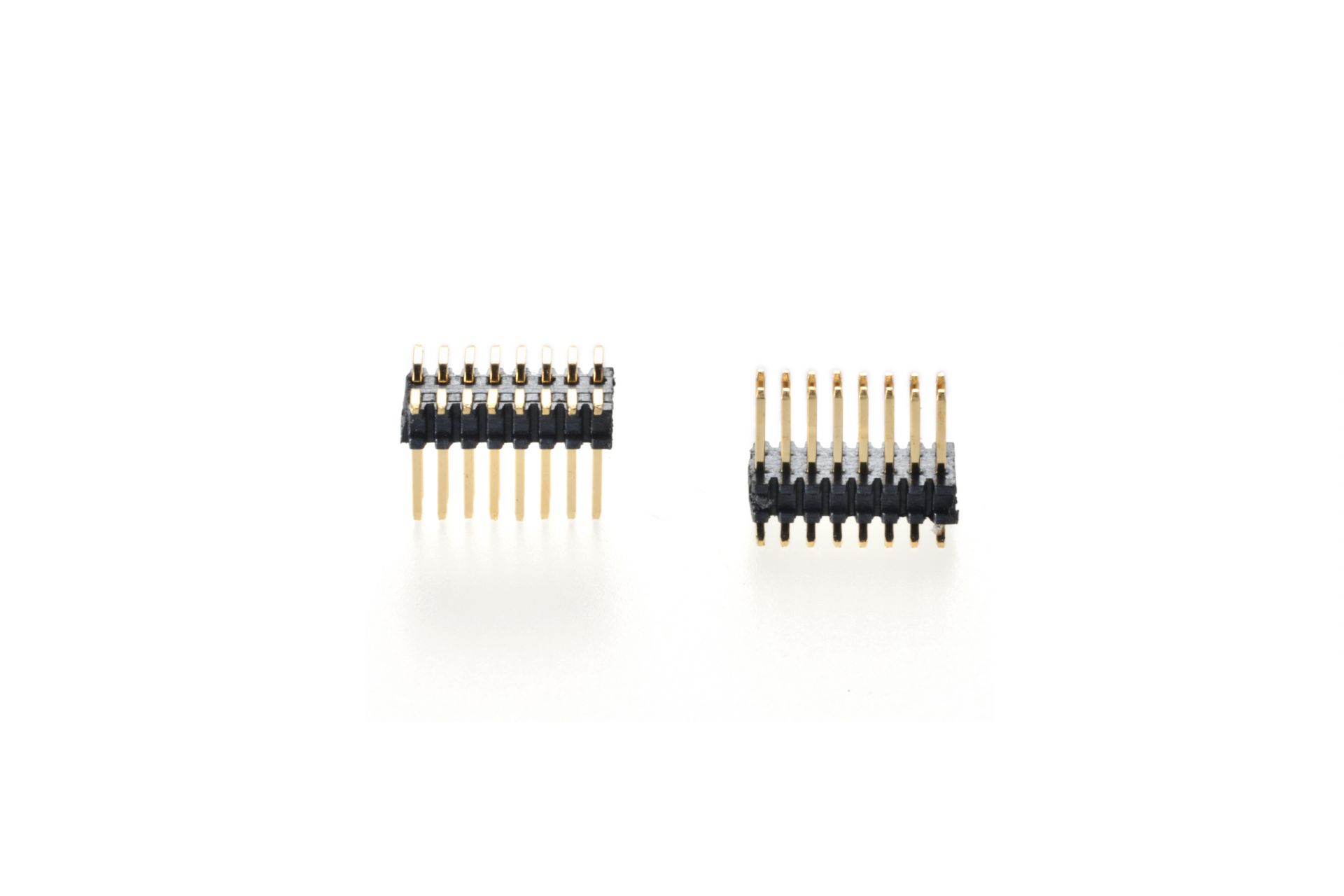

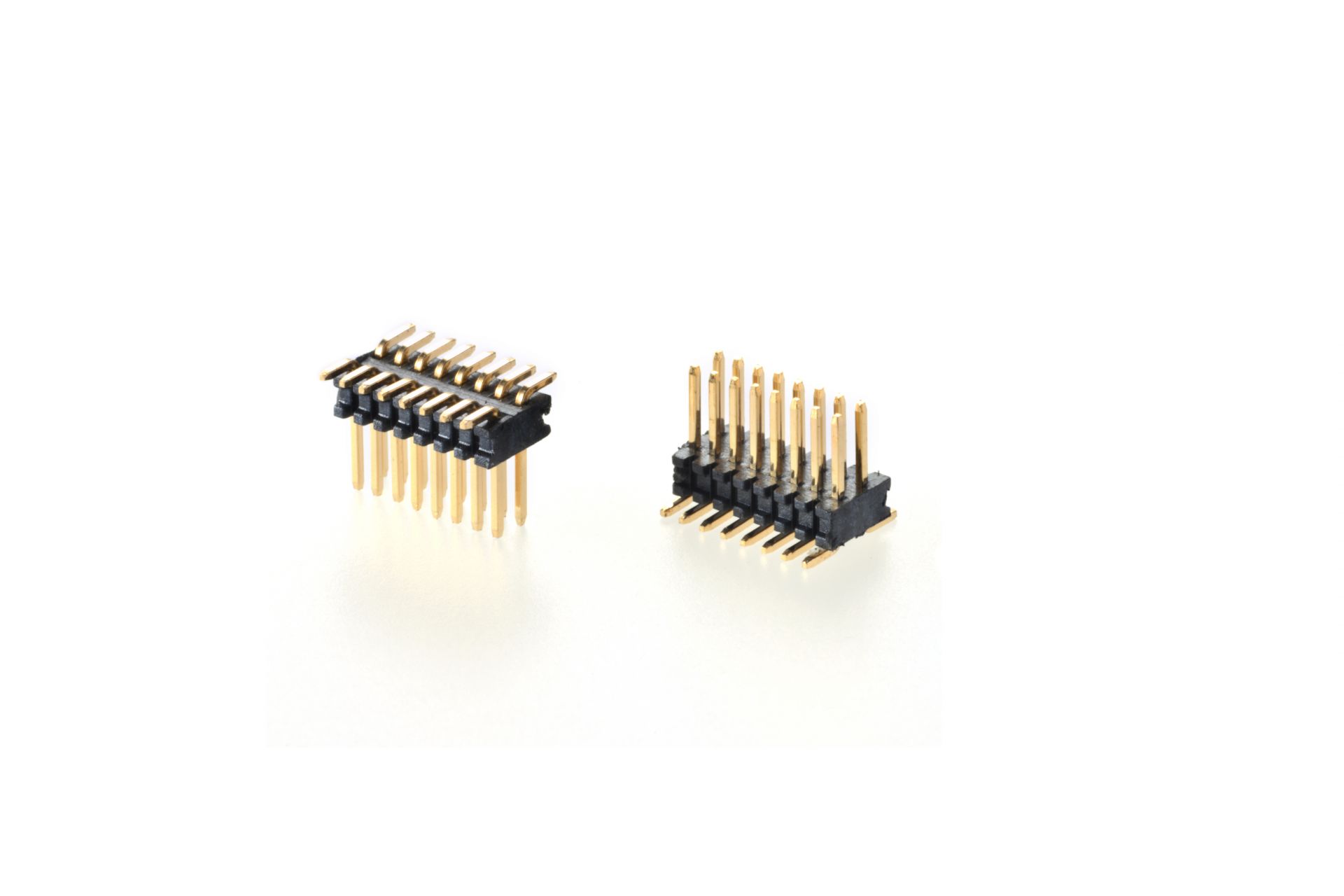

Board & Wire Connector Pin / Female Header BHVX/P18-2X

Pin / Female Header

BHVX/P18-2X

0.8X1.2mm PIN HEADER SMT 180° SMT HEIGHT=1.8mm DUAL ROW

BHV
P
(1)
18-2X
05
(2)
C28
(3)
H
(4)

Description

(1)P:WITH POST
X:WITHOUT POST
(2)02~40:NO. OF POSITION / PER ROW
(3)C28:CONTACT LENGTH 2.8mm
C45:CONTACT LENGTH 4.5mm
(4)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	BHVX18-2XXXC28C-H	269KB	PDF	DOWNLOAD
	BHVP18-2XXXC28C-H	278KB	PDF	DOWNLOAD
