Board & Wire Connector Pin / Female Header SVX/PXX-2X

Pin / Female Header

SVX/PXX-2X

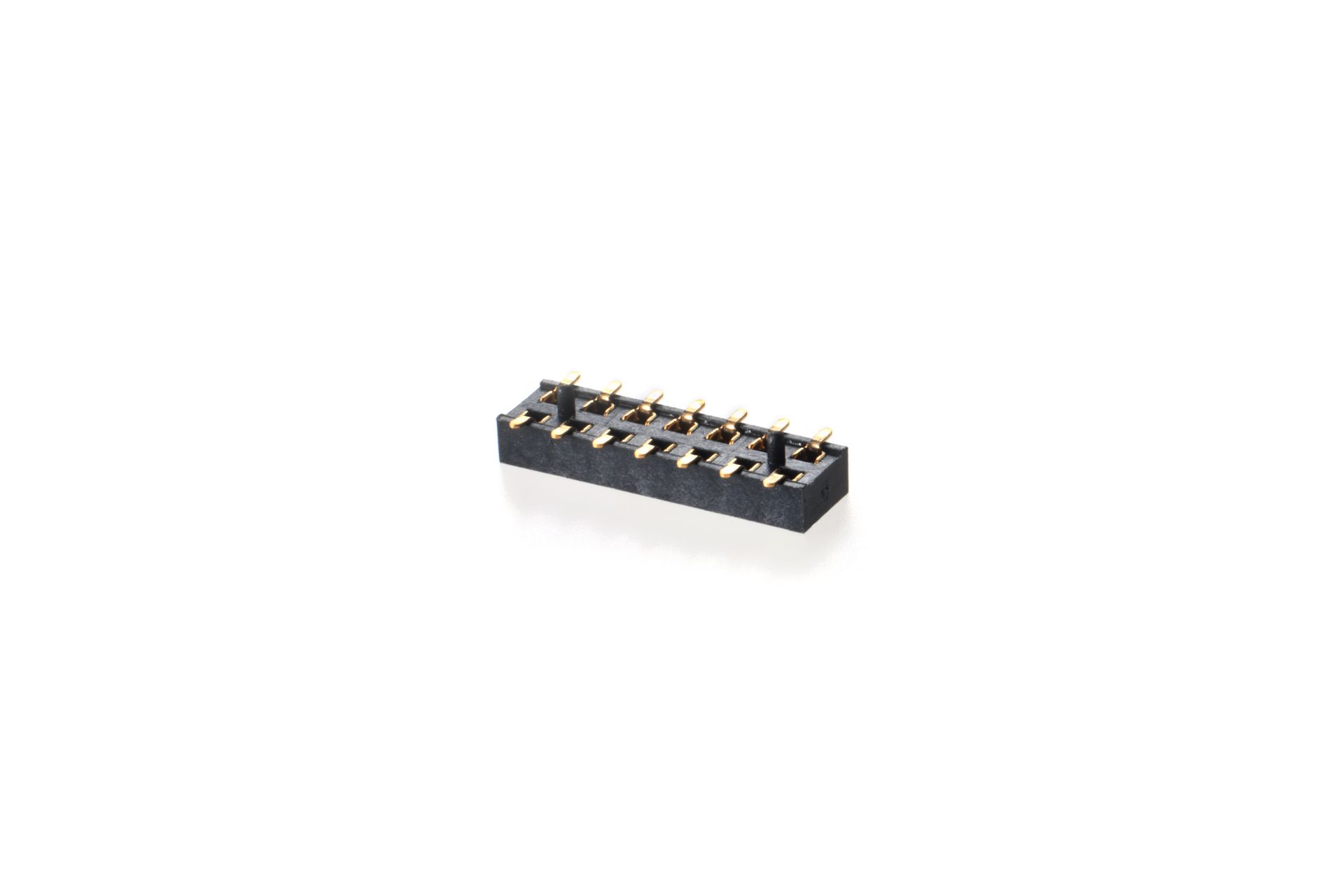

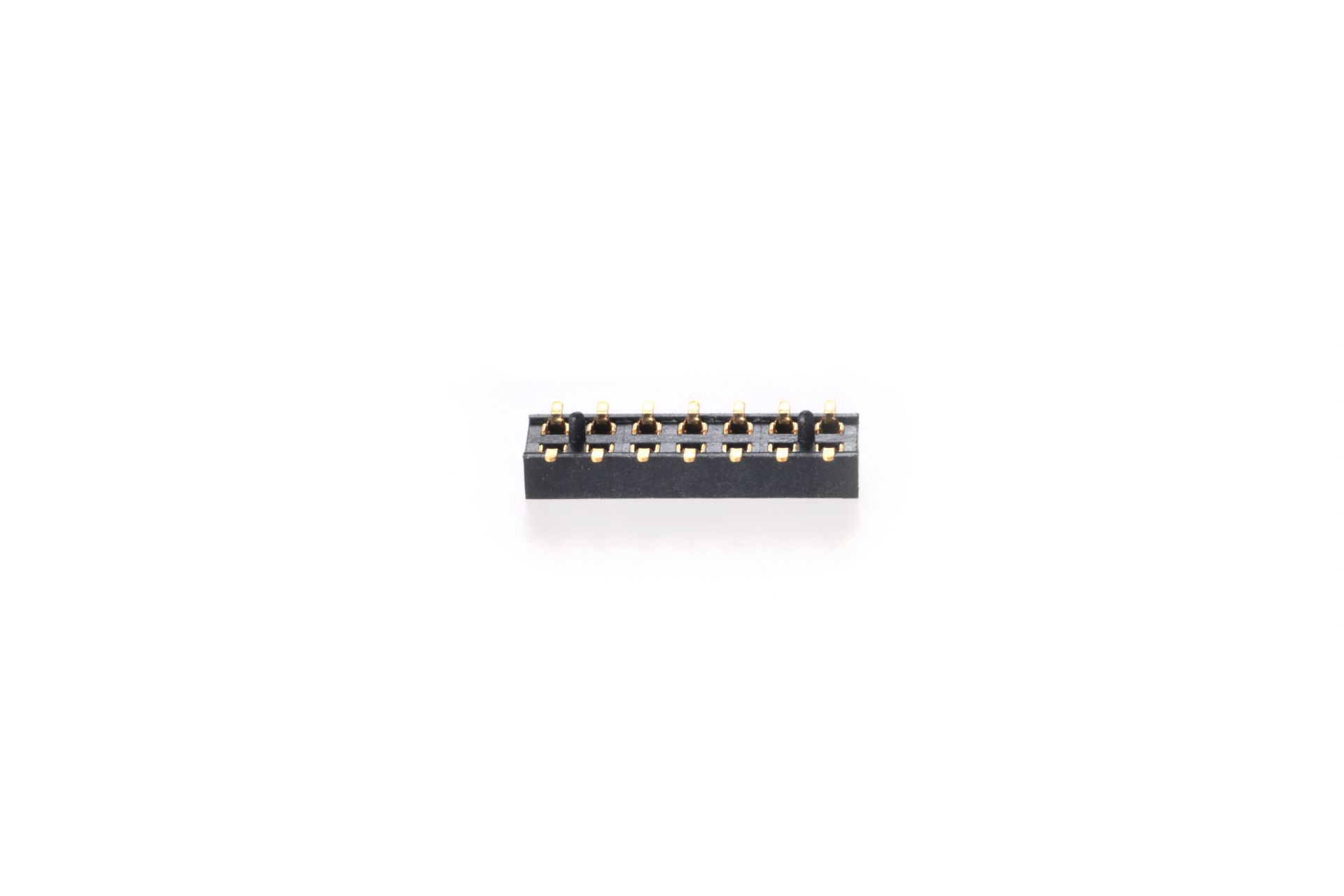

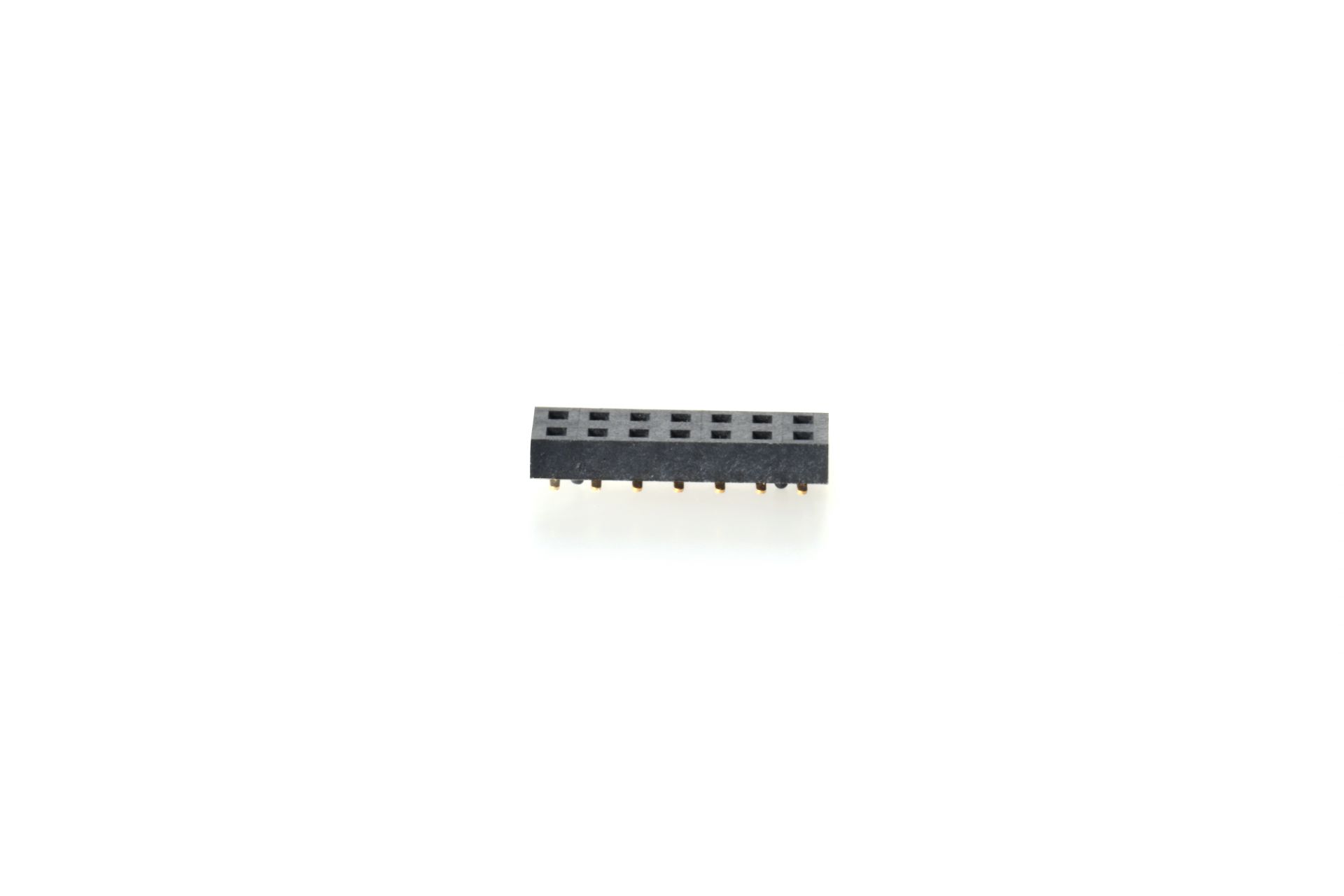

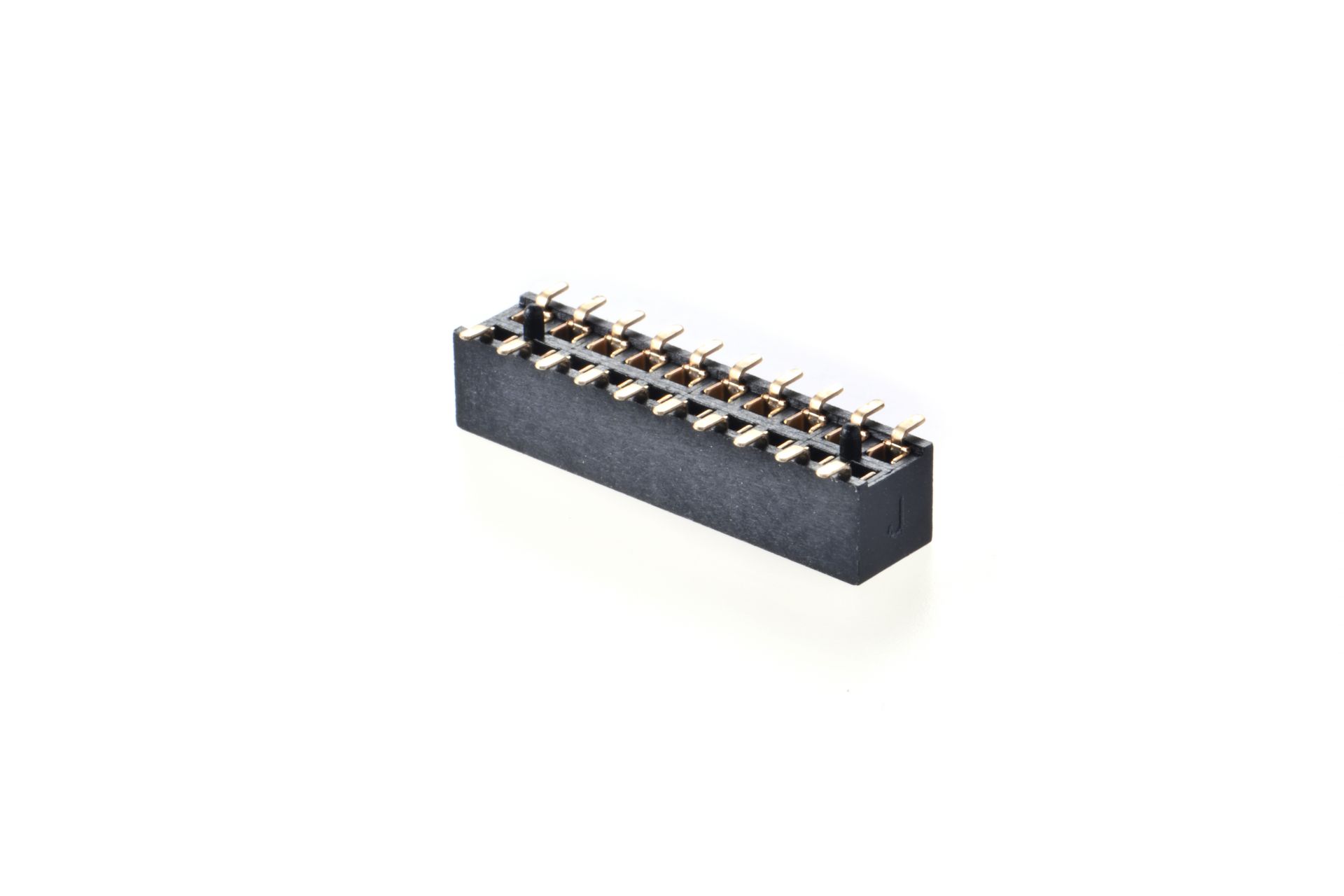

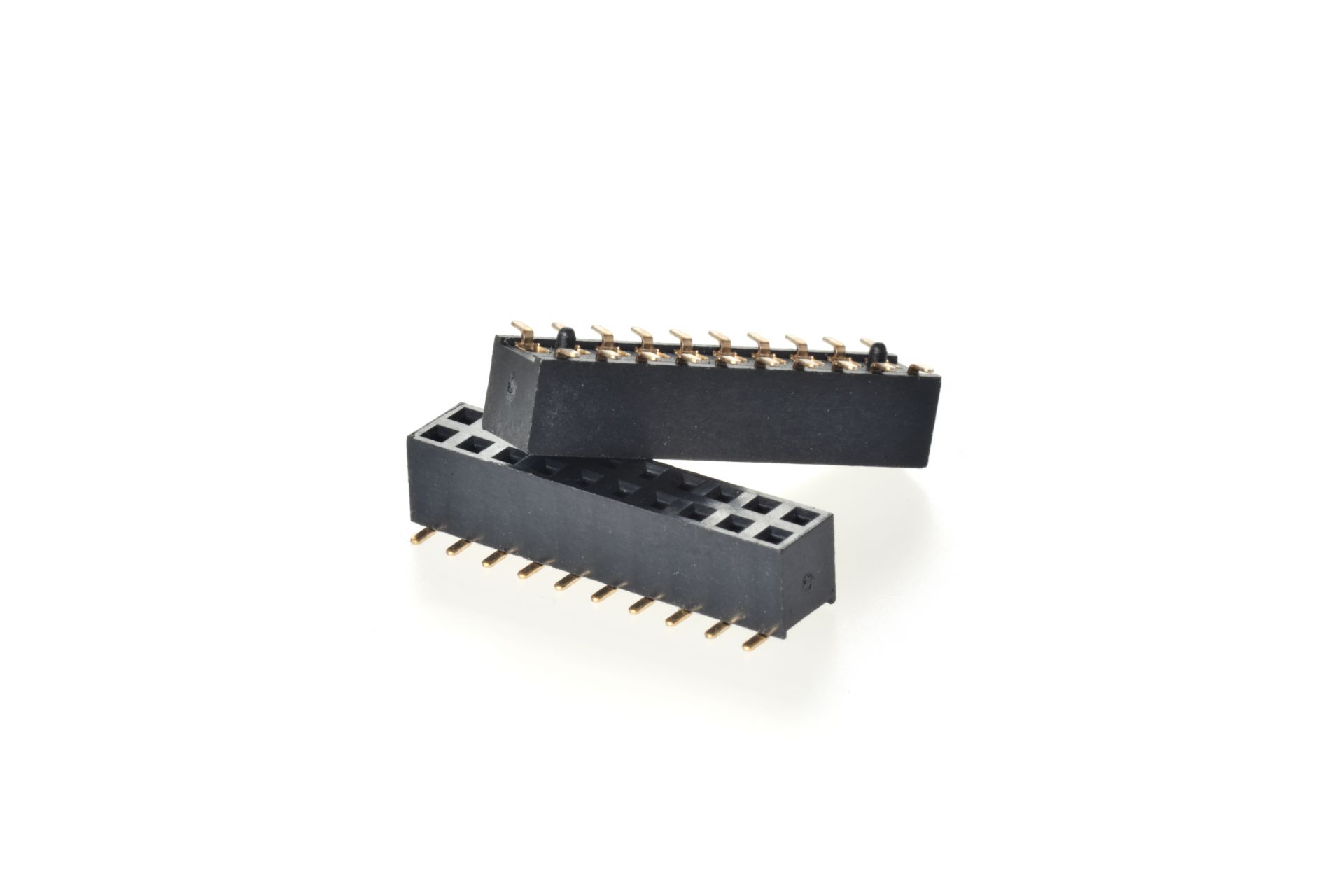

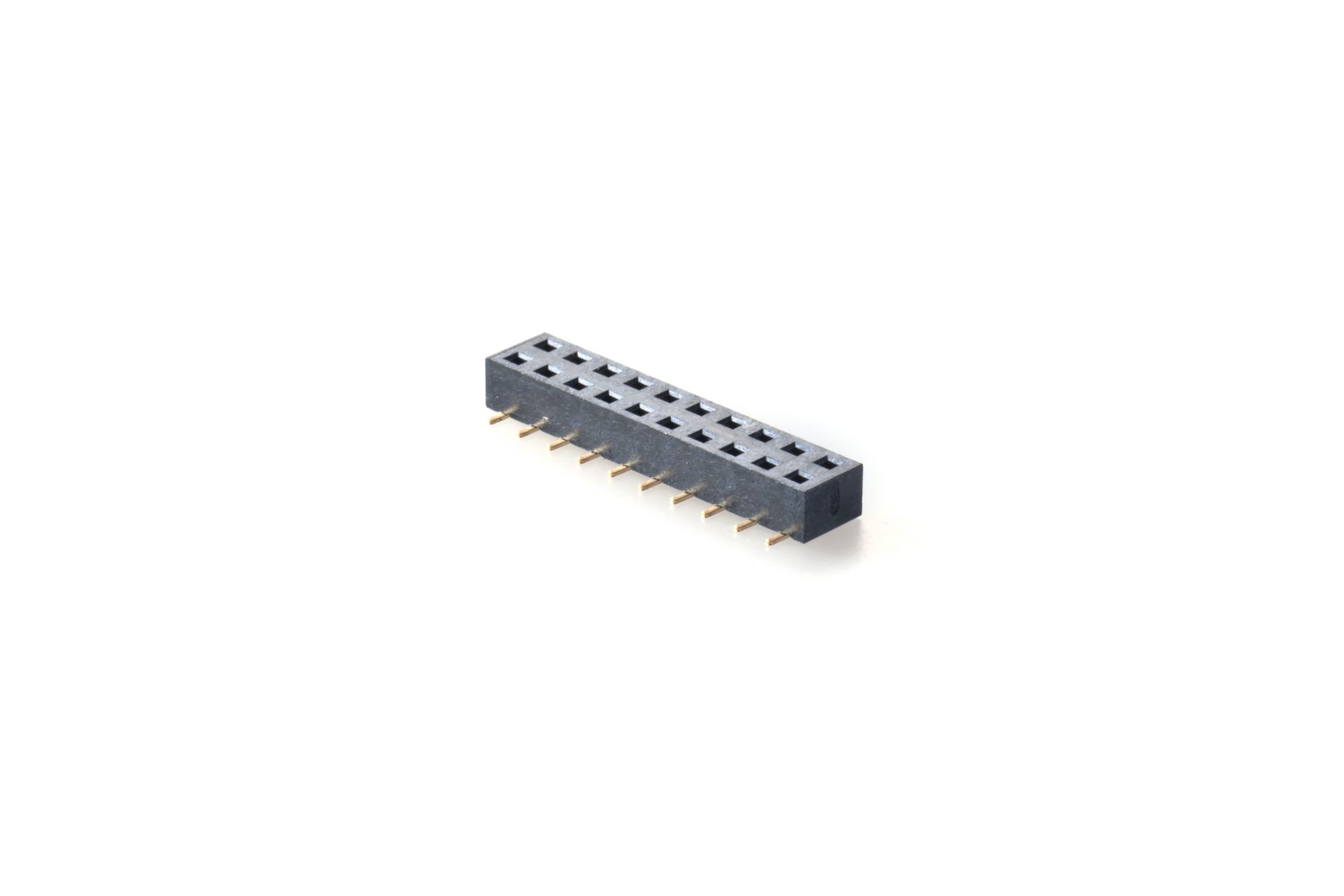

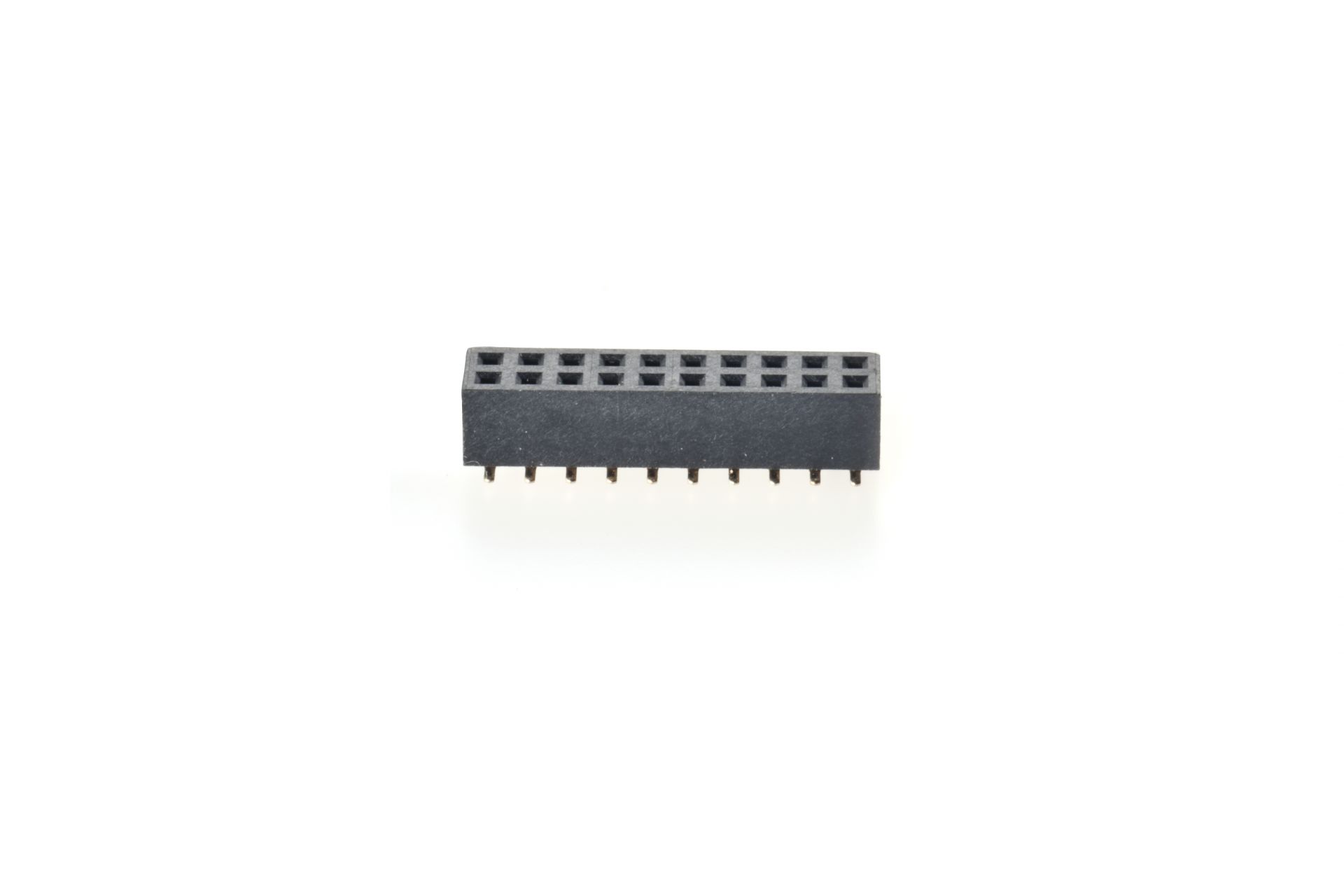

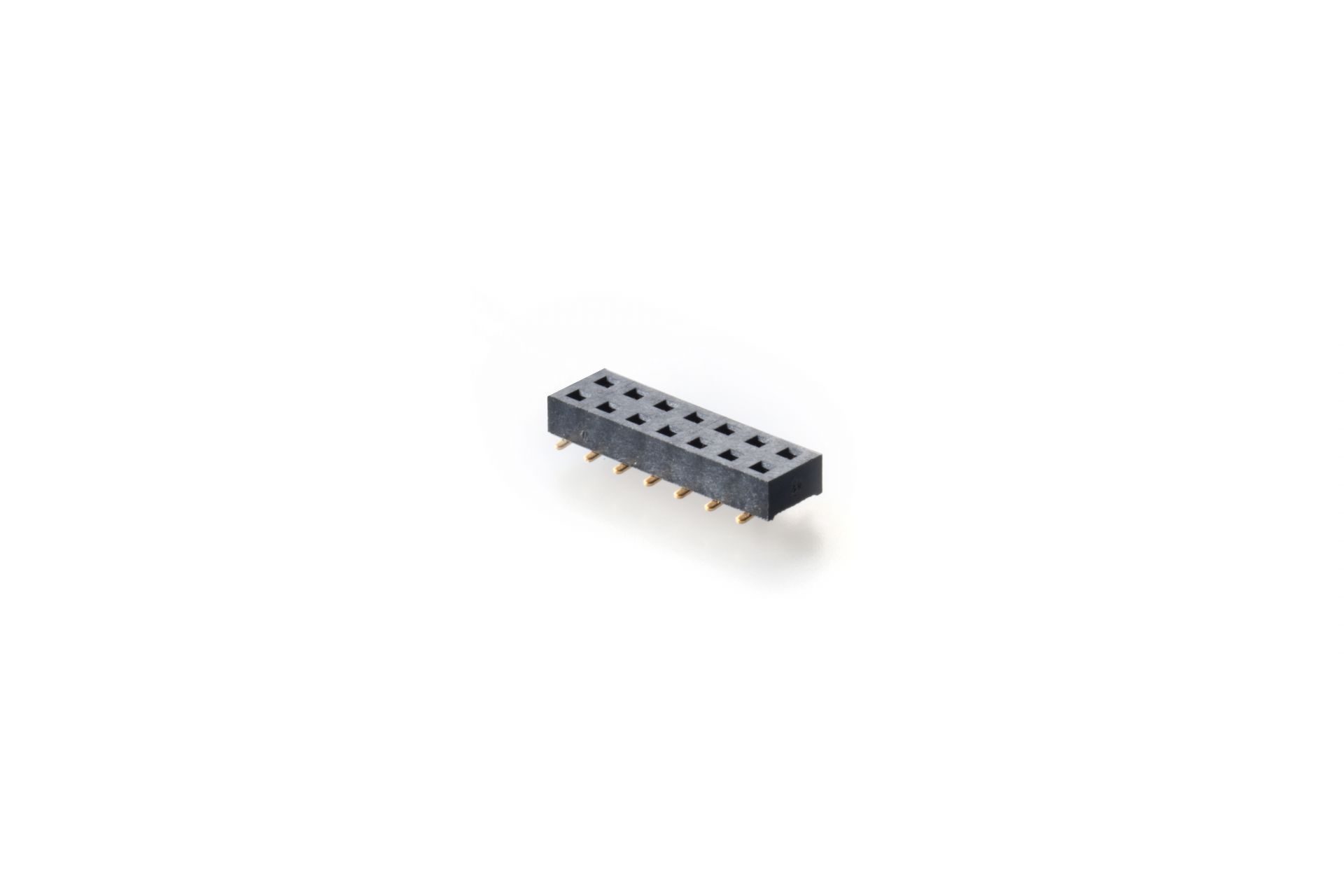

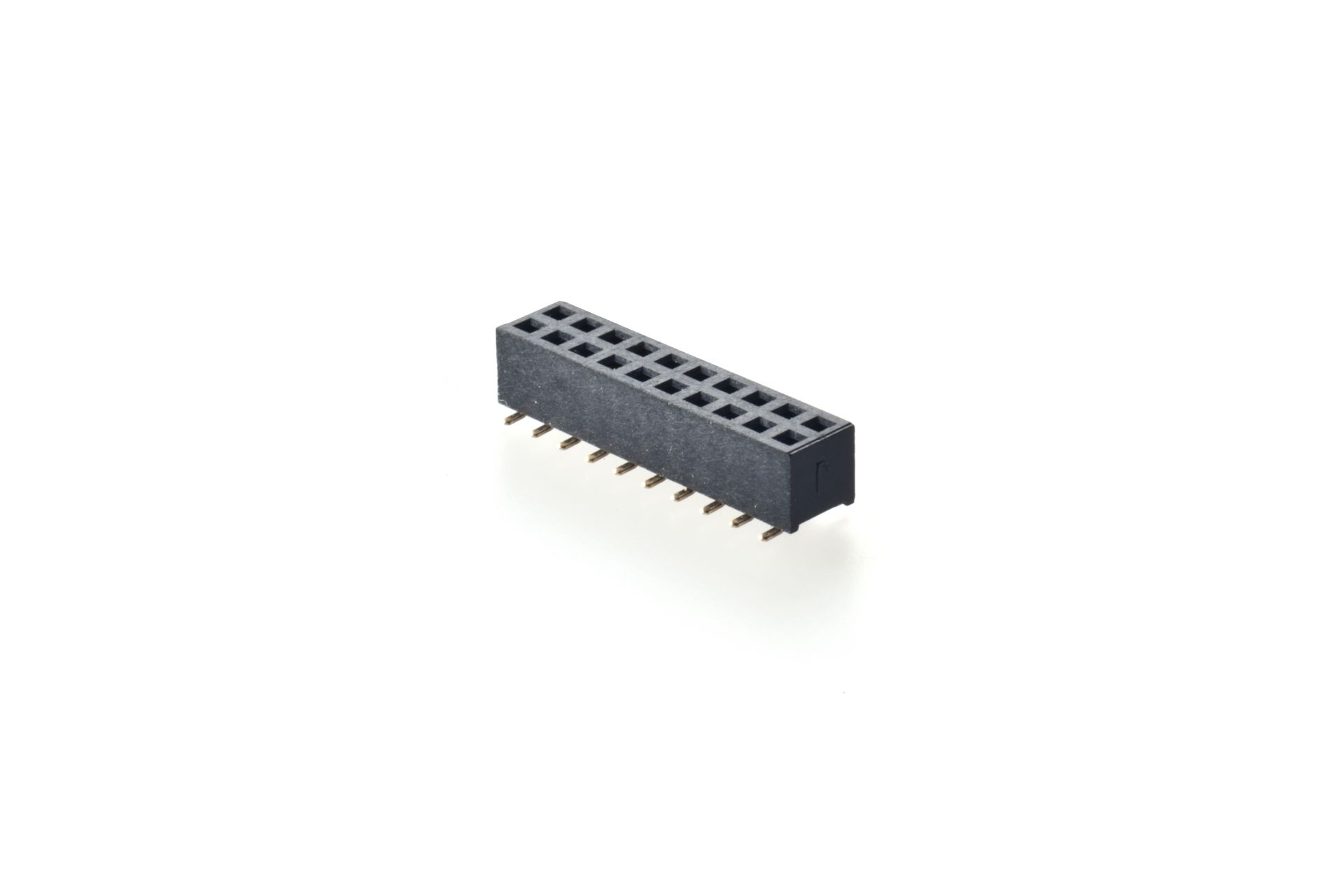

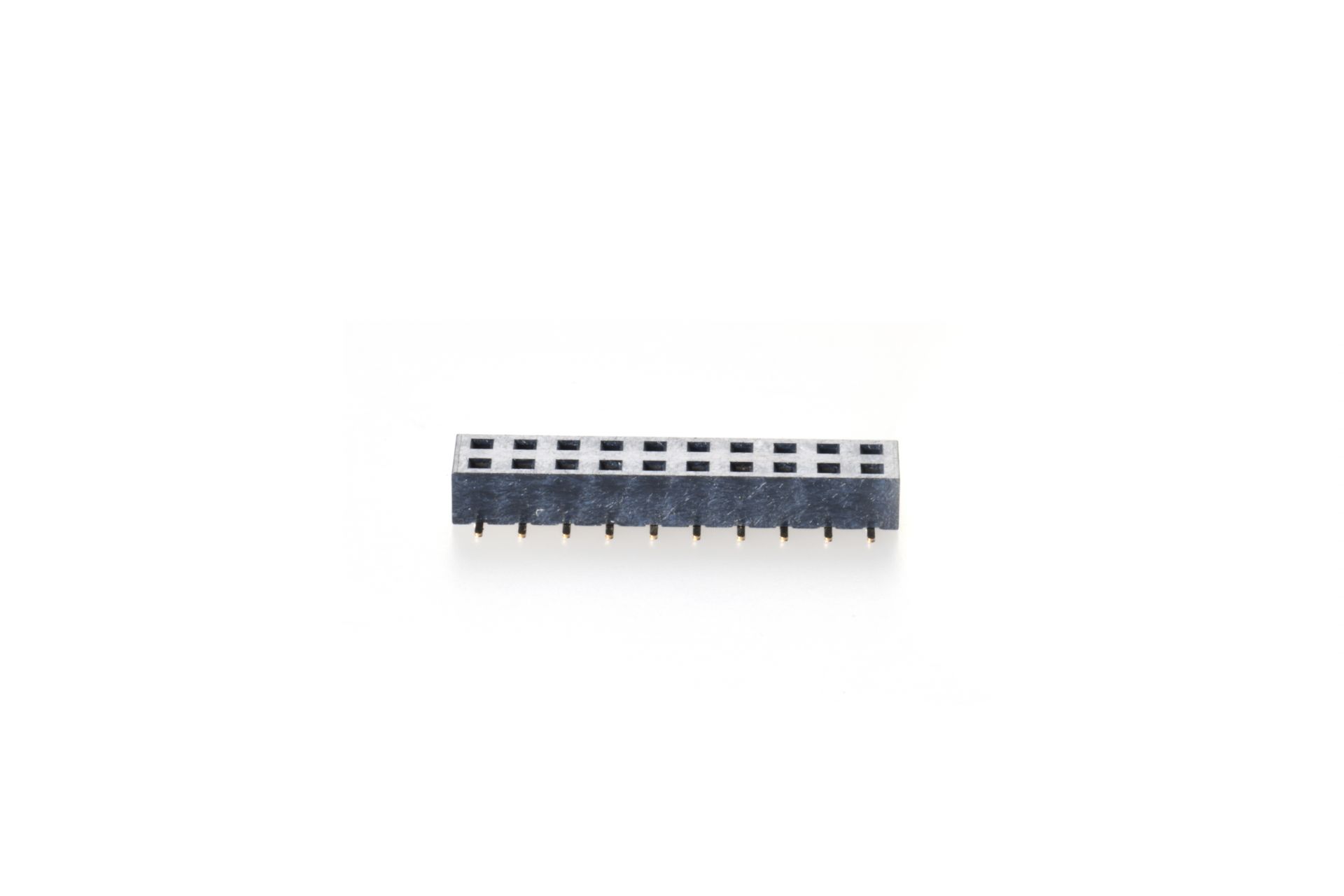

2.0mm FEMALE HEADER SMT 180° DUAL ROW

SV
P
(1)
24
(2)
2X
40
(3)
H
(4)

Description

(1)X:WITHOUT POST
P:WITH POST
(2)24:SMT HEIGHT 2.4mm
28:SMT HEIGHT 2.8mm
43:SMT HEIGHT 4.3mm
46:SMT HEIGHT 4.6mm
76:SMT HEIGHT 7.65mm
(3)02~40:NO. OF POSITION / PER ROW
(4)RoHS

INQUIRY

DOWNLOAD

PART NUMBER	SIZE	FILE TYPE	DRAWINGS
SVX28-2XXXC-H	104KB	PDF	DOWNLOAD
SVP28-2XXXC-H	251KB	PDF	DOWNLOAD
SVX43-2XXXC-H	282KB	PDF	DOWNLOAD
SVP43-2XXX-H	88KB	PDF	DOWNLOAD
SVP46-2XXX-H	290KB	PDF	DOWNLOAD
SVP76-2XXXC-H	110KB	PDF	DOWNLOAD
