Board & Wire Connector Pin / Female Header YAVPXX-2XXX-N

Pin / Female Header

YAVPXX-2XXX-N

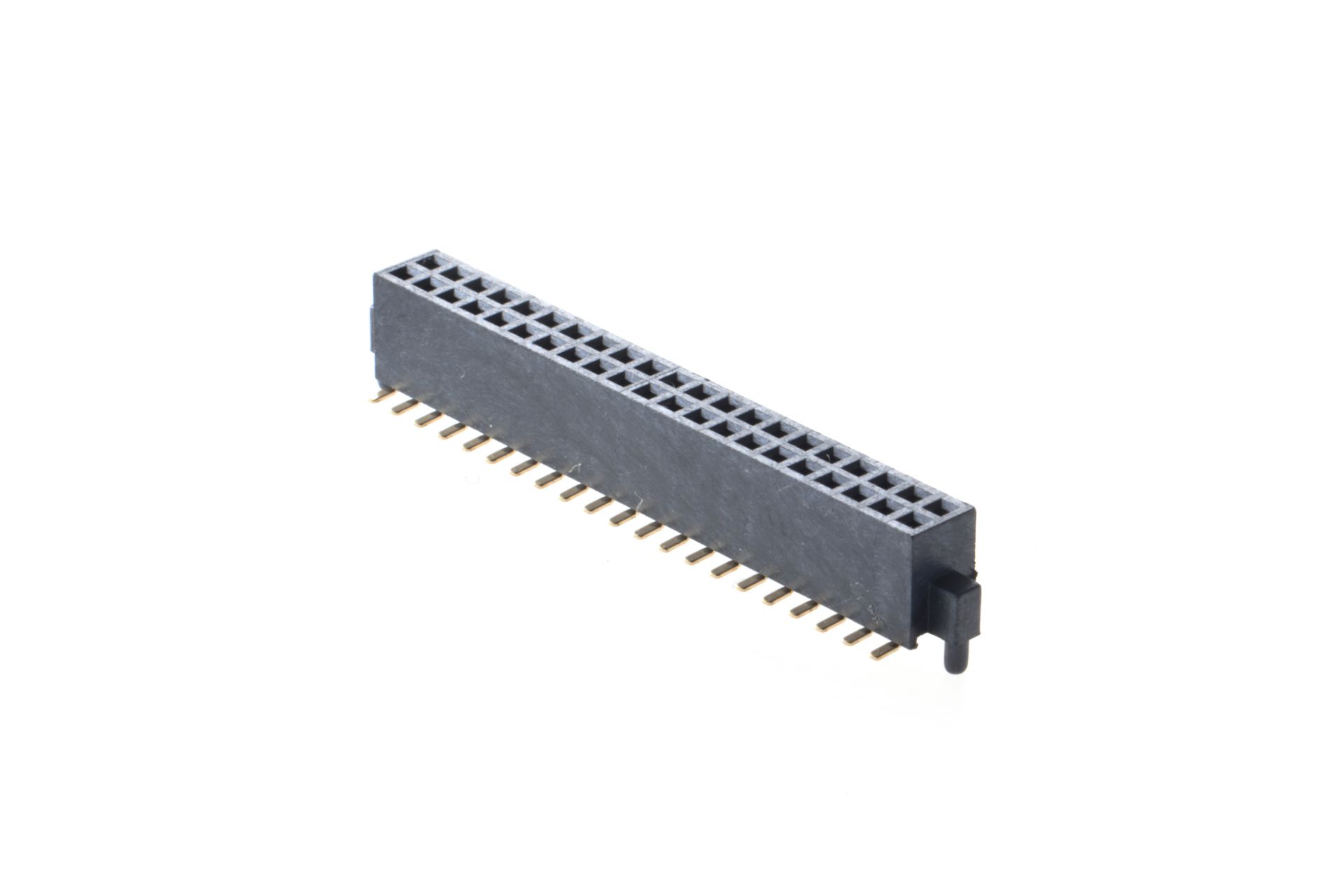

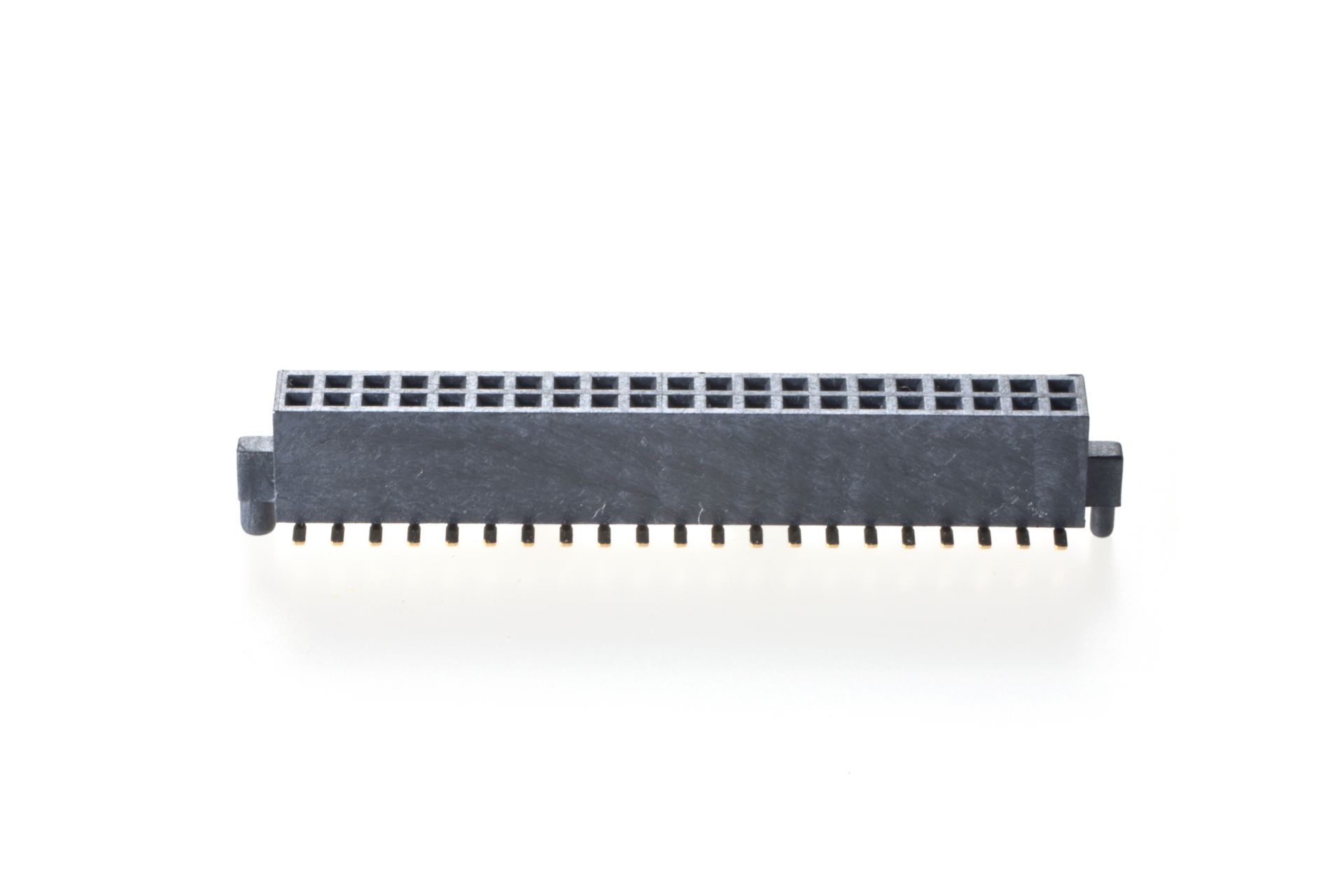

1.27X1.27mm FEMALE HEADER SMT 180° DUAL ROW WITH OUTER POST

YAVP
36
(1)
2X
20
(2)
C
(3)
N
H
(4)

Description

(1)36:3.6mm TOTAL HEIGHT
46:4.6mm TOTAL HEIGHT
(2)02~40:NO. OF POSITION / PER ROW
(3)BLANK:WITHOUT CAP
C:WITH CAP
(4)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	YAVP36-2XXX-N-H	114KB	PDF	DOWNLOAD
	YAVP46-2XXXC-N-H	305KB	PDF	DOWNLOAD
