Board & Wire Connector Pin / Female Header FVXXX-2X

Pin / Female Header

FVXXX-2X

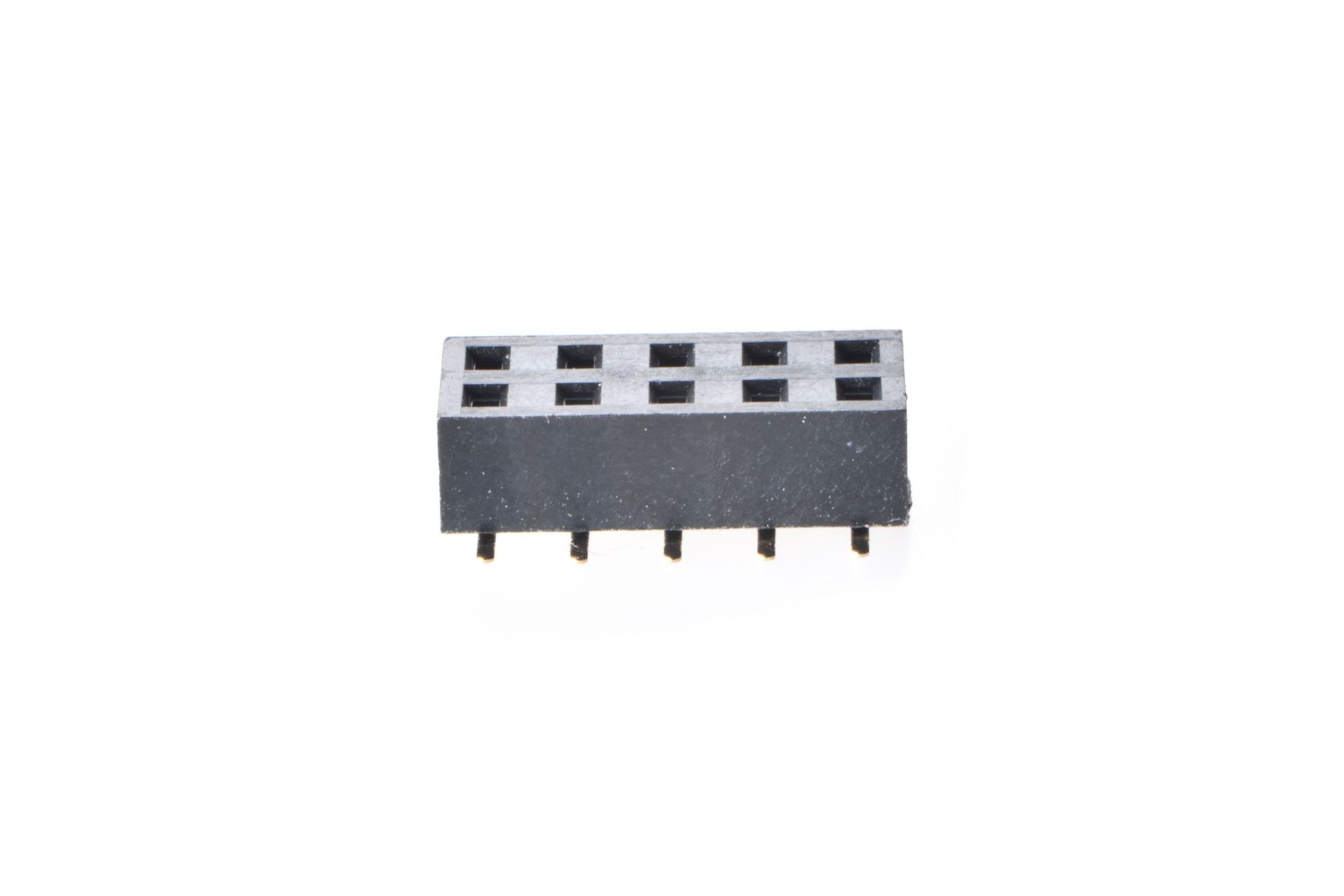

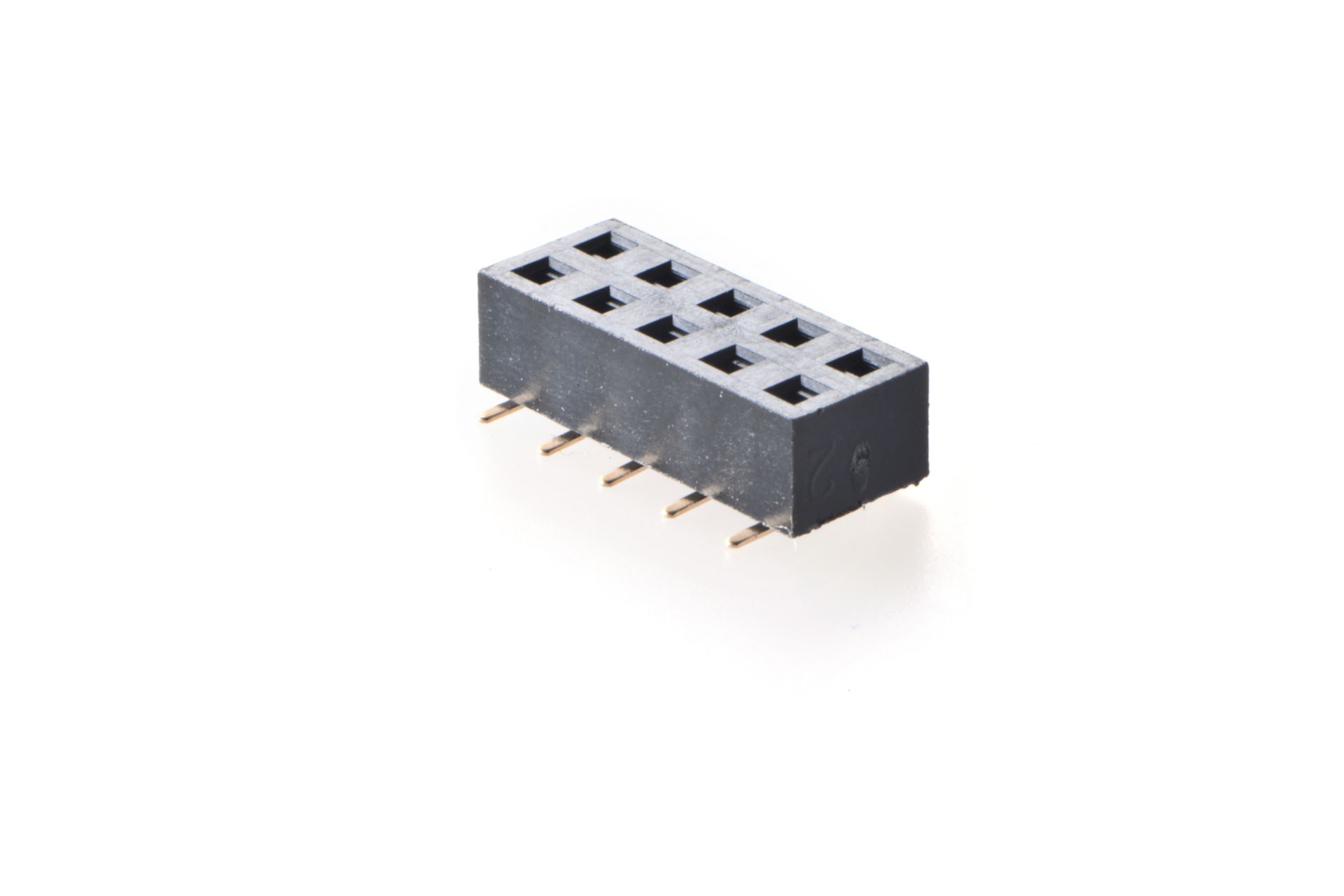

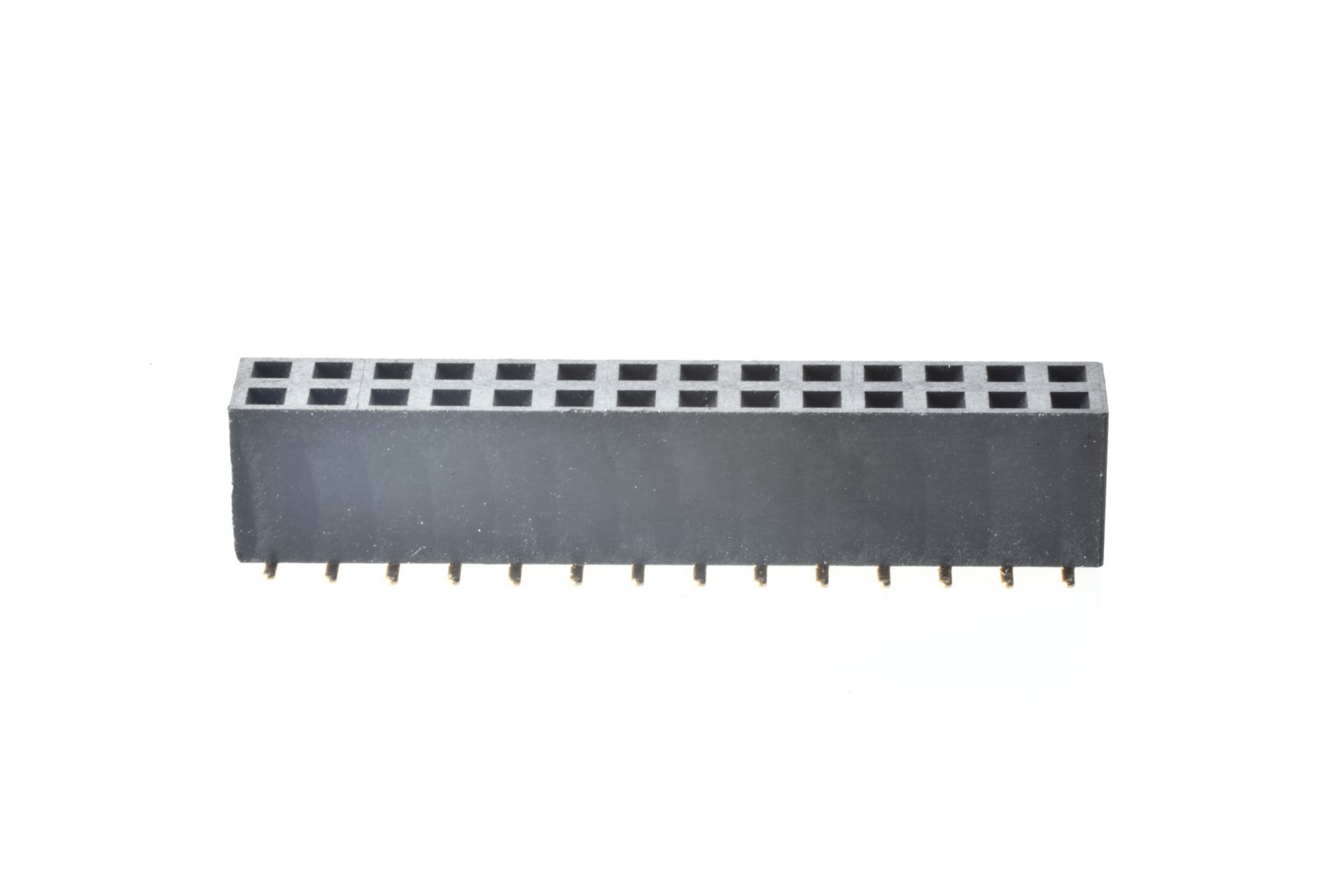

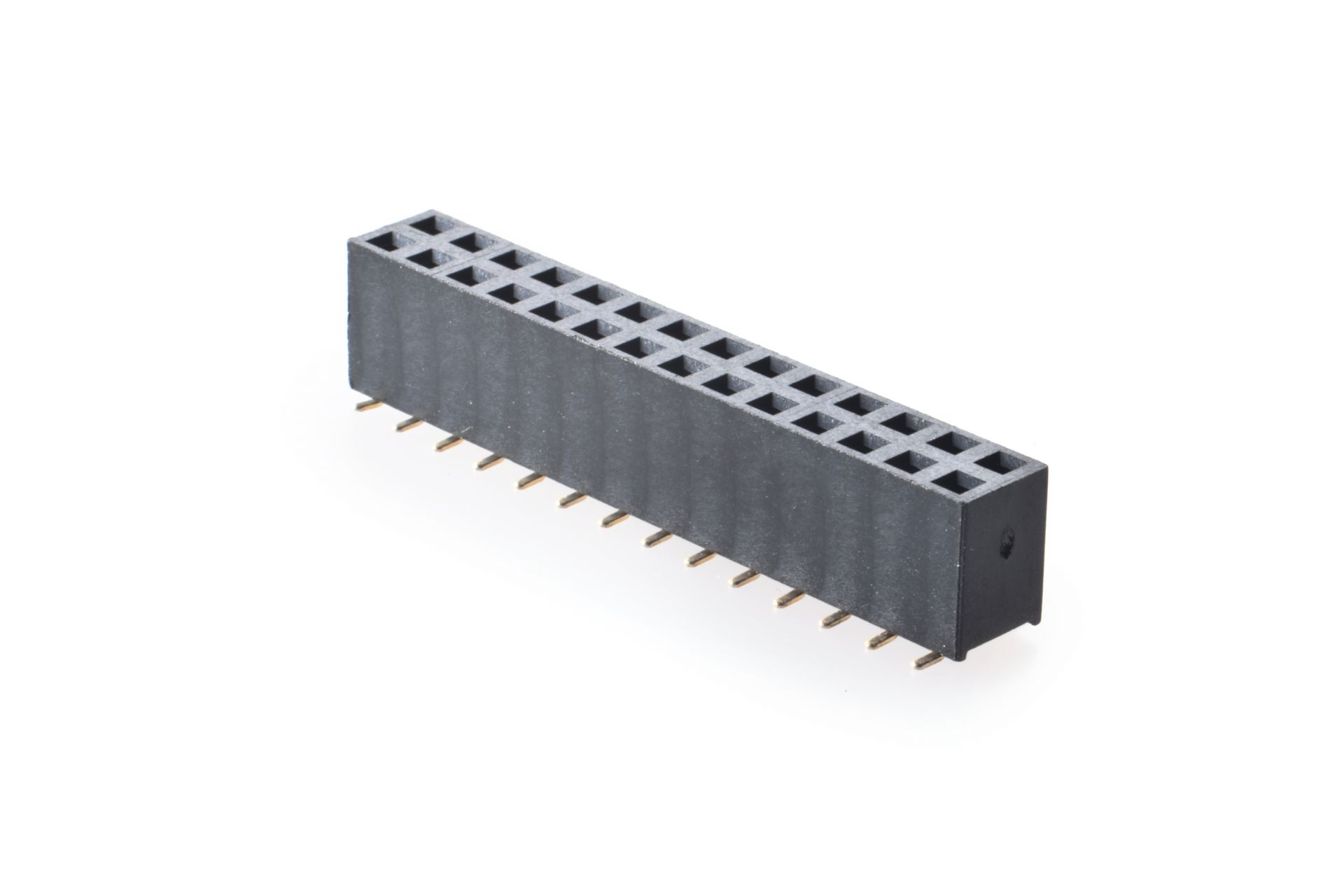

2.54mm FEMALE HEADER SMT 180° WITHOUT POST DUAL ROW

FVX
75
(1)
2X
20
(2)
C
(3)
H
(4)

Description

(1)38:3.8mm TOTAL HEIGHT
75:7.5mm TOTAL HEIGHT
89:8.9mm TOTAL HEIGHT
(2)02~40:NO. OF POSITION / PER ROW
(3)BLANK:WITHOUT CAP
C:WITH CAP
(4)RoHS

INQUIRY

DOWNLOAD

PART NUMBER	SIZE	FILE TYPE	DRAWINGS
FVX37-2XXXC-H	273KB	PDF	DOWNLOAD
FVX75-2XXXC-H	264KB	PDF	DOWNLOAD
FVX97-2XXXC-H	259KB	PDF	DOWNLOAD
