Board & Wire Connector Pin / Female Header PABVX

Pin / Female Header

PABVX

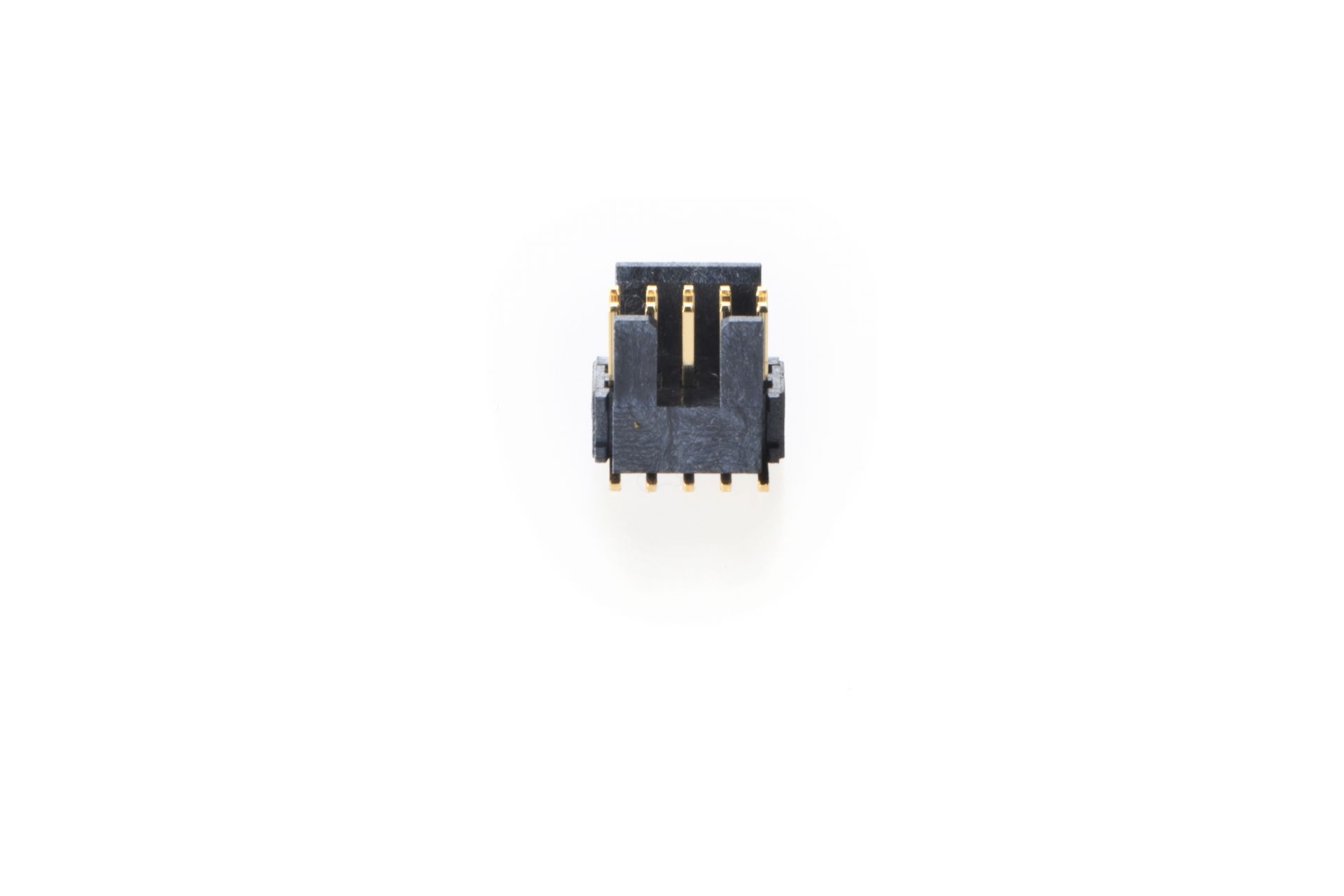

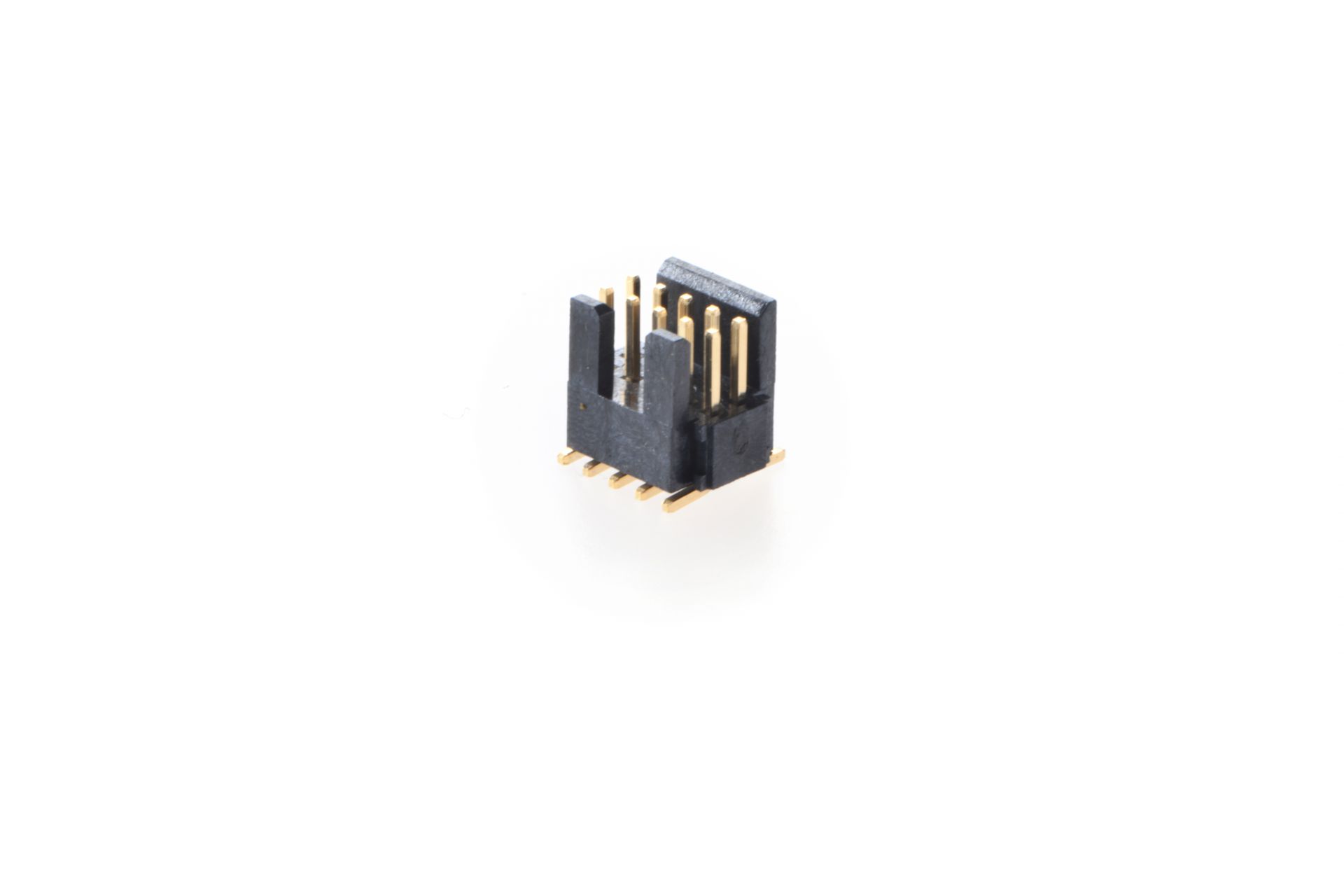

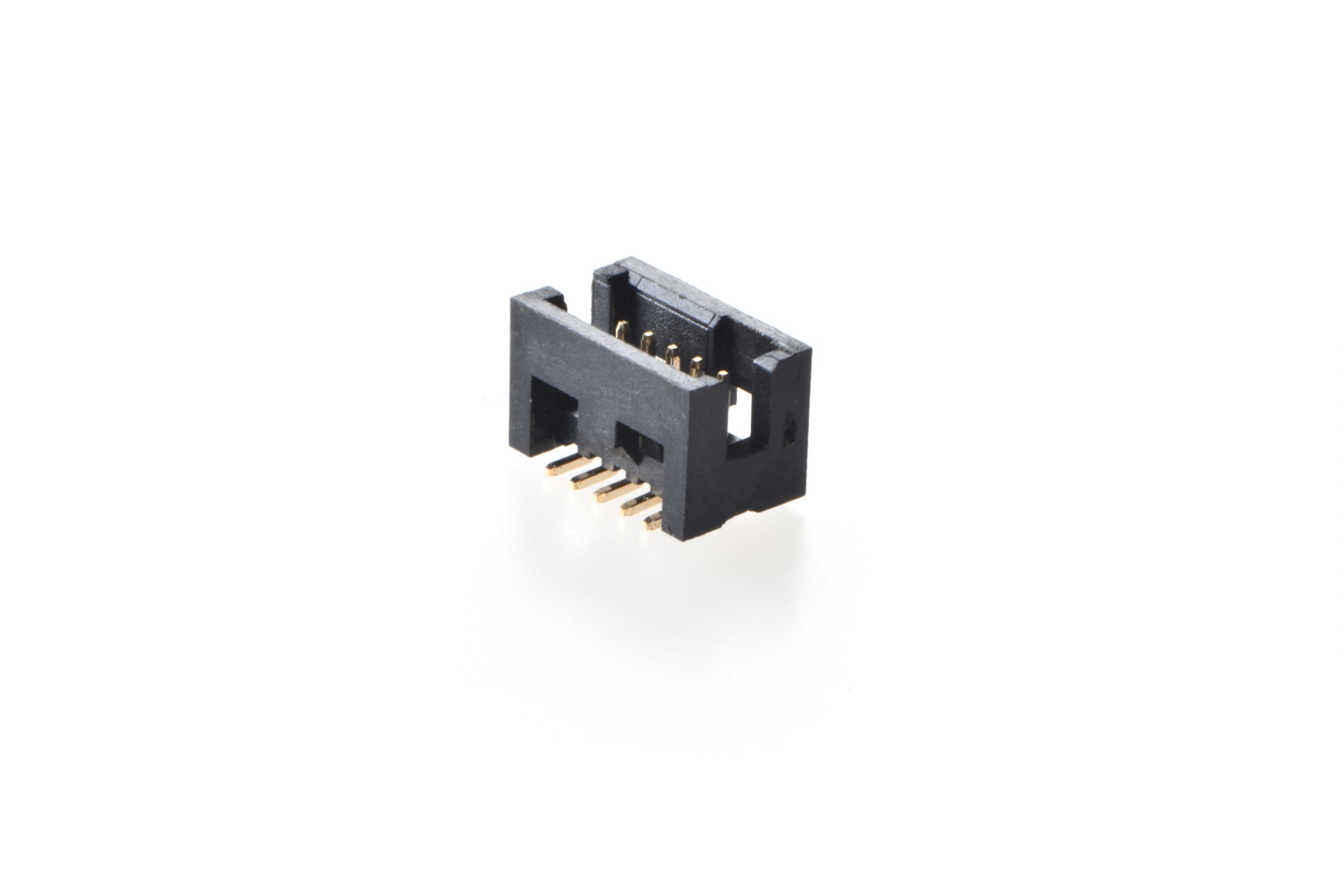

1.27X1.27mm PIN HEADER BOX TYPE SMT 180° DUAL ROW

PABVX2X
20
(1)
K
(2)
C
(3)
H
(4)

Description

(1)02~40:NO. OF POSITION / PER ROW
(2)K:KEYING SHROUD
(3)BLANK:WITHOUT CAP
C:WITH CAP
(4)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	PABVX2XXXC-H	310KB	PDF	DOWNLOAD
	PABVX2XXXKC-H	269KB	PDF	DOWNLOAD
